Mediterranean House Plan with For A Skinny Lot

Plan 86036BW

  • 2,658

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • Long and narrow, this upscale Mediterranean house plan comes in at less than 45' in width - ideal for a narrow lot.
  • Double doors off the foyer open to a study with a lovely coffered ceiling.
  • The family bedroom wing is to the right of the foyer and each bedroom gets a walk-in closet.
  • The heart of the home is the huge open great room that holds the kitchen, dining room and great room with its coffered ceiling.
  • Sliding glass doors on two walls take you out to the fabulous covered outdoor area that boasts a fireplace and summer kitchen.
  • The secluded master suite has a door right out to the porch.
  • Add the optional seven-sided flex room that has windows on five walls for an extra 334 square feet.
  • Related Plan: Add a flex room with pool bath with house plan 86055BW.
  • NOTE:  Restrictions may apply if building in Lee or Collier County, Florida.  Please contact us for details.

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)


These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

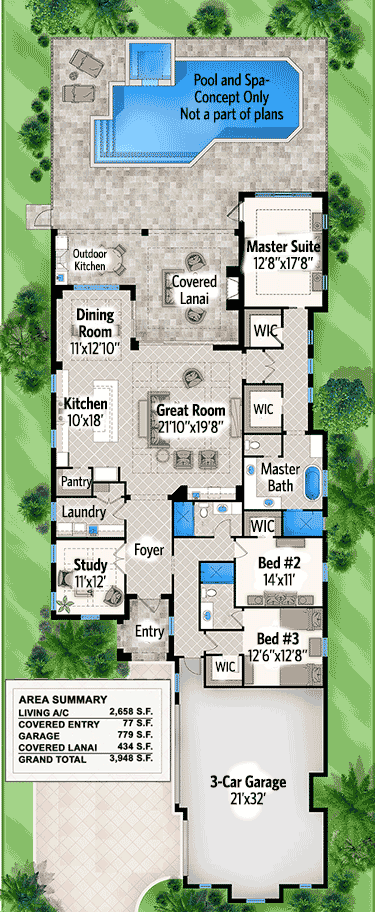

Mediterranean House Plan with For A Skinny Lot - 86036BW floor plan - Main Level

Mediterranean House Plan with For A Skinny Lot

  • 2,658

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,658 sq. ft.
  • 1st Floor: 2,658 sq. ft.

Dimensions

  • Width: 44' 8"
  • Depth: 114' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 779 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
