Plan 66335WE

Mediterranean House Plan with In-Law Apartment - 3855 Sq Ft

Heated S.F.
3,855
Beds
4 - 5
Baths
4 - 5
Stories
2
Cars
3

Floor Plan

Plan 66335WE

Main Level
Main Level
2nd Floor
2nd Floor

Plan 66335WE

M-F 9am-5pm EST |

1-203-761-8500

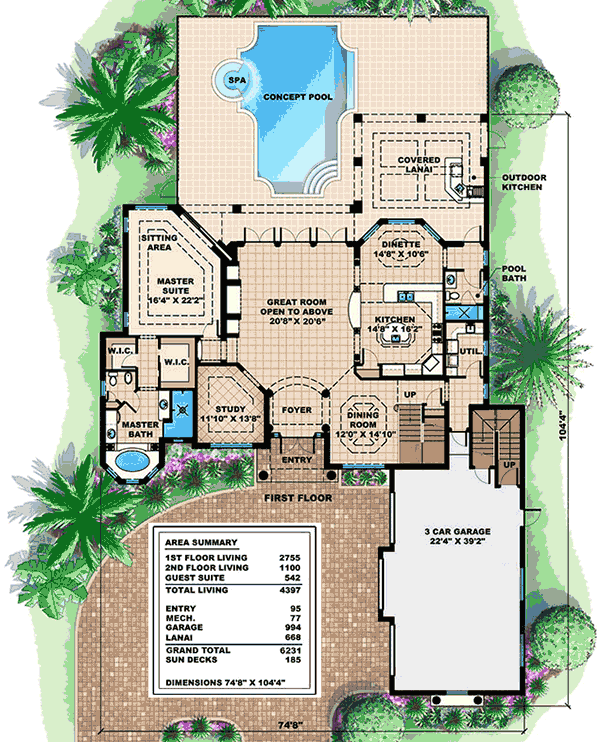

Main Level

Plan 66335WE: Mediterranean House Plan with In-Law Apartment - 3855 Sq Ft - Floor Plan - Main Level - Florida-Style, Mediterranean

2nd Floor

Plan 66335WE: Mediterranean House Plan with In-Law Apartment - 3855 Sq Ft - Floor Plan - 2nd Floor - Florida-Style, Mediterranean

Plan Details

  • A stunning roof line and arched windows set the stage for the luxury found inside this Mediterranean house plan.
  • Marvelous sightlines start right at the front door and extend all the way back through to the rear covered lanai.
  • The great room is two-story and has built-ins and three sets of double doors to take you outside.
  • A half wall in the kitchen lets you pass snacks across to the great room and keeps the views flowing.
  • The main floor master suite boasts a sitting are plus a double tray ceiling and a superb master bathroom with big soaking tub.
  • Every bedroom on the second floor is also luxurious with a sun deck available to bedrooms 3 and 4.
  • A separate entrance in the garage takes you to the comfortable in-law apartment with its own kitchen and a deck off the bedroom.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,855 sq. ft.

1st Floor

2,755 sq. ft.

2nd Floor

1,100 sq. ft.

Entry

95 sq. ft.

Balcony / Veranda

185 sq. ft.

Lanai

668 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4 or 5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

74' 8"

Depth

104' 4"

Max Ridge Height

41' 2"

Garage

Type

Attached

Area

994 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Formal Dining

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Outdoor Kitchen

Two Story Great Room
