Plan: 66233WE

Mediterranean Jewel

6,295 4 5 2 4
Pageloader

Mediterranean Jewel

Plan 66233WE

  • 6,295

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Stories

  • 4

    Cars

  • Imagine this Mediterranean jewel, with its rich finishes of stone banding and columns, natural wood doors and course timbers for the trellis. Upon entering the foyer with its grand sweeping stairs, this home carries its volume to the second floor bridge. Straight ahead you will notice the spectacular living room opening to the second floor, with a clearstory alignment of a radial glass wall and graceful views across a reflection pond, dropping off to the pool below with a disappearing edge. A gallery runs from right to left of the foyer. To the right holds a formal dining, large enough to seat at least two families or more.
  • On the way to the kitchen is a wet bar and guest bath. As you pass below an arched opening into the main living area, the amenities are abundant with a corner fireplace, built-in entertainment center and zero corner pocket sliding glass doors in the family room. A radial dinette with solid mitered glass allows seamless views to the outdoor areas while bringing in an abundance of light to this remarkable kitchen. Also on this level is a grand utility room, large guest suite with porch and a four car garage with storage.
  • The enormous lanai is perfect for entertaining with storage and outdoor sports bar complete with television and seating with enough room left over for a dining table and outdoor furniture. To the left of the foyer you will find the exercise room, study and an elegant master suite.
  • The master suite is complete with a fire place, sitting area and French doors leading onto the lanai. It also has full his and her baths and walk-in closets. The second floor can be accessed by either the stairs or elevator.
  • The top of the stairs land on a bridge overlooking the foyer and living area. To the right hosts a theater and play room. To the left, two bedrooms with private baths and walk-in closets each accessing private balconies add to this home's overall function and uniqueness.
  • See these related house plans: 66021WE, 66164WE and 66191WE.

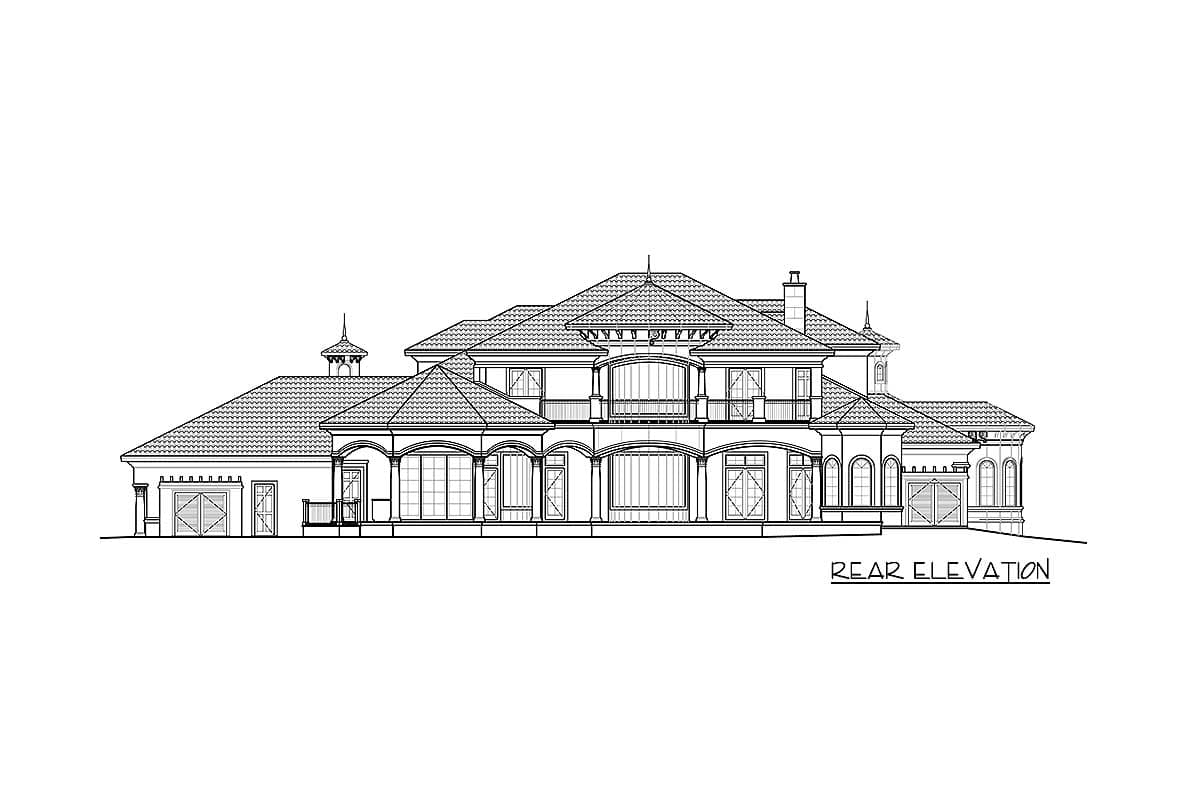

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details



Mediterranean Jewel

  • 6,295

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • Reproducible Set $6,500
  • PDF - single-use $6,500
  • CAD $6,500
  • View all purchase option online

About This Plan

  • Imagine this Mediterranean jewel, with its rich finishes of stone banding and columns, natural wood doors and course timbers for the trellis. Upon entering the foyer with its grand sweeping stairs, this home carries its volume to the second floor bridge. Straight ahead you will notice the spectacular living room opening to the second floor, with a clearstory alignment of a radial glass wall and graceful views across a reflection pond, dropping off to the pool below with a disappearing edge. A gallery runs from right to left of the foyer. To the right holds a formal dining, large enough to seat at least two families or more.
  • On the way to the kitchen is a wet bar and guest bath. As you pass below an arched opening into the main living area, the amenities are abundant with a corner fireplace, built-in entertainment center and zero corner pocket sliding glass doors in the family room. A radial dinette with solid mitered glass allows seamless views to the outdoor areas while bringing in an abundance of light to this remarkable kitchen. Also on this level is a grand utility room, large guest suite with porch and a four car garage with storage.
  • The enormous lanai is perfect for entertaining with storage and outdoor sports bar complete with television and seating with enough room left over for a dining table and outdoor furniture. To the left of the foyer you will find the exercise room, study and an elegant master suite.
  • The master suite is complete with a fire place, sitting area and French doors leading onto the lanai. It also has full his and her baths and walk-in closets. The second floor can be accessed by either the stairs or elevator.
  • The top of the stairs land on a bridge overlooking the foyer and living area. To the right hosts a theater and play room. To the left, two bedrooms with private baths and walk-in closets each accessing private balconies add to this home's overall function and uniqueness.
  • See these related house plans: 66021WE, 66164WE and 66191WE.

Floor Plans

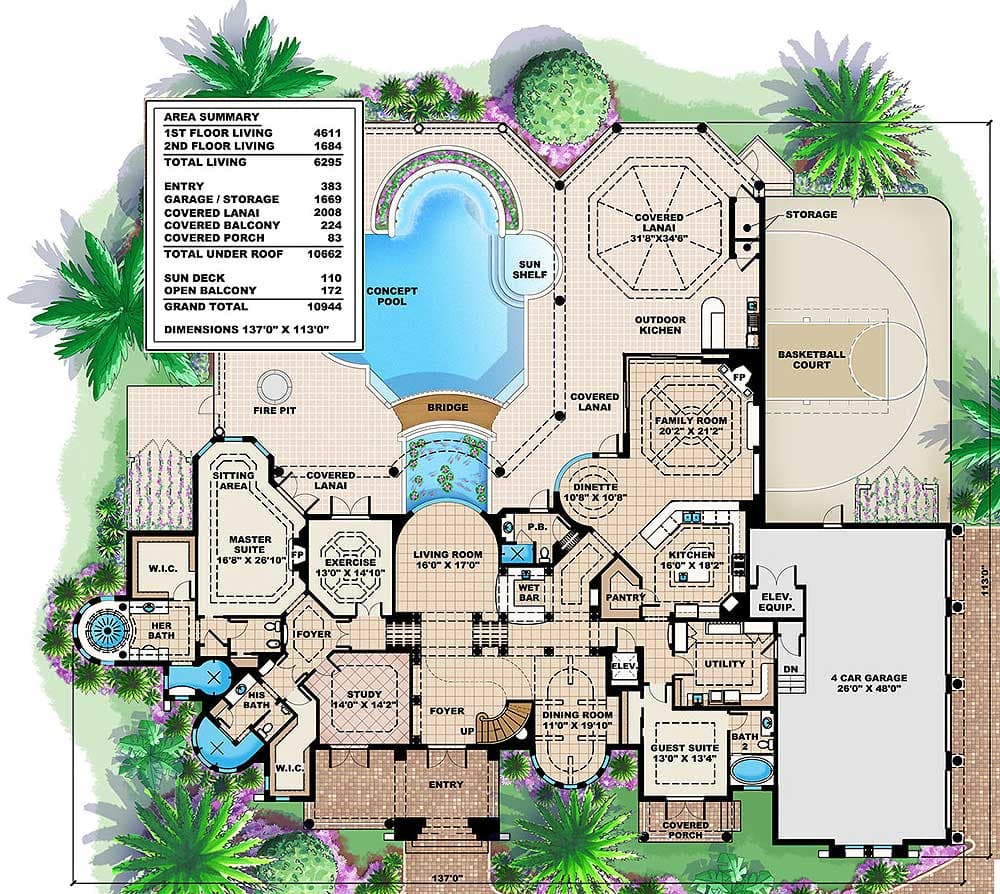

  • Main Level

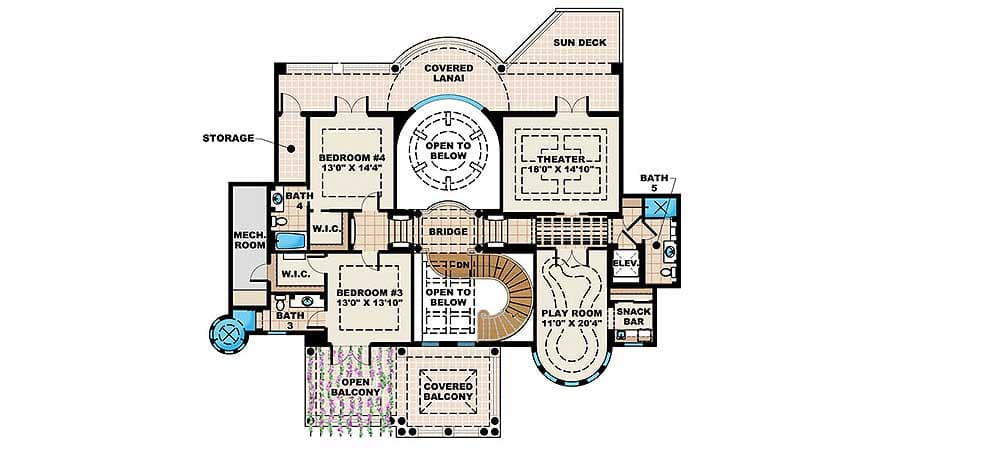

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,295 sq. ft.
  • 1st Floor: 4,611 sq. ft.
  • 2nd Floor: 1,684 sq. ft.
  • Porch, Front: 83 sq. ft.
  • Deck: 110 sq. ft.
  • Entry: 383 sq. ft.
  • Balcony / Veranda: 224 sq. ft.
  • Lanai: 2,008 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 137' 0"
  • Depth: 113' 0"
  • Max ridge height: 38' 0"

Garage

  • Type: Attached
  • Area: 1669 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

  • Florida
  • Mediterranean

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Elevator
  • MBR Sitting Area
  • Media-Game-Home Theater
  • PDF

Plan Collections

  • Luxury
