Plan 42009MJ

Mediterranean Style House Plan with 4 Bedrooms and a 3-Car Garage - 4280 Sq Ft

Heated S.F.
4,280
Beds
4
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 42009MJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42009MJ

M-F 9am-5pm EST |

1-203-761-8500

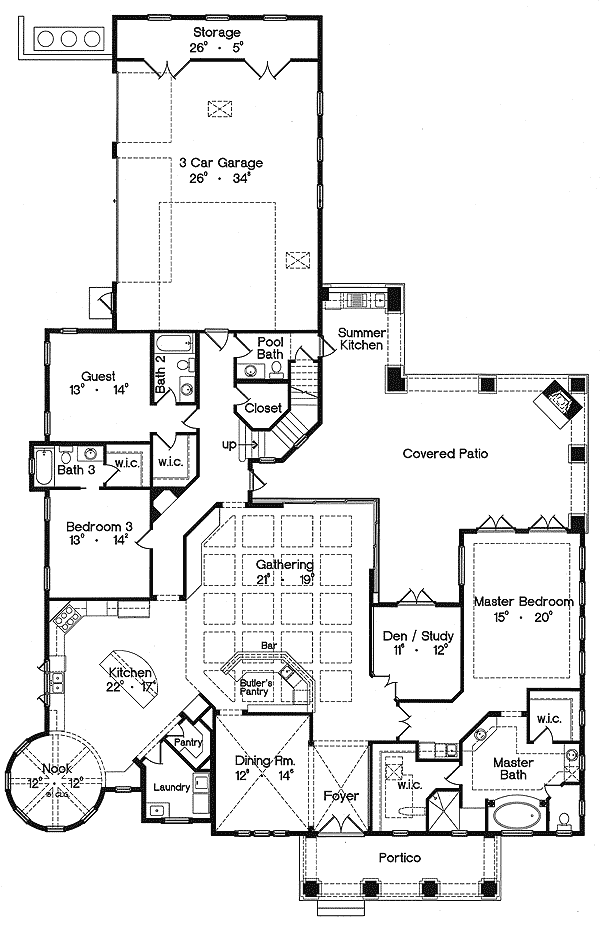

Main Level

Plan 42009MJ: Mediterranean Style House Plan with 4 Bedrooms and a 3-Car Garage - 4280 Sq Ft - Floor Plan - Main Level - Florida-Style, Mediterranean

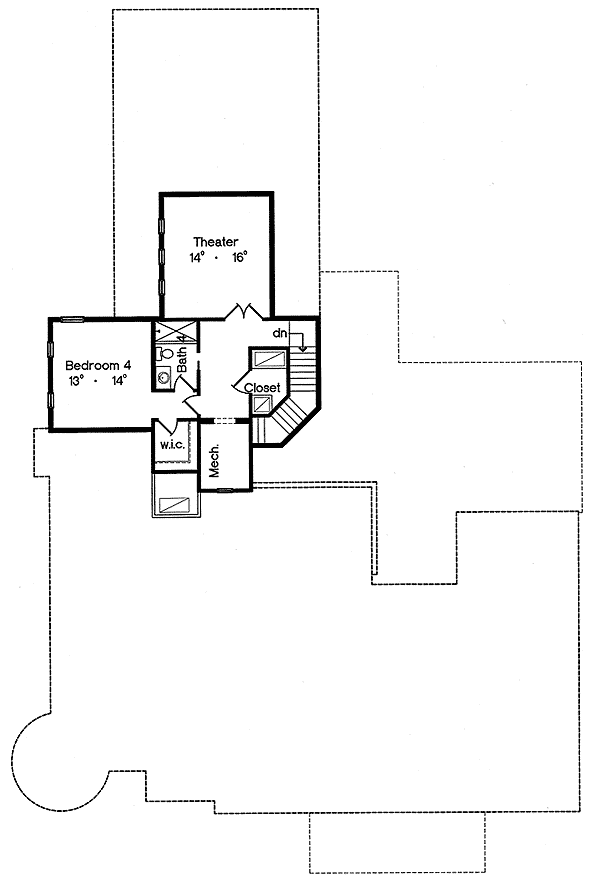

2nd Floor

Plan 42009MJ: Mediterranean Style House Plan with 4 Bedrooms and a 3-Car Garage - 4280 Sq Ft - Floor Plan - 2nd Floor - Florida-Style, Mediterranean

Plan Details

  • This Mediterranean-style house plan gives you 4 beds, 4.5 baths and 4,280 square feet of heated living space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
