Plan 68951VR Mid-century Modern 3-Bed House Plan with Large Porch

Mid-century Modern 3-Bed House Plan with Large Porch

Plan 68951VR

  • 3,105

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • This 3-bedroom mid-century modern house plan presents a shed-style roof with four sets of paired windows in front and a front door covered by a porch that extends to the right and acts as an outdoor living room.
  • Ceilings slope from 10' to 15' across the front with the left side of the serving as a media room with a bedroom suite beyond.
  • The front of the right side has an open layout with a large living space open to the kitchen. A massive kitchen island anchors the space and provides seating for six, while a charming wood stove can be enjoyed from all of the shared living spaces.
  • Retreat to the master bedroom to relax and discover a deluxe ensuite with direct laundry access and a wet area combining the tub and shower, as well as a walk-in closet. A third bedroom could be converted to a home office if needed.
  • Related Plan: Get a version replacing the left side with a heated garage space with room for up to 4 cars parked tandem style with house plan 68809VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

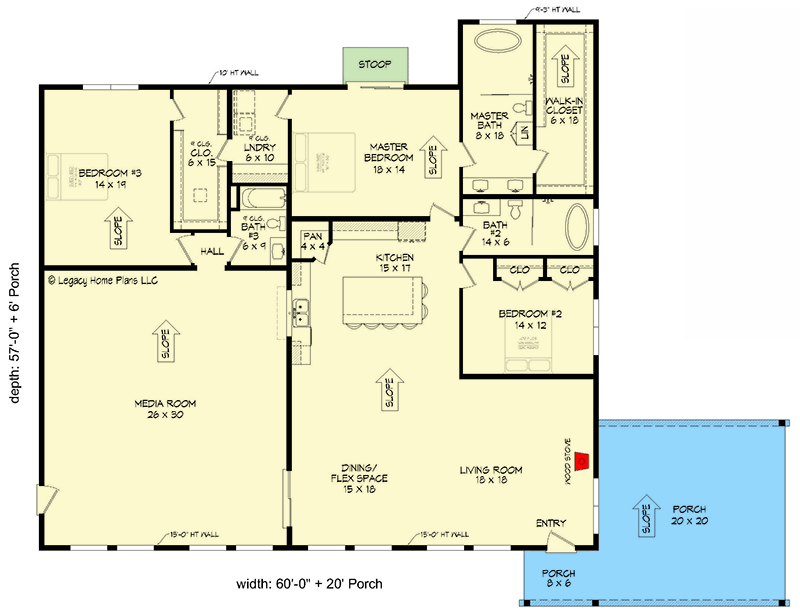

Mid-century Modern 3-Bed House Plan with Large Porch - 68951VR floor plan - Main Level

Plan details

Architectural Style

Special features

Mid-century Modern 3-Bed House Plan with Large Porch

  • 3,105

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,895
  • 5 Sets $2,060
  • 5 Sets + PDF $2,137
  • CAD + PDF - Single-Build $2,445
  • View all purchase option online

About This Plan

  • This 3-bedroom mid-century modern house plan presents a shed-style roof with four sets of paired windows in front and a front door covered by a porch that extends to the right and acts as an outdoor living room.
  • Ceilings slope from 10' to 15' across the front with the left side of the serving as a media room with a bedroom suite beyond.
  • The front of the right side has an open layout with a large living space open to the kitchen. A massive kitchen island anchors the space and provides seating for six, while a charming wood stove can be enjoyed from all of the shared living spaces.
  • Retreat to the master bedroom to relax and discover a deluxe ensuite with direct laundry access and a wet area combining the tub and shower, as well as a walk-in closet. A third bedroom could be converted to a home office if needed.
  • Related Plan: Get a version replacing the left side with a heated garage space with room for up to 4 cars parked tandem style with house plan 68809VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,105 sq. ft.
  • 1st Floor: 3,105 sq. ft.
  • Porch, Combined: 448 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 63' 0"
  • Max ridge height: 16' 9"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 1 on 12
  • Framing Type: Stick
