Plan 420050WNT Mid-century Modern Home Plan with 3 Bedrooms

Mid-century Modern Home Plan with 3 Bedrooms

Plan 420050WNT

  • 1,306

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

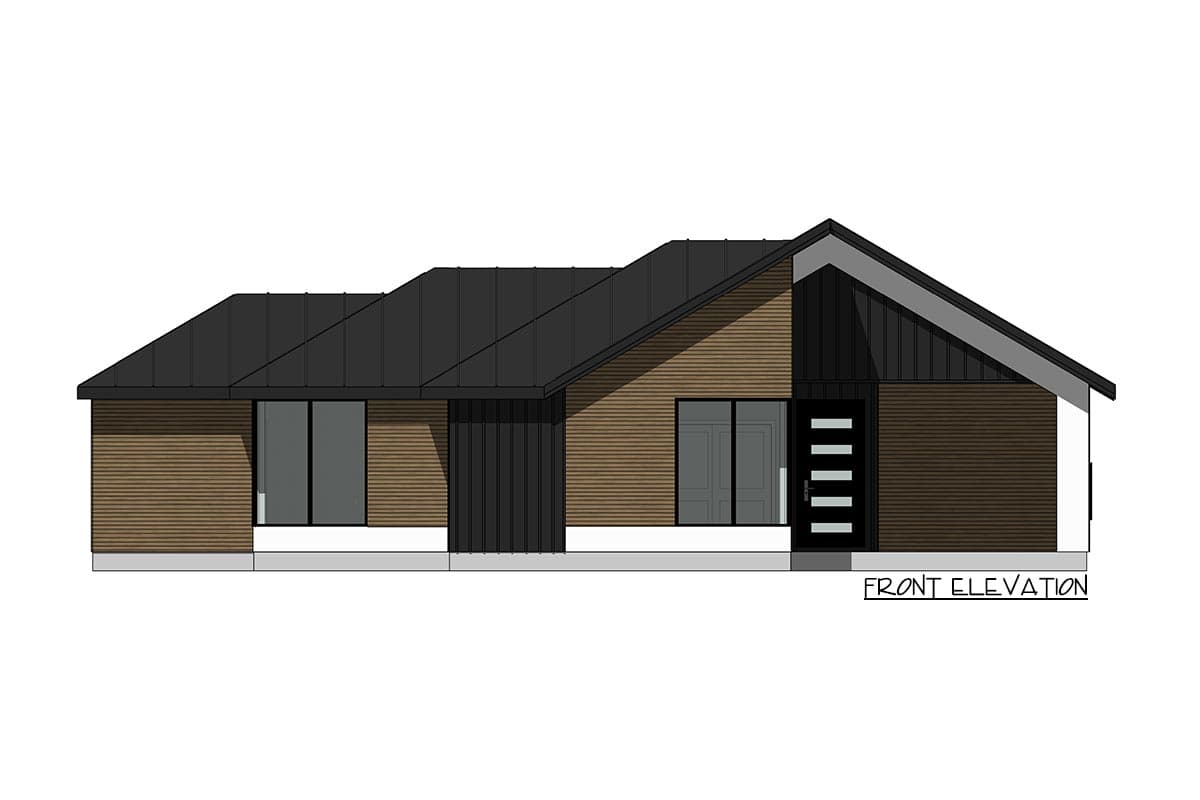

  • A blend of horizontal and vertical siding materials enhance the exterior of this Mid-century Modern home plan that is topped by a raised-seam metal roof.
  • The 15'7" by 13' front porch welcomes you inside where a coat closet is waiting to store your bags, shoes, and outerwear.
  • The living, dining, and kitchen areas act as one space with multiple sliding doors providing outdoor access.
  • The primary bedroom offers an abundance of natural light through a rear wall of glass, along with two walk-in closets and a 4-fixture bathroom with a linen closet.
  • Bedrooms 2 and 3 are separated by a full bathroom that includes a stackable washer / dryer unit.

What is Included in Our Plans?

Each plan is designed to meet nationally recognized building codes for the year they were created. Following is a listing of sheets included in our plans:

Foundation Plan

outlines details of the slab, crawl space, or basement specifically associated with the house that this plan has been designed for. These details may include; Footing sizes and locations, Floor framing information, Slab information etc.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

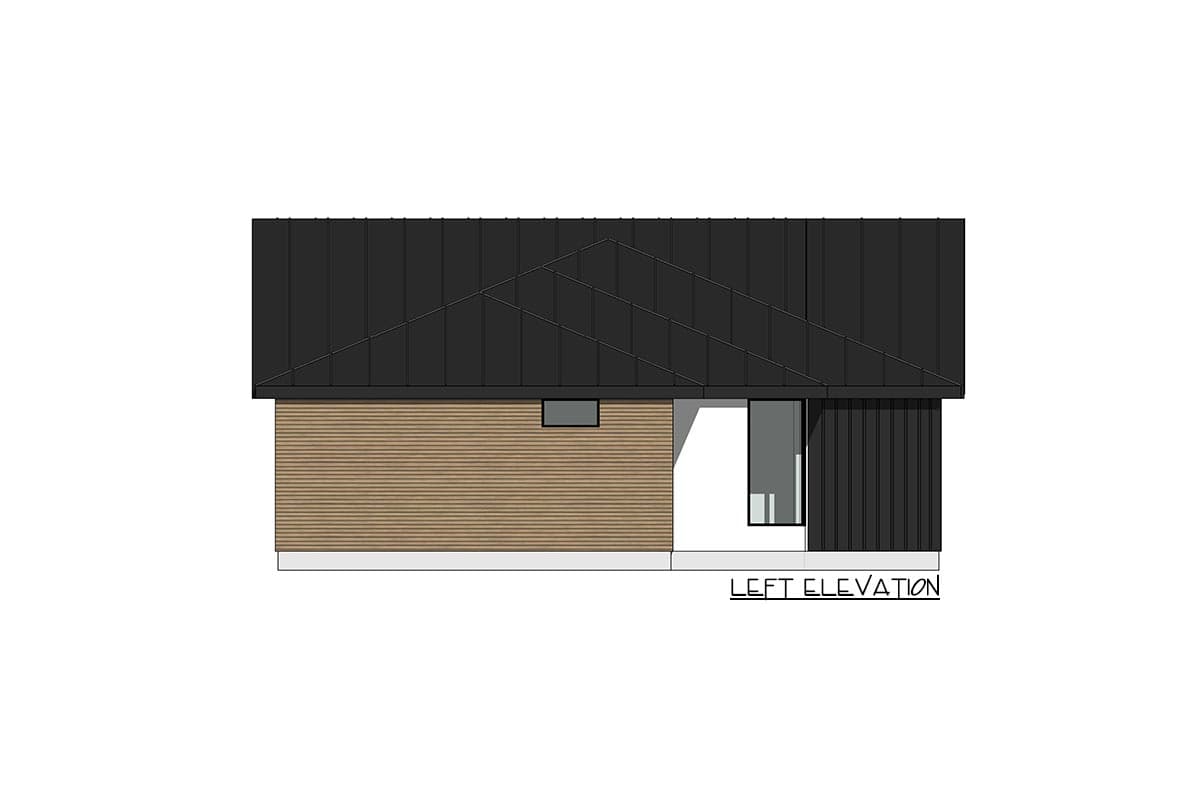

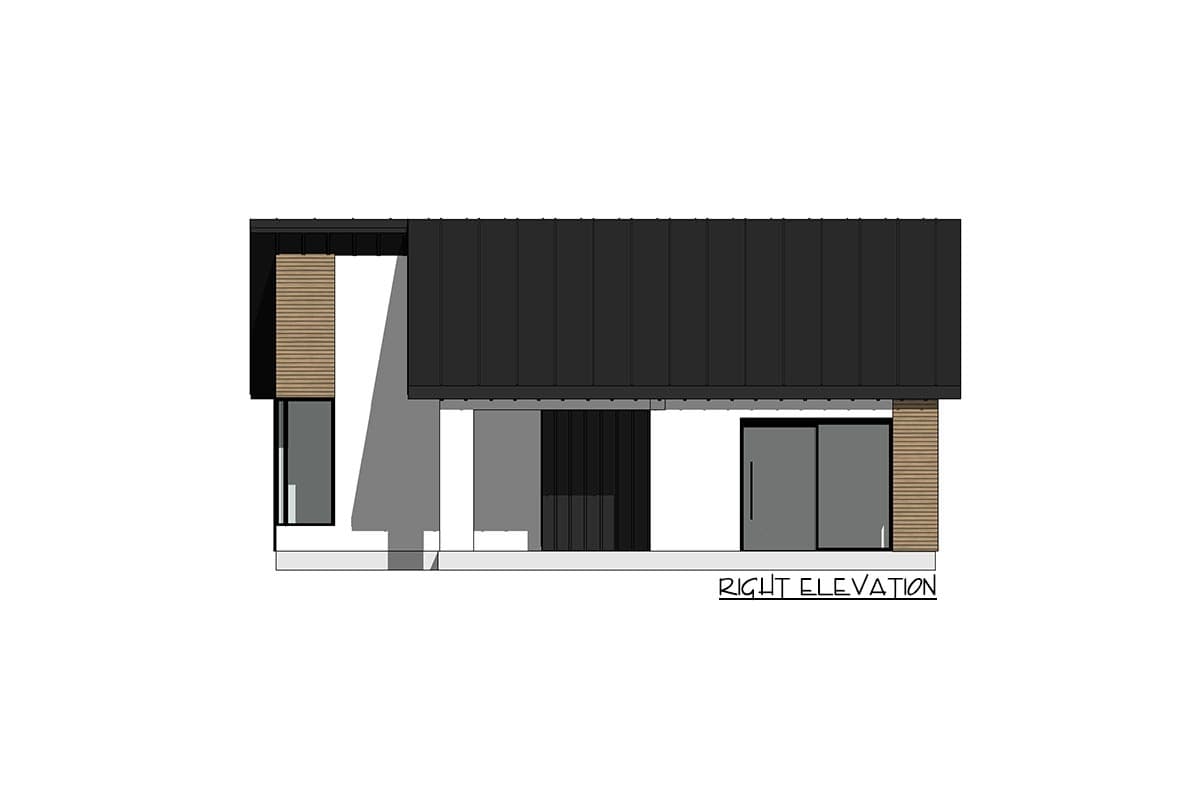

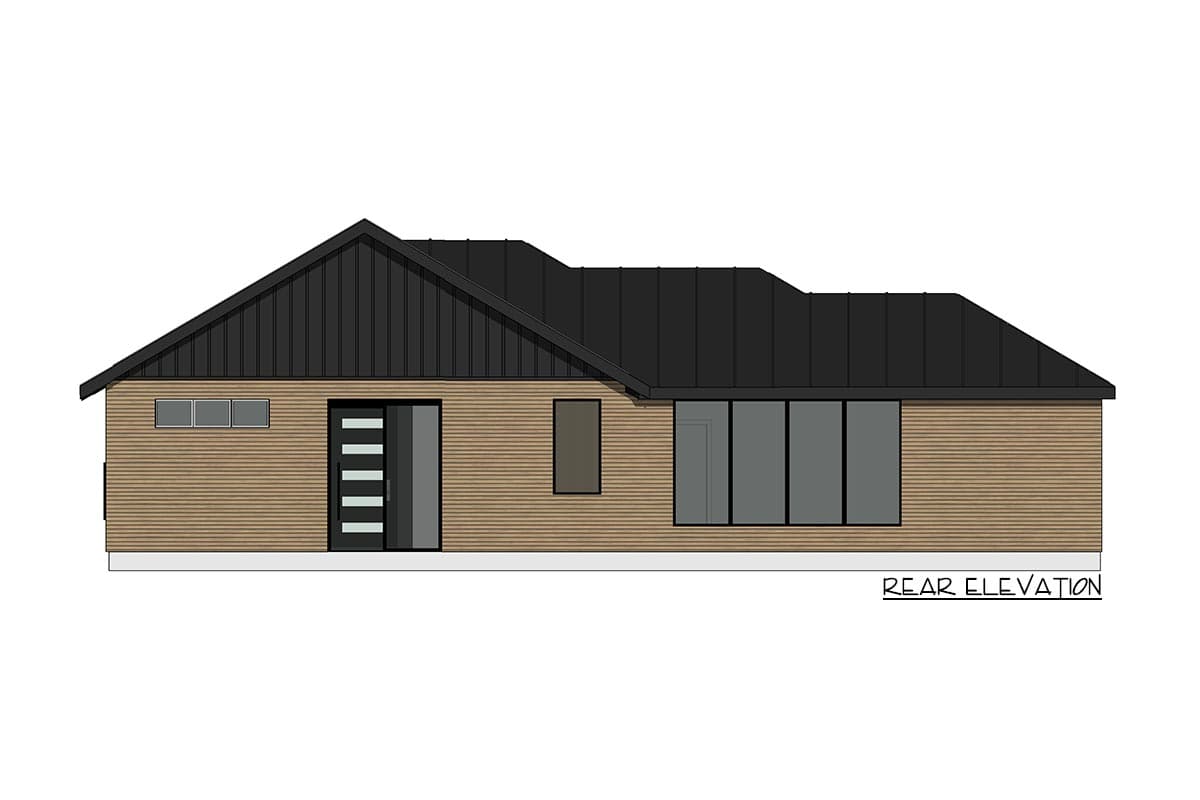

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.


Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan (available as an upgrade option)
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

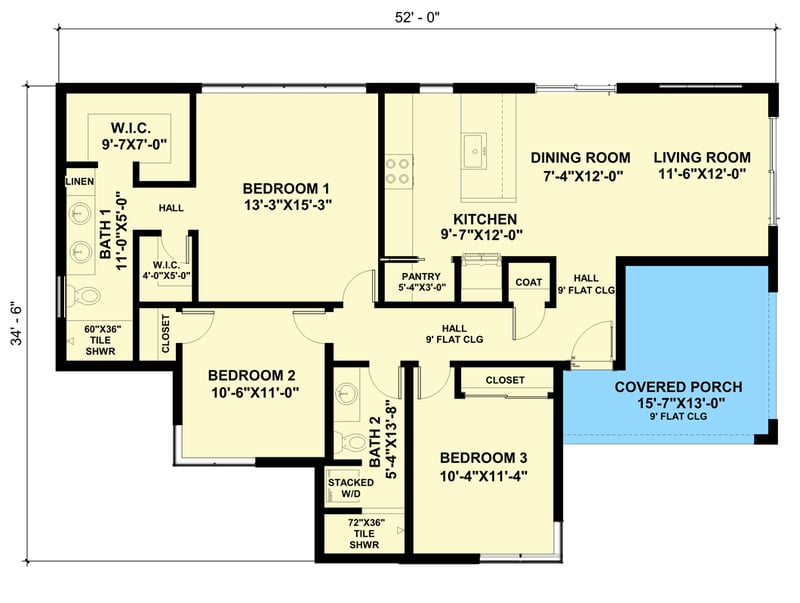

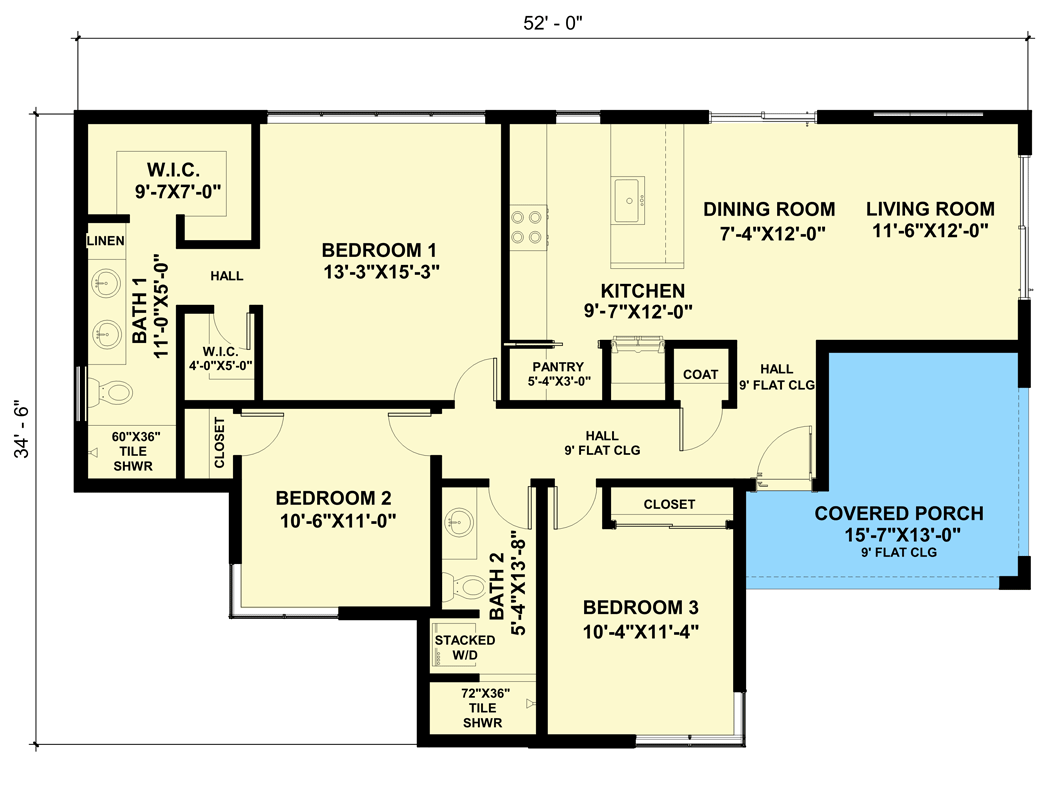

Mid-century Modern Home Plan with 3 Bedrooms - 420050WNT floor plan - Main Level

Plan details

Mid-century Modern Home Plan with 3 Bedrooms

  • 1,306

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $995
  • 5 Sets $1,145
  • 5 Sets + PDF $1,245
  • CAD - Unlimited Build $1,895
  • View all purchase option online

About This Plan

  • A blend of horizontal and vertical siding materials enhance the exterior of this Mid-century Modern home plan that is topped by a raised-seam metal roof.
  • The 15'7" by 13' front porch welcomes you inside where a coat closet is waiting to store your bags, shoes, and outerwear.
  • The living, dining, and kitchen areas act as one space with multiple sliding doors providing outdoor access.
  • The primary bedroom offers an abundance of natural light through a rear wall of glass, along with two walk-in closets and a 4-fixture bathroom with a linen closet.
  • Bedrooms 2 and 3 are separated by a full bathroom that includes a stackable washer / dryer unit.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,306 sq. ft.
  • 1st Floor: 1,306 sq. ft.
  • Covered Patio: 168 sq. ft.
  • Porch, Combined: 168 sq. ft.
  • Porch, Front: 168 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Monolithic Slab, Slab, Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 34' 6"
  • Max ridge height: 17' 6"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
