Plan 72393DA
Mid-Century Modern House Plan with 3 Bedrooms and Outdoor Living In Back
Heated S.F.
4,606
Beds
3
Baths
3.5
Stories
1
Cars
2
What's Included
Plan Details
  • This mid-century modern single-story house plan gives you 4,606 square feet of heated living and mixes contemporary styling with Prairie-style accents. As you approach the entrance, clean lines and a subtle blend of materials capture your attention.

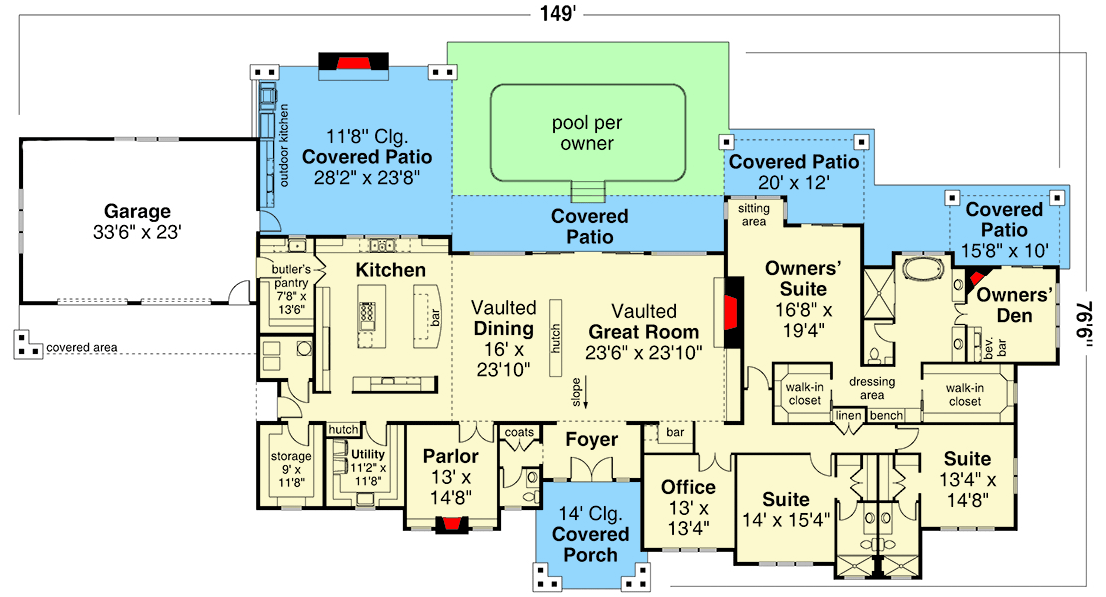

  • Upon entering, the house plan unfolds to reveal a spacious and inviting layout. To the left, a parlor offers a cozy retreat for intimate gatherings and to the right a home office makes a great work from home space.
  • The heart of the home delivers the kitchen with butler's and two islands that is open to the vaulted dining area.
  • A hutch separates the dining area from the vaulted great room. The shared back wall opens to the covered patio.
  • The master suite has a window-filled sitting area and access to the outdoors, two walk-in closets and its ow private den with fireplace and outdoor access. Two well-appointed bedrooms are located on the same side of the house.
  • A two-car garage (823 square feet) on the left side of the home opens to the butler's pantry.
  • In this house plan, contemporary design harmonizes effortlessly with luxurious details, creating a haven of comfort, beauty, and functionality. It's a sanctuary where every moment is an experience to be cherished, every corner a testament to the art of fine living.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

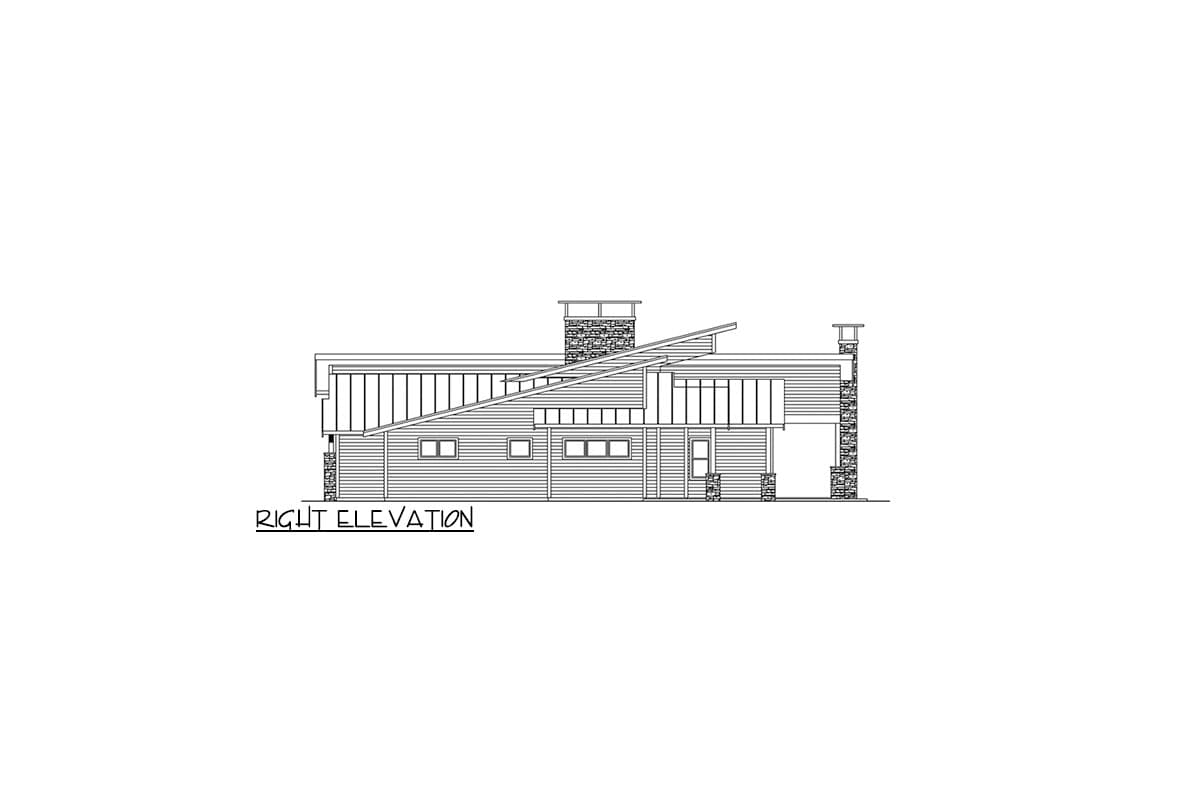

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
