Plan 490105NAH Modern 1-Bed ADU Under 450 Square Feet

433 1 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern 1-Bed ADU Under 450 Square Feet

Plan 490105NAH

  • 433

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

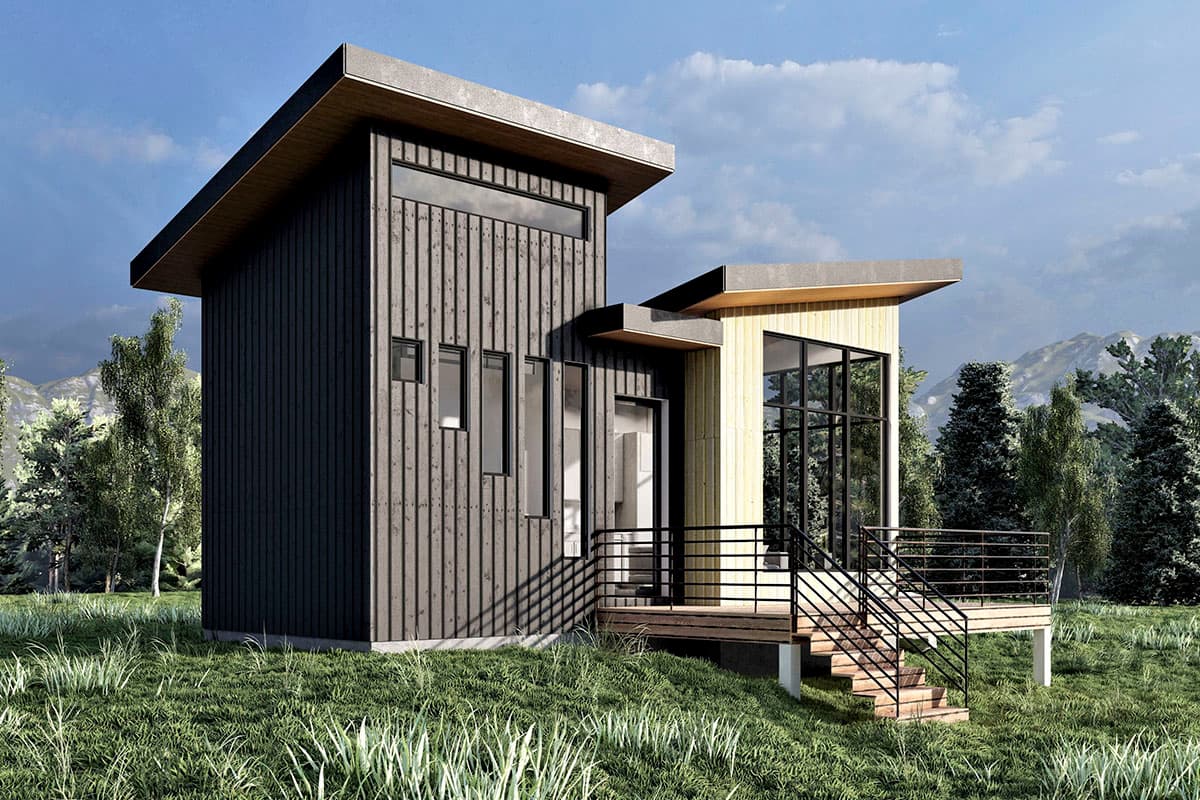

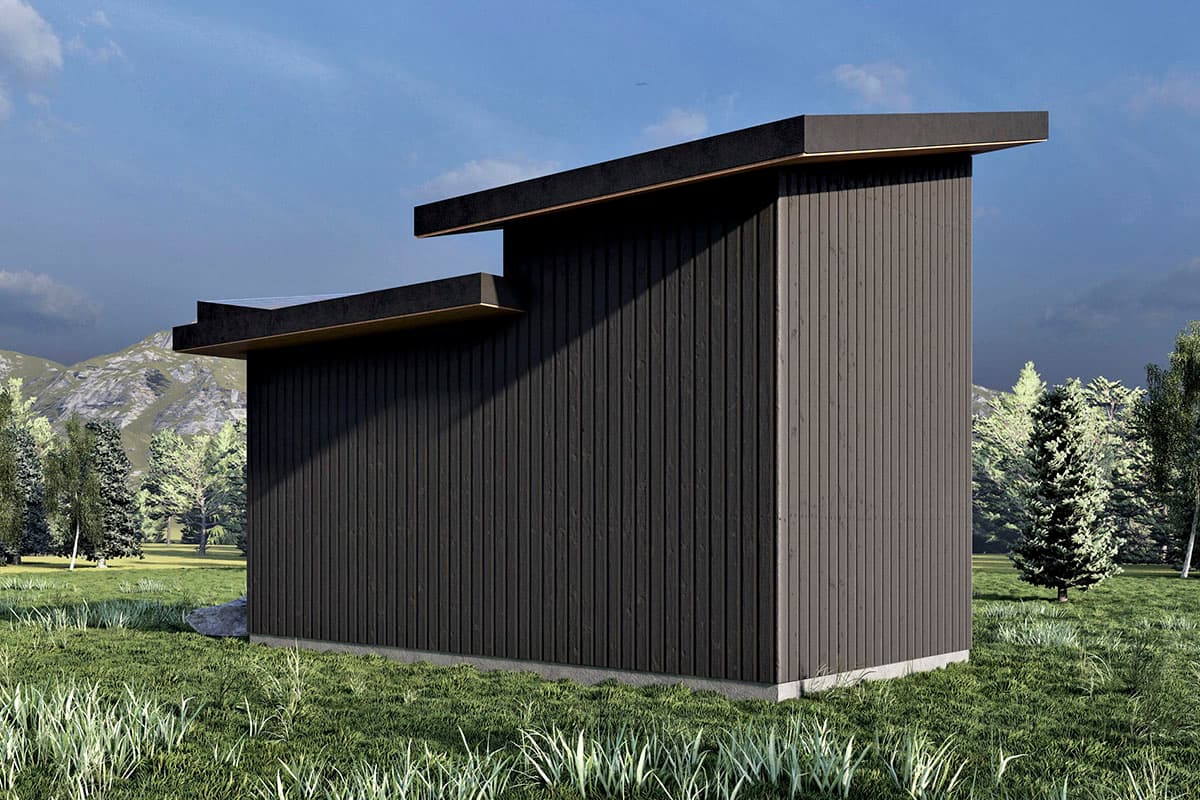

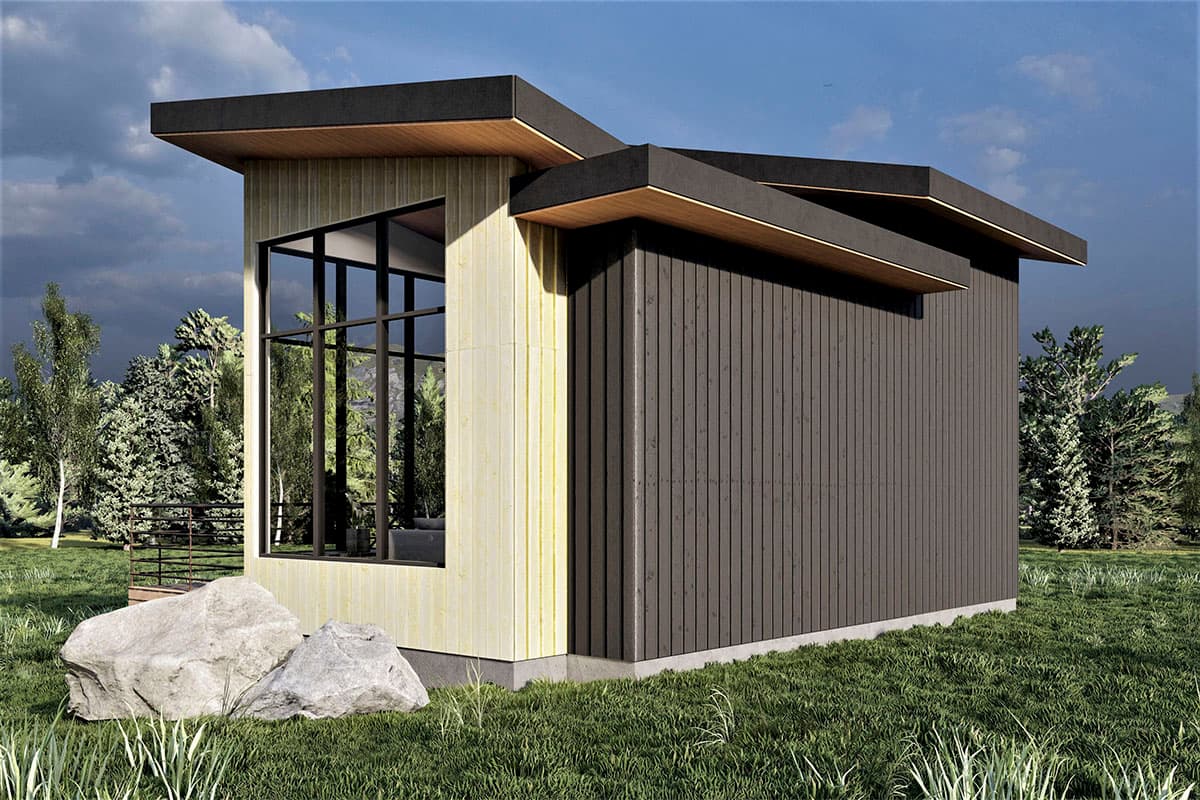

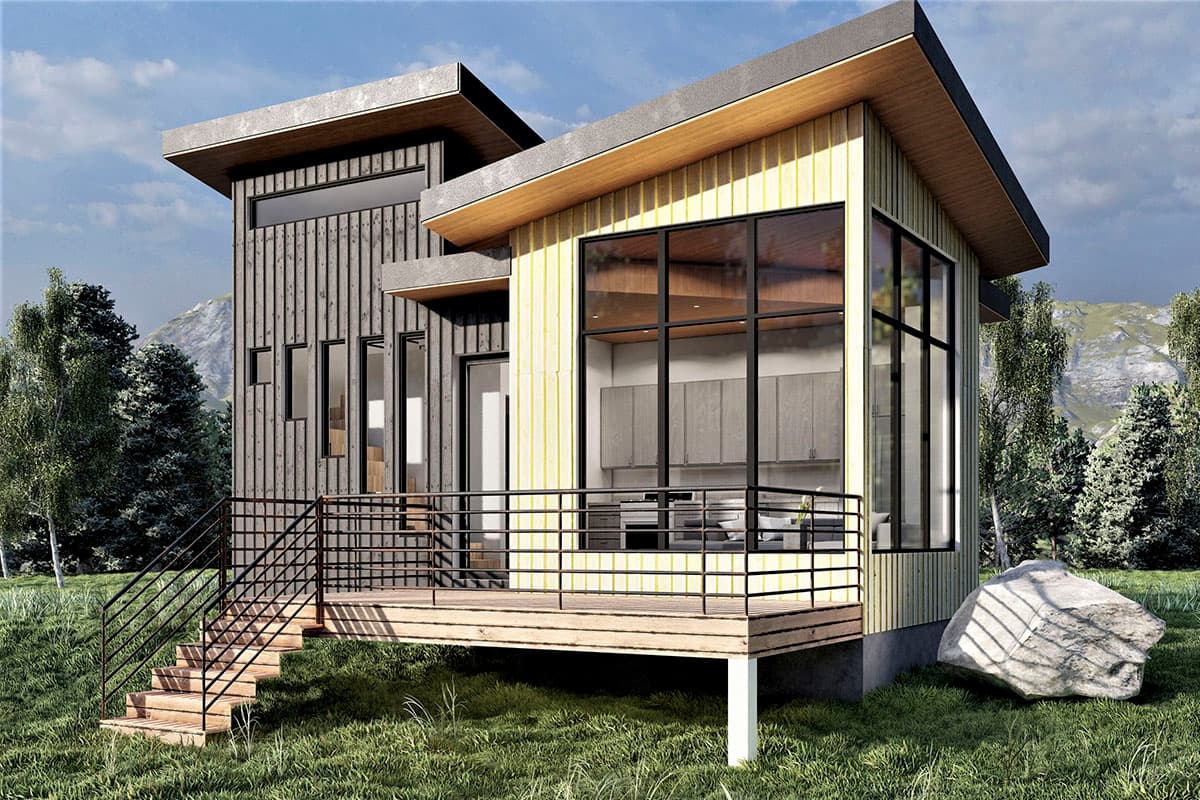

  • This contemporary ADU offers a modern look for those looking to build a small place to escape to, with angled roofs and different wood sidings.

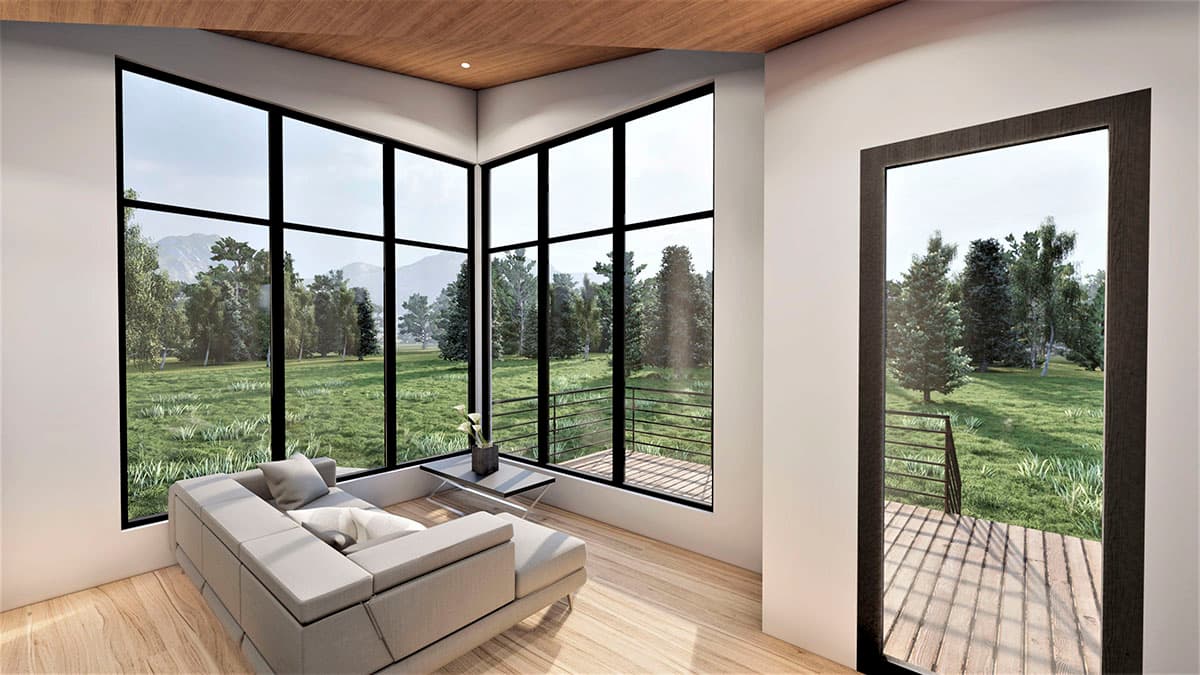

  • This small house plan comes with a combined living room and kitchen with large transom windows, with a bedroom area upstairs.
  • Related Plan: Get an alternate version with house plan 490106NA (436 sq. ft.).

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

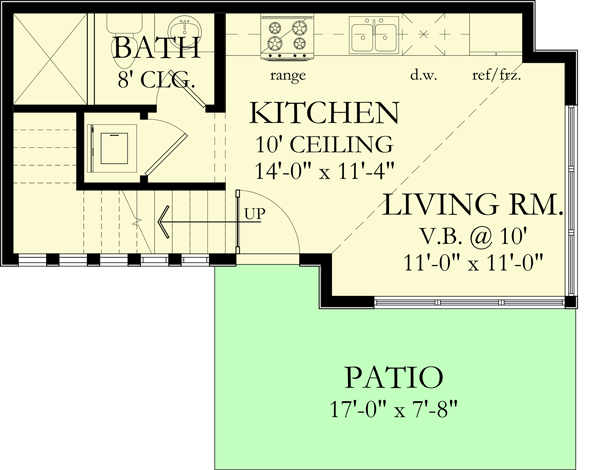

Modern 1-Bed ADU Under 450 Square Feet - 490105NAH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

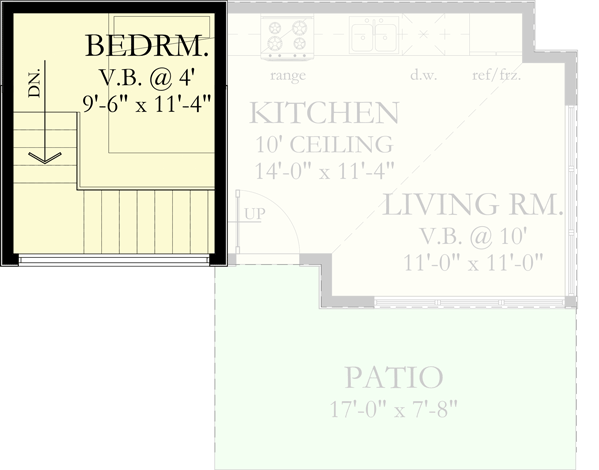

Modern 1-Bed ADU Under 450 Square Feet - 490105NAH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 433 sq. ft.
  • 1st Floor: 303 sq. ft.
  • 2nd Floor: 130 sq. ft.
  • Porch, Front: 140 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 27' 0"
  • Depth: 14' 4"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Architectural Style

Special features

Plan Collections

Modern 1-Bed ADU Under 450 Square Feet

  • 433

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,200
  • PDF - Unlimited Build $1,900
  • CAD Unlimited + PDF $2,200
  • View all purchase option online

About This Plan

  • This contemporary ADU offers a modern look for those looking to build a small place to escape to, with angled roofs and different wood sidings.
  • This small house plan comes with a combined living room and kitchen with large transom windows, with a bedroom area upstairs.
  • Related Plan: Get an alternate version with house plan 490106NA (436 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 433 sq. ft.
  • 1st Floor: 303 sq. ft.
  • 2nd Floor: 130 sq. ft.
  • Porch, Front: 140 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 27' 0"
  • Depth: 14' 4"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Plan 490105NAH
View this and more for this plan by visiting www.architechtecturaldesigns.com/490105NAH
|
