Modern 2 Story 1570 Square Foot House Plan with 1-Car Garage

Heated S.F.
1,570
Beds
3
Baths
1.5
Stories
2
Cars
1

Floor Plan

Plan 801051PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 801051PM

M-F 9am-5pm EST |

1-203-761-8500

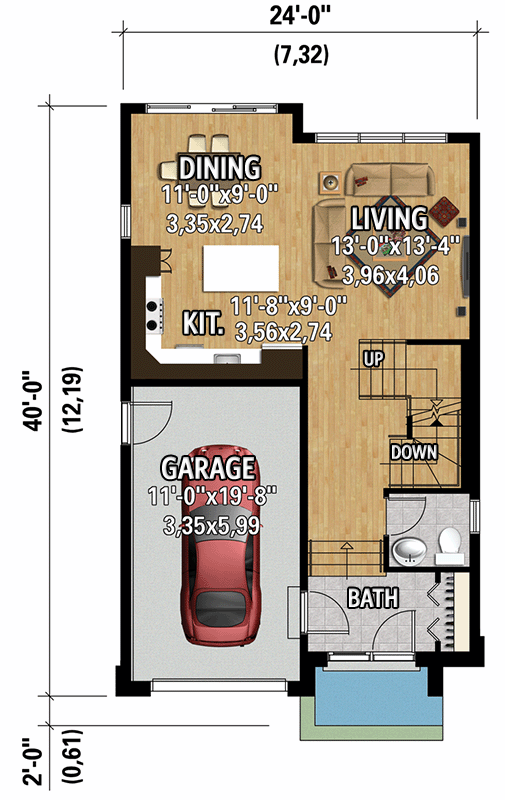

Main Level

Plan 801051PM: Modern 2 Story 1570 Square Foot House Plan with 1-Car Garage - Floor Plan - Main Level - Modern, Northwest

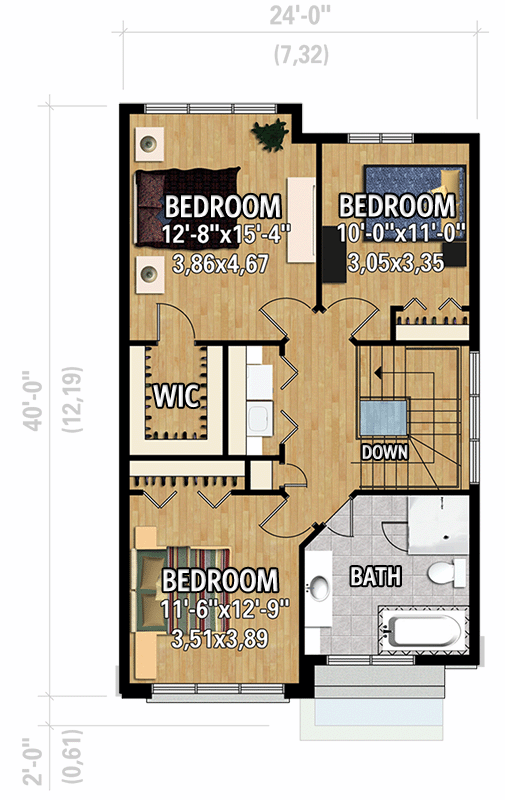

2nd Floor

Plan 801051PM: Modern 2 Story 1570 Square Foot House Plan with 1-Car Garage - Floor Plan - 2nd Floor - Modern, Northwest

Plan Details

  • Sleek and modern, this urban two-story house plan is 24 feet wide by 40 feet deep and provides a 1,570 square foot living area. There is also an integrated 254 square foot one-car garage with a side service door.
  • Featuring a 660 square foot living area, the ground floor consists of a split entrance, a powder room, and a spacious open area with several large windows that includes a living room, a dining room and an L-shaped kitchen with an island.
  • The upper floor has 910 square feet of living space and features a laundry area, a bathroom with a separate ceramic tile shower, and three bedrooms including a master bedroom with a huge walk-in closet.

What's Included

Please note this plan is designed to the National Building Code of Canada.

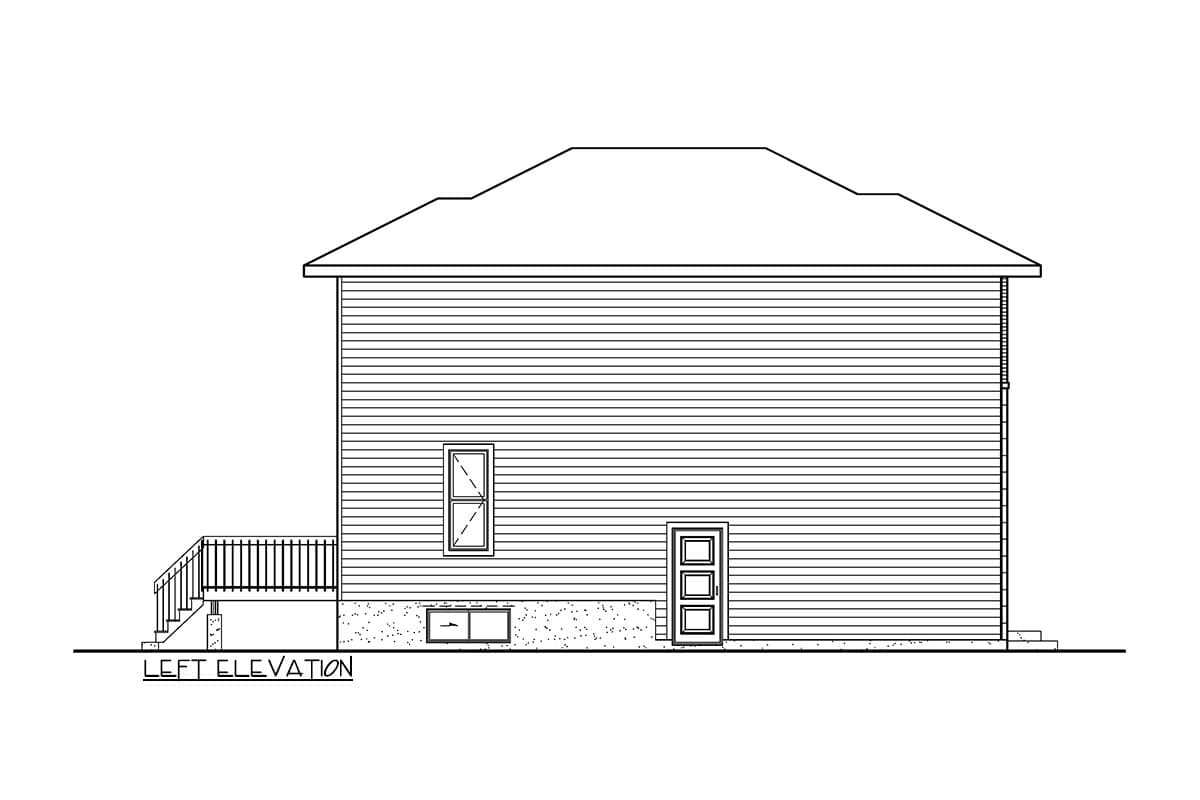

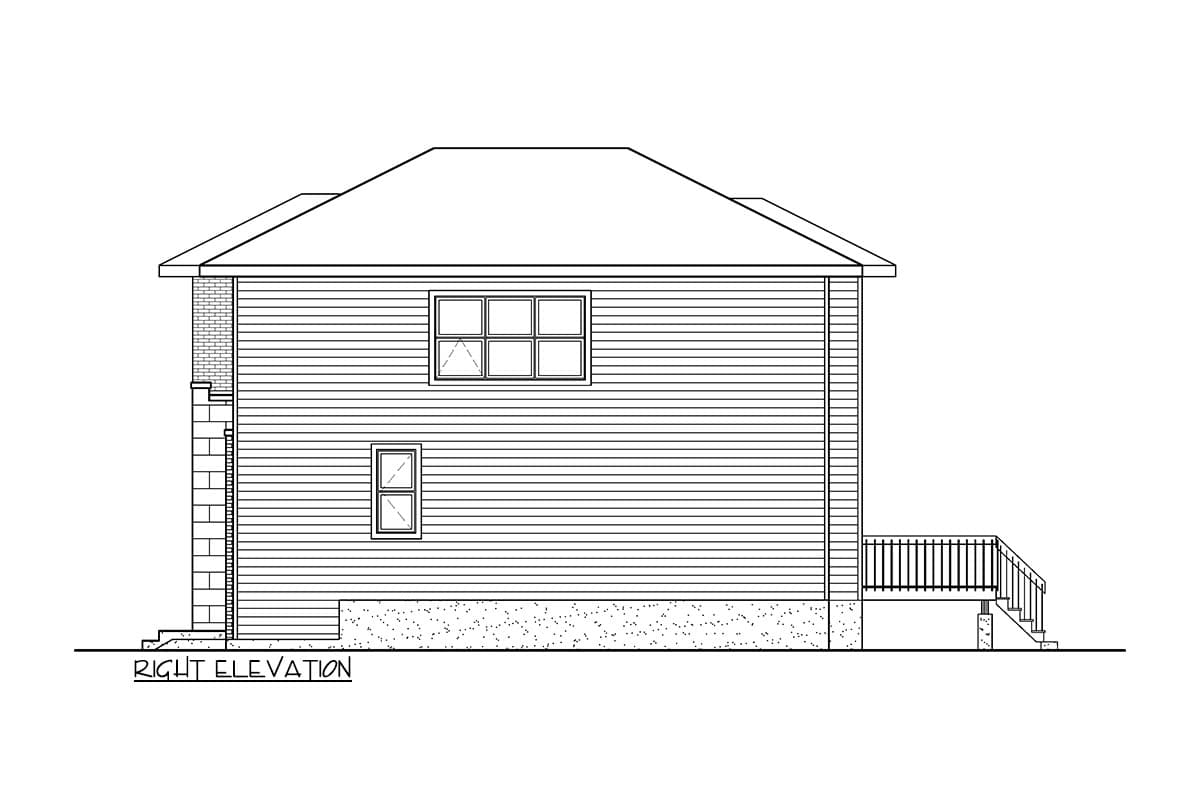

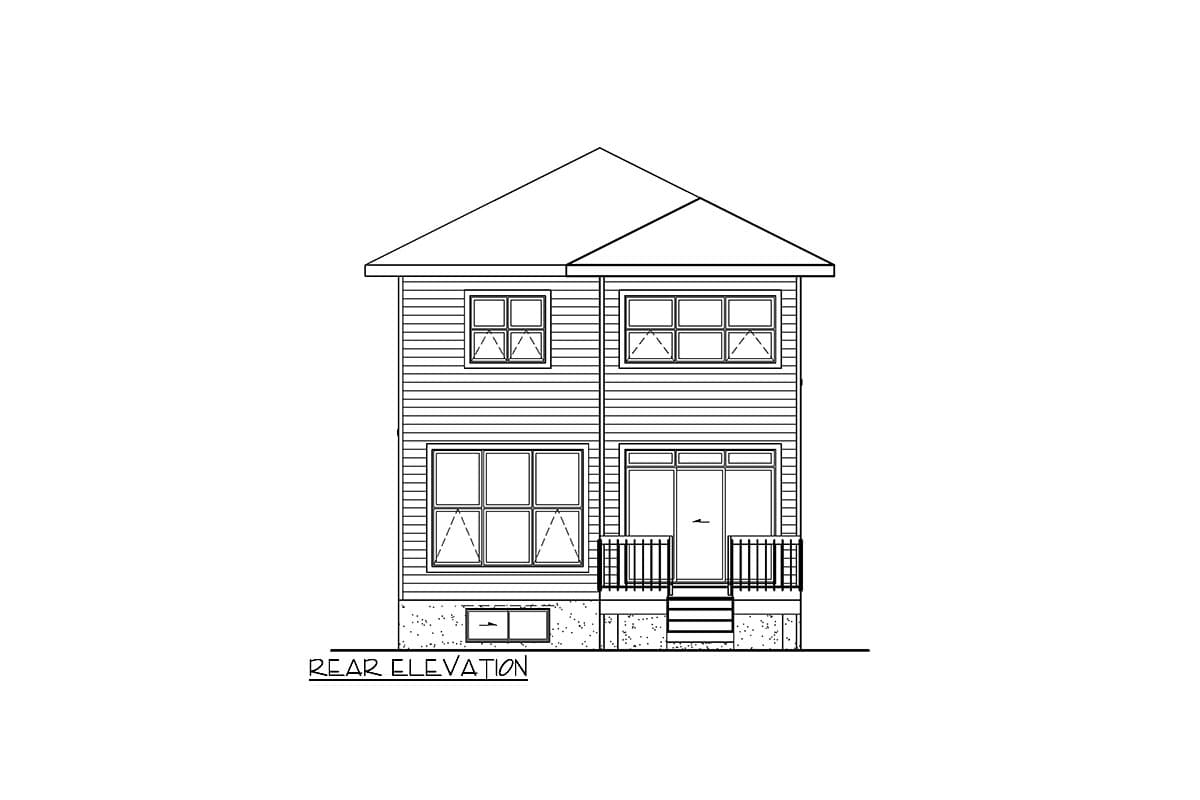

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
