Plan 570007LEF

Modern 2-Story House Plan with Home Office and Balcony off Master Suite

Heated S.F.
2,107
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 570007LEF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 570007LEF

M-F 9am-5pm EST |

1-203-761-8500

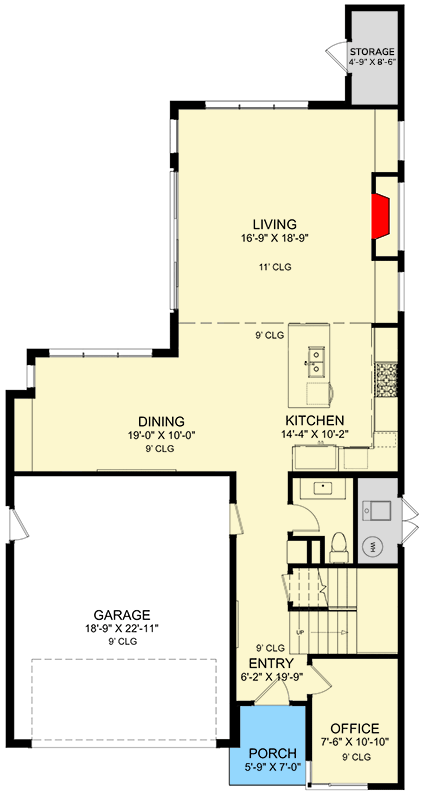

Main Level

Plan 570007LEF: Modern 2-Story House Plan with Home Office and Balcony off Master Suite - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Northwest, Prairie

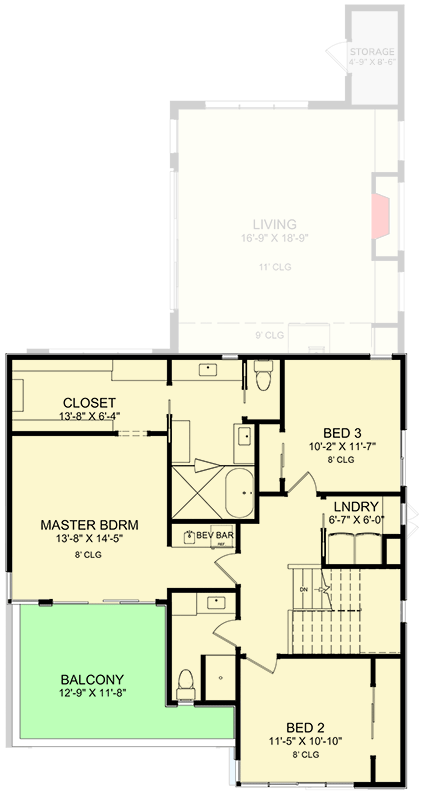

2nd Floor

Plan 570007LEF: Modern 2-Story House Plan with Home Office and Balcony off Master Suite - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern, Northwest, Prairie

Plan Details

  • This Modern two-story house plan delivers 3 bedrooms, including a master suite with a private balcony and beverage bar.
  • Just off the entryway, a home office provides frontal views and a powder bath is just down the hall, across from the garage entry.
  • The combined kitchen, dining area, and living room helps to keep the family connected and large sliding doors create an easy passage into the yard.
  • Upstairs, the largest bedroom is reserved for the homeowner and includes a roomy closet and wet room in the ensuite.
  • Bedrooms 2 and 3 share the hall bath and the laundry room is tucked behind a pocket door.

What's Included

  • Exterior elevations
  • Detailed floor plans
  • Roof plans
  • Foundation plans
  • Electrical plans
  • Typical Wall Section
  • Typical Stair Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,107 sq. ft.

1st Floor

1,137 sq. ft.

2nd Floor

970 sq. ft.

Porch, Front

42 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab, Stem Wall

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

35' 0"

Depth

67' 10"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

456 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Living

11' 0''

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mid Century Modern

Modern

Northwest

Prairie

Special Features

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Photo Gallery
