Modern 3-Bed House Plan with Office Loft and Grand Views

Plan 80954PM

  • 1,409

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • The front entry leads you directly into the heart of this home which provides an open-concept floor plan, while a quiet, sunroom-style dining room allows for more intimate meals.
  • Expansive windows on the rear elevation allow the homeowner to enjoy the views throughout the home.
  • Seating for six is provided at the oversized kitchen island, and sliding doors lead to a back porch, which extends to a patio.
  • The master bedroom resides on the main level and is situated next to a full bathroom.
  • Upstairs, discover an office that overlooks the living room below, two bedrooms, and a full bathroom.

Plan sets include the following:

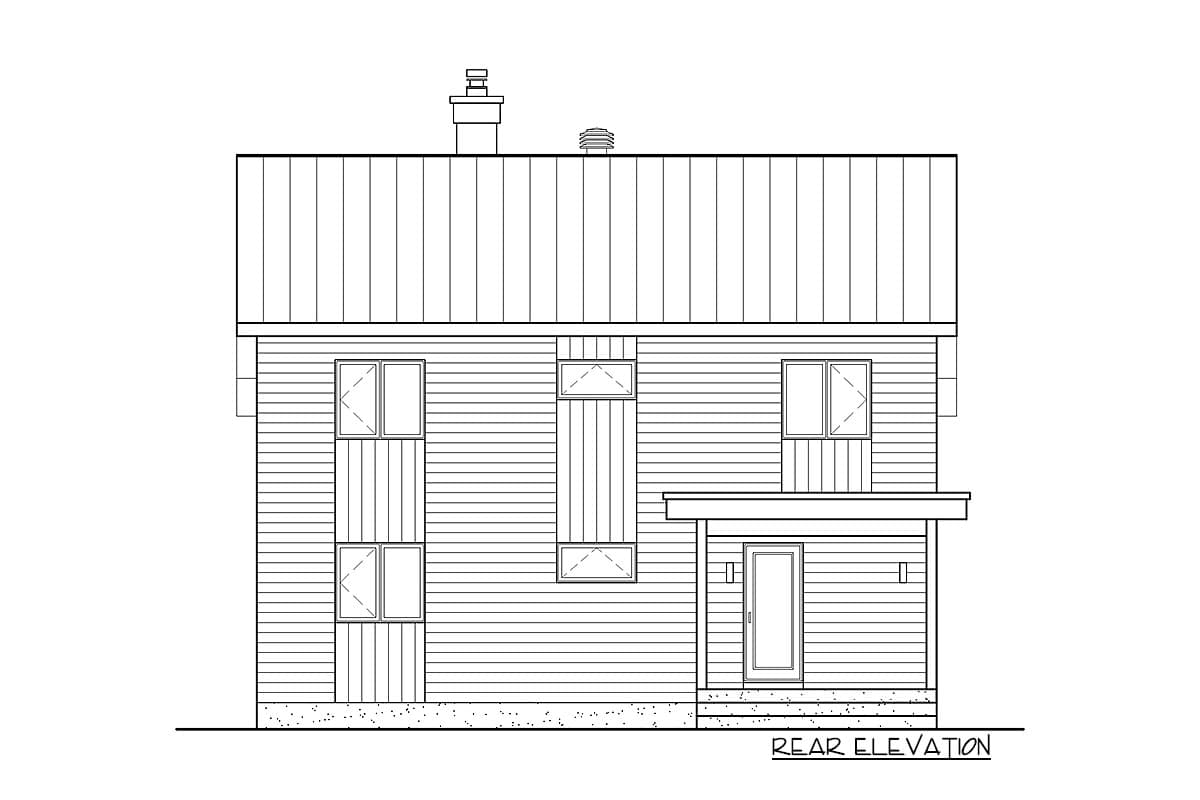

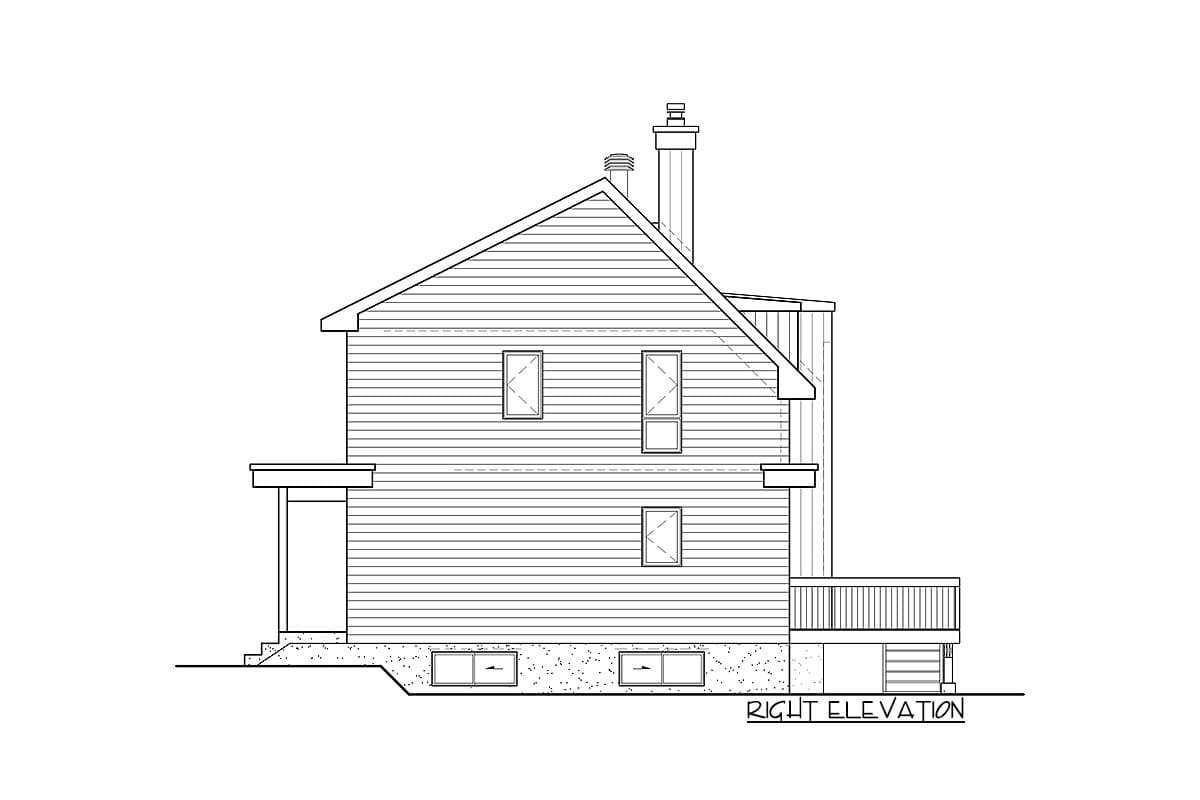

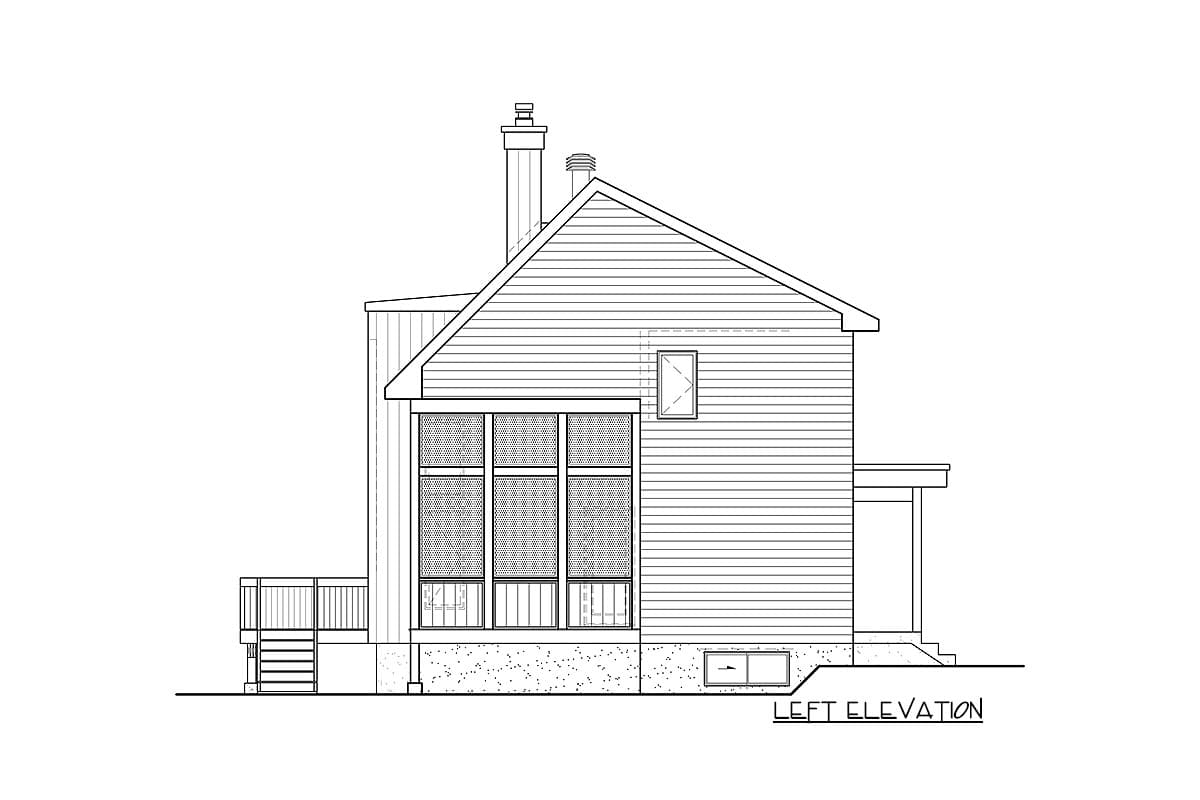

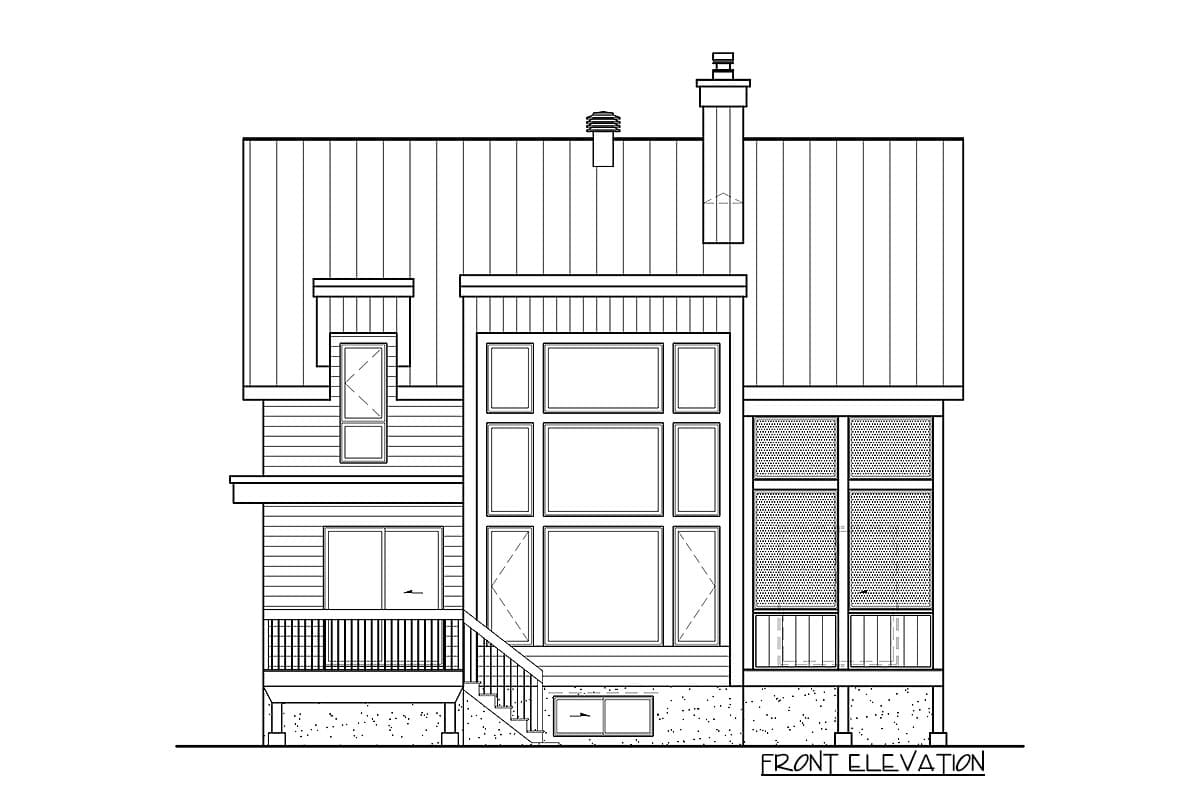

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

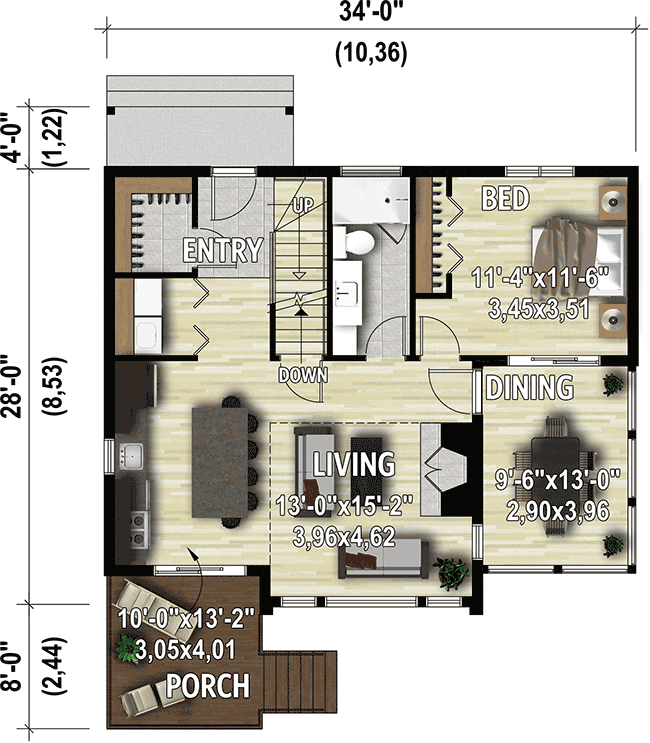

Modern 3-Bed House Plan with Office Loft and Grand Views - 80954PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

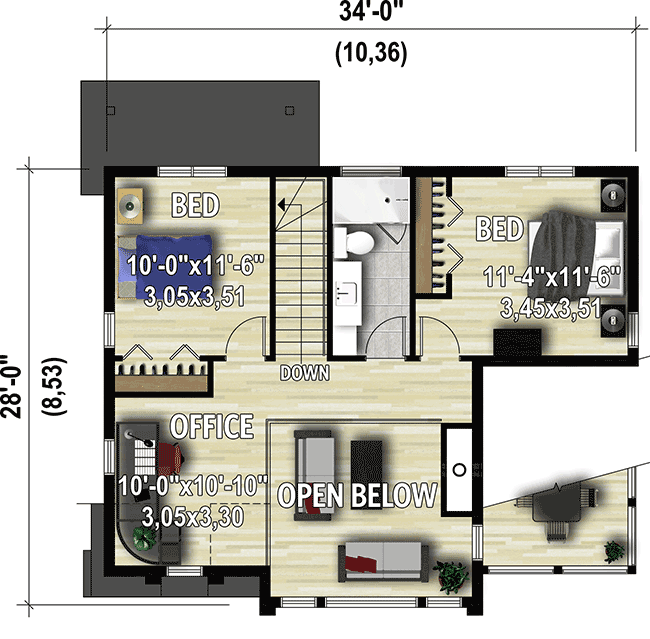

Modern 3-Bed House Plan with Office Loft and Grand Views - 80954PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,409 sq. ft.
  • 1st Floor: 777 sq. ft.
  • 2nd Floor: 632 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 28' 0"
  • Max ridge height: 30' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 2"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern 3-Bed House Plan with Office Loft and Grand Views

  • 1,409

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $920
  • 5 Sets $965
  • 5 Sets + PDF $1,055
  • CAD - Single-Build $1,940
  • View all purchase option online
