Modern 3100 Square Foot Ranch with Finished Lower Level and Drive-Under Garage

Plan 85062MS

  • 3,113

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This modern ranch house plan is designed for a gently sloping lot with views to front and back.
  • The great room, kitchen, and master suite are full of natural light and are all on the main floor. Two beds occupy the wing to the right.
  • The great room has a 2-sided fireplace sharfed by the covered deck with skylights.
  • The wraparound deck off the master is perfect for enjoying the outdoors.
  • The lower levelhas a large rec room with outdoor access plus two bedrooms, utilities and the requisite wine room.
  • Related Plans: Get alternate versions with house plans 85028MS (1,850 sq. ft.)m 85097MS (1,887 sq. ft.) and 85391MS (2,501 sq. ft.).

Each plan set is drawn to 1/4" scale and includes the following:

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

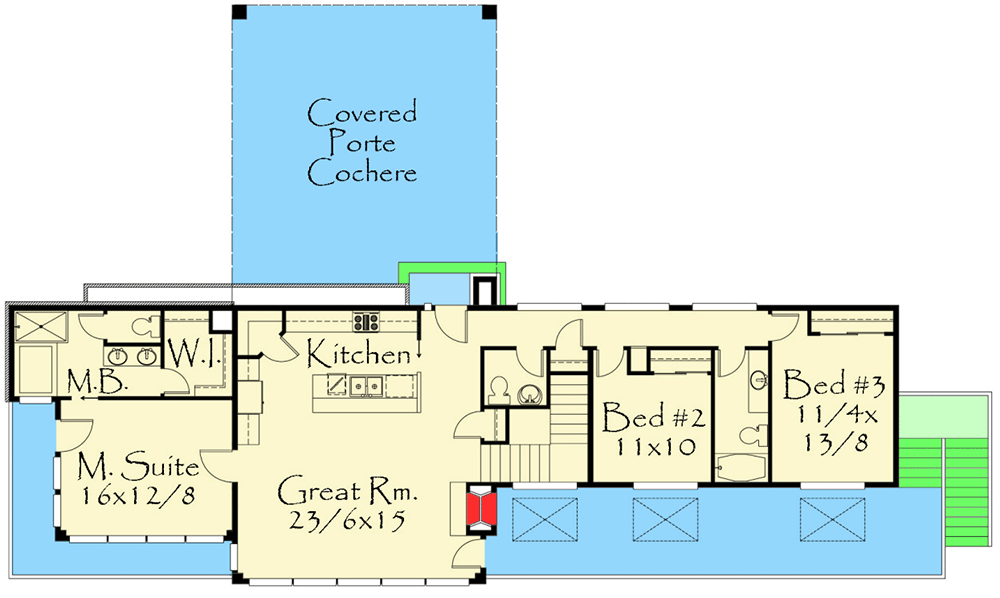

Modern 3100 Square Foot Ranch with Finished Lower Level and Drive-Under Garage - 85062MS floor plan - Main Level

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

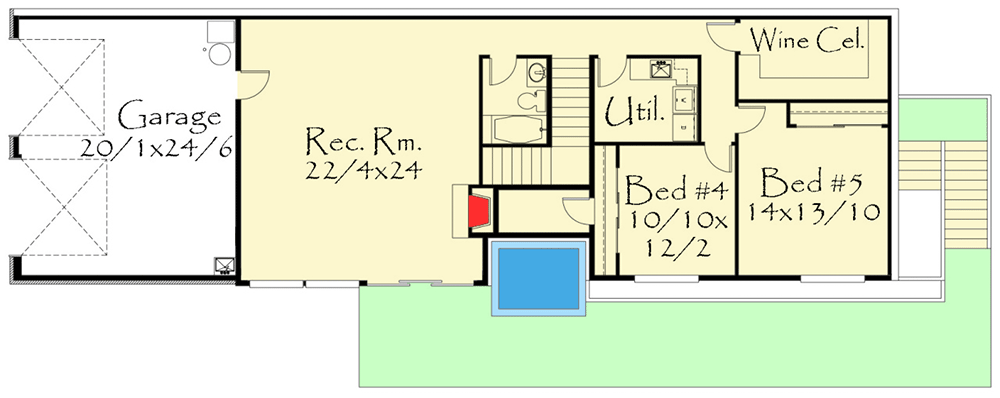

Modern 3100 Square Foot Ranch with Finished Lower Level and Drive-Under Garage - 85062MS floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,113 sq. ft.
  • Lower Level: 1,437 sq. ft.
  • 1st Floor: 1,676 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 83' 0"
  • Depth: 24' 0"

Garage

  • Type: Attached, Drive Under
  • Area: 512 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Architectural Style

Special features

Plan Collections
