Plan 490110NAH
Modern Barndominium-Style House Plan with 4-Car Garage and Workshop
Heated S.F.
3,690
Beds
3
Baths
3.5
Stories
2
Cars
4
Flyer
What's Included
Plan Details
  • This contemporary barndominium-style house plan offers a modern look with metal roofs, vertical siding with stone wainscot, and angled wooden columns to help make this house stand out. Three standard garage bays - and one RV bay - make this appealing for car enthusiasts.
  • Just off the entry is the home office for when you need to work remotely. Go past the stairs to the kitchen, dining, and 2-story living room.
  • An open-design layout, the kitchen and dining look towards the living room's fireplace and double doors that lead out to the covered patio.
  • The master bedroom is located just off the kitchen, with a bathroom nearby with standing shower, full-size tub, double vanities and walk-in closet.
  • Upstairs, you'll find the loft that overlooks the living room, leading to the 2 other bedrooms with walk-in closets.
  • This plan comes with a 4-car garage and workshop, large enough for those looking to store multiple vehicles and have space for home projects.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

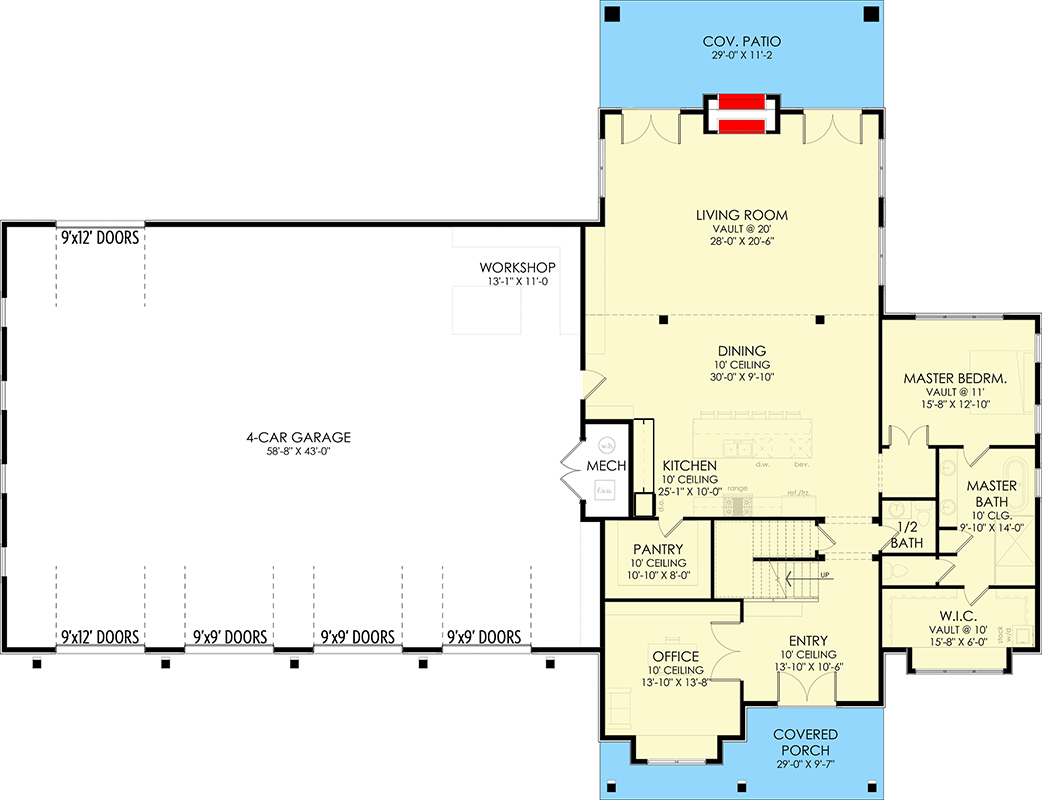

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Barndominium-Style House Plan with 4-Car Garage and Workshop

  • 3,690

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

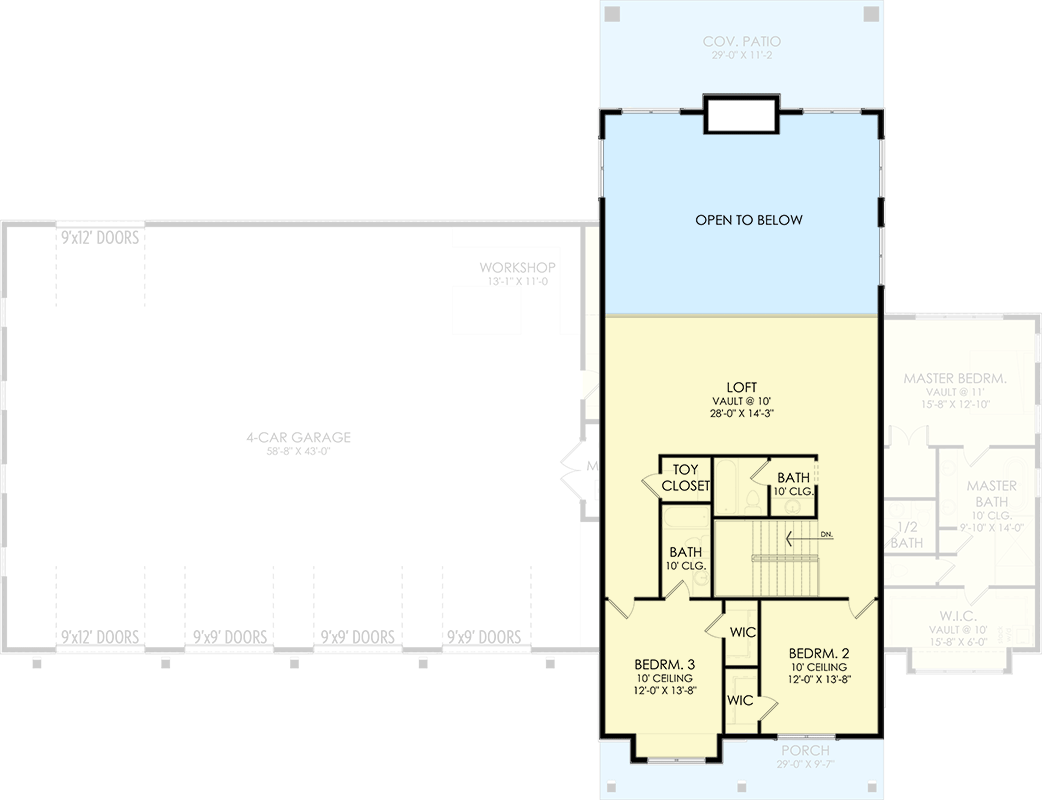

  • 2nd Floor
