Plan 62862DJ

Modern Carriage House Plan with Upper Level Deck

Heated S.F.
1,161
Beds
2
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 62862DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 62862DJ

M-F 9am-5pm EST |

1-203-761-8500

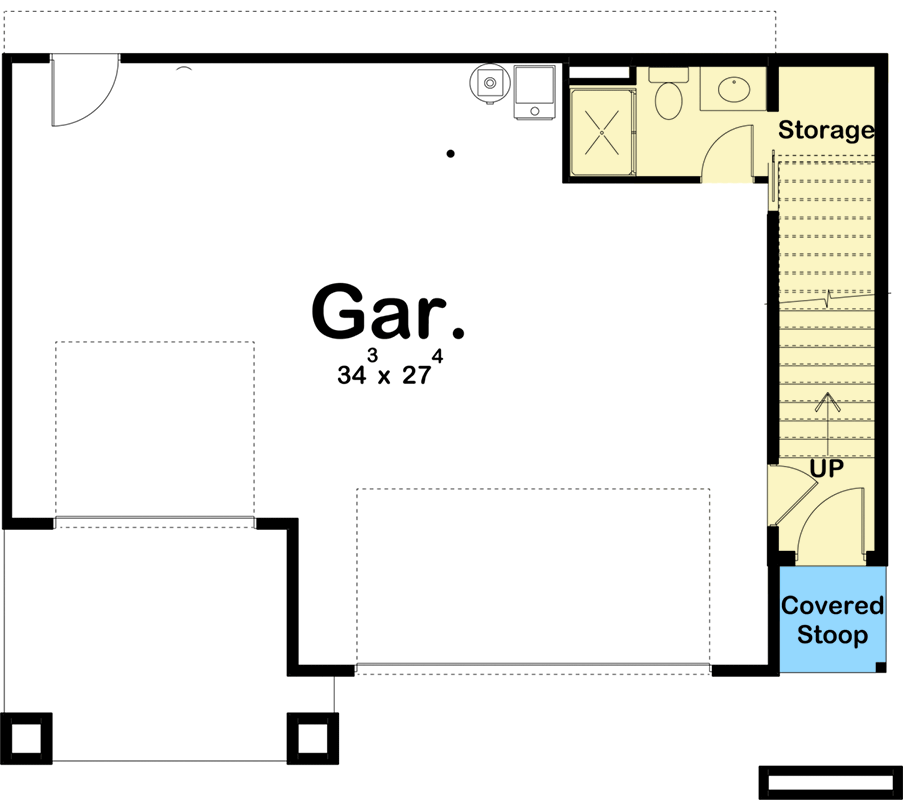

Main Level

Plan 62862DJ: Modern Carriage House Plan with Upper Level Deck - Floor Plan - Main Level - Carriage, Mid Century Modern, Modern

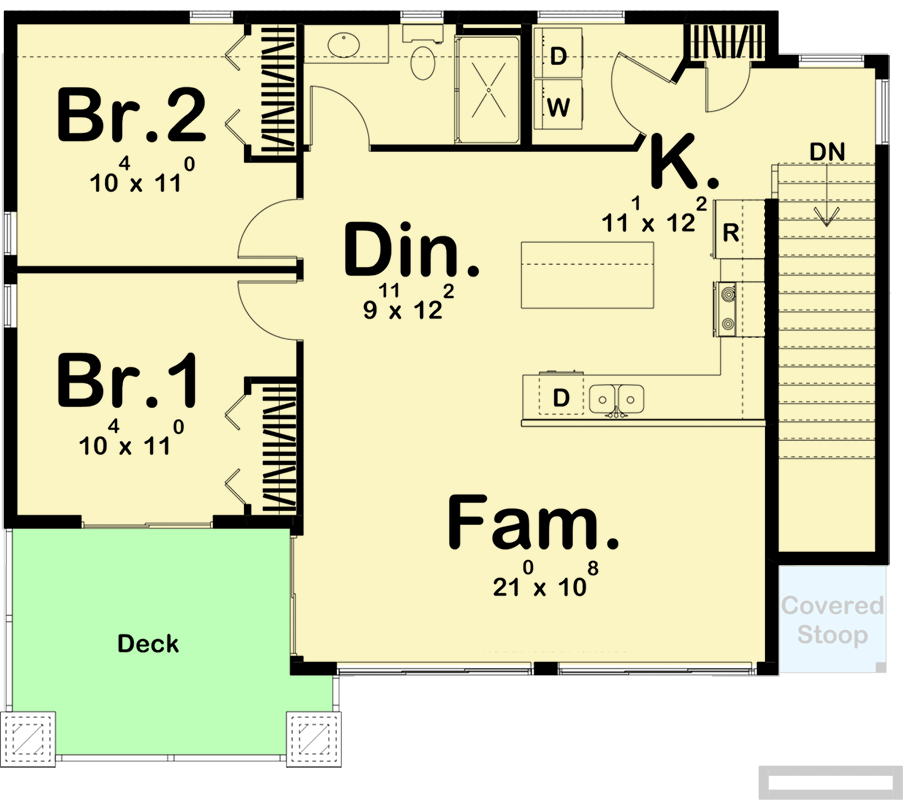

2nd Floor

Plan 62862DJ: Modern Carriage House Plan with Upper Level Deck - Floor Plan - 2nd Floor - Carriage, Mid Century Modern, Modern

Plan Details

  • The exterior of this modern carriage house plan features a mixture of wood, stone, and glass. The garage doors are offset from each other and the one on the left is partially sheltered by the deck above.
  • A full bathroom is located on the ground floor and there is a man door on the back wall.
  • The upper floor has an open floor plan giving you views from the kitchen across the family room and out the broad expanse of windows on the front wall. Sliding doors in the family room take you out to the deck.
  • Two bedrooms and a bath complete the plan.
  • Related Plan: Get a smaller version with house plan 62836DJ (984 sq. ft.).

What's Included

This plan set has 6 pages and includes the following details:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.

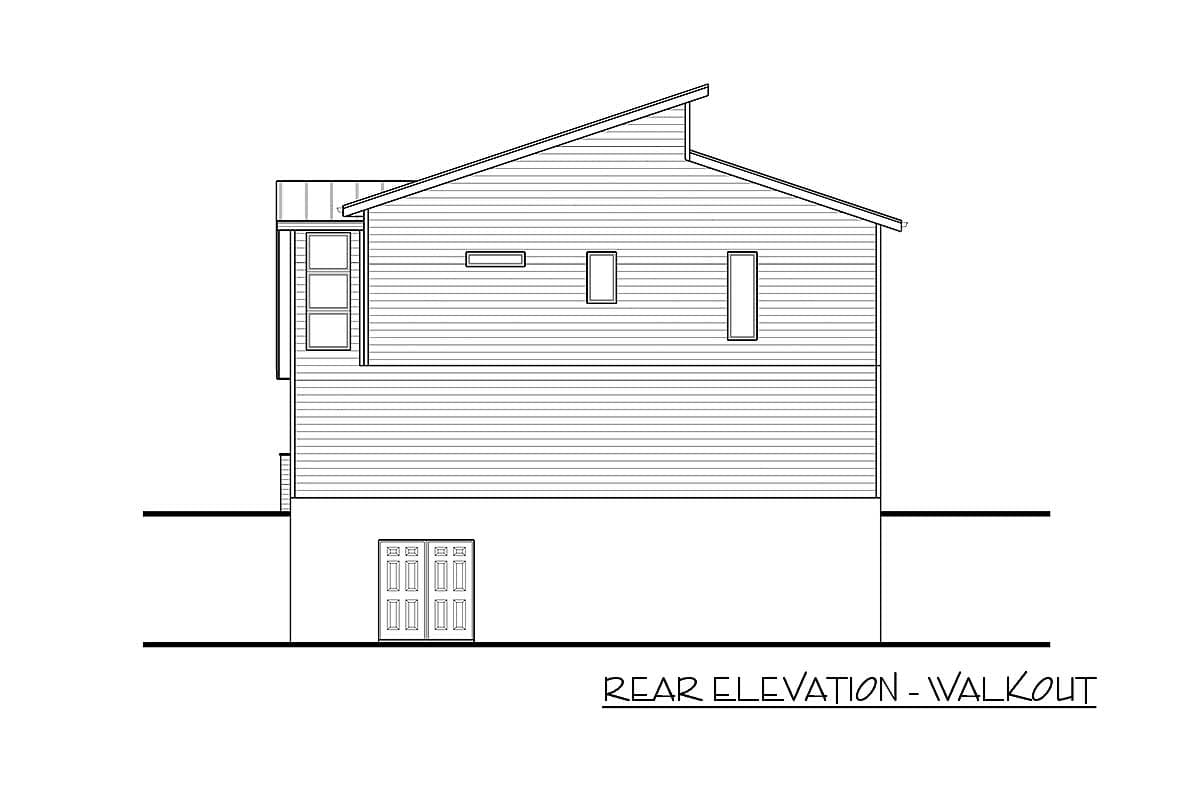

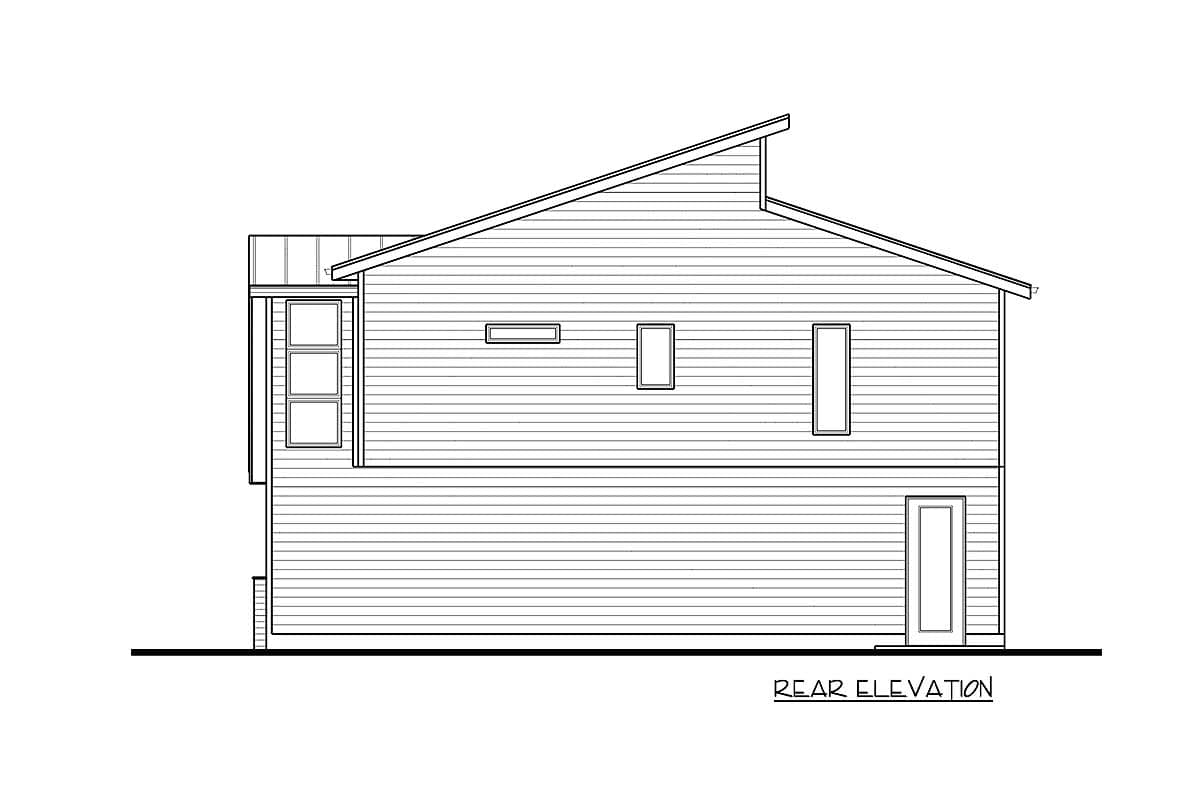

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinet elevations
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,161 sq. ft.

1st Floor

165 sq. ft.

2nd Floor

996 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

41' 0"

Depth

34' 0"

Garage

Type

Drive Under, Attached

Area

834 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Garage

9' 0''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

6 on 12

Architectural Style

Carriage

Mid Century Modern

Modern

Special Features

Laundry - Upstairs

Master Suite - Upstairs
