Modern Cottage Plan with Open Living Space and Single Carport

Plan 23875JD

  • 1,236

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 1

    Cars

  • The small footprint and square footage of this Modern Cottage helps to stay within budget, while not limiting the abundance of charm and curb appeal.
  • The foyer opens directly into the heart of the home with windows lining the front elevation and creating a living space full of natural light.
  • The dining table can double as a kitchen island, surrounded on two sides by cabinets, counters, and appliances.
  • Towards the rear of the main level, discover a bedroom and a full bath. A side door provides a shortcut to the single carport, and a laundry closet is tucked beneath the stairwell.
  • Upstairs, a second bedroom neighbors a full bath, and the loft can be converted into a third bedroom if preferred.
  • IMPORTANT NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

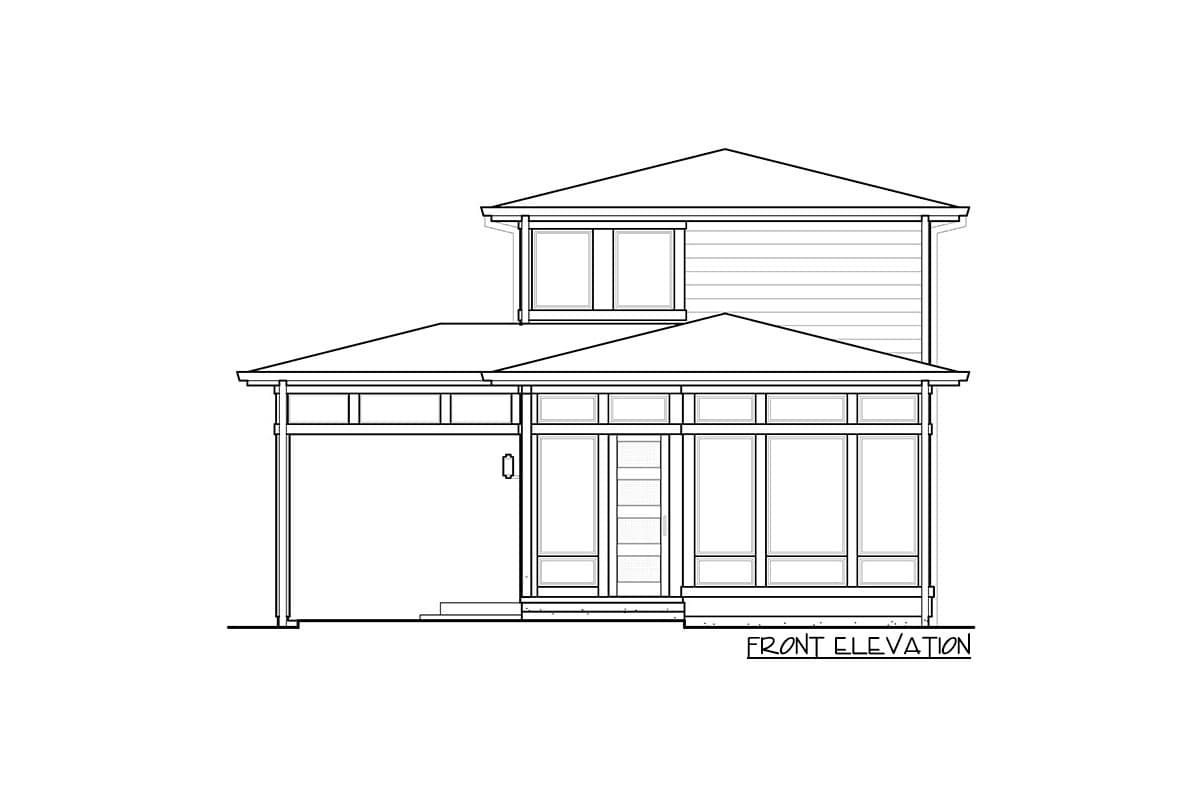

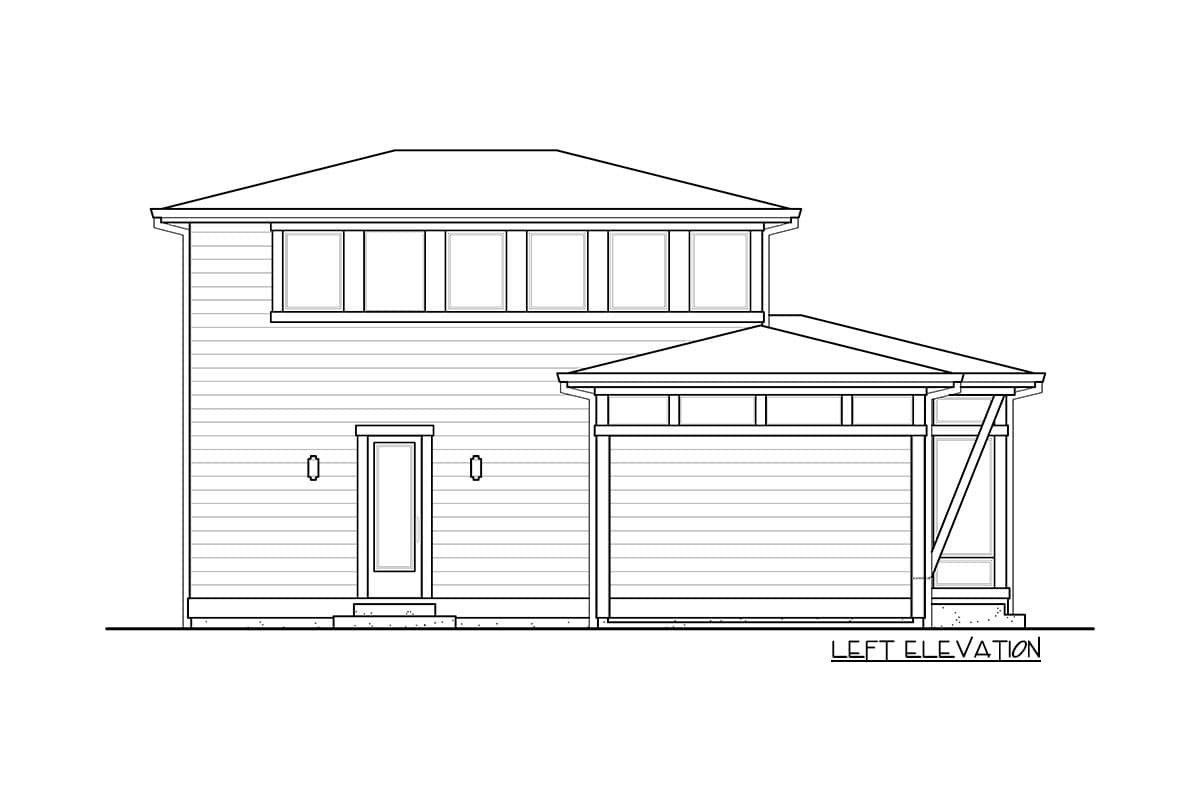

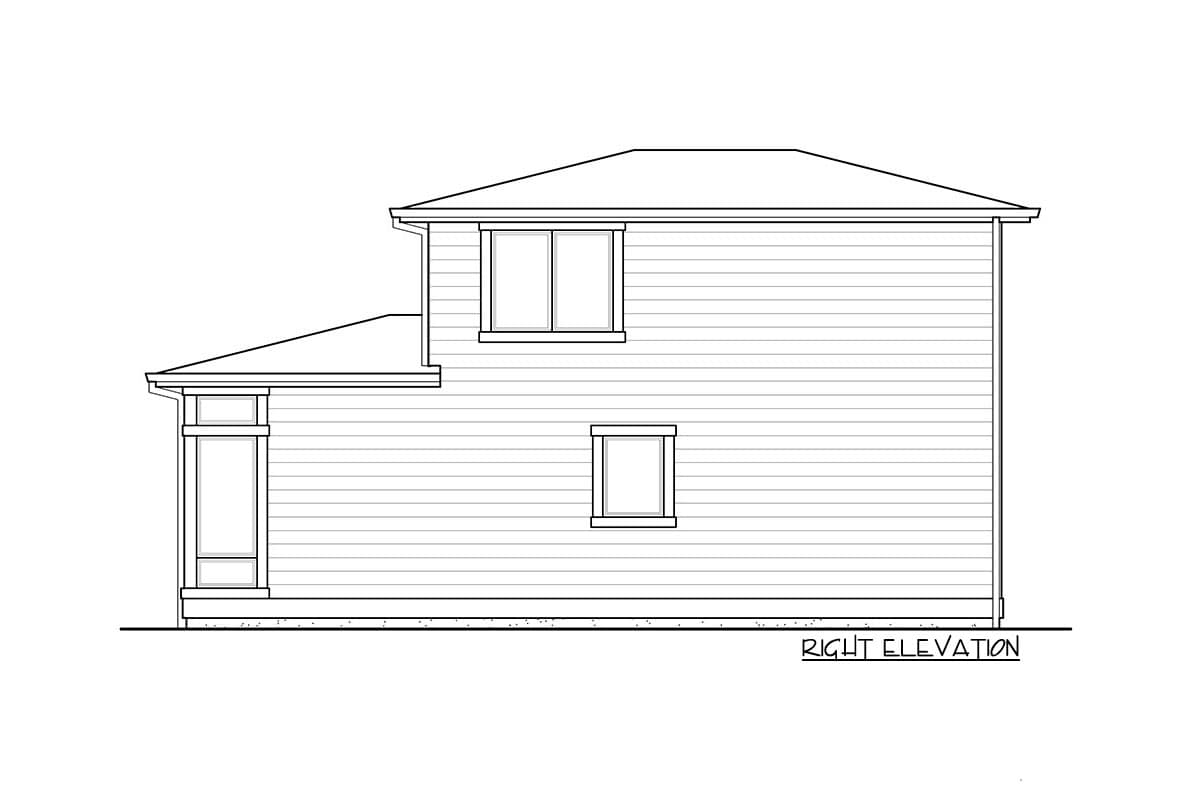

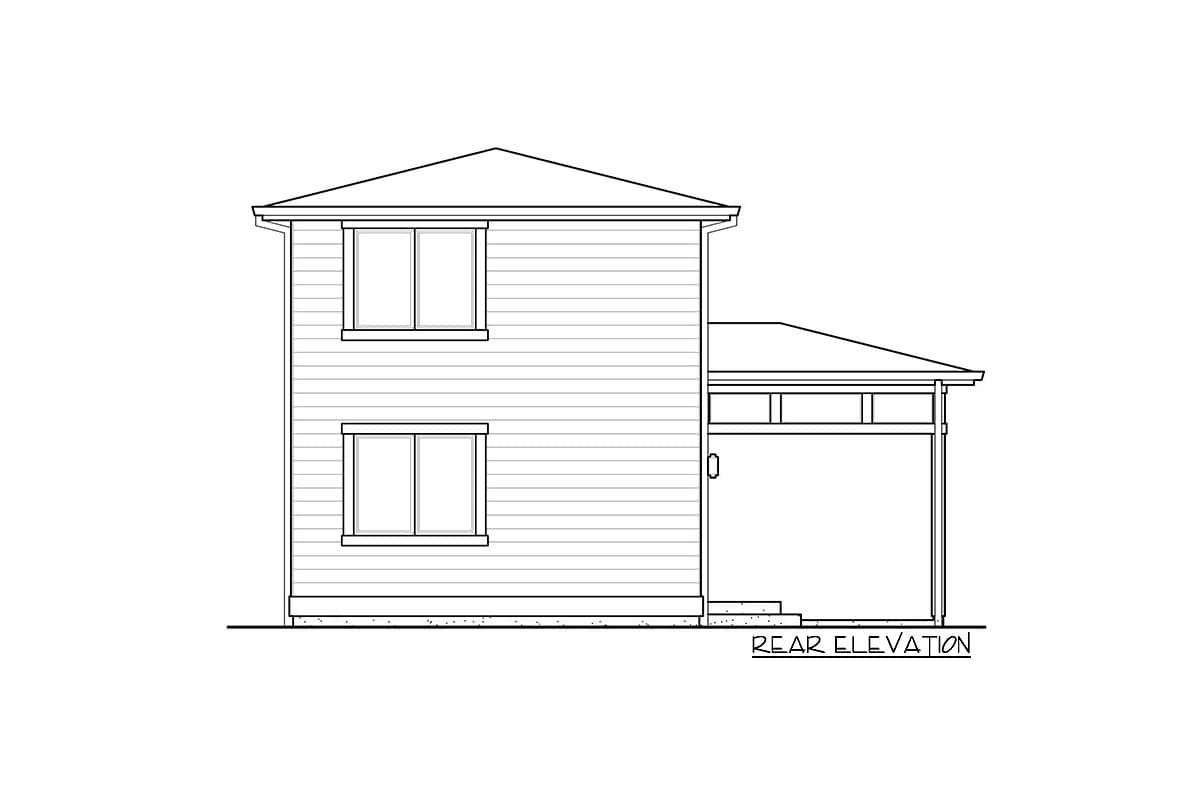

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

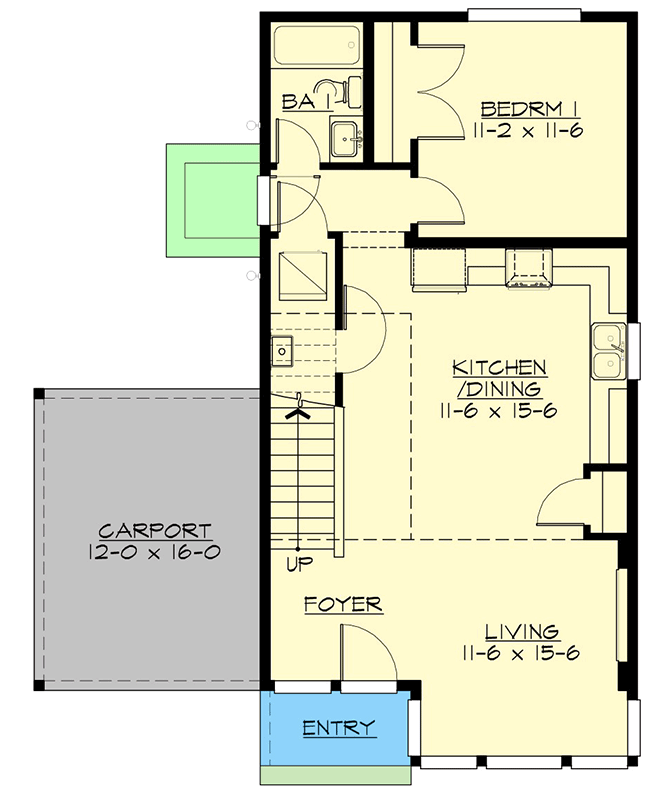

Modern Cottage Plan with Open Living Space and Single Carport - 23875JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

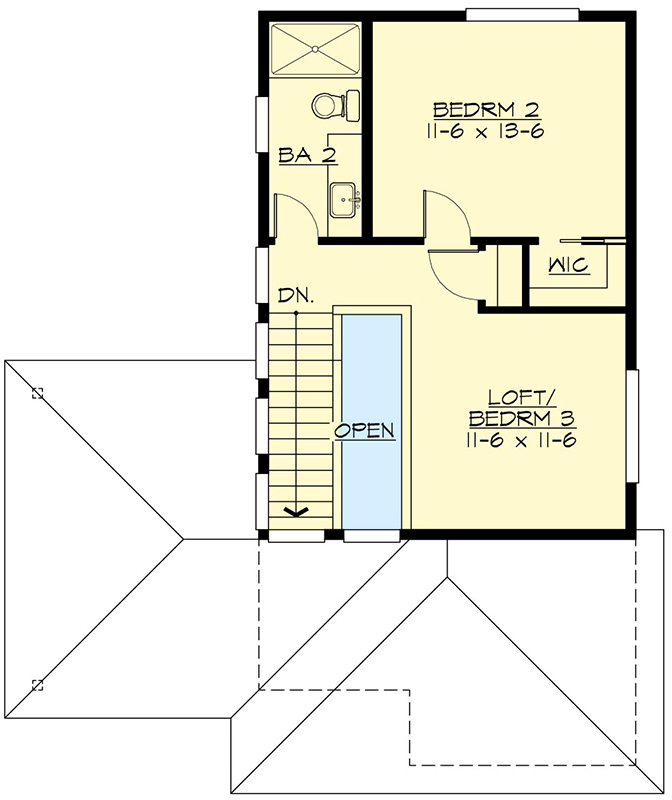

Modern Cottage Plan with Open Living Space and Single Carport - 23875JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,236 sq. ft.
  • 1st Floor: 768 sq. ft.
  • 2nd Floor: 468 sq. ft.
  • Carport: 192 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 40' 0"
  • Max ridge height: 22' 0"

Garage

  • Type: Carport
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Modern Cottage Plan with Open Living Space and Single Carport

  • 1,236

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • CAD + PDF - Unlimited Build $2,500
  • View all purchase option online

About This Plan

  • The small footprint and square footage of this Modern Cottage helps to stay within budget, while not limiting the abundance of charm and curb appeal.
  • The foyer opens directly into the heart of the home with windows lining the front elevation and creating a living space full of natural light.
  • The dining table can double as a kitchen island, surrounded on two sides by cabinets, counters, and appliances.
  • Towards the rear of the main level, discover a bedroom and a full bath. A side door provides a shortcut to the single carport, and a laundry closet is tucked beneath the stairwell.
  • Upstairs, a second bedroom neighbors a full bath, and the loft can be converted into a third bedroom if preferred.
  • IMPORTANT NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,236 sq. ft.
  • 1st Floor: 768 sq. ft.
  • 2nd Floor: 468 sq. ft.
  • Carport: 192 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 40' 0"
  • Max ridge height: 22' 0"

Garage

  • Type: Carport
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
Plan 23875JD
