Plan 623051DJ Modern Cottage-style House Plan with Two Lofts and a Bar Behind the Garage

Modern Cottage-style House Plan with Two Lofts and a Bar Behind the Garage

Plan 623051DJ

  • 4,862

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • This modern cottage-style house plan has a stucco exterior with a steeply pitched roofline. Contrasting siding colors bring this design to life.
  • Just inside the front covered porch, the 2-story entry is flanked on the right side by a formal living room that is warmed by a fireplace with built-in bookshelves. To the left of the entry, a den with a built-in desk is a perfect place to work from home or relax.
  • The kitchen is a chef''s dream and flows seamlessly with the other living areas. You'll love all the counter space and having space for an oversized industrial refrigerator, a large island with a snack bar, and a walk-in pantry. The long counter wraps into the dining room where there is a beverage fridge.
  • The dining room opens up to a large covered patio with an outdoor fireplace that is perfect for extending your entertainment spaces. The great room is warmed by a magnificent fireplace that is flanked by built-in bookshelves.
  • The master suite is isolated on the right side of the home and has a decorative trayed ceiling. The master bathroom includes his/her vanities, a soaking tub, a walk-in shower, an enclosed toilet, and a large walk-in closet with access to the laundry room.
  • Upstairs, you'll find 4 additional bedrooms with each one having its own walk-in closet and access to a bathroom. A large loft area overlooks the 2-story great room. A covered deck is accessible from the second-story loft.
  • Back on the main floor, a courtyard stands between the courtyard garages. A wet bar with a covered patio and bathroom faces to the rear of the home and makes a perfect place to relax by the pool.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

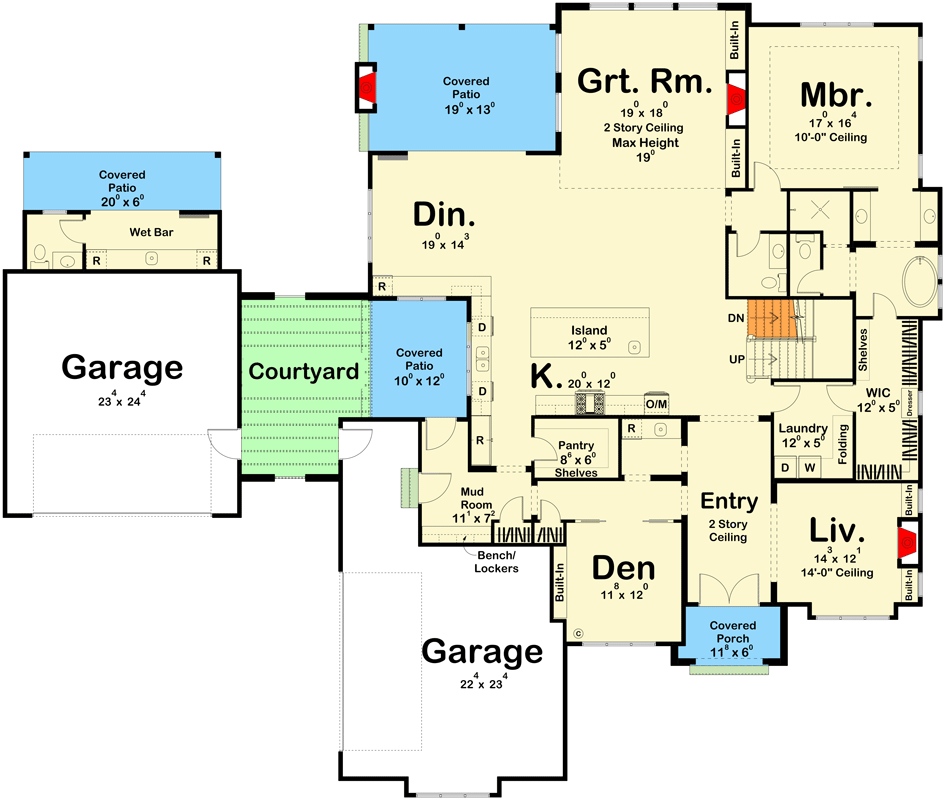

Modern Cottage-style House Plan with Two Lofts and a Bar Behind the Garage - 623051DJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

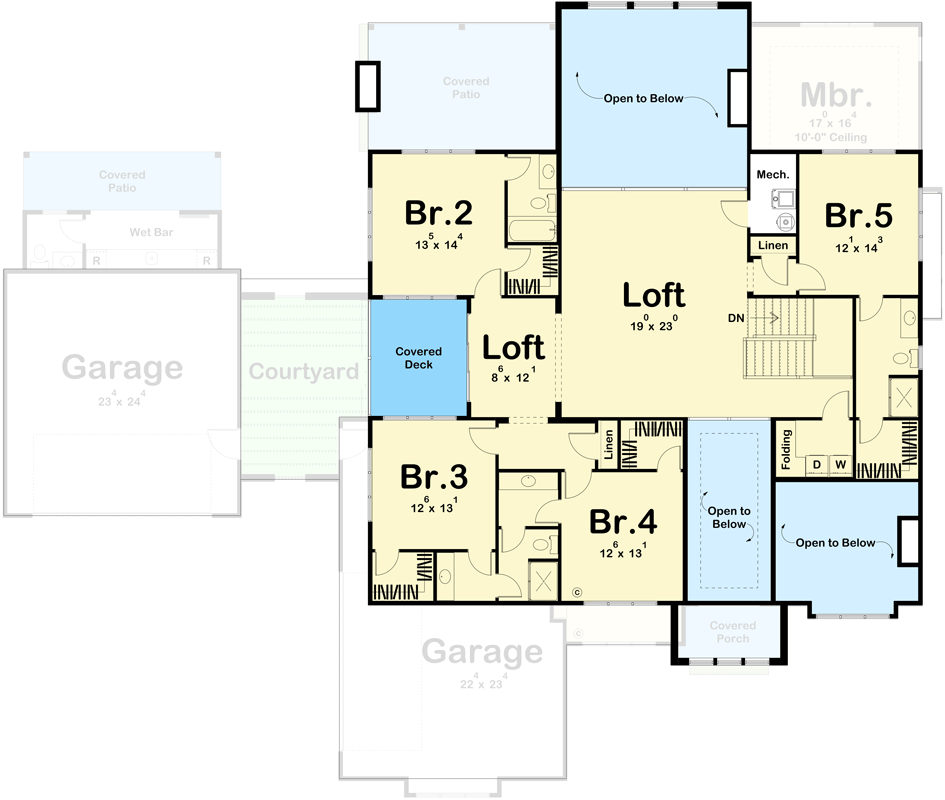

Modern Cottage-style House Plan with Two Lofts and a Bar Behind the Garage - 623051DJ floor plan - 2nd Floor

Plan details

Modern Cottage-style House Plan with Two Lofts and a Bar Behind the Garage

  • 4,862

    Heated s.f.

  • 5

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,200
  • 5 Sets + PDF $2,450
  • PDF - Unlimited Build $2,700
  • CAD + PDF - Single-Build $2,700
  • CAD - Unlimited Build $3,200
  • View all purchase option online

About This Plan

  • This modern cottage-style house plan has a stucco exterior with a steeply pitched roofline. Contrasting siding colors bring this design to life.
  • Just inside the front covered porch, the 2-story entry is flanked on the right side by a formal living room that is warmed by a fireplace with built-in bookshelves. To the left of the entry, a den with a built-in desk is a perfect place to work from home or relax.
  • The kitchen is a chef''s dream and flows seamlessly with the other living areas. You'll love all the counter space and having space for an oversized industrial refrigerator, a large island with a snack bar, and a walk-in pantry. The long counter wraps into the dining room where there is a beverage fridge.
  • The dining room opens up to a large covered patio with an outdoor fireplace that is perfect for extending your entertainment spaces. The great room is warmed by a magnificent fireplace that is flanked by built-in bookshelves.
  • The master suite is isolated on the right side of the home and has a decorative trayed ceiling. The master bathroom includes his/her vanities, a soaking tub, a walk-in shower, an enclosed toilet, and a large walk-in closet with access to the laundry room.
  • Upstairs, you'll find 4 additional bedrooms with each one having its own walk-in closet and access to a bathroom. A large loft area overlooks the 2-story great room. A covered deck is accessible from the second-story loft.
  • Back on the main floor, a courtyard stands between the courtyard garages. A wet bar with a covered patio and bathroom faces to the rear of the home and makes a perfect place to relax by the pool.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,862 sq. ft.
  • 1st Floor: 2,892 sq. ft.
  • 2nd Floor: 1,970 sq. ft.
  • Courtyard: 120 sq. ft.
  • Covered Patio: 247 sq. ft.
  • Porch, Combined: 439 sq. ft.
  • Porch, Front: 65 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 95' 0"
  • Depth: 79' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 1252 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard, Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 14 On 12; 8 On 12; 4 on 12
  • Framing Type: Truss
