Plan 22471DR Modern Craftsman with Optional Finished Lower Level

1,102 2-4 1 - 2 1
1 Client
Album Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Craftsman with Optional Finished Lower Level

Plan 22471DR

  • 1,102

    Heated s.f.

  • 2-4

    Beds

  • 1 - 2

    Baths

  • 1

    Stories

  • Two gables with decorative brackets lend combine with an exterior of wood and stone to create great curb appeal to this modern Craftsman with an optional finished lower level.
  • The entry opens to an open floor plan where you'll enjoy views front-to-back from the living room. The master bed has two closets and a shared bath is steps away.
  • The lower level gives you expansion possibilities and comes with a layout with two beds, another full bath and an open rec room.
  • Related Plans: Get an alternate exterior with house plan 22545DR and an attached garage with house plan 22515DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

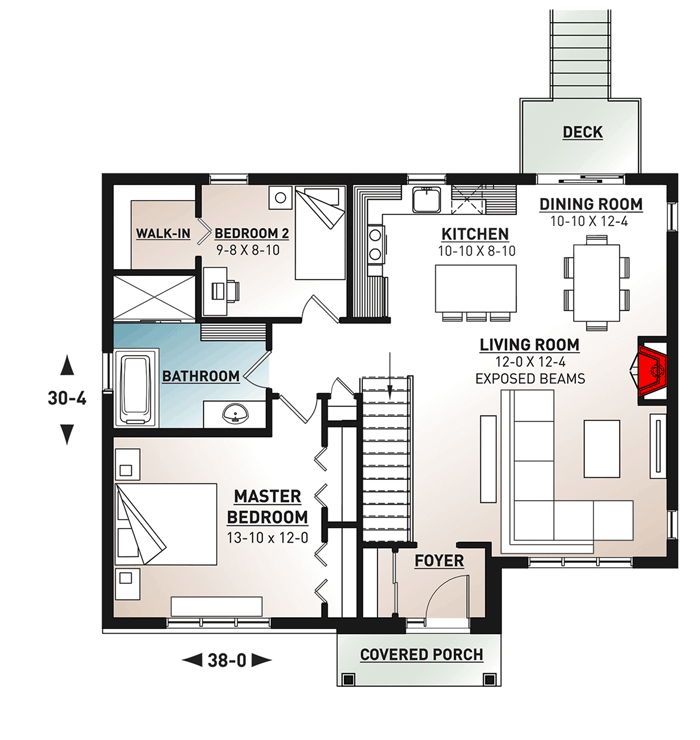

Modern Craftsman with Optional Finished Lower Level - 22471DR floor plan - Main Level

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

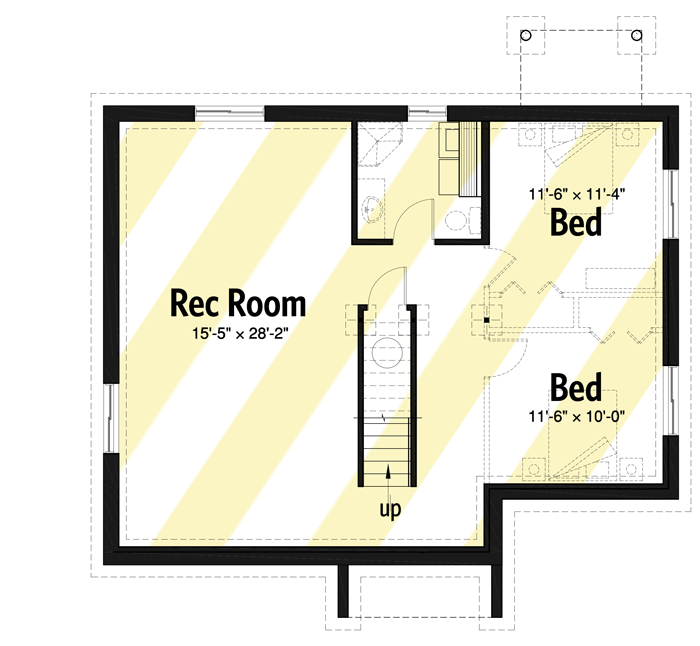

Modern Craftsman with Optional Finished Lower Level - 22471DR floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,102 sq. ft.
  • 1st Floor: 1,102 sq. ft.
  • Optional Lower Level: 1,102 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Daylight
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 30' 0"
  • Max ridge height: 21' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern Craftsman with Optional Finished Lower Level

  • 1,102

    Heated s.f.

  • 2-4

    Beds

  • 1 - 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,250
  • 3 Sets + PDF $1,375
  • CAD + PDF - Single-Build $1,850
  • View all purchase option online

About This Plan

  • Two gables with decorative brackets lend combine with an exterior of wood and stone to create great curb appeal to this modern Craftsman with an optional finished lower level.
  • The entry opens to an open floor plan where you'll enjoy views front-to-back from the living room. The master bed has two closets and a shared bath is steps away.
  • The lower level gives you expansion possibilities and comes with a layout with two beds, another full bath and an open rec room.
  • Related Plans: Get an alternate exterior with house plan 22545DR and an attached garage with house plan 22515DR.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,102 sq. ft.
  • 1st Floor: 1,102 sq. ft.
  • Optional Lower Level: 1,102 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Daylight
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 30' 0"
  • Max ridge height: 21' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
Plan 22471DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/22471DR
|
Need Help? 800-854-7852
|
