Modern House Plan with Open Floor Plan

Plan 22545DR

  • 1,094

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This one-story house plan has a modern exterior with a covered front door entry.
  • The entry opens to an open floor plan where you'll enjoy views front-to-back from the living room.
  • The master bed has a pocket door that opens to the bathroom shared with Bed 2 which has hall access.
  • The lower level gives you expansion possibilities.
  • Related Plans: Get an alternate exterior with house plan 22471DR and 22515DR (with an attached garage).

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

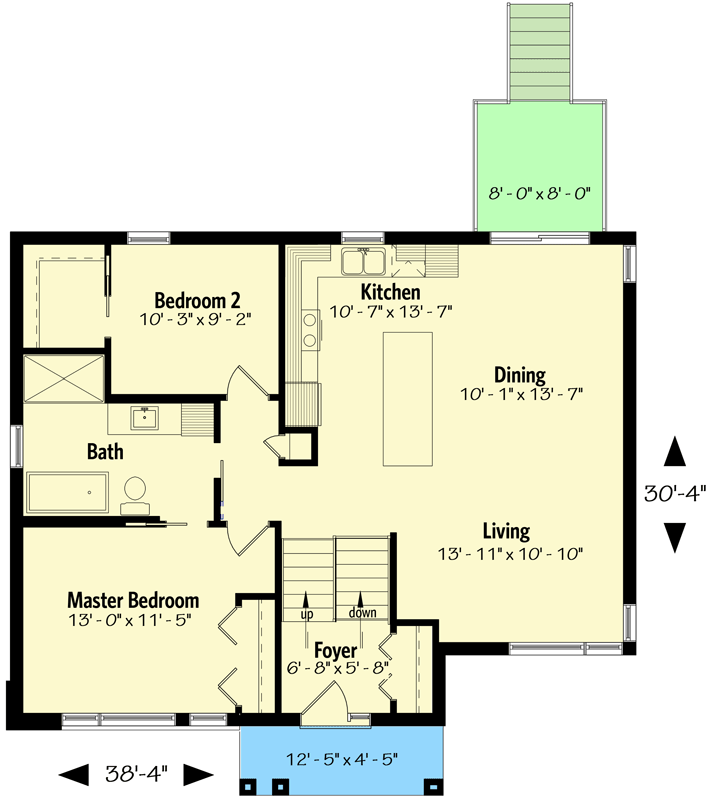

Modern House Plan with Open Floor Plan - 22545DR floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

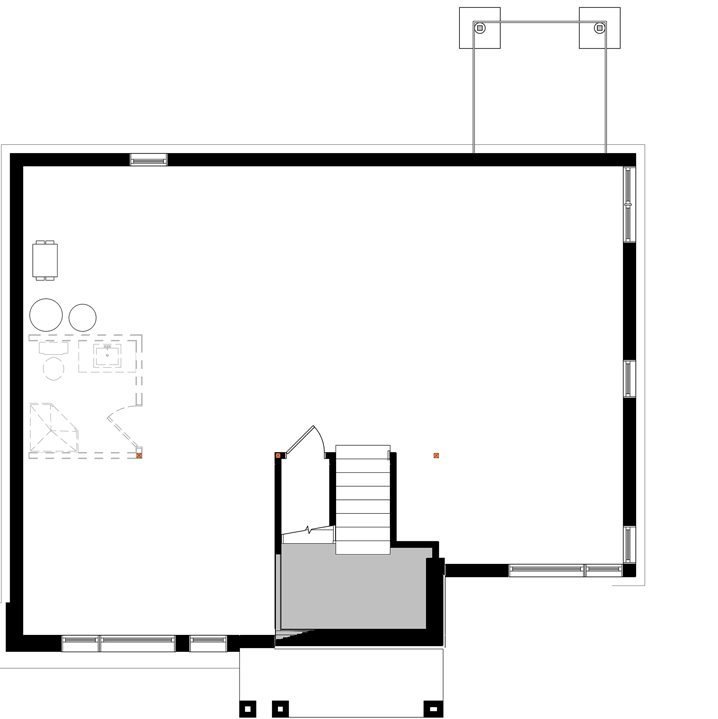

Modern House Plan with Open Floor Plan - 22545DR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,094 sq. ft.
  • 1st Floor: 1,094 sq. ft.
  • Basement Unfinished: 1,094 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 4"
  • Depth: 30' 4"
  • Max ridge height: 20' 8"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof Details

  • Primary Pitch: 4 on 12

Architectural Style

Special features

Plan Collections

Modern House Plan with Open Floor Plan

  • 1,094

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,250
  • 3 Sets + PDF $1,375
  • CAD + PDF - Single-Build $1,850
  • View all purchase option online
