Modern Duplex for Narrow Infill Lots with Asymmetrical 3-Bed Units

Heated S.F.
2,418
Units
2
Width
Depth
Client Photos

Floor Plan

Plan 100301GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100301GHR

M-F 9am-5pm EST |

1-203-761-8500

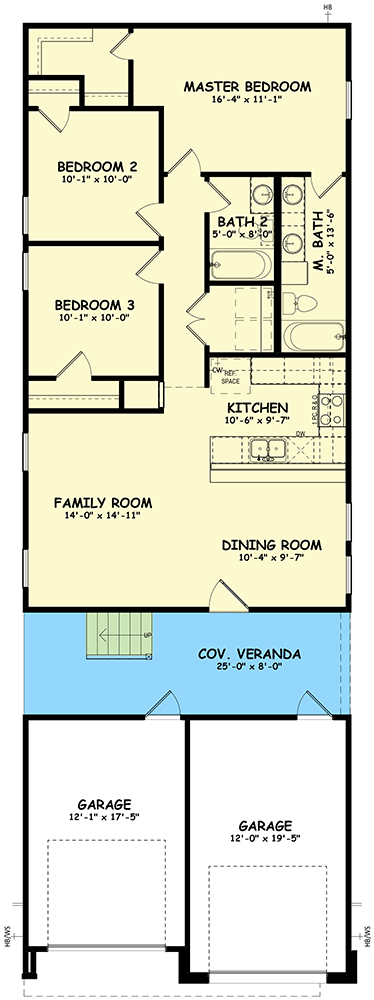

Main Level

Plan 100301GHR: Modern Duplex for Narrow Infill Lots with Asymmetrical 3-Bed Units - Floor Plan - Main Level - Contemporary, European, Modern, Transitional

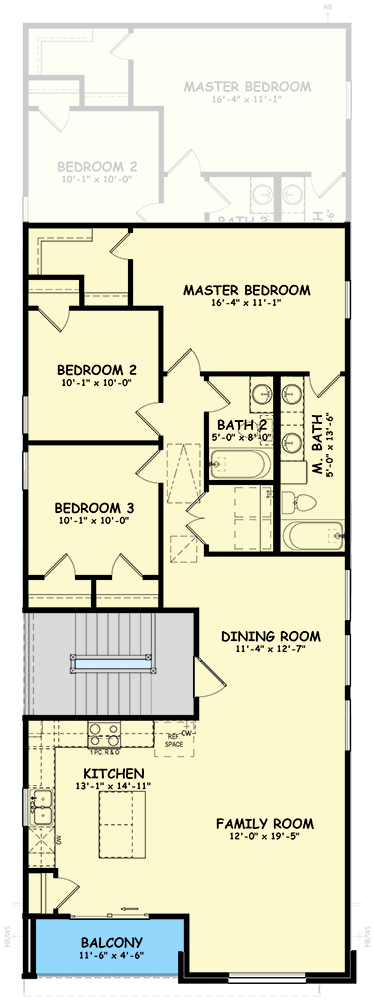

2nd Floor

Plan 100301GHR: Modern Duplex for Narrow Infill Lots with Asymmetrical 3-Bed Units - Floor Plan - 2nd Floor - Contemporary, European, Modern, Transitional

Plan Details

  • This 2-story stacked duplex offers a generous 2,418 square feet of living area with a 1 car garage for each unit.  Designed for narrow lots with front load access, this duplex allows for increased density for infill projects.
  • The first floor unit features 1,125 square feet of living space, including 3 bedrooms, 2 baths, and an open concept living area. The open concept living area of the first floor unit is perfect for hosting guests or spending time with family. The unit’s 3 bedrooms offer ample space for a growing family or guests, while the 2 baths provide convenience and privacy.
  • The second floor unit features 1,293 square feet of living space, with 3 bedrooms, 2 baths, a spacious open concept living area, and a balcony. The balcony offers a relaxing outdoor space to enjoy the beautiful views and fresh air, making it perfect for unwinding after a long day.
  • The exterior of this duplex features a modern design, making it stand out in any neighborhood. The sleek lines and contemporary style create an eye-catching and visually stunning exterior that is sure to impress.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

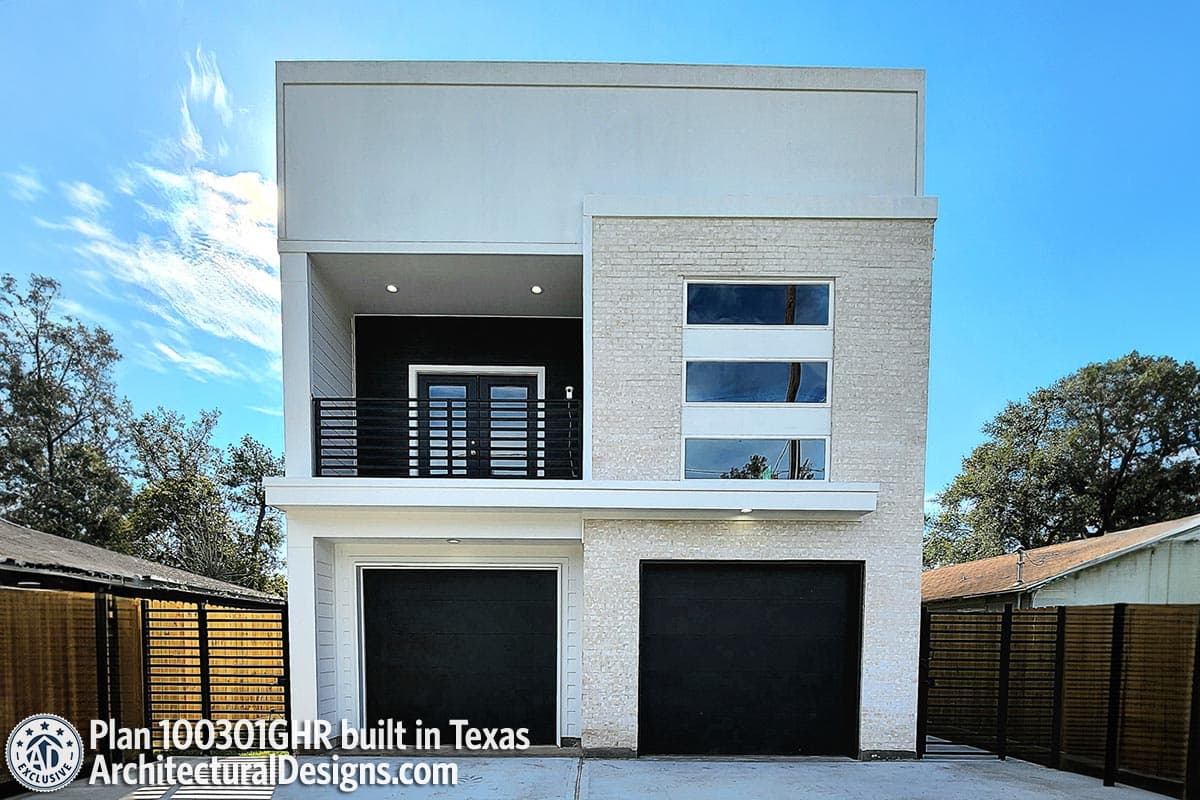

build gallery item - House Plan 100301GHR Comes to Life in Texas

House Plan 100301GHR Comes to Life in Texas

7

Photos

Unit A
Heated Area
1,125Sq. Ft.
1125 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
25'width
73' 6"depth
Unit B
Heated Area
1,293Sq. Ft.
1125 Sq. Ft. 1st
1293 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Dimensions
25'width
73' 6"depth

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,418 sq. ft.

1st Floor

1,125 sq. ft.

2nd Floor

1,293 sq. ft.

Porch, Combined

200 sq. ft.

Balcony / Veranda

52 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

25' 0"

Depth

73' 6"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

European

Modern

Transitional

Special Features

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Exclusive

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,418 sq. ft.

1st Floor

1,125 sq. ft.

2nd Floor

1,293 sq. ft.

Porch, Combined

200 sq. ft.

Balcony / Veranda

52 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

25' 0"

Depth

73' 6"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

European

Modern

Transitional

Special Features

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Exclusive

Photo Gallery
