Plan 42451DB
Modern Duplex House Plan with 3 Bed 1277 Sq Ft Units
Heated S.F.
2,554
Units
2
Width
44'
Depth
38'
Cars
2
What's Included
Plan Details
  • This modern duplex house plan gives you matching side-by-side units. Each 22'-wide unit gives its owners 3 beds, 2.5 baths and a 1-car garage.
  • Each unit has 1,277 square feet of heated living space (562 square feet on the main floor and 715 square feet on the second floor).
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plans: Get a 4-Unit version with house plan 42600DB and a triplex unit with house plan 42452DB.
Unit A
1,277 Sq. Ft.
562 Sq. Ft. 1st Floor
715 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
217 Sq. Ft.
22' w 38' d 25' 3" h
Unit B
1,277 Sq. Ft.
562 Sq. Ft. 1st Floor
715 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
217 Sq. Ft.
22' w 38' d 25' 3" h
What's Included
  • General Notes

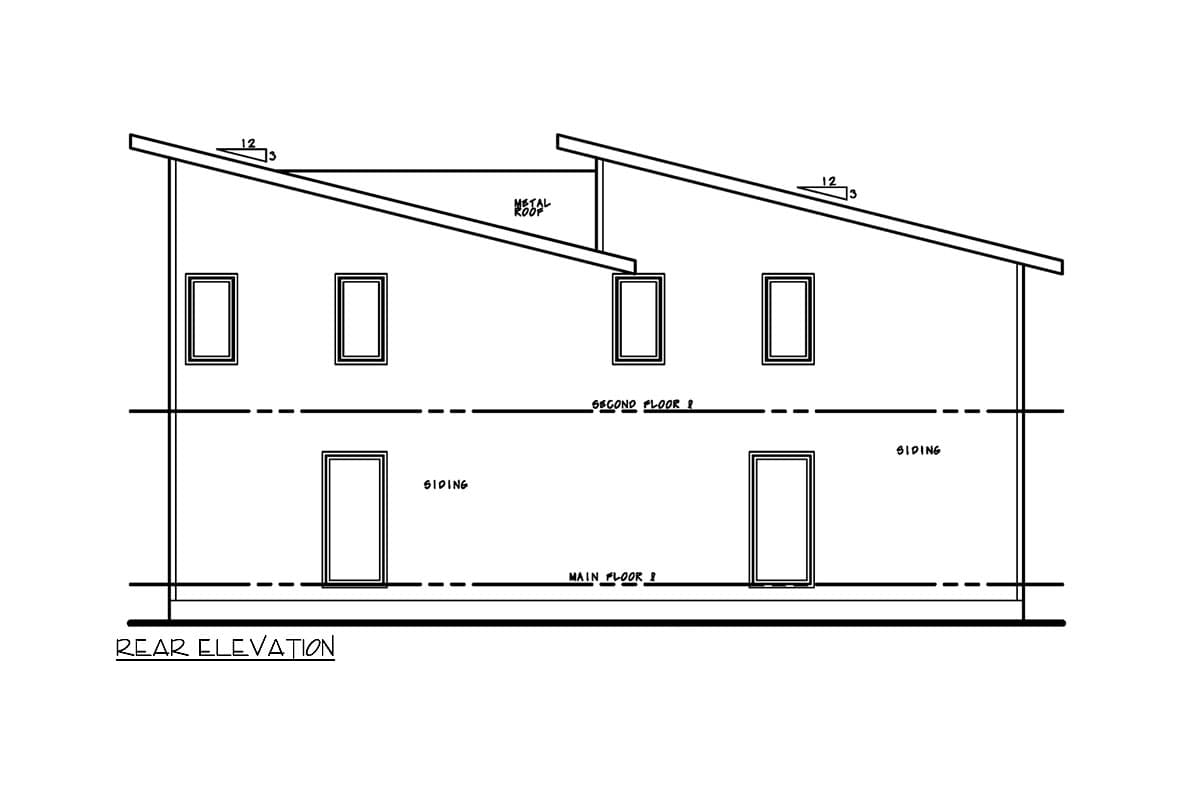

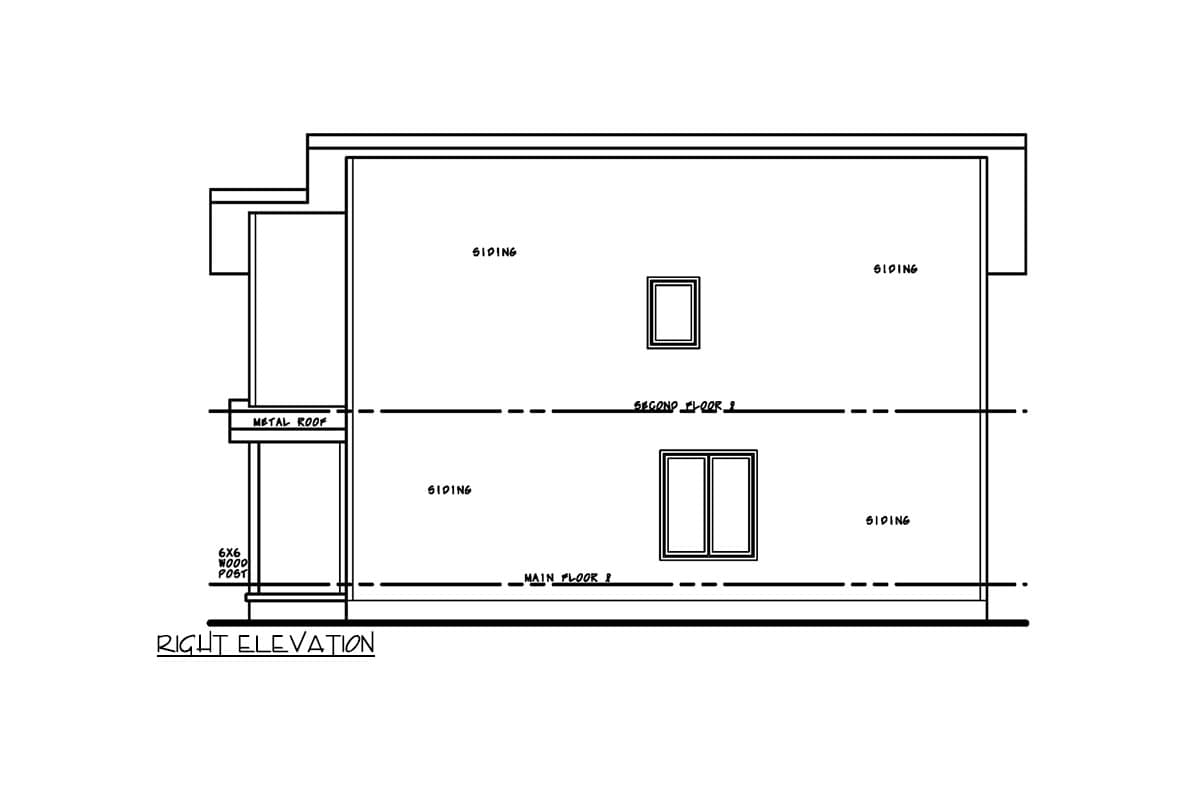

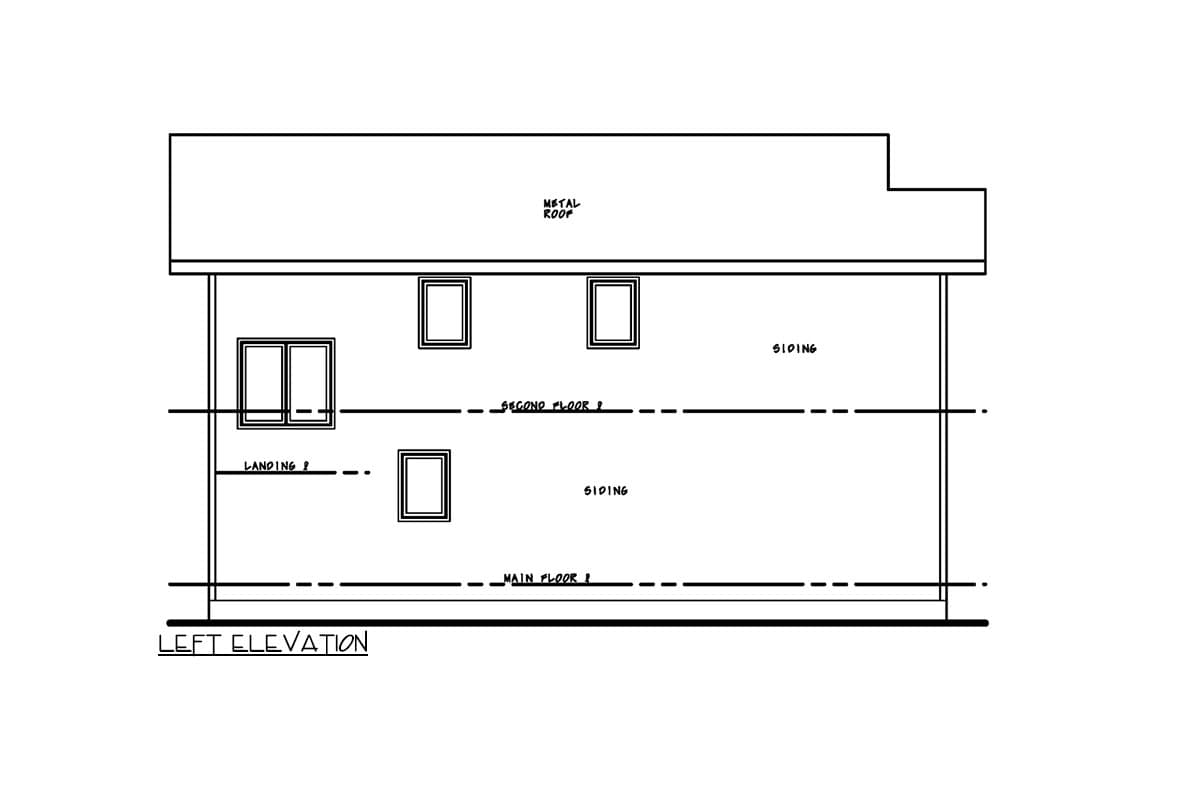

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section

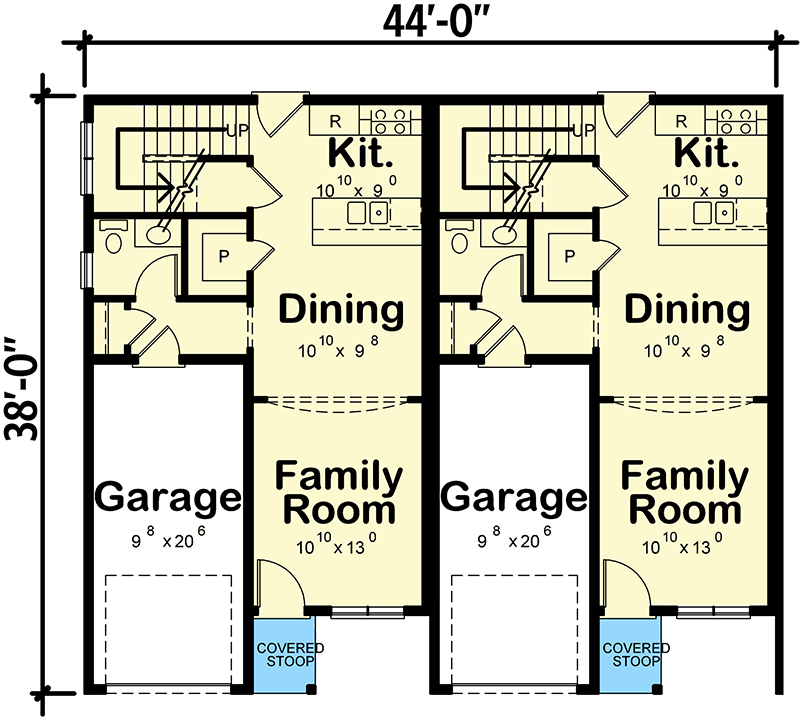

  • Main Level Floor Plan

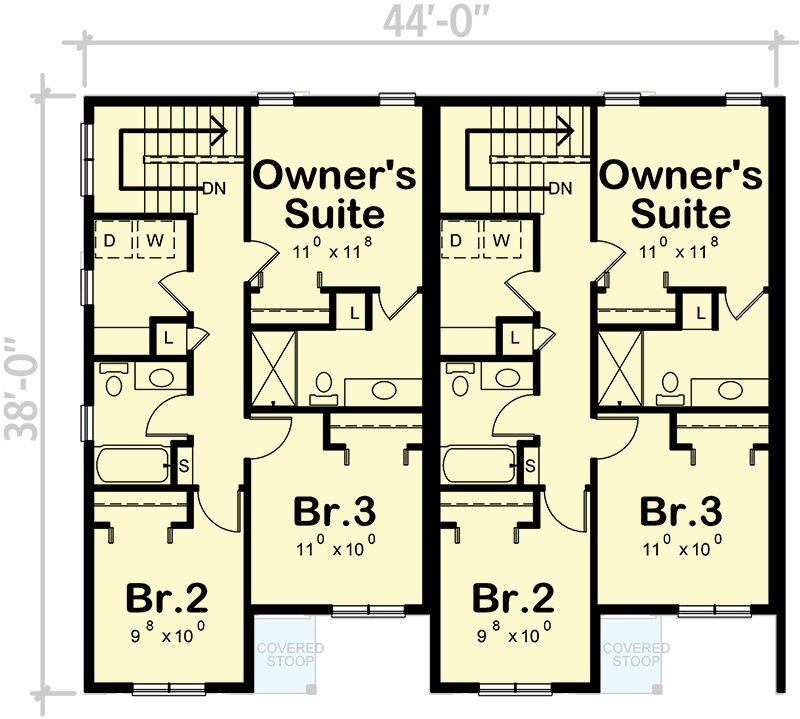

  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
