Plan 100316GHR

Exclusive

Modern Duplex House Plan with 3-Bed, 3-Bath Units - Architectural Designs

Heated S.F.
2,594
Units
2
Width
Depth

Floor Plan

Plan 100316GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100316GHR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 100316GHR: Modern Duplex House Plan with 3-Bed, 3-Bath Units - Architectural Designs - Floor Plan - Main Level - Contemporary, Modern, Northwest

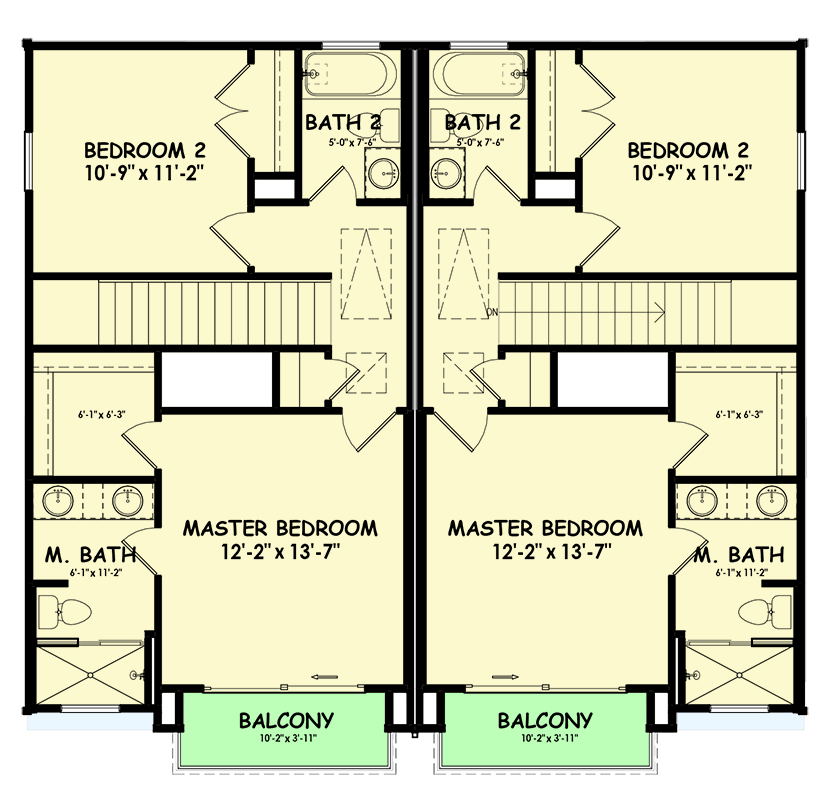

2nd Floor

Plan 100316GHR: Modern Duplex House Plan with 3-Bed, 3-Bath Units - Architectural Designs - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

  • This modern duplex house plan gives you matching 2-story units, each with 3 beds and 3 baths. Each unit has 2,594 square feet of heated living with 1,308 square feet on the main floor and 1,286 square feet on the second floor.
  • The front of the home is open concept and gives you a family room open to the kitchen. Bed 3 is in back and has access to a hall bath. Laundry is located steps away.
  • Upstairs, the master suite is in front and has a private balcony (10'2" by 3'11") and a bathroom with two vanities and a walk-in shower. Bed 2 is in back and has access to a hall bath.
  • Architectural Designs curates and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify this house plan (and any you see on our site). Learn more about modifications.
Unit A
Heated Area
1,297Sq. Ft.
654 Sq. Ft. 1st
643 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
Dimensions
19'width
34'depth
26'height
Unit B
Heated Area
1,297Sq. Ft.
654 Sq. Ft. 1st
643 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
Dimensions
19'width
34'depth
26'height

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

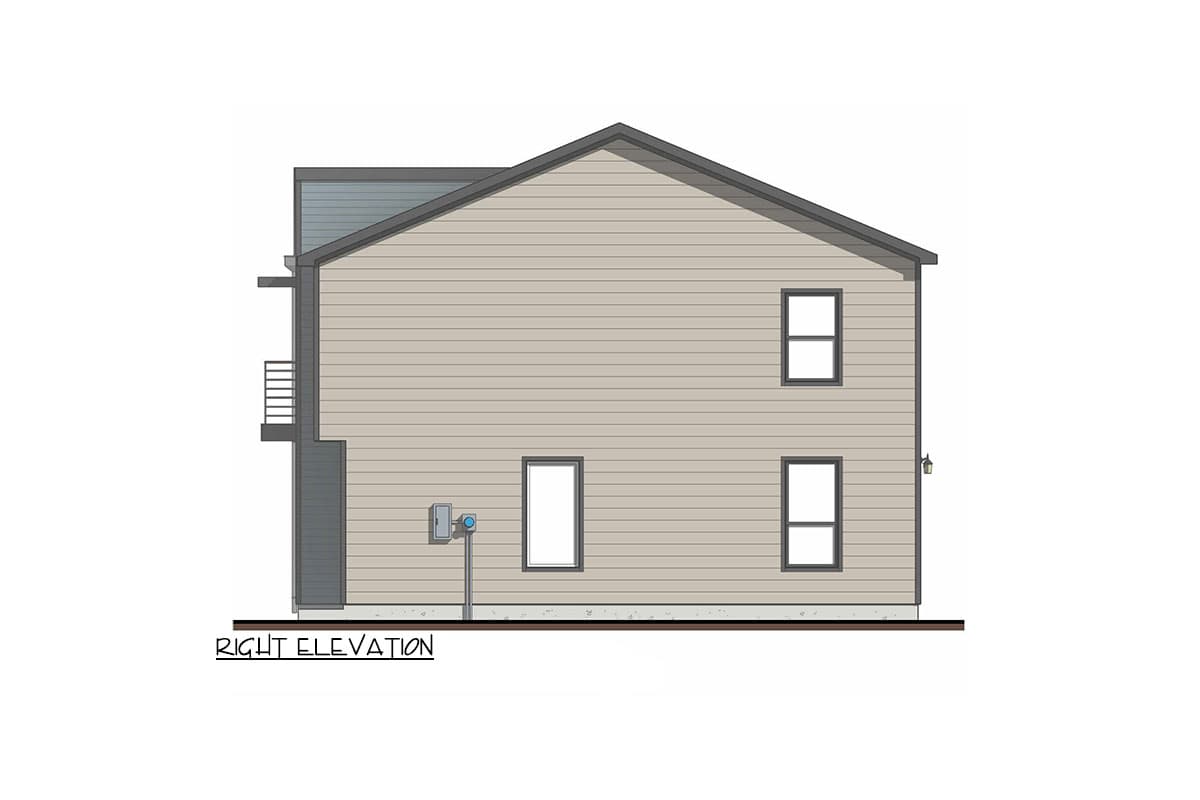

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,594 sq. ft.

1st Floor

1,308 sq. ft.

2nd Floor

1,286 sq. ft.

Porch, Front

32 sq. ft.

Balcony / Veranda

84 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

34' 6"

Max Ridge Height

26' 9"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Northwest

Special Features

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Exclusive

Photo Gallery
