Plan 22498DR

Modern Duplex House Plan with 3 Beds and 2 Baths Per Unit

Heated S.F.
3,568
Units
2
Width
Depth

Floor Plan

Plan 22498DR

Main Level
Main Level
Lower Level
Lower Level

Plan 22498DR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

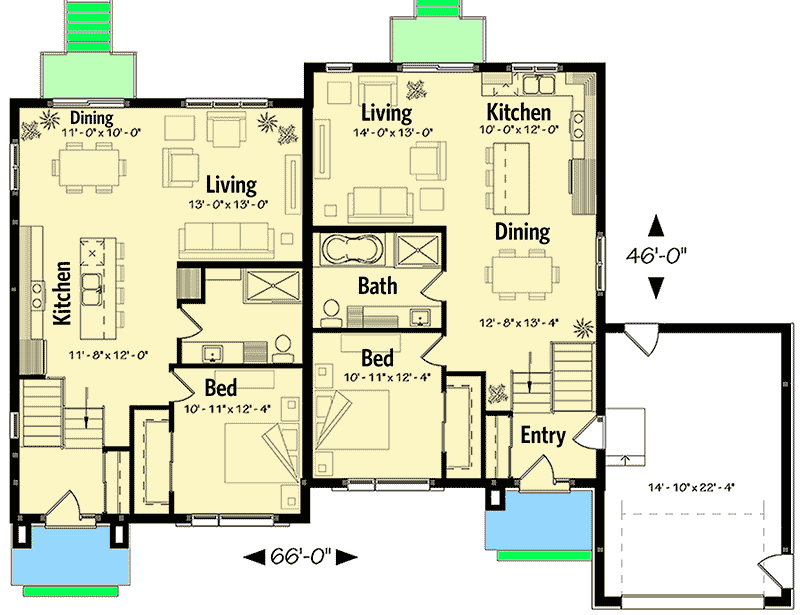

Plan 22498DR: Modern Duplex House Plan with 3 Beds and 2 Baths Per Unit - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern

Lower Level

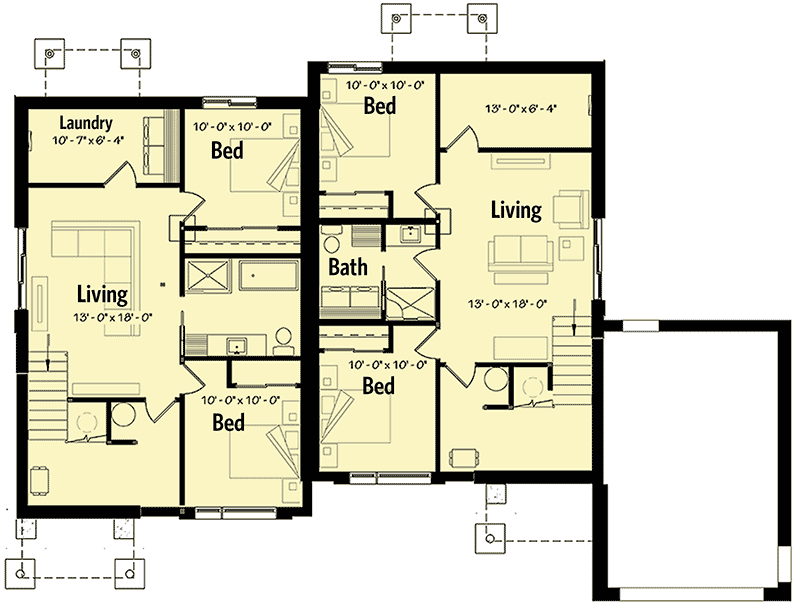

Plan 22498DR: Modern Duplex House Plan with 3 Beds and 2 Baths Per Unit - Floor Plan - Lower Level - Contemporary, Mid Century Modern, Modern

Plan Details

  • This two-family house plan gives you a single garage on one side two 3-bed units slightly offset one from the other. Each unit gives you 892 square feet on the main floor and also on the lower level. The exterior has a modern cubic style. The hip roof gives it a very unique and original look.
  • On the main level the split entrance offers a large closet as well as a ceiling of over 11-feet high in the foyer making this a roomy-feeling space.
  • The master bedroom is on the main floor of each unit and has a walk-in closet. The bathroom has a shower with.
  • The kitchen has a work island with casual seating on one side and is open to the dining and living rooms.
  • Patio doors at the back of the house and several windows contribute in inviting beautiful natural light on the ground floor.
  • The lower level gives you two bedrooms, a family room, bathroom and laundry as well as storage space.
Unit A
Heated Area
1,784Sq. Ft.
892 Sq. Ft. LL
892 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Dimensions
25'width
36'depth
19' 10"height
Unit B
Heated Area
1,784Sq. Ft.
892 Sq. Ft. LL
892 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
394 Sq. Ft.
Dimensions
41'width
46'depth
19' 10"height
Unfinished Areas
394 Sq. Ft. Garage

What's Included

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,568 sq. ft.

Lower Level

1,728 sq. ft.

1st Floor

1,728 sq. ft.

Porch, Front

45 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

46' 0"

Max Ridge Height

19' 0"

Garage

Type

Attached

Area

394 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Game/Rec Room

Laundry - Lower Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,568 sq. ft.

Lower Level

1,728 sq. ft.

1st Floor

1,728 sq. ft.

Porch, Front

45 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

46' 0"

Max Ridge Height

19' 0"

Garage

Type

Attached

Area

394 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Game/Rec Room

Laundry - Lower Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery
