Plan 666218RAF

Modern Duplex with Side-By-Side 3-Bed Units Under 2000 Square Feet

Heated S.F.
3,608
Units
2
Width
Depth

Floor Plan

Plan 666218RAF

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 666218RAF

M-F 9am-5pm EST |

1-203-761-8500

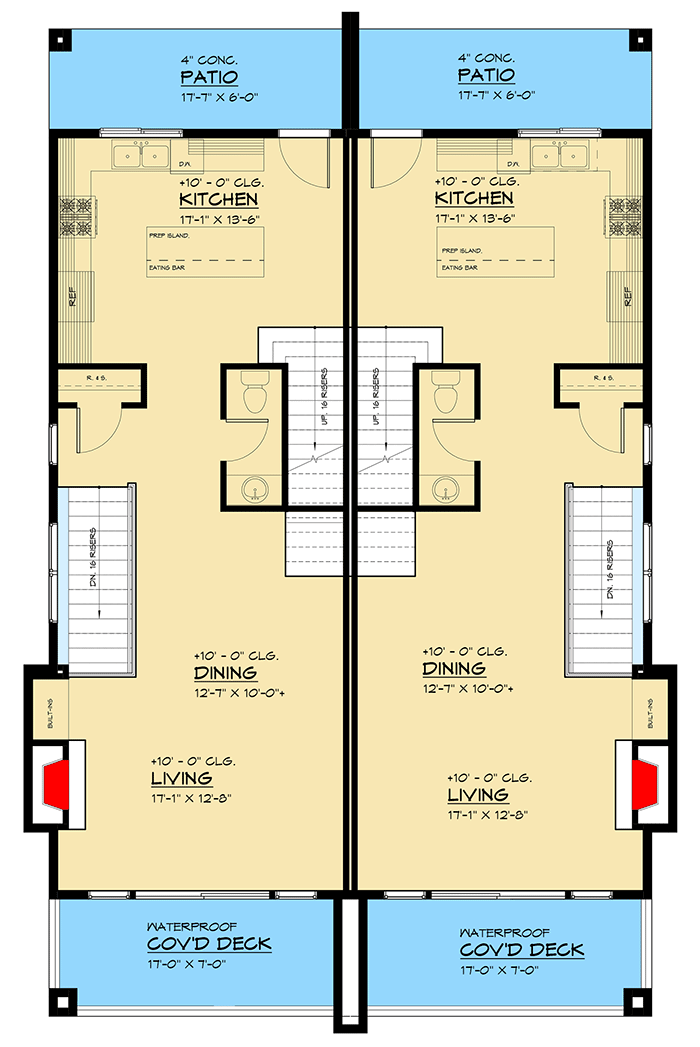

Main Level

Plan 666218RAF: Modern Duplex with Side-By-Side 3-Bed Units Under 2000 Square Feet - Floor Plan - Main Level - Contemporary, Modern, Northwest

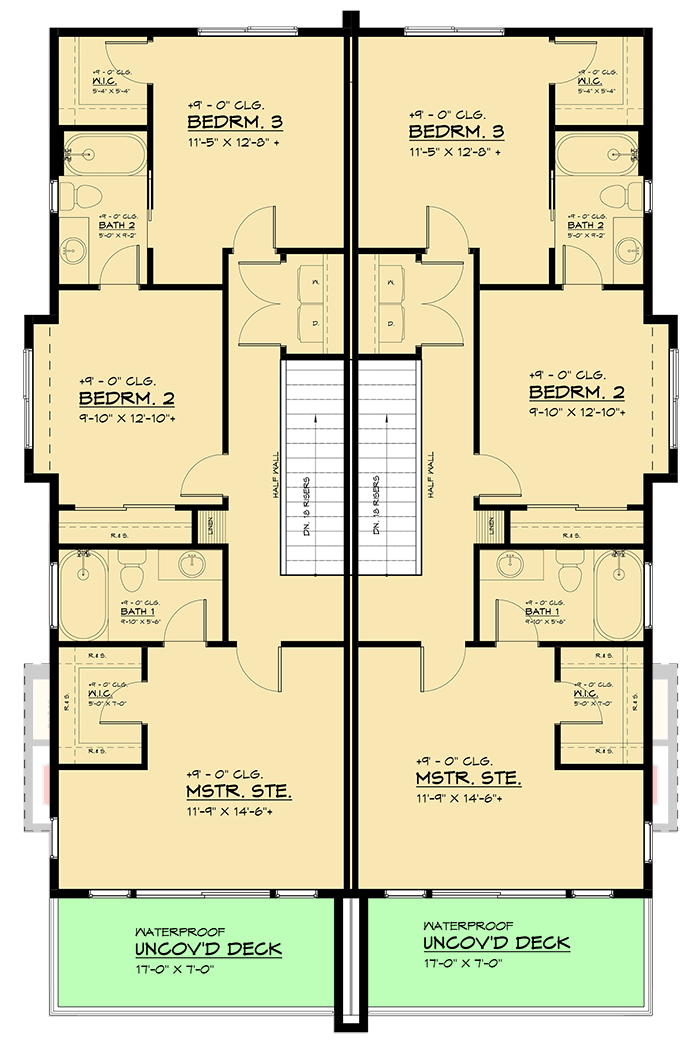

2nd Floor

Plan 666218RAF: Modern Duplex with Side-By-Side 3-Bed Units Under 2000 Square Feet - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

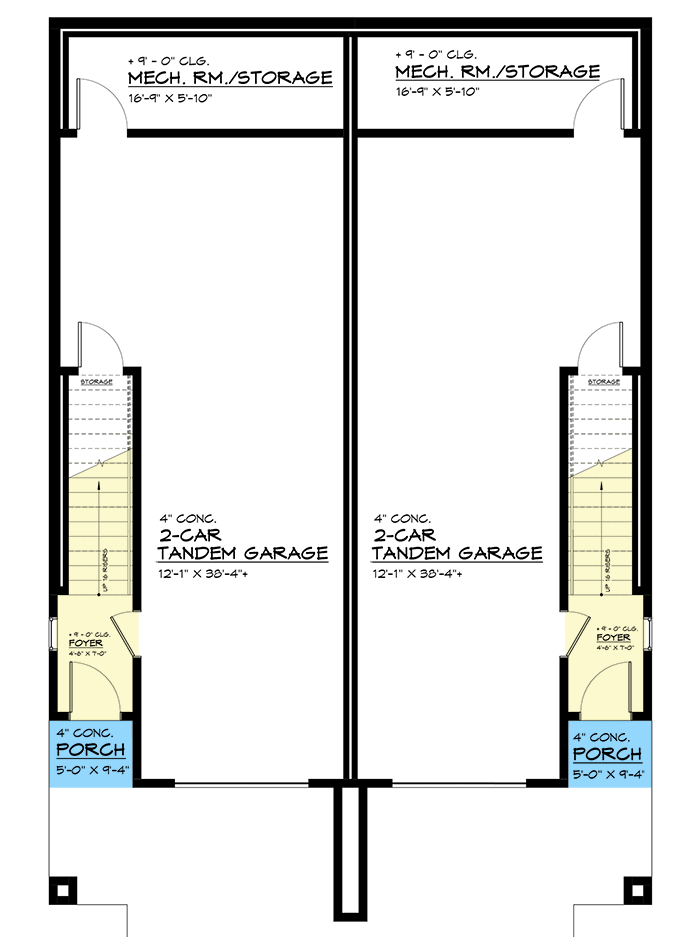

Lower Level

Plan 666218RAF: Modern Duplex with Side-By-Side 3-Bed Units Under 2000 Square Feet - Floor Plan - Lower Level - Contemporary, Modern, Northwest

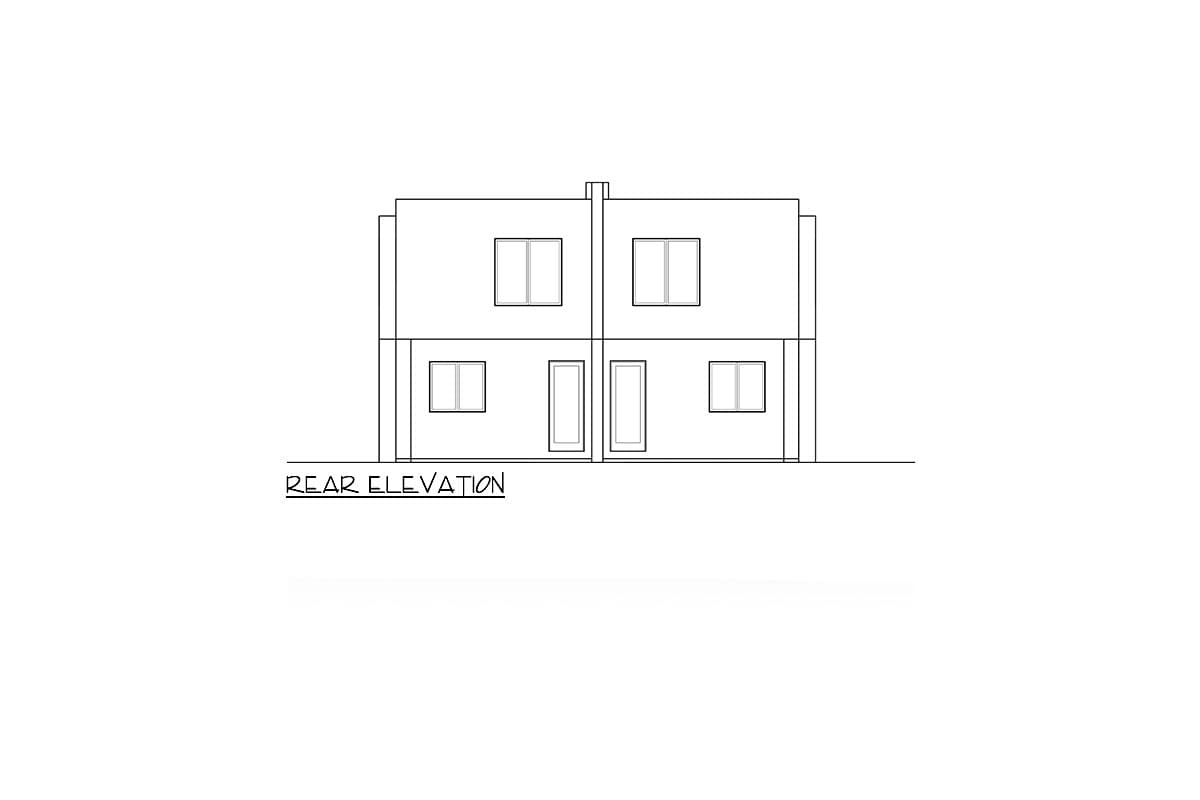

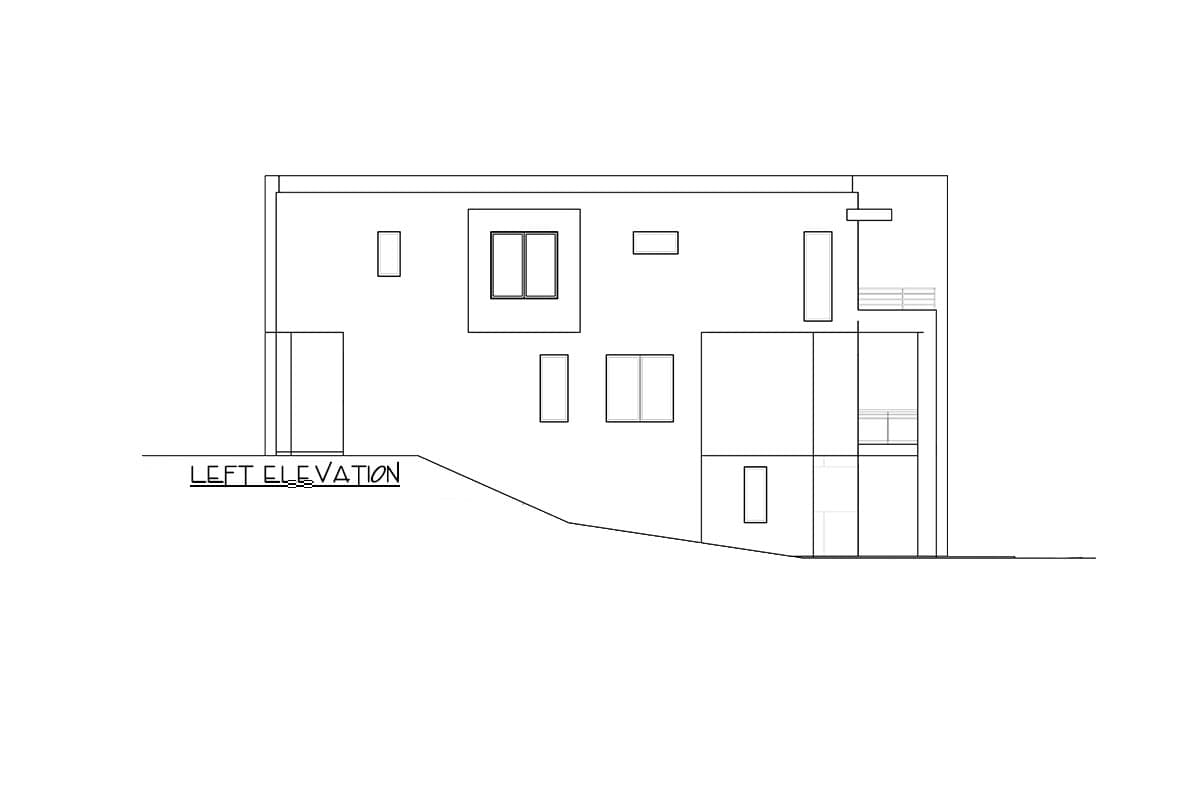

Plan Details

  • The mirror-image units in this Modern duplex house plan each include 3 bedrooms, 2.5 baths, and a 2-car (560 square foot) tandem garage. Each units gives you 1,944 square feet of heated living space (797 square feet on the main floor and 802 square feet on the second floor).
  • The garage is located on the main level with a mechanical / storage room tucked towards the rear.
  • Discover an open living, dining, and kitchen area on the main level with clear views from front to back. A fireplace adds a warm touch to the living room and decks off the front and back provide an outdoor living space.
  • The bedrooms are located on the top level, with a sun deck off of each master suite. Bedrooms 2 and 3 share a Jack-and-Jill bathroom.
  • A washer / dryer closet is centrally located near the bedrooms to avoid lugging clothes up and down stairs.
Unit A
Heated Area
1,804Sq. Ft.
210 Sq. Ft. LL
1594 Sq. Ft. 1st
1804 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
532 Sq. Ft.
Dimensions
17' 5"width
54'depth
34'height
Unfinished Areas
94 Sq. Ft. Porch, Front
532 Sq. Ft. Garage
108 Sq. Ft. Porch, Rear
476 Sq. Ft. Deck
216 Sq. Ft. Covered Patio
Unit B
Heated Area
1,804Sq. Ft.
105 Sq. Ft. LL
797 Sq. Ft. 1st
902 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
532 Sq. Ft.
Dimensions
17' 5"width
54'depth
34'height
Unfinished Areas
54 Sq. Ft. Porch, Rear
238 Sq. Ft. Deck
108 Sq. Ft. Covered Patio
532 Sq. Ft. Garage
57 Sq. Ft. Porch, Front

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,608 sq. ft.

Lower Level

210 sq. ft.

1st Floor

1,594 sq. ft.

2nd Floor

1,804 sq. ft.

Porch, Front

94 sq. ft.

Porch, Rear

108 sq. ft.

Deck

476 sq. ft.

Covered Patio

216 sq. ft.

Storage

208 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 10"

Depth

61' 0"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

1064 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

2-Jan on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features
