Plan 65785BS

Modern Estate House Plan: 4 Beds, 4 Baths, 4,365 sq. ft. with Outdoor Living and Wine Room

Name: Plan 65785BS: Modern Estate House Plan: 4 Beds, 4 Baths, 4,365 sq. ft. with Outdoor Living and Wine Room
Brand: Architectural Designs
SKU: 65785BS
Price: 3153.71 USD
Availability: InStock

Heated S.F.

4,365

Beds

Baths

Stories

Cars

Floor Plan

Plan Details

This stunning 4,365 sq. ft. residence features 4 bedrooms, 4 bathrooms, and an attached 2-car garage, showcasing a sophisticated Contemporary exterior style.
Upon entering the grand foyer, you are welcomed into a bright and airy open-concept living space, complemented by a private study conveniently located near the entrance.
The heart of the home is the expansive great room, seamlessly flowing into the dining area and gourmet kitchen, which boasts a large island and a walk-in pantry, creating an ideal environment for both everyday living and grand entertaining.
The luxurious master suite offers a serene retreat with a spacious bedroom, a generous walk-in closet, and an opulent en-suite bathroom, while the secondary bedrooms are thoughtfully positioned for privacy and comfort.
This exceptional plan includes a dedicated club room, perfect for recreation and relaxation, and an outdoor kitchen and living area that extends the living space outdoors.
Expansive covered lanais provide ample space for outdoor enjoyment, perfect for al fresco dining or simply soaking in the surroundings.
A versatile finished bonus room offers flexible space that can be customized to suit your lifestyle needs, providing a versatile addition to this already impressive home.

What's Included

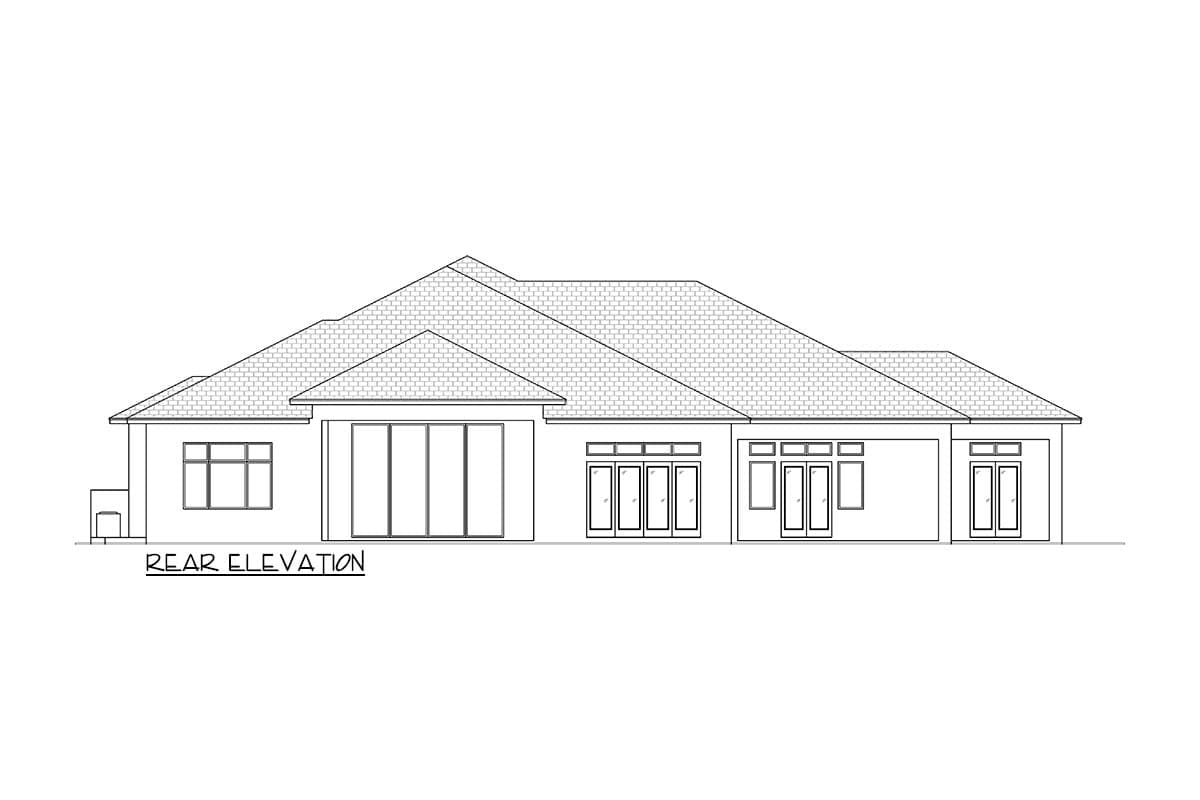

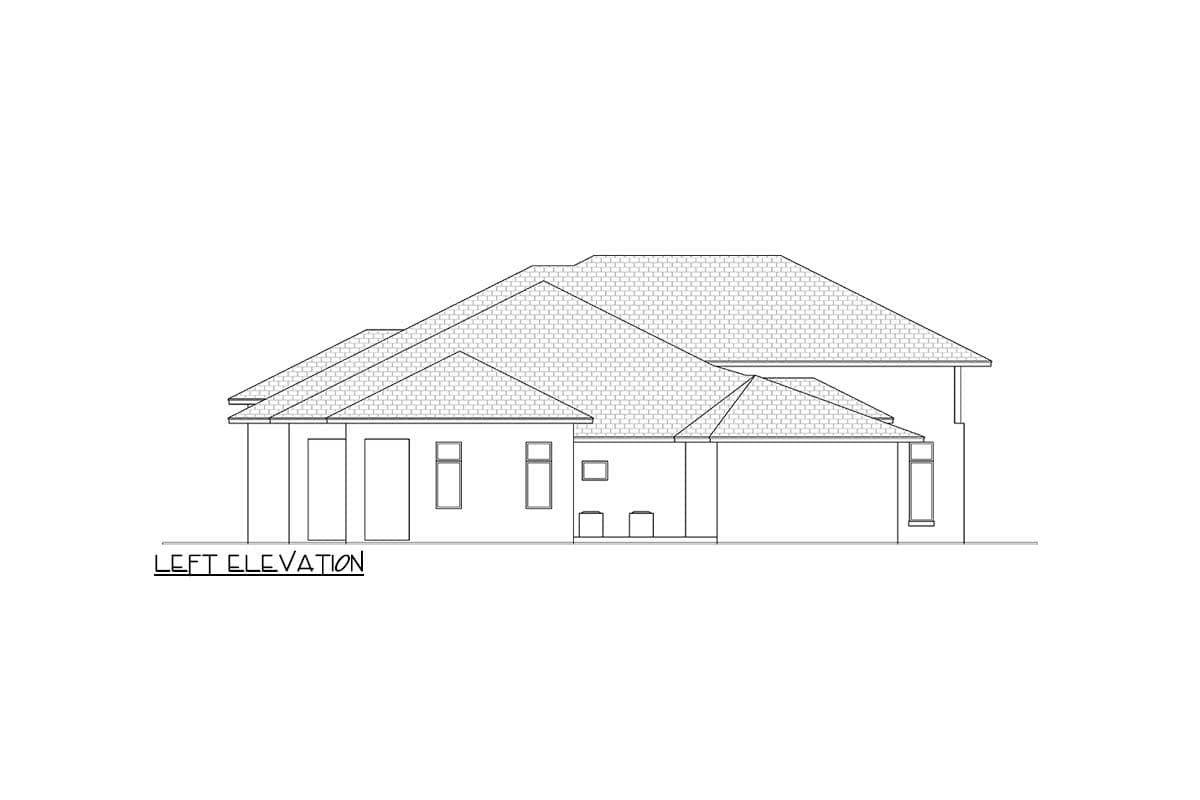

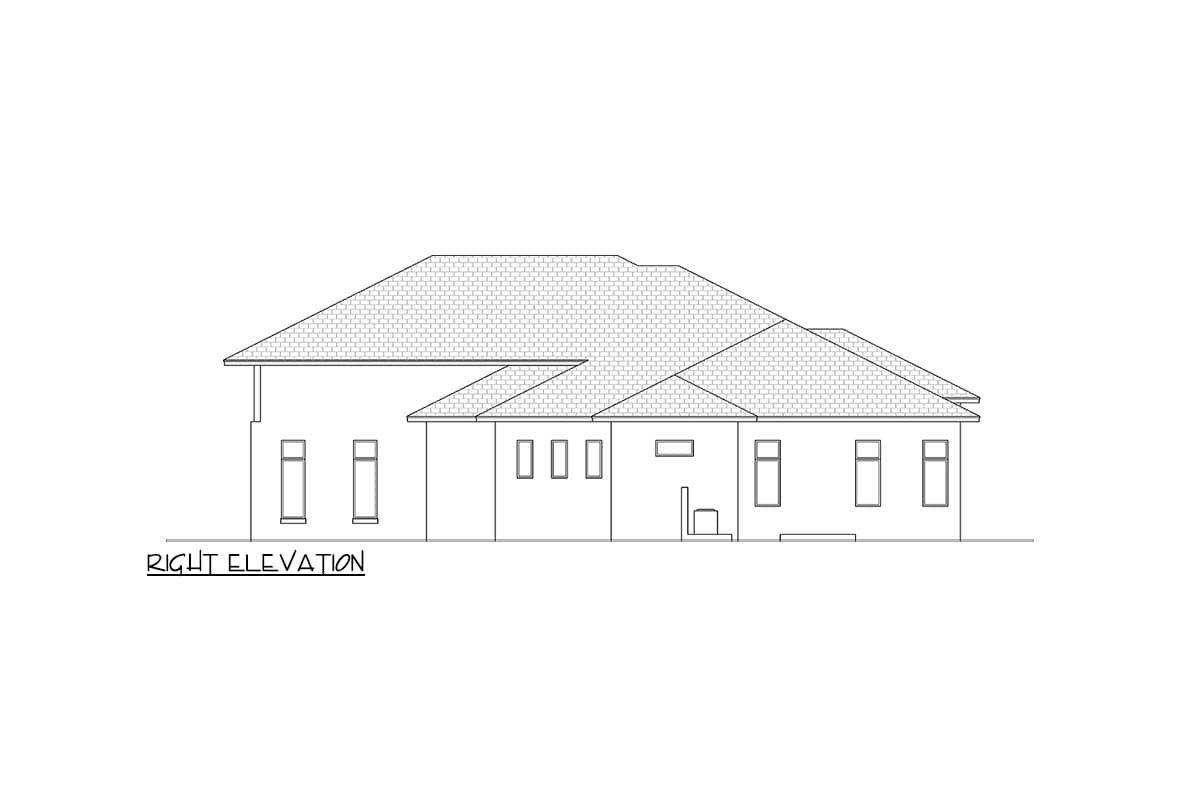

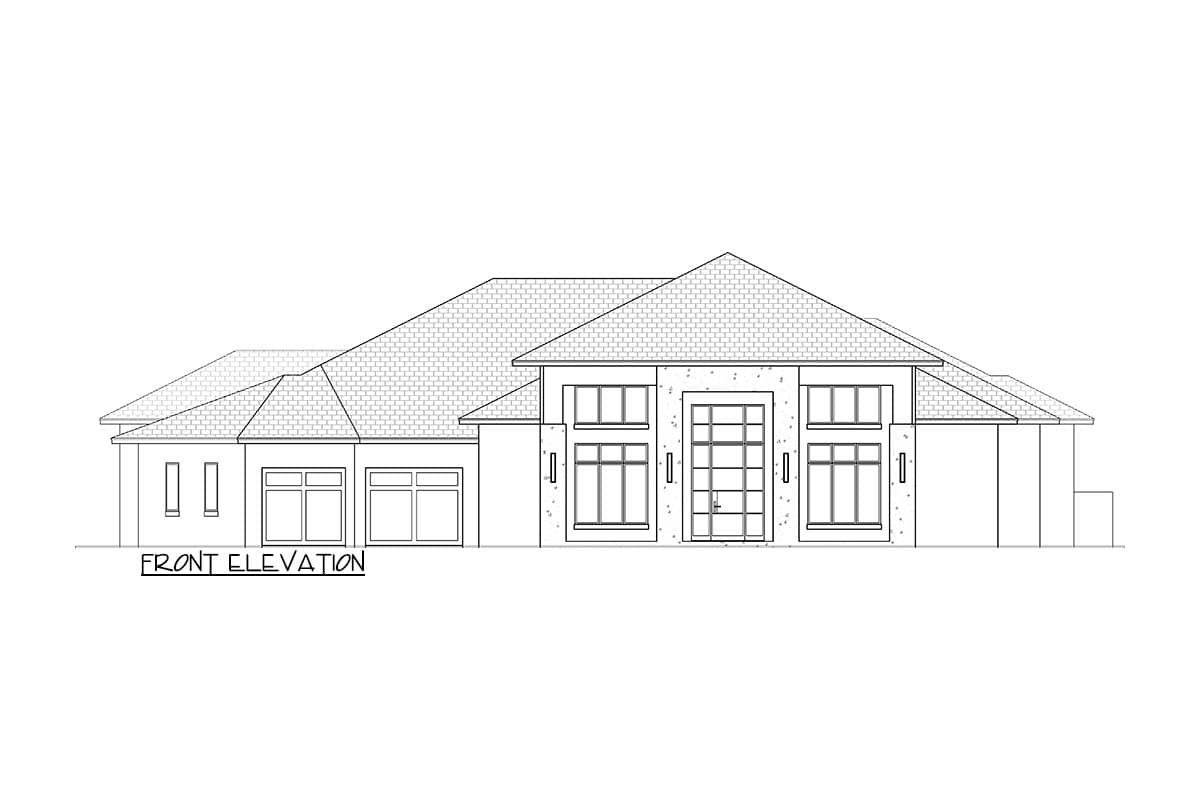

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

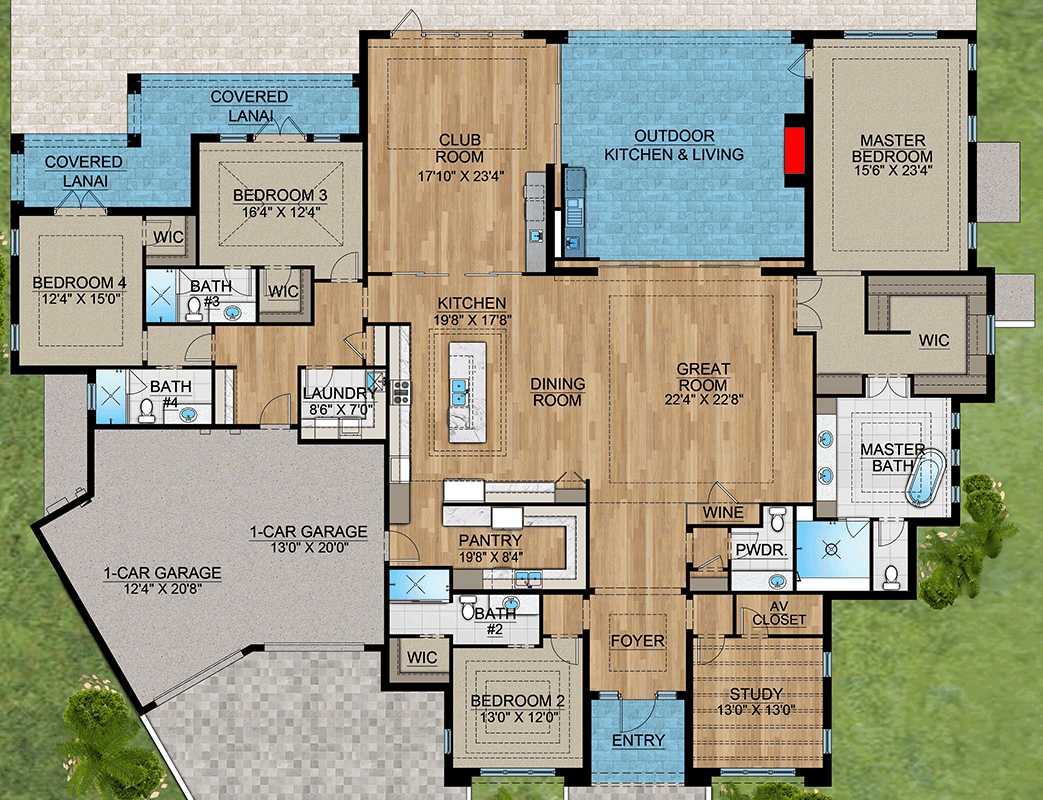

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
