Plan 849044PGE

Modern Farmhouse Duplex House Plan with 4-Bed 2.5-Bath and 4169 Sq Ft Per Unit

Heated S.F.
8,338
Units
2
Width
Depth

Floor Plan

Plan 849044PGE

Main Level
Main Level
Lower Level
Lower Level

Plan 849044PGE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

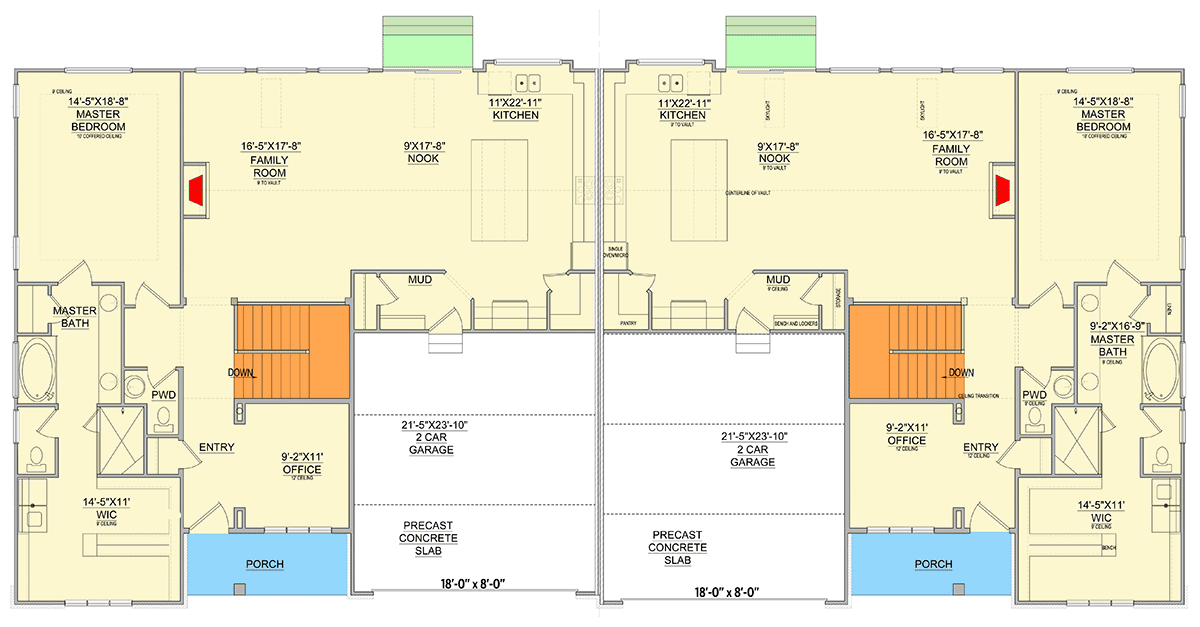

Plan 849044PGE: Modern Farmhouse Duplex House Plan with 4-Bed 2.5-Bath and 4169 Sq Ft Per Unit - Floor Plan - Main Level - Modern Farmhouse, New American, Ranch

Lower Level

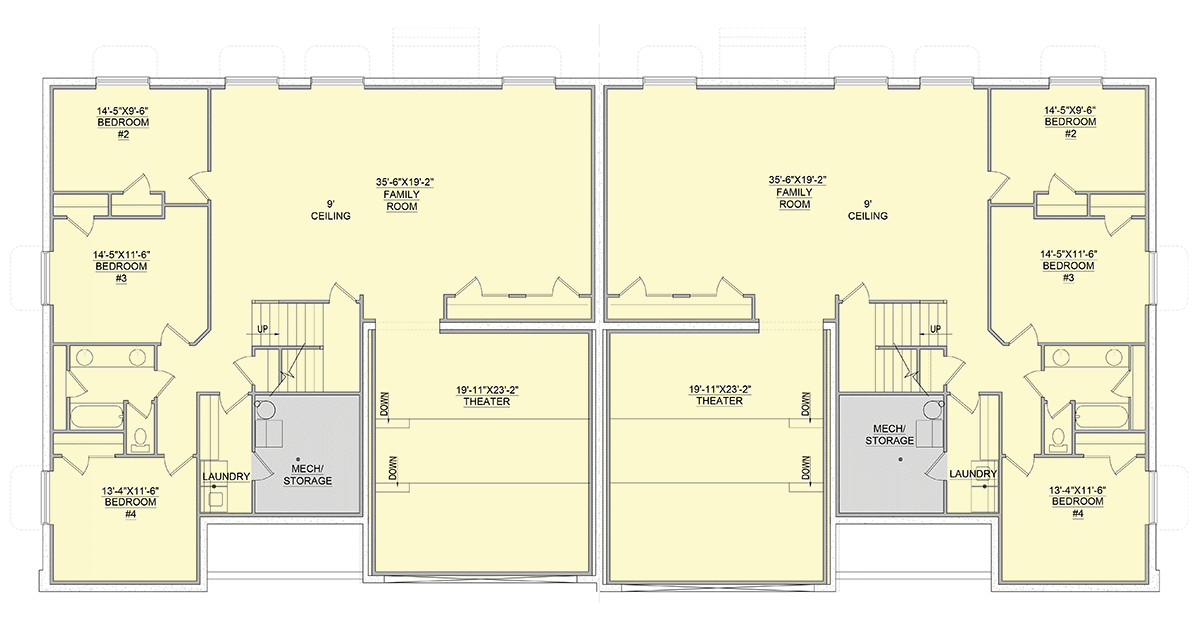

Plan 849044PGE: Modern Farmhouse Duplex House Plan with 4-Bed 2.5-Bath and 4169 Sq Ft Per Unit - Floor Plan - Lower Level - Modern Farmhouse, New American, Ranch

Plan Details

  • This one-story Modern Farmhouse Ranch Duplex House Plan features two mirrored side-by-side units, each with 4-bedrooms and 2.5 baths in 4,169 square feet
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
4,169Sq. Ft.
2307 Sq. Ft. LL
1862 Sq. Ft. 1st
Beds
4Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
500 Sq. Ft.
Dimensions
52'width
48'depth
25'height
Unfinished Areas
500 Sq. Ft. Garage
77 Sq. Ft. Porch, Front
Unit B
Heated Area
4,169Sq. Ft.
2307 Sq. Ft. LL
1862 Sq. Ft. 1st
Beds
4Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
500 Sq. Ft.
Dimensions
52'width
48'depth
25'height
Unfinished Areas
500 Sq. Ft. Garage
77 Sq. Ft. Porch, Front

What's Included

  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

8,338 sq. ft.

Lower Level

4,614 sq. ft.

1st Floor

3,724 sq. ft.

Porch, Front

144 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

104' 0"

Depth

48' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

1000 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Room

Ceiling Type

Height

Master Bedroom

Coffered

9' 0''

Master Bath

Flat

9' 0''

Master WIC

Flat

9' 0''

Kitchen

Vaulted

9' 0''

Dining Room

Vaulted

9' 0''

Great Room

Vaulted

9' 0''

Bedroom 2

Flat

9' 0''

Bedroom 3

Flat

9' 0''

Bedroom 4

Flat

9' 0''

Office

Flat

12' 0''

Garage

0' 0''

Garage Door Dimensions

8' 0''

Family Room

Flat

9' 0''

Media Room

Flat

0' 0''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

New American

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Game/Rec Room

Home Office

Home Theater

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

8,338 sq. ft.

Lower Level

4,614 sq. ft.

1st Floor

3,724 sq. ft.

Porch, Front

144 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

104' 0"

Depth

48' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

1000 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Room

Ceiling Type

Height

Master Bedroom

Coffered

9' 0''

Master Bath

Flat

9' 0''

Master WIC

Flat

9' 0''

Kitchen

Vaulted

9' 0''

Dining Room

Vaulted

9' 0''

Great Room

Vaulted

9' 0''

Bedroom 2

Flat

9' 0''

Bedroom 3

Flat

9' 0''

Bedroom 4

Flat

9' 0''

Office

Flat

12' 0''

Garage

0' 0''

Garage Door Dimensions

8' 0''

Family Room

Flat

9' 0''

Media Room

Flat

0' 0''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

New American

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Game/Rec Room

Home Office

Home Theater

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
