Modern Farmhouse Plan with Outdoor Kitchen and Bonus Expansion Over Garage

Plan 510152WDY

  • 2,997

    Heated s.f.

  • 3-5

    Beds

  • 3 - 4

    Baths

  • 1-2

    Stories

  • 3

    Cars

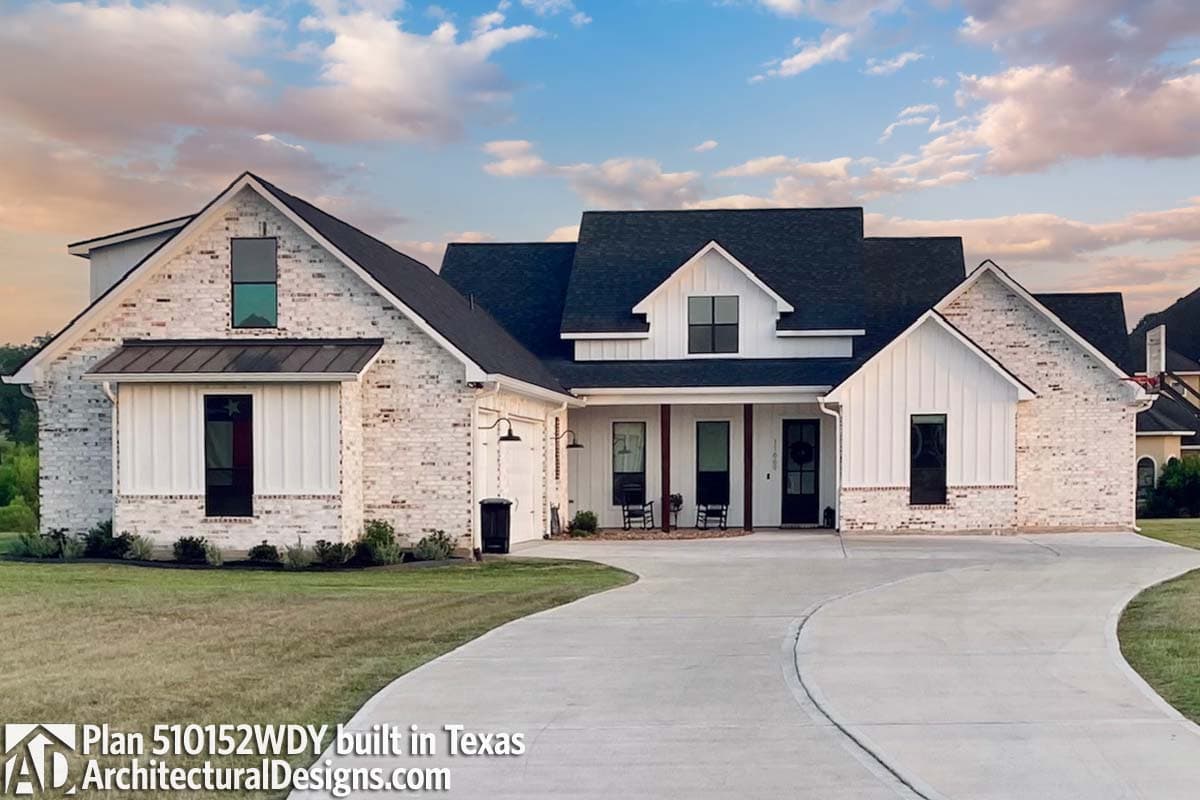

  • A parking courtyard, created by the protruding 3-car garage, sits in front of this modern farmhouse, which is exclusive to Architectural Designs.
  • Inside, a formal dining room overlooks the welcoming front porch, and an oversized opening leads to the spacious living room topped by a vaulted ceiling.The rear porch is protected from the elements, and includes a fireplace and summer kitchen.
  • Ample workspace in the kitchen is bolstered by the oversized island, and the adjoining keeping room provides a comfortable space for morning coffee or afternoon cocktails.
  • Tucked away for privacy, discover the master bedroom, which features two walk-in closets off the 5-fixture ensuite. Bedrooms 2 and 3 share a Jack-and-Jill bath. Bed 4 can be used as an office if needed and has easy bathroom access by the 3-car garage.
  • Multiple storage rooms in the garage help to declutter, and a stairway leads to a bonus room above the garage that includes a full bath and walk-in closet.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

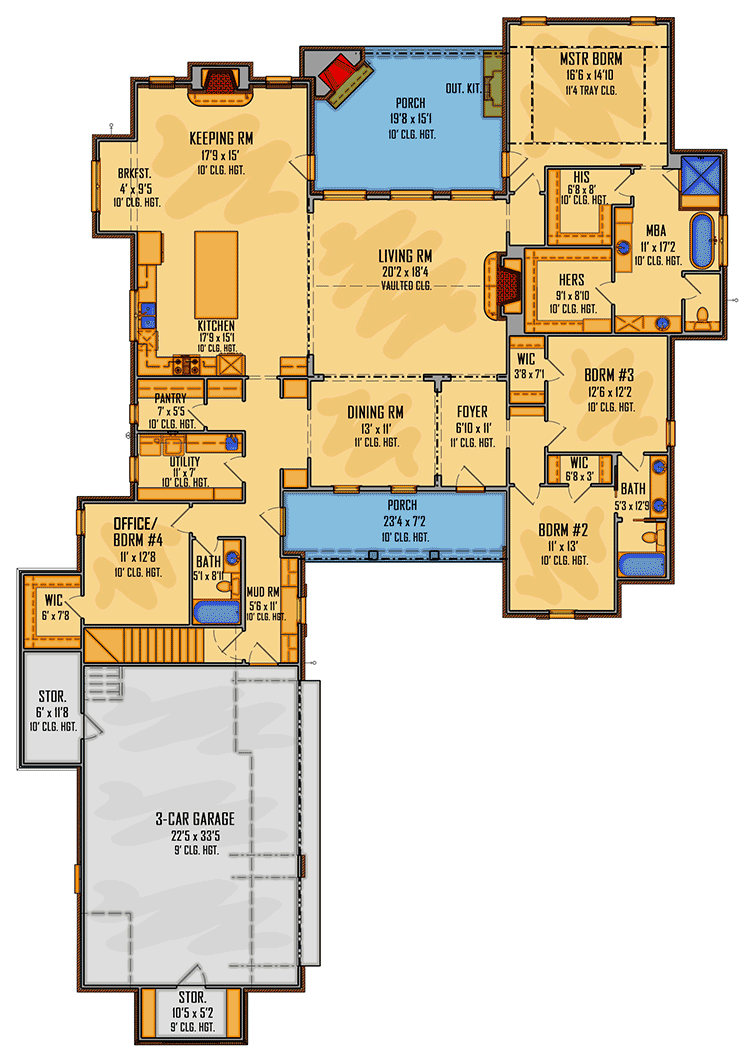

Modern Farmhouse Plan with Outdoor Kitchen and Bonus Expansion Over Garage - 510152WDY floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

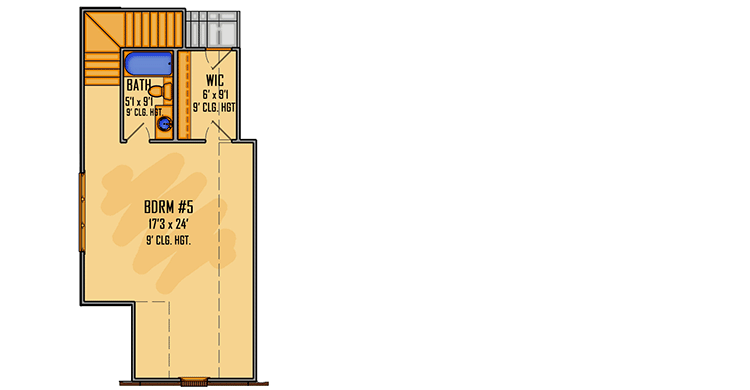

Modern Farmhouse Plan with Outdoor Kitchen and Bonus Expansion Over Garage - 510152WDY floor plan - Bonus

Modern Farmhouse Plan with Outdoor Kitchen and Bonus Expansion Over Garage

  • 2,997

    Heated s.f.

  • 3-5

    Beds

  • 3 - 4

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,997 sq. ft.
  • 1st Floor: 2,997 sq. ft.

Dimensions

  • Width: 74' 3"
  • Depth: 107' 5"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3 or 4

Garage

  • Type: Attached
  • Area: 979 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
