Modern Farmhouse Triplex Townhouse House Plan with Two 3 Bed Units and One 2 Bed Unit

Name: Plan 85416MS: Modern Farmhouse Triplex Townhouse House Plan with Two 3 Bed Units and One 2 Bed Unit
Brand: Architectural Designs
SKU: 85416MS
Price: 1900.0 USD
Availability: InStock

Heated S.F.

4,651

Units

Width

Depth

Floor Plan

Main Level

2nd Floor

Plan Details

This townhouse designed in the modern farmhouse style is a triplex house plan with rustic charm and a floor plan that provides the full suite of amenities in a compact, cost effective package.
The outer two units are slightly larger (1,664 square feet and 3 bedrooms; 648 square feet on the first floor and 1,016 square feet on the second floor) and differ in a few minor ways from the middle unit (1,323 square feet and 2 bedrooms; 515 square feet o the first floor and 808 square feet on the second floor)

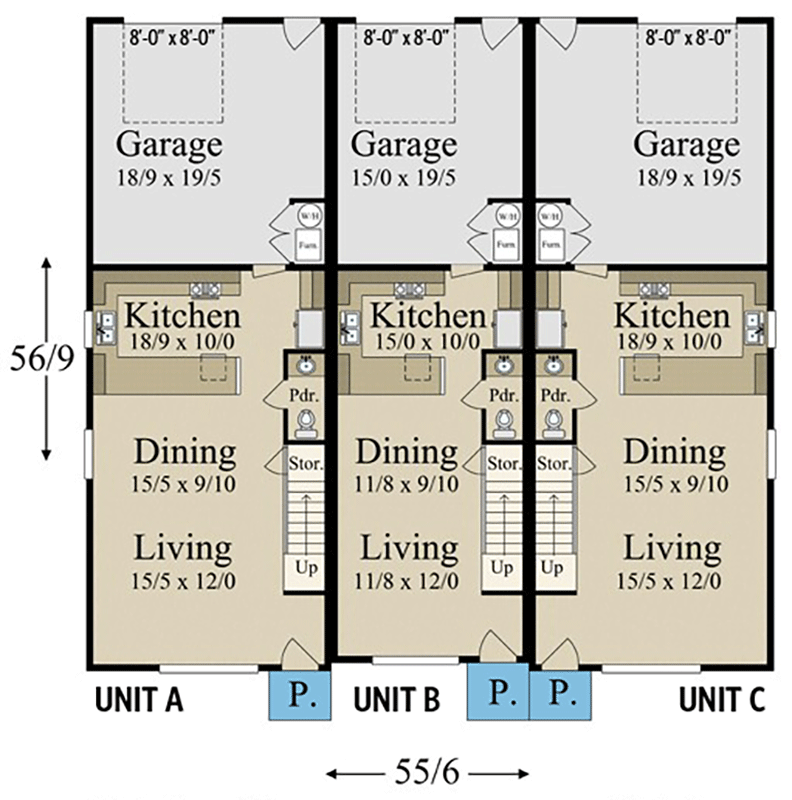

Entering the units, you’ll walk through the living room, through the dining room, and into the kitchen. The kitchen offers an efficient U-shaped counter layout and carefully arrangement of the appliances to ensure ease of use and maintenance. Behind the kitchen sits the rear load garage and rounding out the main floor is a powder room just behind the staircase.

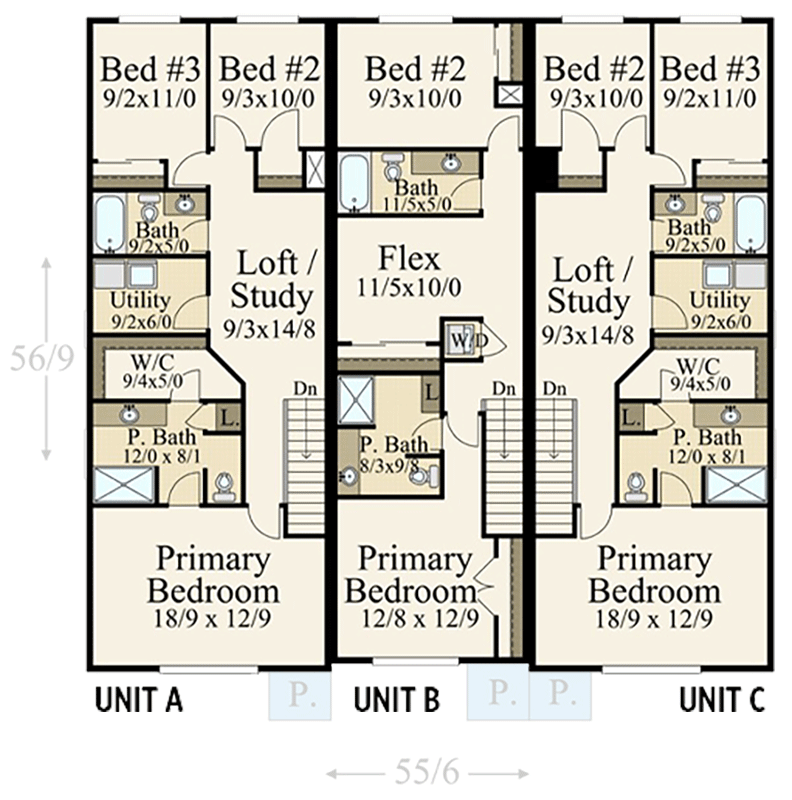

Moving to the upper floor, you’ll arrive in the loft/study, from which you can head left or right to the bedrooms, or access the utility room in front of you (the middle unit has a closet for stackable appliances and a flex room with a closet). Heading to the primary bedroom, you’ll see a fully featured en suite bathroom as well as a walk-in closet in the larger outer units. The outer units also include two additional bedrooms at the rear of the upper floor, while the middle unit includes one bedroom.

Unit A

Heated Area

1,664Sq. Ft.

648 Sq. Ft. 1st

1016 Sq. Ft. 2nd

Beds

3Beds

Baths

2Full Baths

1Half Bath

Cars

Attached

394 Sq. Ft.

Dimensions

19' 9"width

56'depth

Unfinished Areas

394 Sq. Ft. Garage

Unit B

Heated Area

1,323Sq. Ft.

515 Sq. Ft. 1st

808 Sq. Ft. 2nd

Beds

2Beds

Baths

2Full Baths

1Half Bath

Cars

Attached

319 Sq. Ft.

Dimensions

16'width

56'depth

Unfinished Areas

319 Sq. Ft. Garage

Unit C

Heated Area

1,664Sq. Ft.

648 Sq. Ft. 1st

1016 Sq. Ft. 2nd

Beds

3Beds

Baths

2Full Baths

1Half Bath

Cars

Attached

394 Sq. Ft.

Dimensions

19' 9"width

56' 9"depth

Unfinished Areas

394 Sq. Ft. Garage

What's Included

Elevations: Front, Right, Rear, Left
Fully Dimensioned Floor Plans (window and door sizes called out at openings)
Foundation Plan with notes
Roof Framing Plan with notes
Section Views
Electrical Layout

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
