Modern Farmhouse Triplex Townhouse Plan with Matching 3-Bed Units - 1581 Sq Ft Each

Heated S.F.
4,743
Units
3
Width
Depth

Floor Plan

Plan 51982HZ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 51982HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

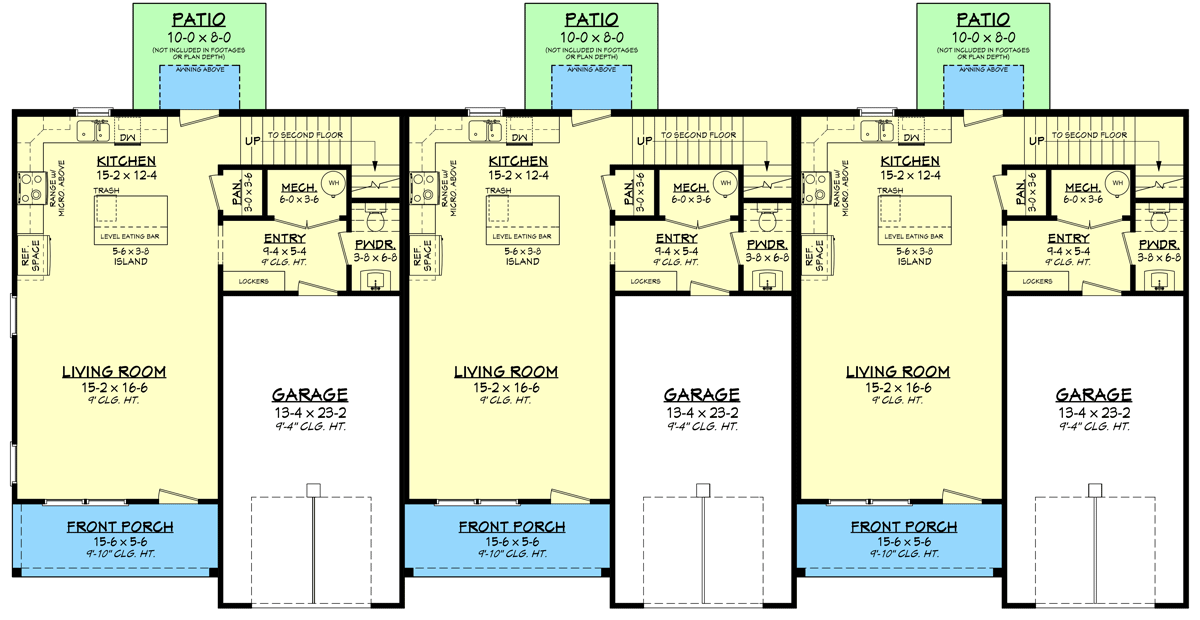

Plan 51982HZ: Modern Farmhouse Triplex Townhouse Plan with Matching 3-Bed Units - 1581 Sq Ft Each - Floor Plan - Main Level - Country, Craftsman, Modern Farmhouse, New American, Traditional

2nd Floor

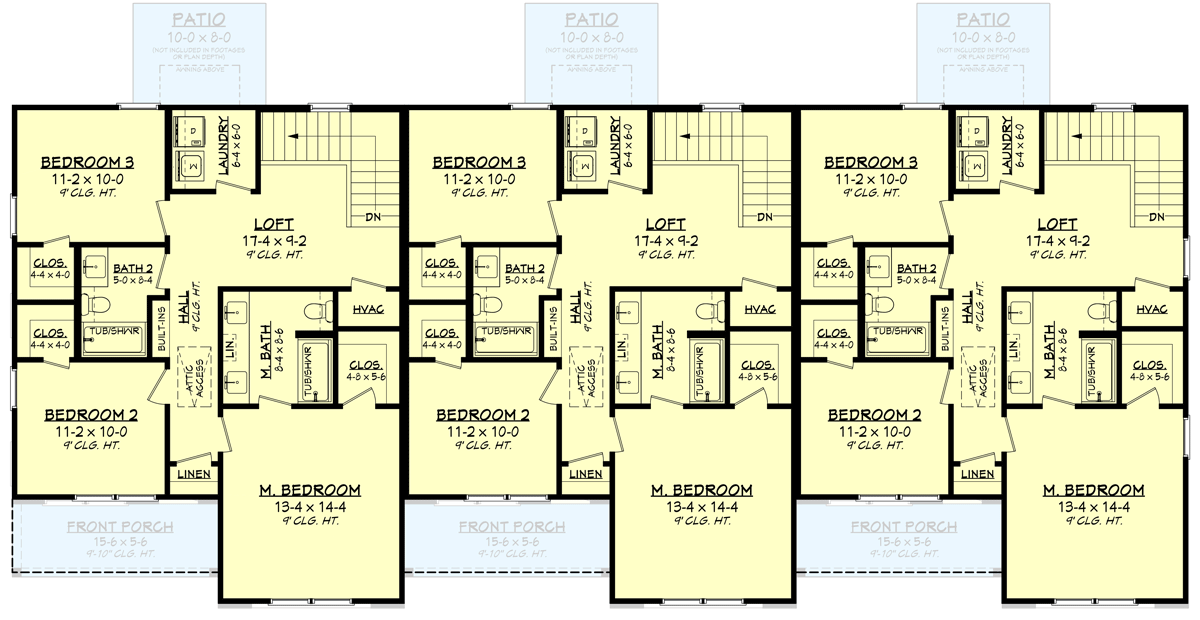

Plan 51982HZ: Modern Farmhouse Triplex Townhouse Plan with Matching 3-Bed Units - 1581 Sq Ft Each - Floor Plan - 2nd Floor - Country, Craftsman, Modern Farmhouse, New American, Traditional

Plan Details

  • Very efficient multi-family townhouse plan in a triplex configuration, with three matching units side-by-side. Each unit provides 1,581 square feet of heated living space and 3-bedrooms, 2.5 baths plus an oversized one-car garage with 324 sq. ft. of space.
  • First floor features open kitchen and living room concept with pantry and island. Entry hall has lockers and a half bath. Second floor offers 3 bedrooms, 2 bathrooms, a  loft, a dedicated laundry space, walk-in closets in each guest bedroom, and ample storage available off the hall. The main suite features dual vanities and a walk-in closet.
