Plan 666224RAF

Modern Five-Plex with 1475 Square Foot 3 Bedroom Units

Heated S.F.
7,375
Units
5
Width
Depth

Floor Plan

Plan 666224RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666224RAF

M-F 9am-5pm EST |

1-203-761-8500

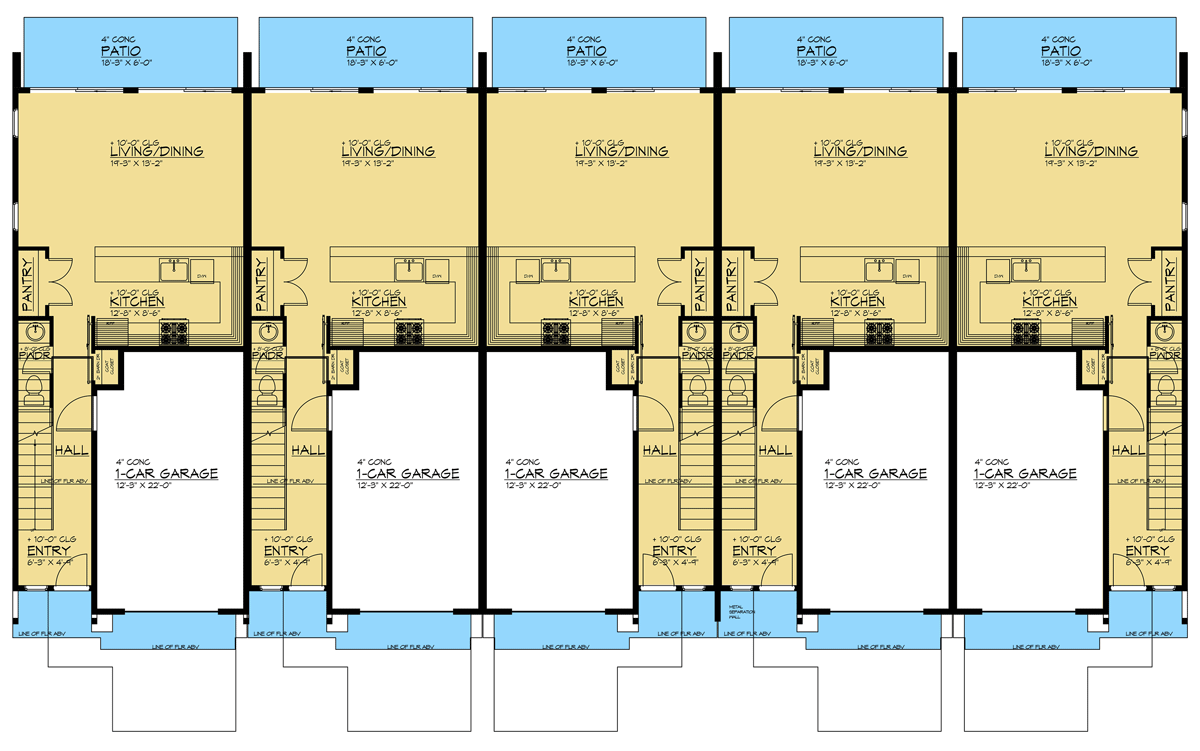

Main Level

Plan 666224RAF: Modern Five-Plex with 1475 Square Foot 3 Bedroom Units - Floor Plan - Main Level - Contemporary, Mid Century Modern

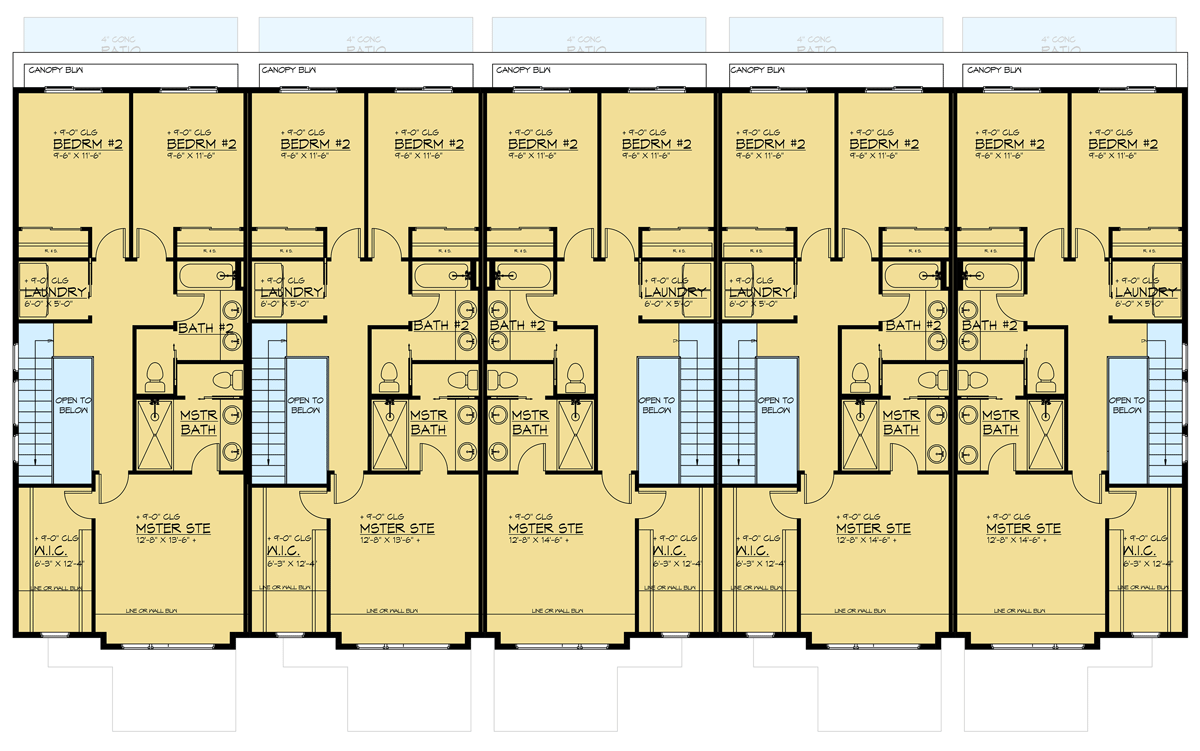

2nd Floor

Plan 666224RAF: Modern Five-Plex with 1475 Square Foot 3 Bedroom Units - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern

Plan Details

  • This five-plex house plan has a modern exterior and gives you five units of equal size, all with 3 beds, 2.5 baths and a 1-car garage.
  • Each 1,475 square foot unit has 606 square feet on the main floor and 869 square feet on the second floor.
  • The front-facing garage has 281 square feet of vehicle storage space.
  • The living/dining room in back has access to the 110 square foot rear patio.
Unit A
Heated Area
1,475Sq. Ft.
606 Sq. Ft. 1st
869 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
281 Sq. Ft.
Dimensions
20' 1"width
45'depth
22' 6"height
Unfinished Areas
281 Sq. Ft. Garage
Unit B
Heated Area
1,475Sq. Ft.
606 Sq. Ft. 1st
869 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
281 Sq. Ft.
Dimensions
20' 1"width
45'depth
22' 6"height
Unfinished Areas
281 Sq. Ft. Garage
Unit C
Heated Area
1,475Sq. Ft.
606 Sq. Ft. 1st
869 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
281 Sq. Ft.
Dimensions
20' 1"width
45'depth
22' 6"height
Unfinished Areas
281 Sq. Ft. Garage
Unit D
Heated Area
1,475Sq. Ft.
606 Sq. Ft. 1st
869 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
281 Sq. Ft.
Dimensions
22' 1"width
45'depth
22' 6"height
Unfinished Areas
281 Sq. Ft. Garage
Unit E
Heated Area
1,475Sq. Ft.
606 Sq. Ft. 1st
4345 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
287 Sq. Ft.
Dimensions
20' 1"width
45'depth
22' 6"height
Unfinished Areas
287 Sq. Ft. Garage

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

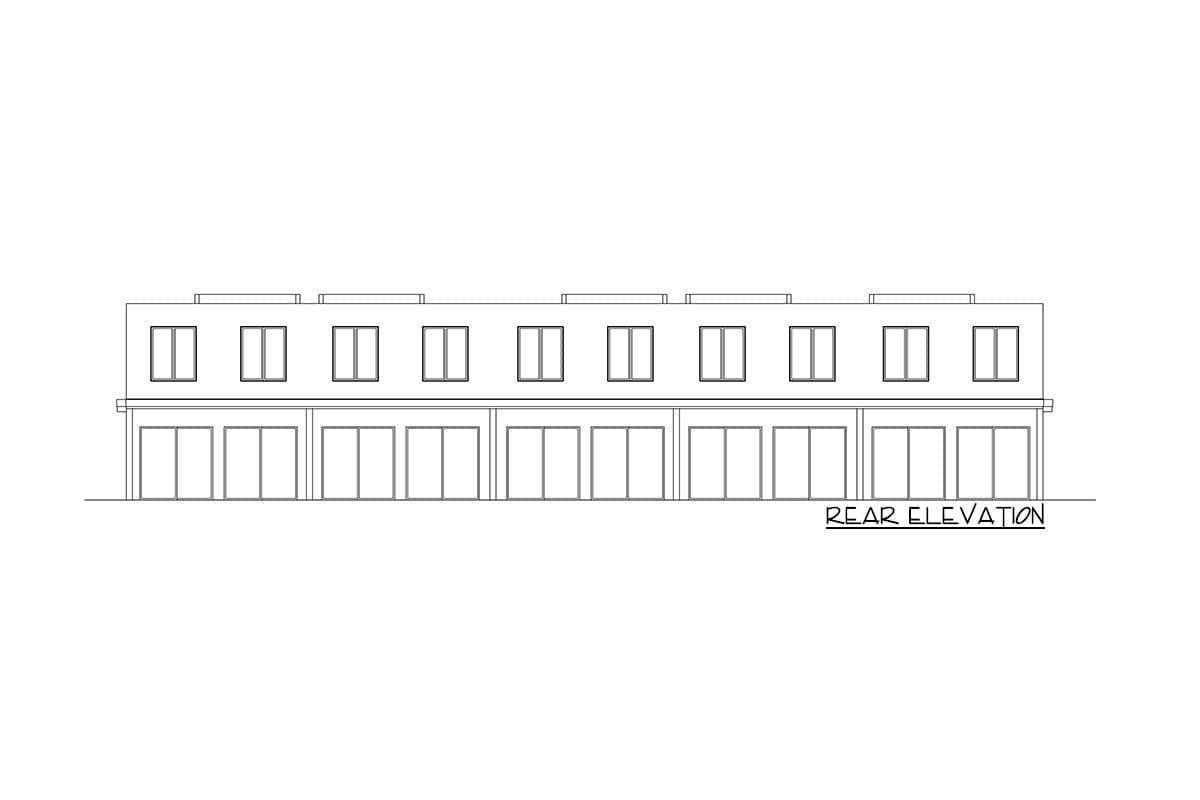

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

7,375 sq. ft.

1st Floor

3,030 sq. ft.

2nd Floor

4,345 sq. ft.

Porch, Front

685 sq. ft.

Porch, Rear

550 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Half bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

100' 4"

Depth

45' 0"

Max Ridge Height

22' 6"

Garage

Type

Attached

Area

281 sq. ft.

Count

5 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4-Jan on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

7,375 sq. ft.

1st Floor

3,030 sq. ft.

2nd Floor

4,345 sq. ft.

Porch, Front

685 sq. ft.

Porch, Rear

550 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Half bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

100' 4"

Depth

45' 0"

Max Ridge Height

22' 6"

Garage

Type

Attached

Area

281 sq. ft.

Count

5 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4-Jan on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - Upstairs
