Modern Florida Home Plan with Large Covered Lanai and Courtyards

Plan 65732BS

  • 5,203

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • Bracketed eaves decorate the exterior of this Modern Florida home plan that includes Spanish-style influences for increased curb appeal.
  • Move freely between the interior and exterior living spaces in this design, and delight in the kitchen's ease of use with its large prep island and ample storage space.
  • The left wing boasts the master suite and access to a bonus room (included in the square footage), forward and rear courtyards, and one of the double garages.
  • Three additional bedroom suites line the right side of the home, along with a rear-facing rec room with sliding doors to the covered lanai.
  • A second 2-car garage protrudes from the right side with easy access to the kitchen and pantry.

Plans include the following:


Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

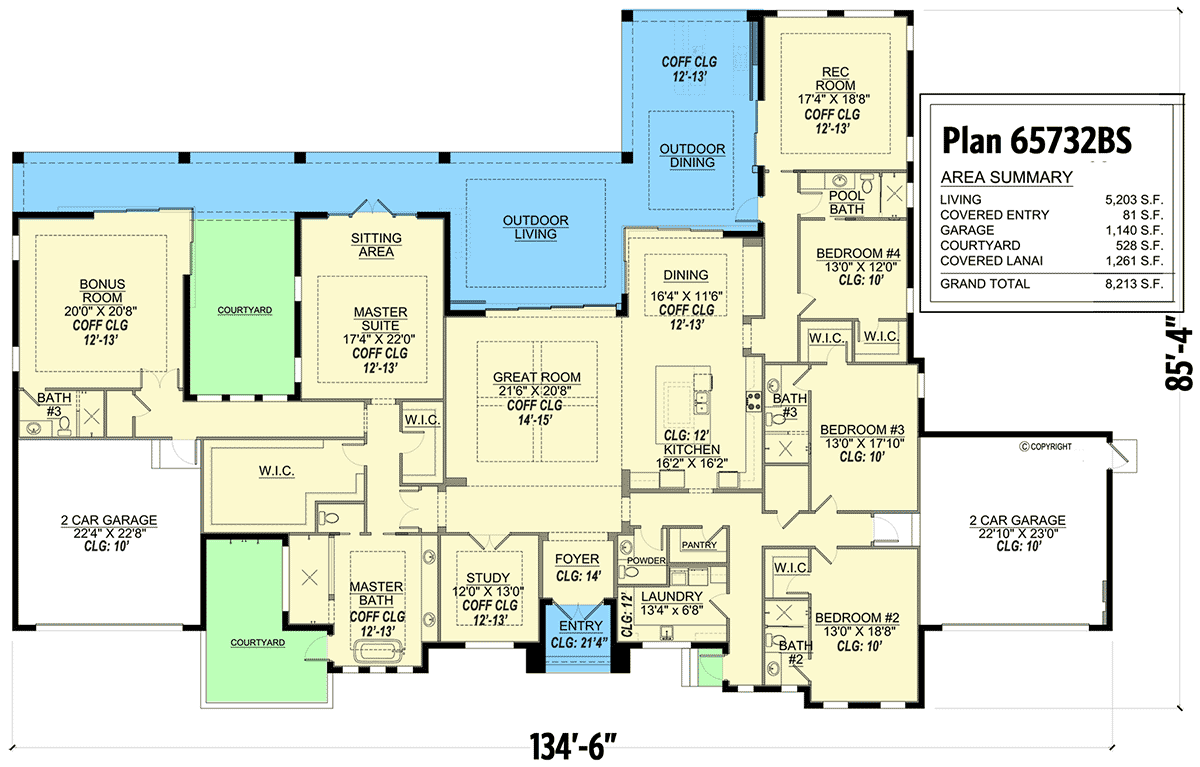

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Florida Home Plan with Large Covered Lanai and Courtyards - 65732BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,203 sq. ft.
  • 1st Floor: 5,203 sq. ft.
  • Lanai: 1,261 sq. ft.
  • Entry: 81 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 134' 6"
  • Depth: 85' 4"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 1140 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern Florida Home Plan with Large Covered Lanai and Courtyards

  • 5,203

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $5,203
  • PDF - Single-Build $5,203
  • View all purchase option online

About This Plan

  • Bracketed eaves decorate the exterior of this Modern Florida home plan that includes Spanish-style influences for increased curb appeal.
  • Move freely between the interior and exterior living spaces in this design, and delight in the kitchen's ease of use with its large prep island and ample storage space.
  • The left wing boasts the master suite and access to a bonus room (included in the square footage), forward and rear courtyards, and one of the double garages.
  • Three additional bedroom suites line the right side of the home, along with a rear-facing rec room with sliding doors to the covered lanai.
  • A second 2-car garage protrudes from the right side with easy access to the kitchen and pantry.

Floor Plans

  • Main Level

Plan Details
