Modern Getaway for a Front-Sloping Lot

Plan 80816PM

This plan plants 3 trees

1,156
Heated s.f.
2
Beds
1
Baths
1-2
Stories

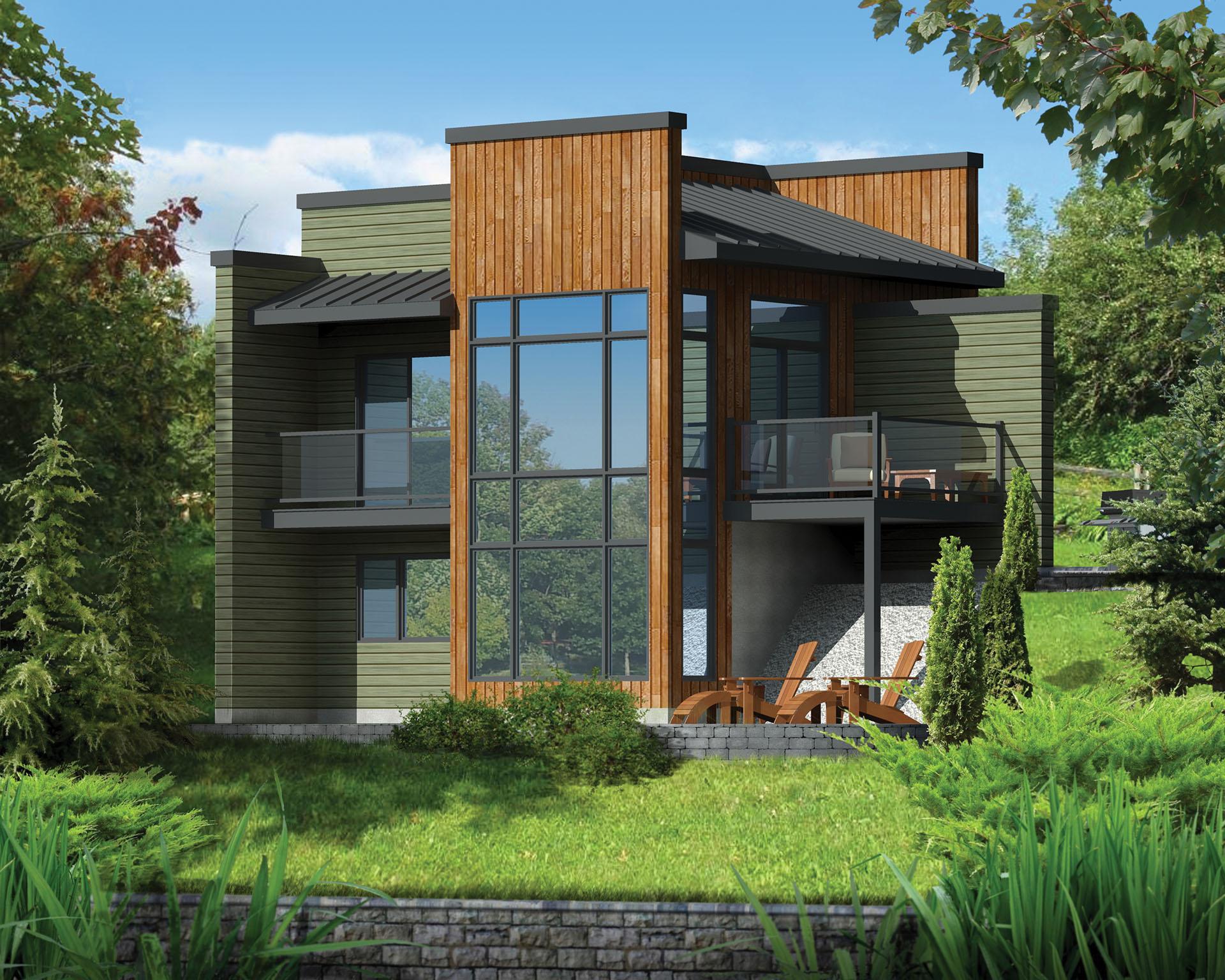

Horizontal and vertical siding plus a huge wall of glass give this modern house plan great visual appeal.
Designed to take advantage of a front-sloping lot, the ground floor holds a big family room and guest bedroom plus the laundry room.
The first floor has a large walk-in closet by the front door, a wide foyer and the main living area.
Sliding glass doors take you to a covered deck.
The master suite on this floor also has a private deck and proximity to the home's bathroom.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

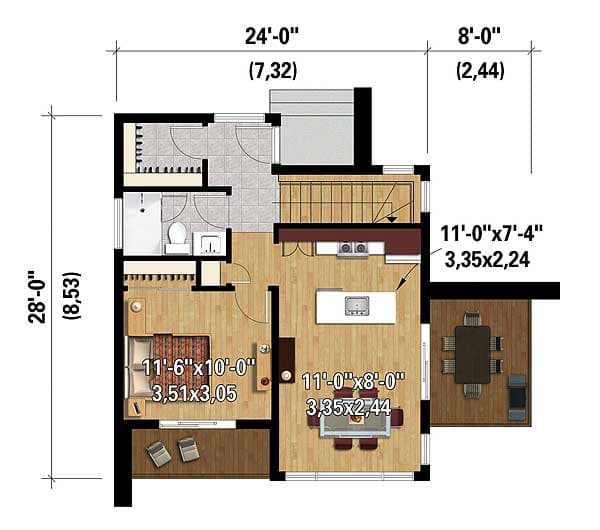

Modern Getaway for a Front-Sloping Lot - 80816PM floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

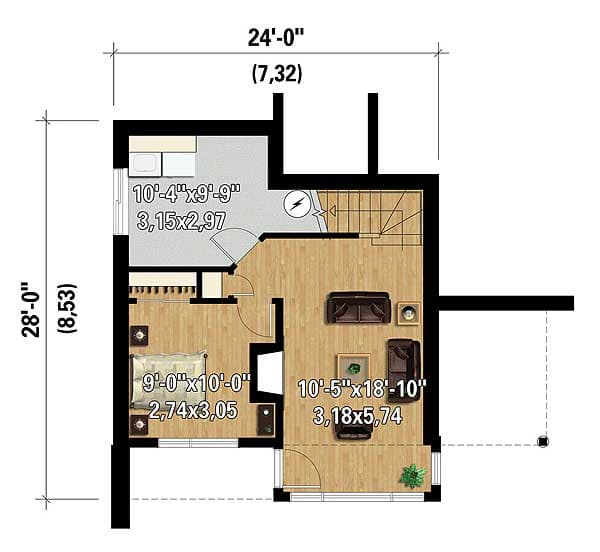

Modern Getaway for a Front-Sloping Lot - 80816PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,156 sq. ft.
Lower Level: 578 sq. ft.
1st Floor: 578 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 1

Foundation Type

Standard Foundations: Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 24' 0"
Depth: 28' 0"
Max ridge height: 26' 4"

Ceiling Heights

Floor / Height: First Floor / 10' 0"

Roof Details

Primary Pitch: 4 on 12
Secondary Pitch: 4 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections

Scroll


Modern Getaway for a Front-Sloping Lot 1,156 Heated s.f. 2 Beds 1 Baths 1-2 Floors Buy This Plan PDF - Single-Build $840 5 Sets $885 5 Sets + PDF $965 CAD + PDF - Single-Build $1,860 View all purchase option online About This Plan Horizontal and vertical siding plus a huge wall of glass give this modern house plan great visual appeal. Designed to take advantage of a front-sloping lot, the ground floor holds a big family room and guest bedroom plus the laundry room. The first floor has a large walk-in closet by the front door, a wide foyer and the main living area. Sliding glass doors take you to a covered deck. The master suite on this floor also has a private deck and proximity to the home's bathroom. Floor Plans Main Level 2nd Floor Plan Details Square Footage Breakdown Total Heated Area: 1,156 sq. ft. Lower Level: 578 sq. ft. 1st Floor: 578 sq. ft. Beds/Baths Bedrooms: 2 Full bathrooms: 1 Foundation Type Standard Foundations: Walkout Exterior Walls Standard Type(s): 2x6 Dimensions Width: 24' 0" Depth: 28' 0" Max ridge height: 26' 4" Ceiling Heights Floor / Height: First Floor / 10' 0" Roof Primary Pitch: 4 on 12 Secondary Pitch: 4 on 12 Framing Type: Truss
