Plan 430009LY
EXCLUSIVE
Modern Hill Country Retreat
Heated S.F.
2,680
Beds
4
Baths
3.5
Stories
1
Cars
3
Flyer
Videos
What's Included
Plan Details
  • Transom windows bring lots of extra light into this four bedroom Hill Country retreat.
  • Double doors off the foyer swing open to reveal a large study with a front facing window.
  • An open layout in the main living area combines the cooking, eating and living spaces.
  • A spacious master suite takes up almost the whole right side of the home and has a large master walk-in closet.
  • Bedrooms 3 and 4 share a connected bathroom while bedroom 2 has a private bathroom.
  • Every bedroom has a walk-in closet.
What's Included
This plan includes the following:
  • Cover sheet
  • Foundation plan
  • Roof plan

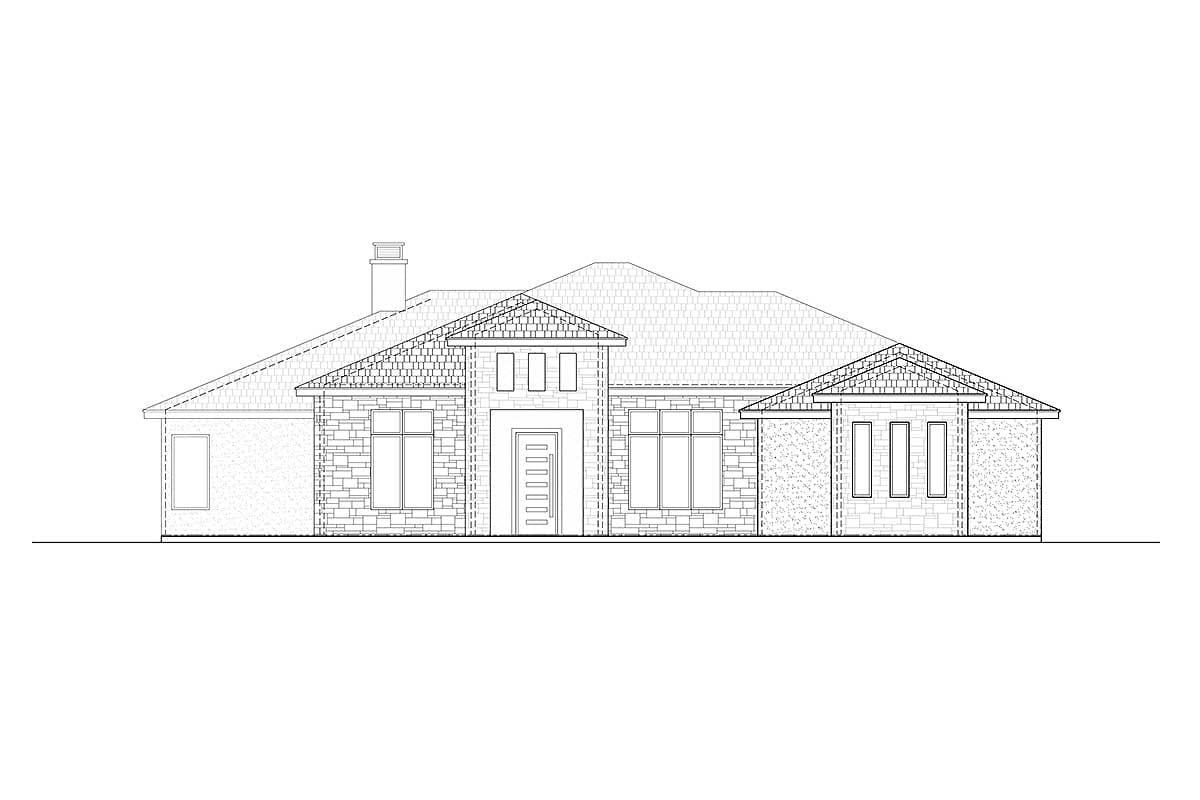

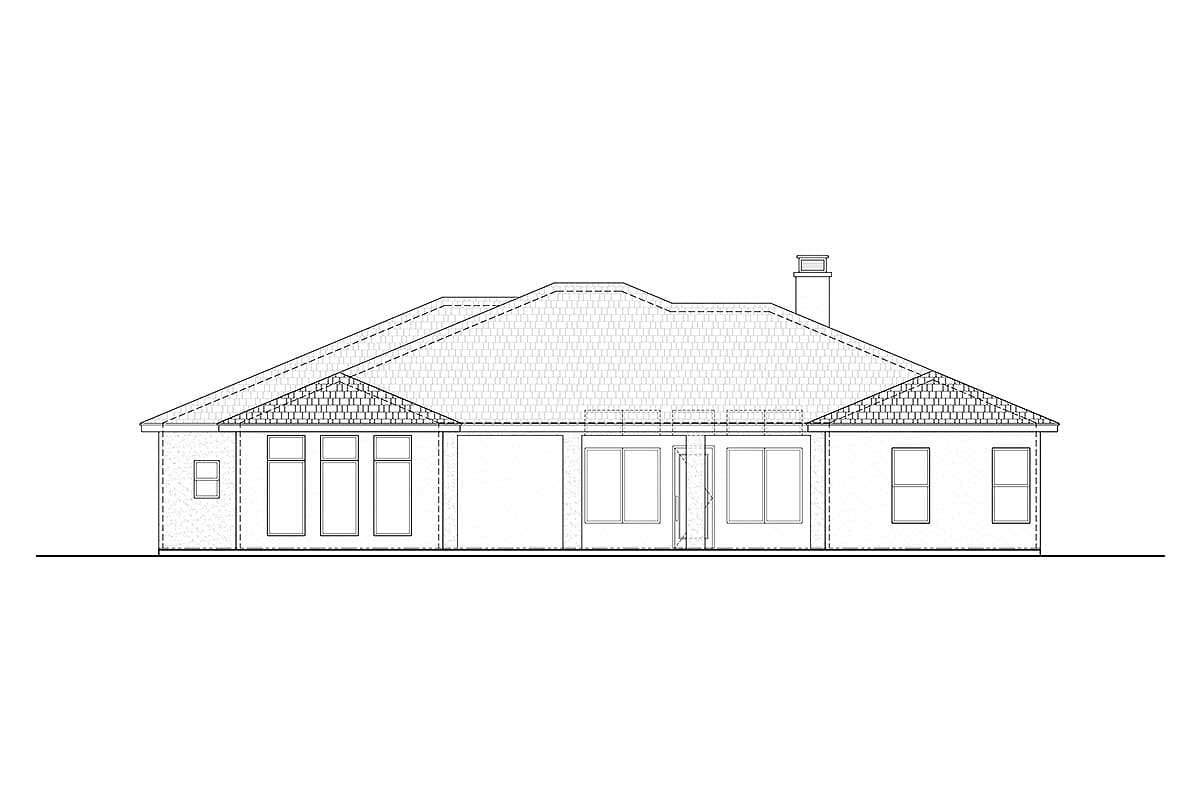

  • Exterior elevations
  • Typical wall sections
  • Electrical plan
  • Interior elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Hill Country Retreat

  • 2,680

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

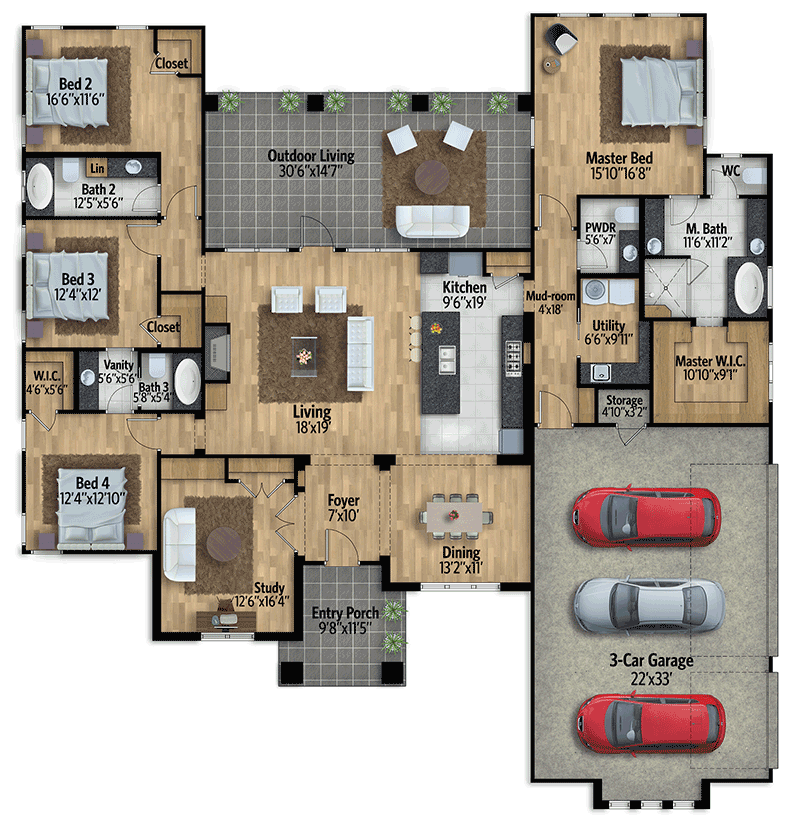

Floor Plan
