Plan 801060PM

Modern Home Plan with 3 Bedrooms Upstairs

Heated S.F.
1,322
Beds
3
Baths
1.5
Stories
2
Cars
1

Floor Plan

Plan 801060PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 801060PM

M-F 9am-5pm EST |

1-203-761-8500

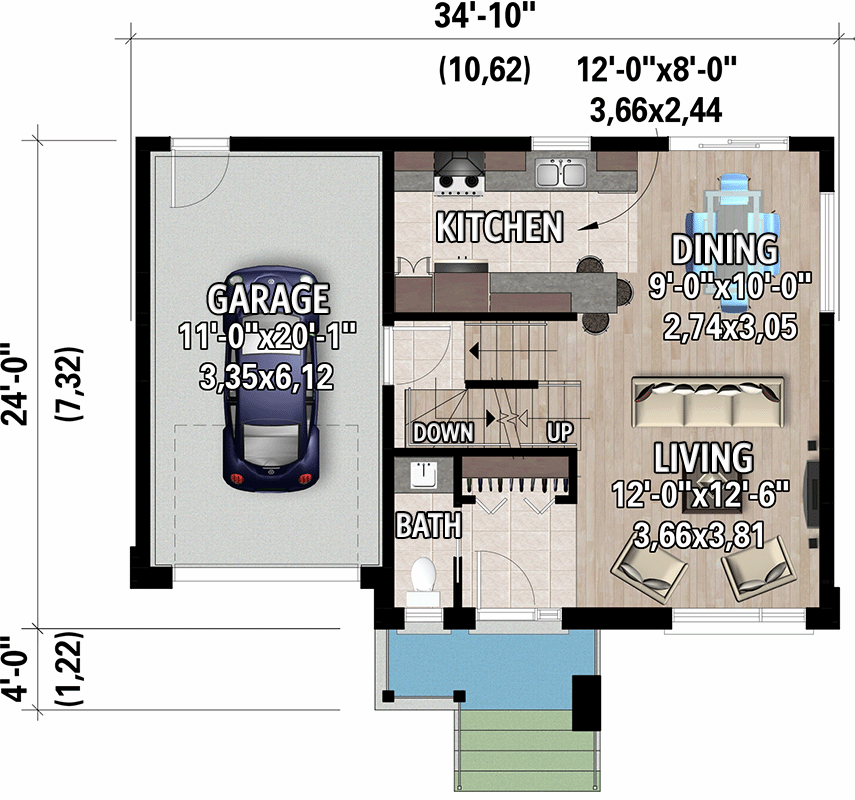

Main Level

Plan 801060PM: Modern Home Plan with 3 Bedrooms Upstairs - Floor Plan - Main Level - Modern

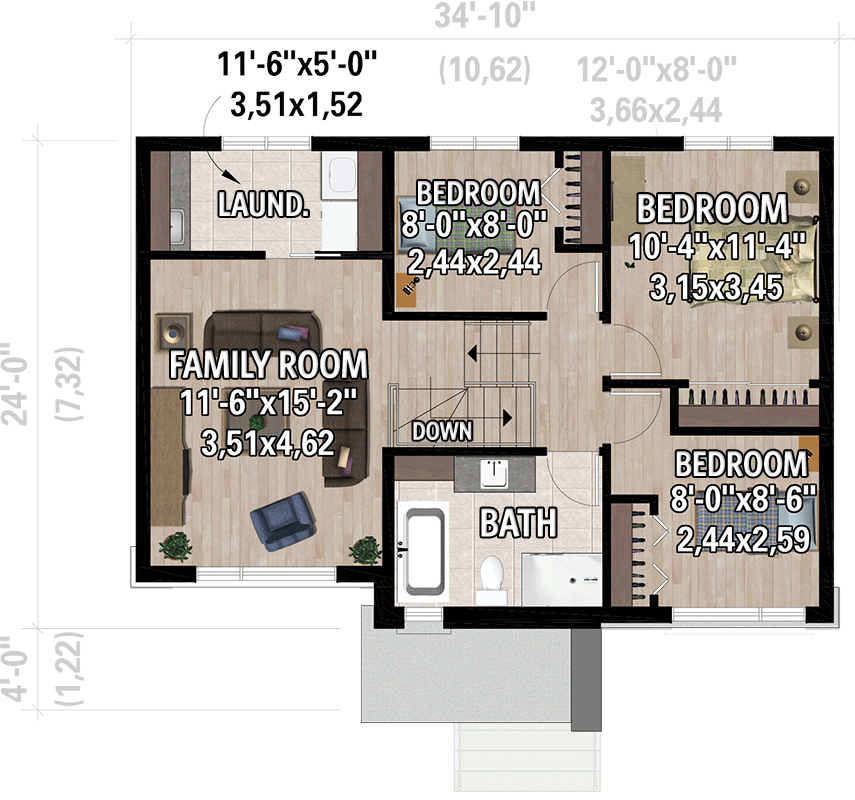

2nd Floor

Plan 801060PM: Modern Home Plan with 3 Bedrooms Upstairs - Floor Plan - 2nd Floor - Modern

Plan Details

  • This urban-looking single-story home measures 34 feet wide by 24 feet deep and offers 1,322 square feet of living space. With 264 square feet, the garage can accommodate one car.
  • The main floor occupies includes an open concept living room, a large entrance, a dining room, a kitchen with a counter that can accommodate 3 people and a powder room.
  • The second floor has the laundry room, a living room, a large family bathroom, the master bedroom and two other bedrooms.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,322 sq. ft.

1st Floor
