Plan 90284PD

Modern Home Plan with Optional Lower Level

Heated S.F.
832
Beds
1 - 3
Baths
1 - 2
Stories
2

Floor Plan

Plan 90284PD

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 90284PD

M-F 9am-5pm EST |

1-203-761-8500

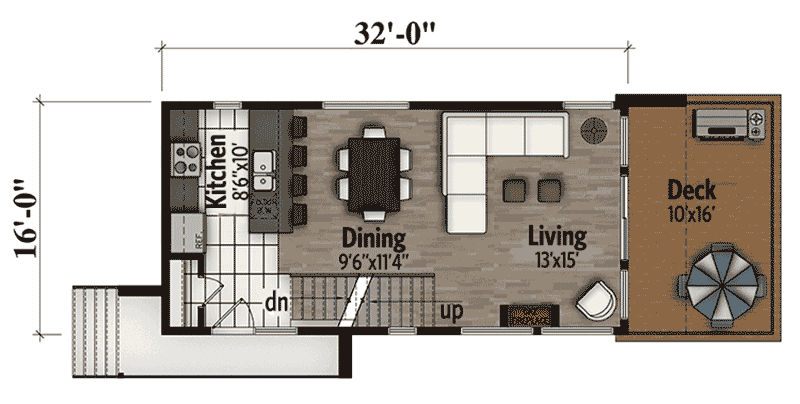

Main Level

Plan 90284PD: Modern Home Plan with Optional Lower Level - Floor Plan - Main Level - Mid Century Modern, Modern, Northwest, Vacation

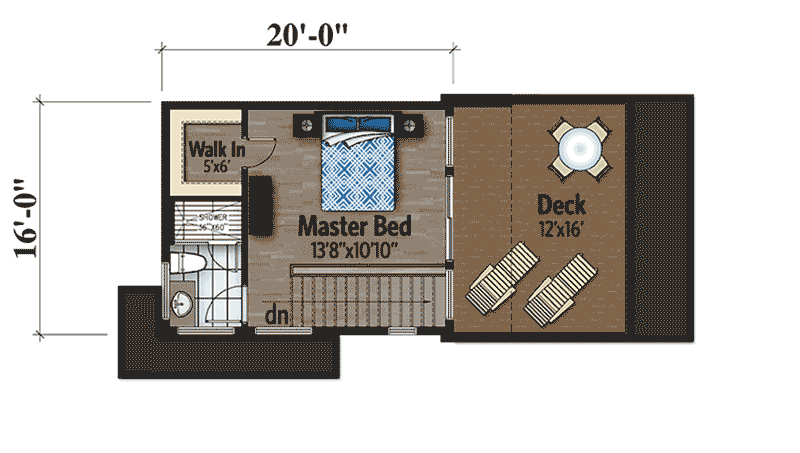

2nd Floor

Plan 90284PD: Modern Home Plan with Optional Lower Level - Floor Plan - 2nd Floor - Mid Century Modern, Modern, Northwest, Vacation

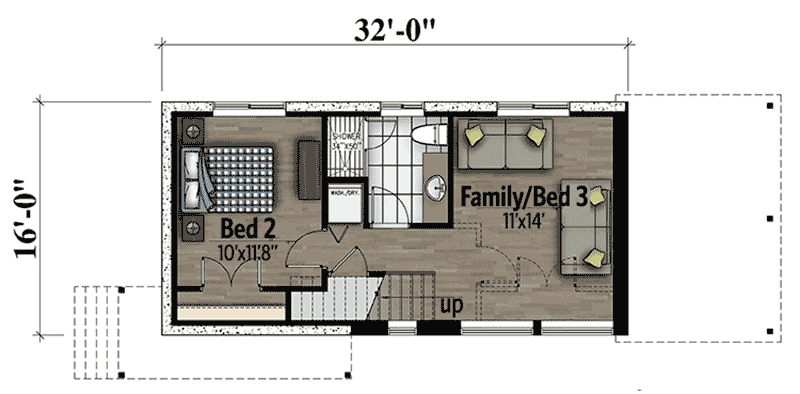

Lower Level

Plan 90284PD: Modern Home Plan with Optional Lower Level - Floor Plan - Lower Level - Mid Century Modern, Modern, Northwest, Vacation

Plan Details

  • Get away from it all with this striking modern home plan with two decks to enjoy the outdoors.
  • The entire main living area is one open space so you can see from the kitchen sink all the way back to the balcony on the other side of the living room.
  • You can seat four people at the peninsula eating bar or sit at the dining room table.
  • Glass on three sides of the house make this a bright and airy living space.
  • Upstairs, the master bedroom gets a walk-in closet and a huge uncovered balcony where you can soak up the sun and relax with your e-reader.
  • The optional lower level gives you a bedroom, bath, and a flexible room that could be used as a family room or a third bedroom.

What's Included

Please note this plan is designed to the National Building Code of Canada.

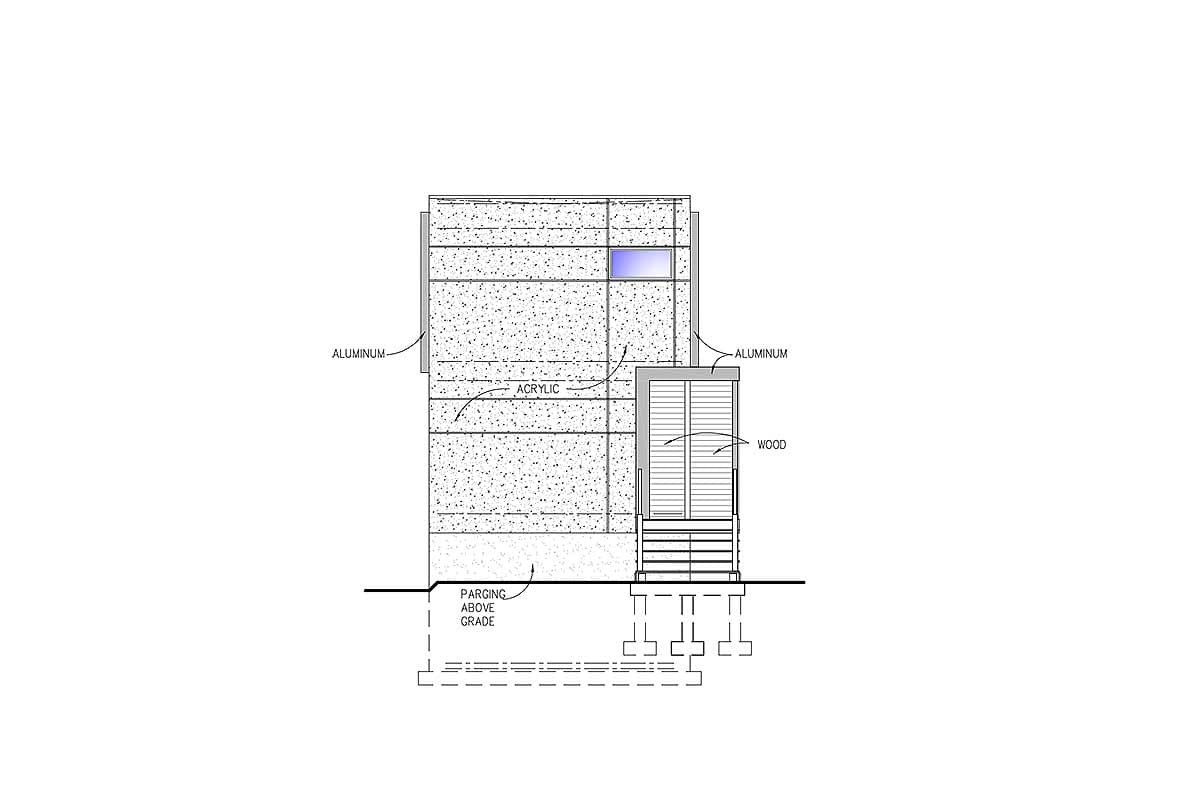

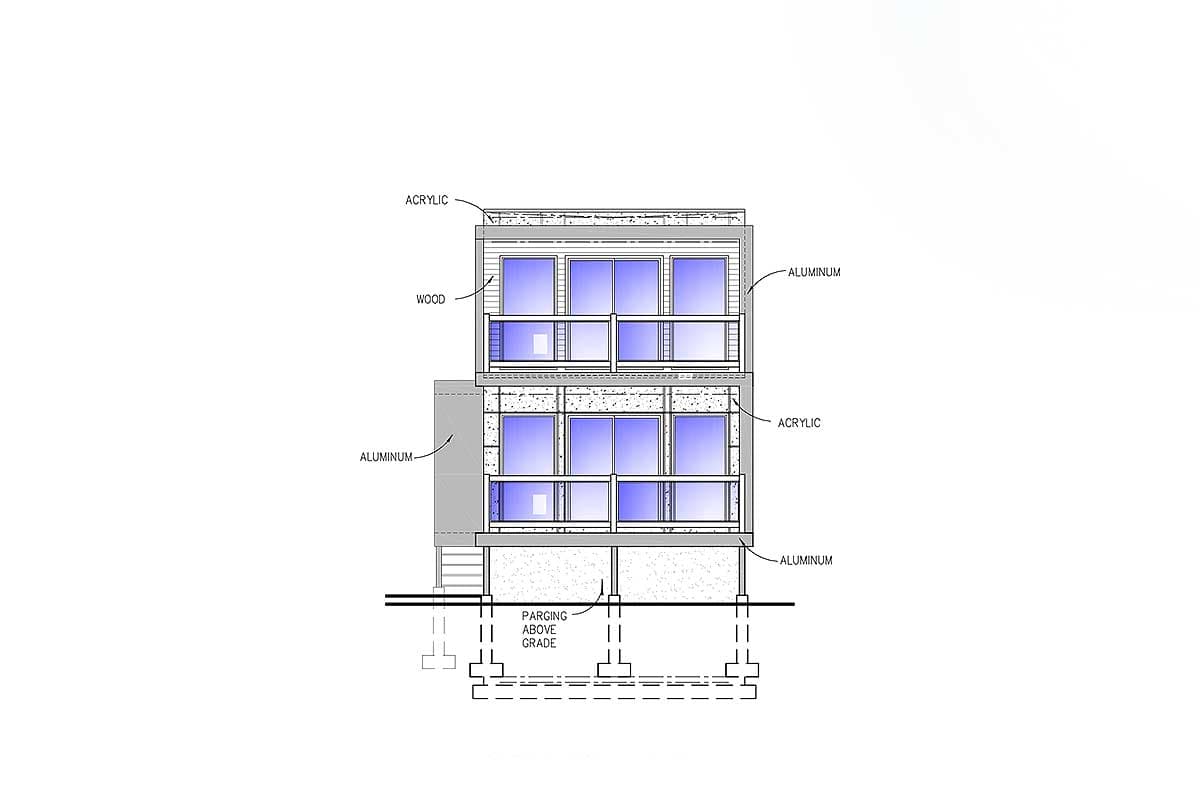

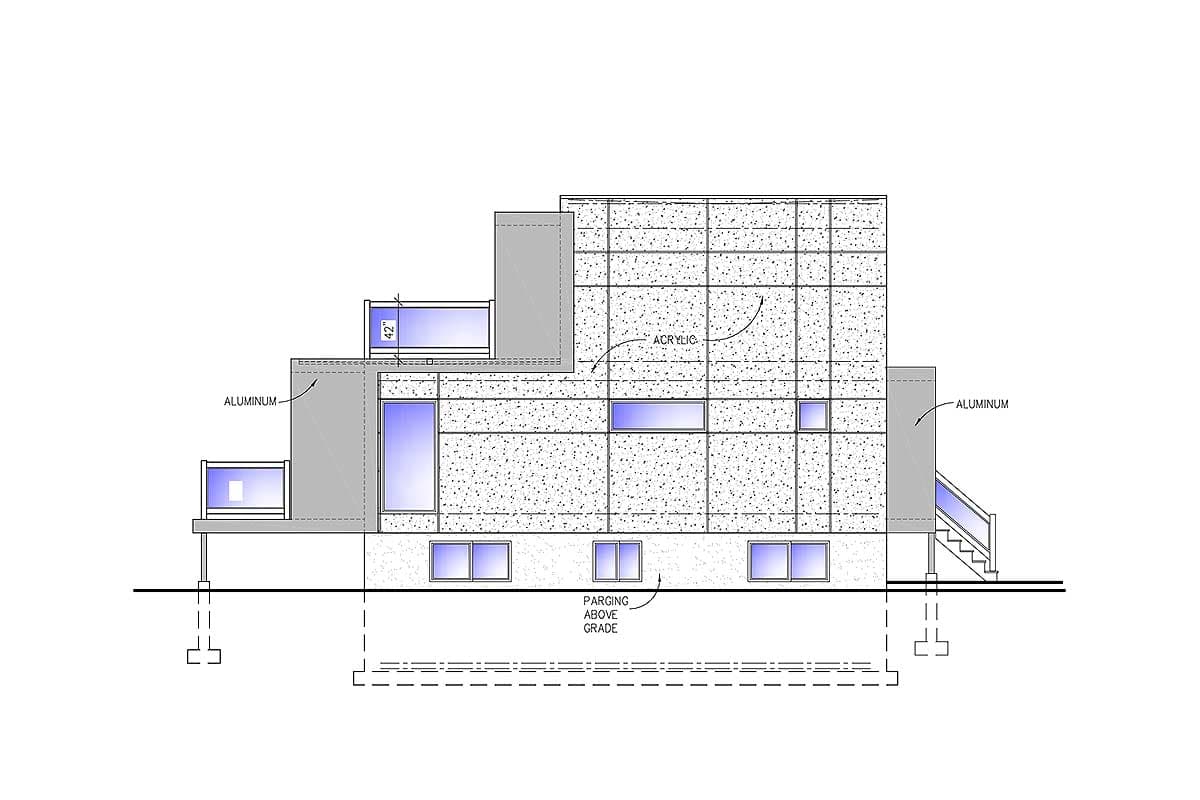

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

832 sq. ft.

1st Floor

512 sq. ft.

2nd Floor

320 sq. ft.

Optional Lower Level

512 sq. ft.

Balcony / Veranda

160 sq. ft.

Beds/Baths

Bedrooms

1, 2, or 3

Full bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

16' 0"

Depth

32' 0"

Max Ridge Height

23' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

0 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Modern

Northwest

Vacation

Special Features

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

832 sq. ft.

1st Floor

512 sq. ft.

2nd Floor

320 sq. ft.

Optional Lower Level

512 sq. ft.

Balcony / Veranda

160 sq. ft.

Beds/Baths

Bedrooms

1, 2, or 3

Full bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

16' 0"

Depth

32' 0"

Max Ridge Height

23' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

0 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Modern

Northwest

Vacation

Special Features

Master Suite - Upstairs

Plan Collections

Canadian House Plans
