Plan 666152RAF Modern Home Plan with Rooftop Deck and 2-Bed ADU

6,330 7 5.5 2 5
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Home Plan with Rooftop Deck and 2-Bed ADU

Plan 666152RAF

  • 6,330

    Heated s.f.

  • 7

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 5

    Cars

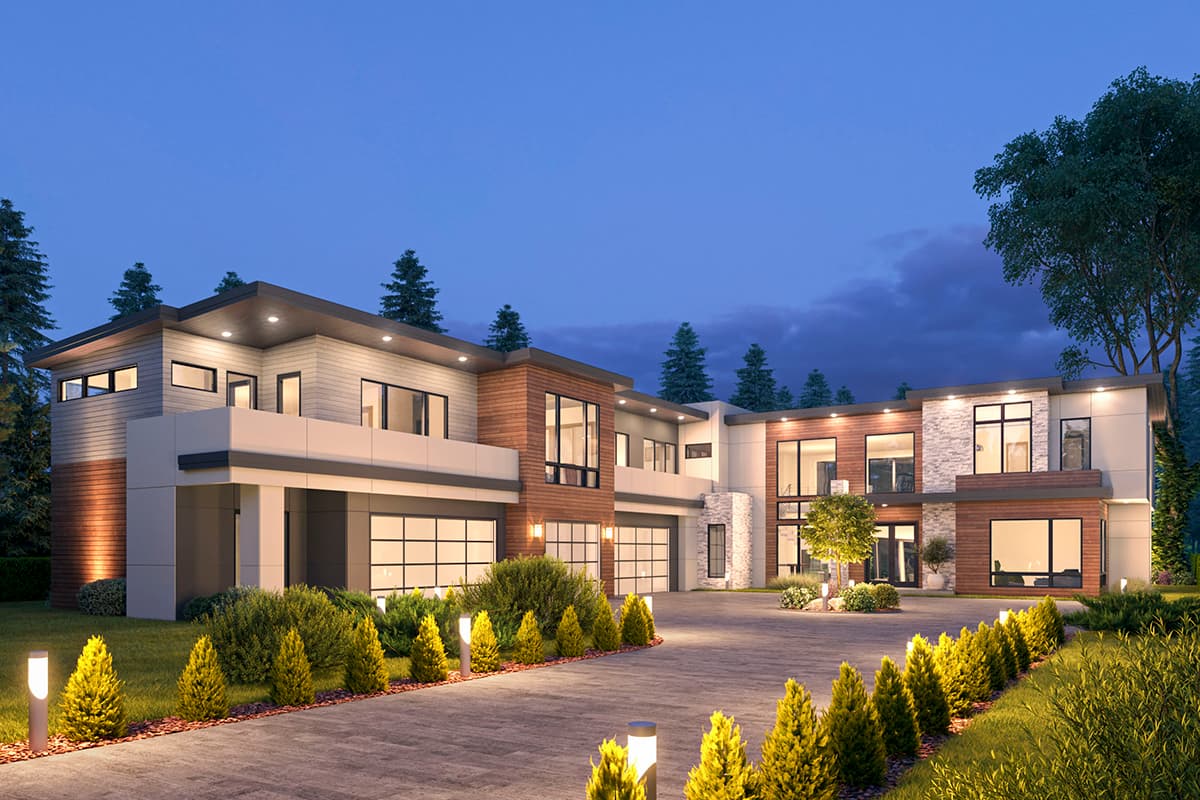

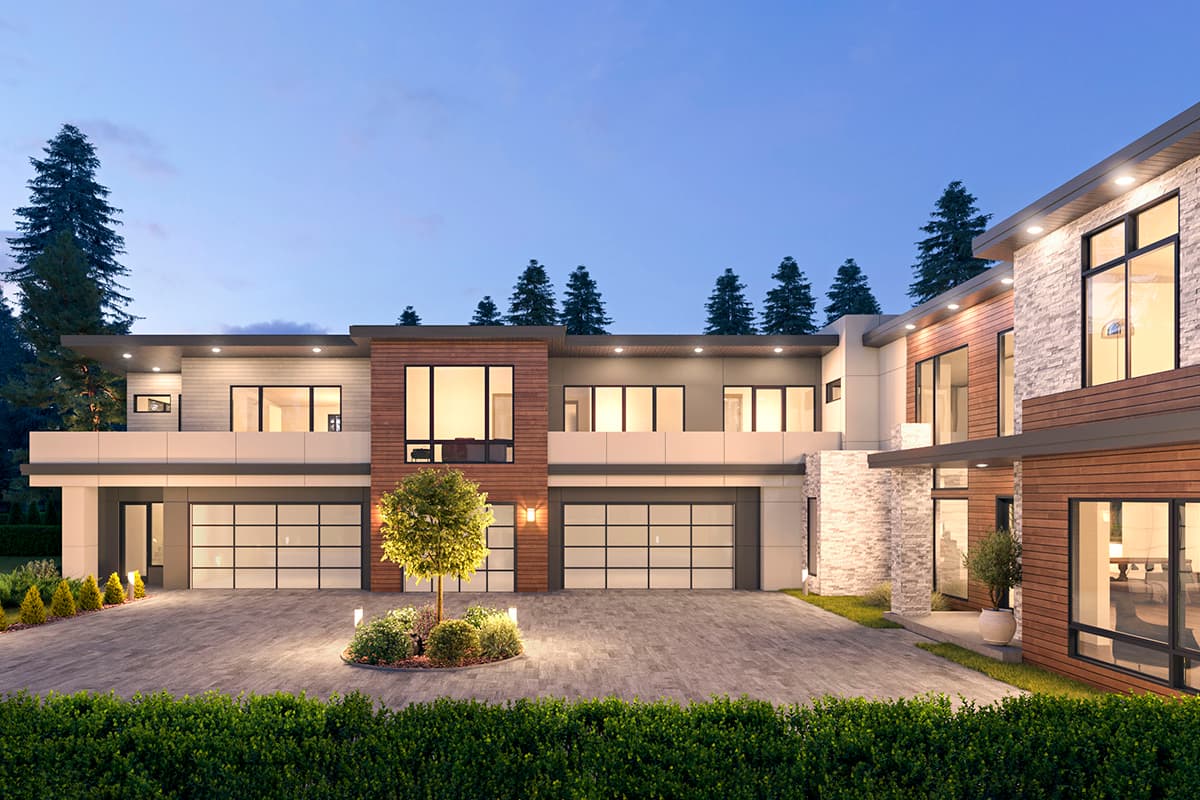

  • The car enthusiast will appreciate the 5-car garage that extends from the front of this Modern home plan, while a versatile 1,000 sf 2-bed apartment sits above the garage with a private entrance .
  • Centered on the main level, discover a sizable great room and dining area with a fireplace and surrounding builtins. Two sets of sliding doors lead to a 27' by 16' covered patio.
  • An oversized prep island anchors the kitchen, while a walk-in pantry doubles as a spice kitchen with its veggie sink and cold storage.
  • Each of the bedrooms include a full bathroom, except for the master suite that enjoys a deluxe ensuite with a bidet and walk-in closet. Laundry is conveniently located on the second level.
  • The rooftop deck serves as the cherry on top with plenty of space to entertain family and friends.

Plans include:

  • Cover Sheet
  • General notes
  • Foundation Plan
  • Fully dimensioned floor plans

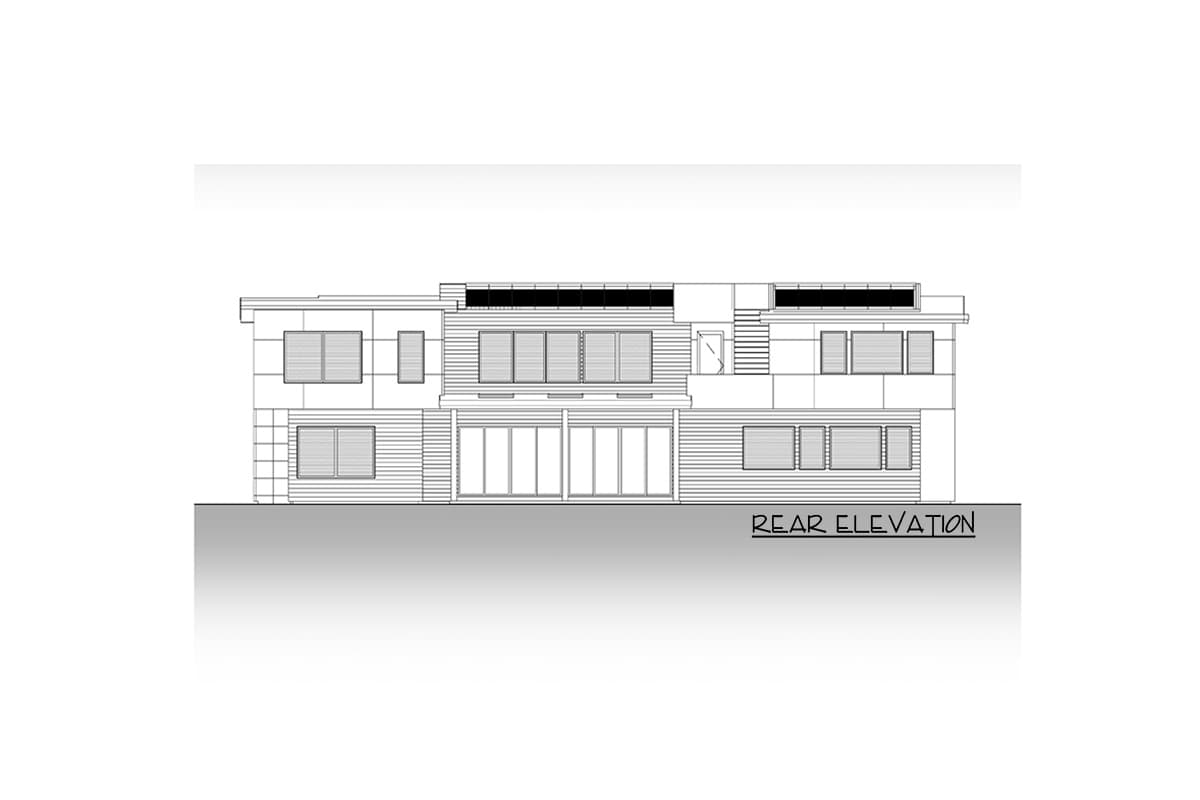

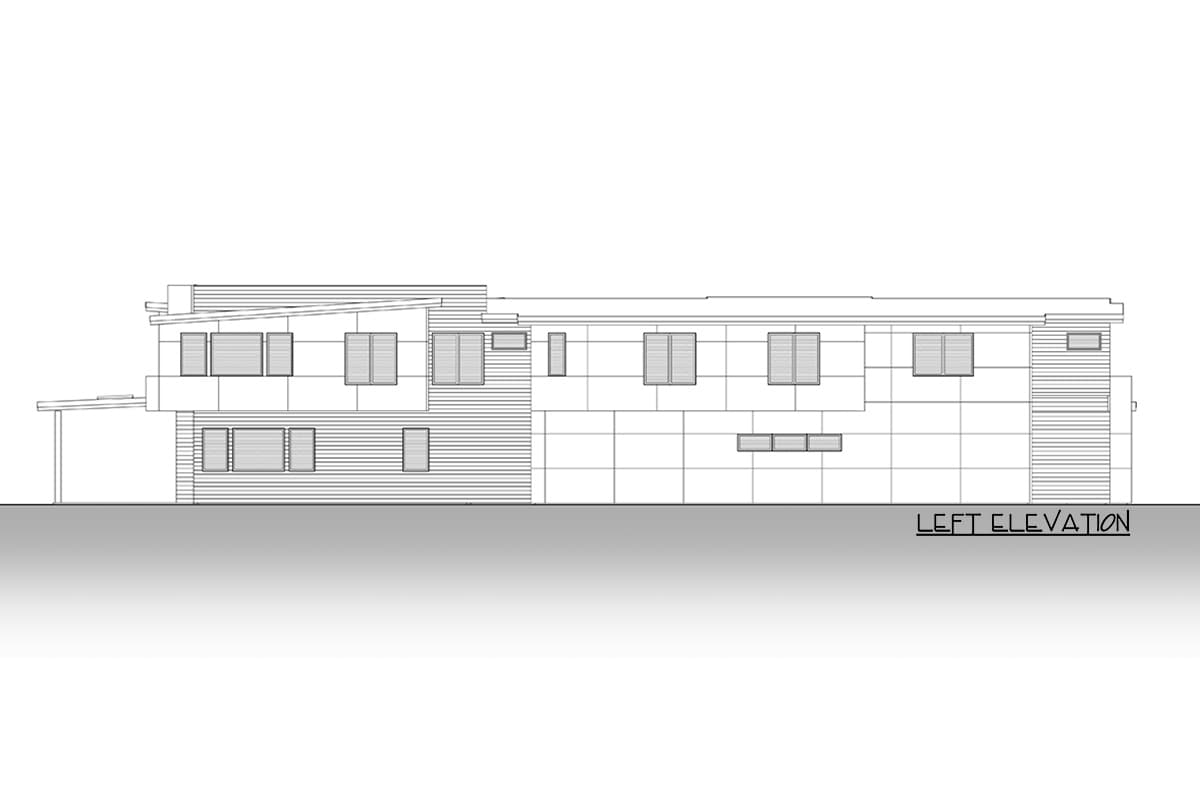

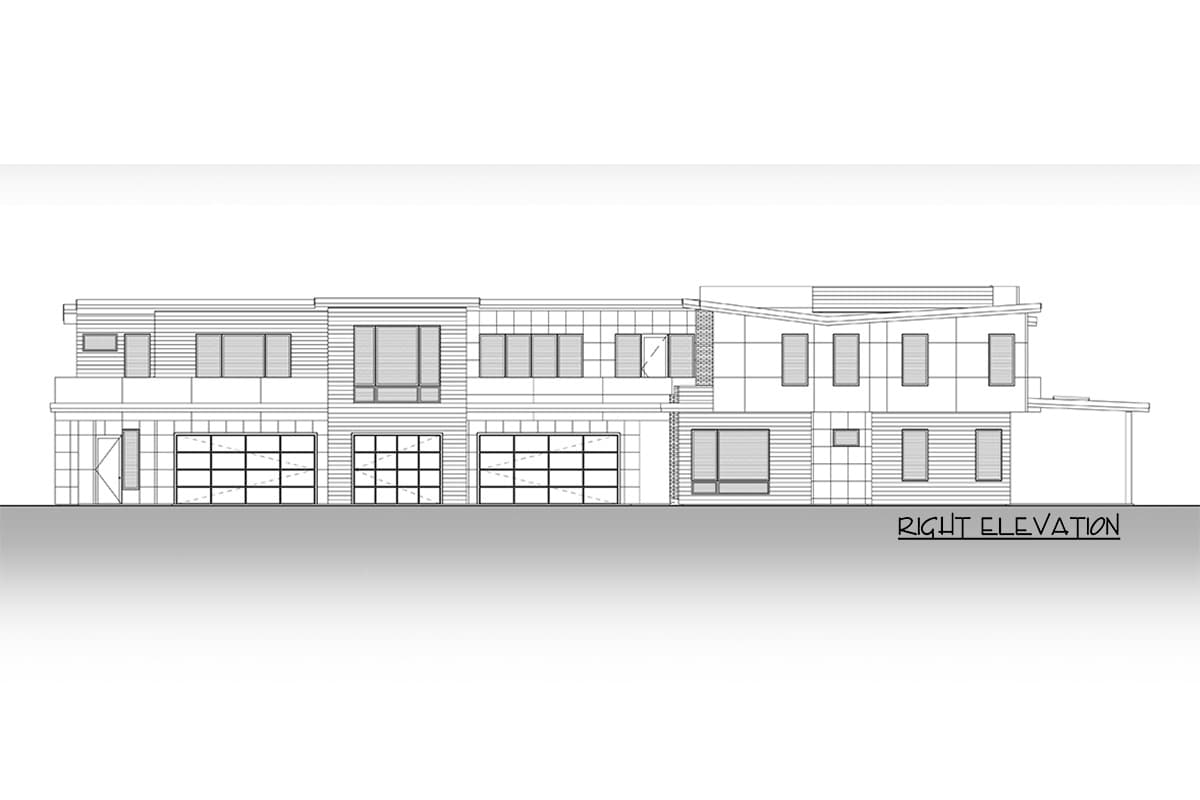

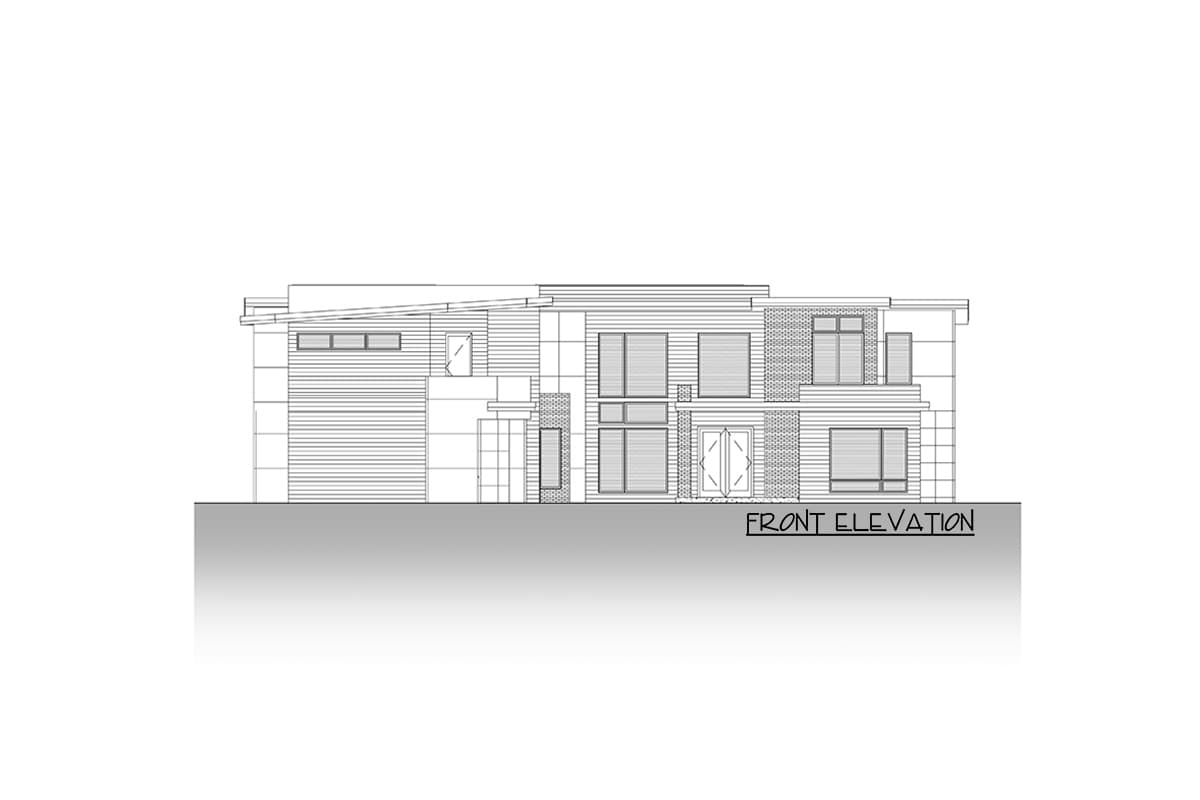

  • Elevations
  • Building cross sections
  • Roof Plan

What is NOT included in the plans:
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

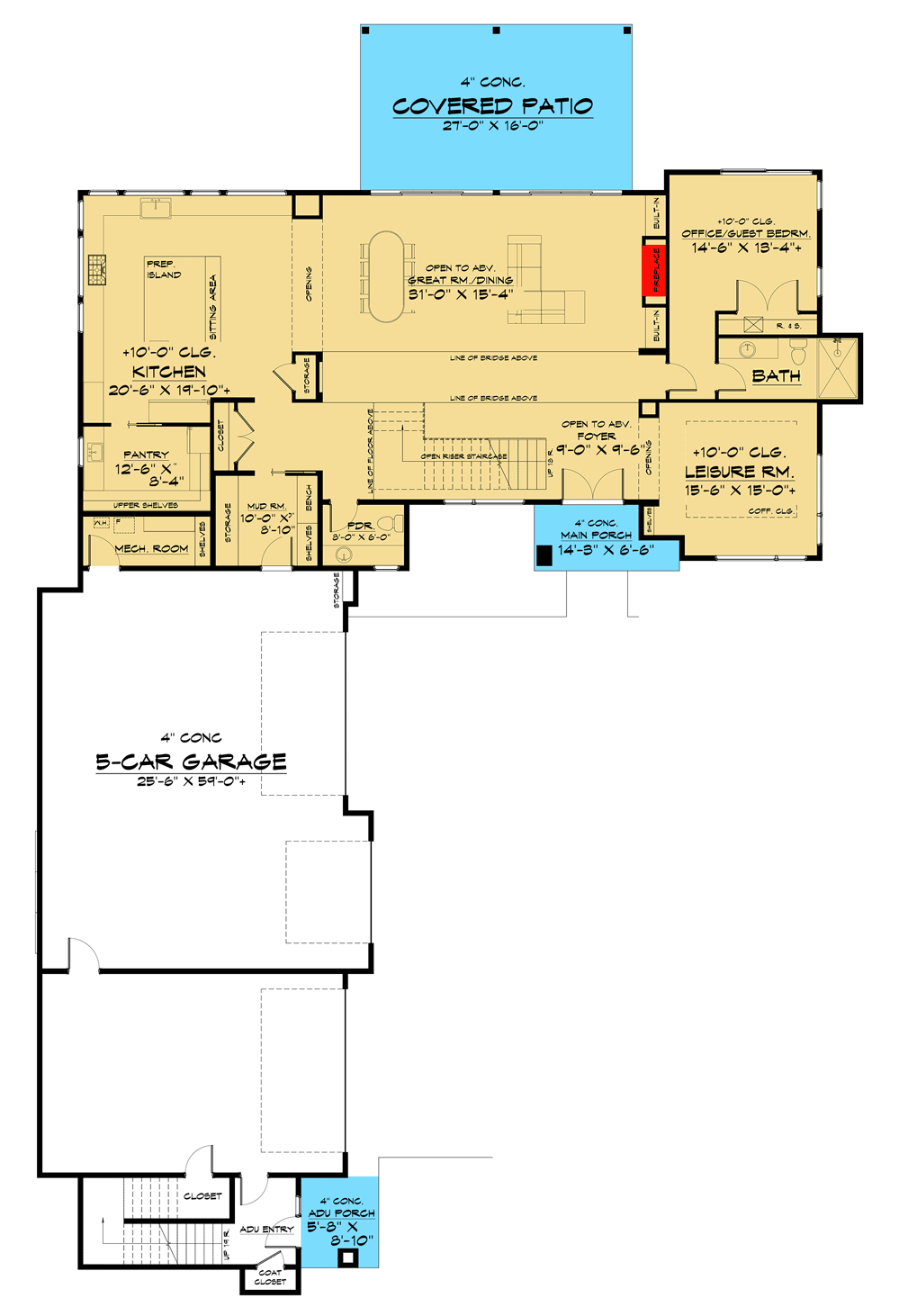

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Home Plan with Rooftop Deck and 2-Bed ADU - 666152RAF floor plan - Main Level

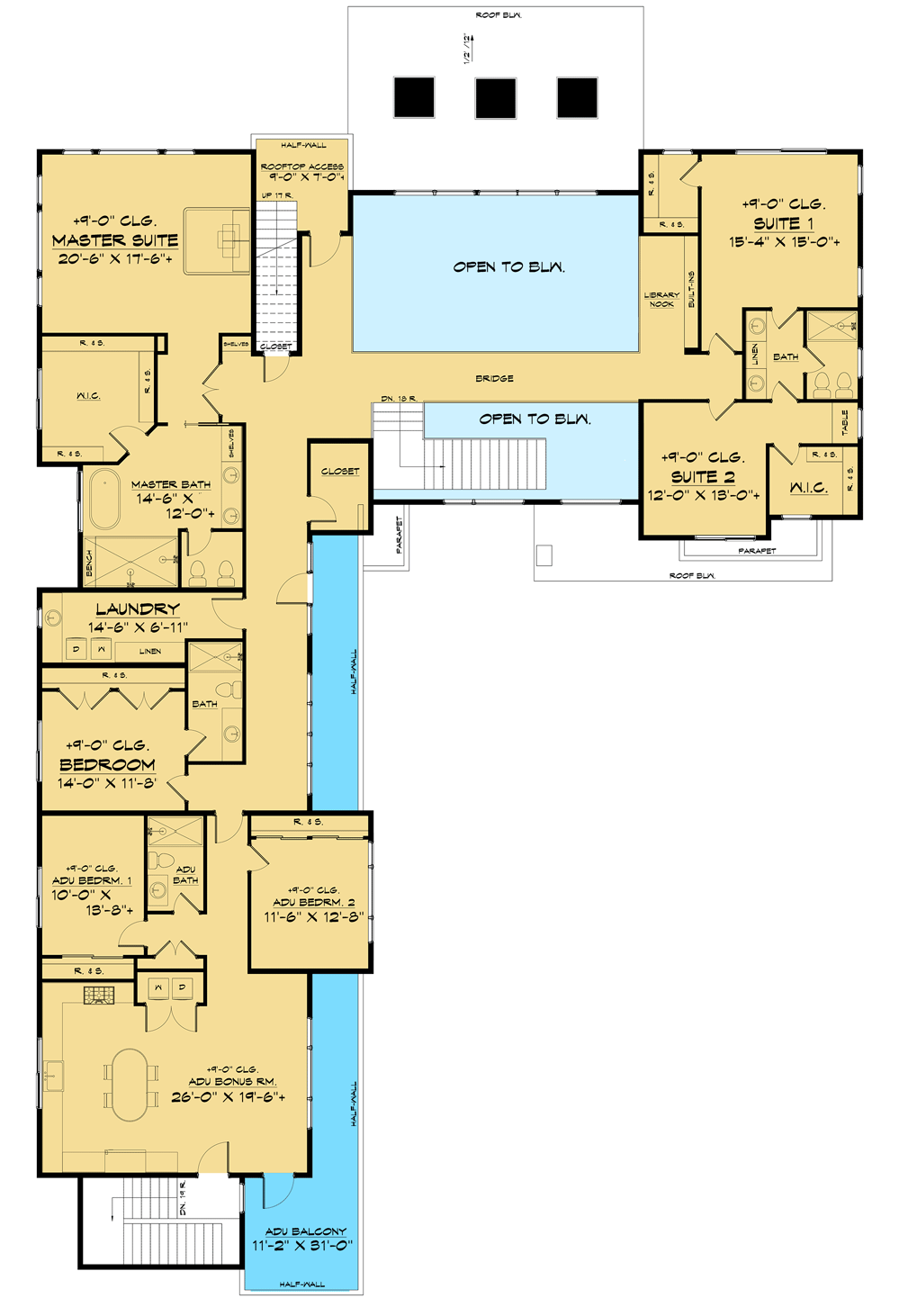

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Home Plan with Rooftop Deck and 2-Bed ADU - 666152RAF floor plan - 2nd Floor

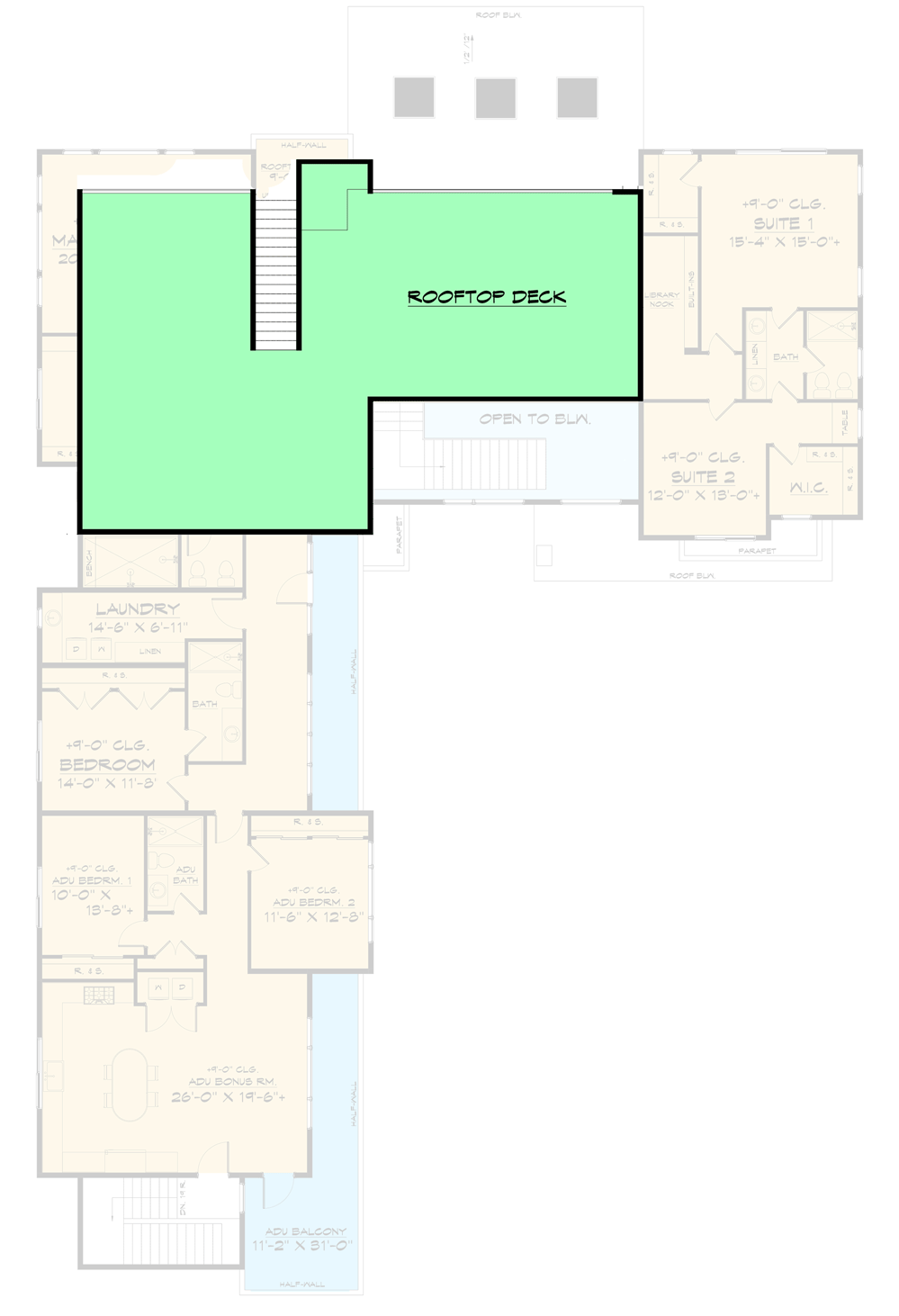

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Home Plan with Rooftop Deck and 2-Bed ADU - 666152RAF floor plan - 3rd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,330 sq. ft.
  • 1st Floor: 2,612 sq. ft.
  • 2nd Floor: 3,718 sq. ft.
  • Covered Patio: 433 sq. ft.
  • Balcony / Veranda: 370 sq. ft.
  • Deck: 1,491 sq. ft.
  • Porch, Rear: 50 sq. ft.
  • Porch, Front: 79 sq. ft.

Beds/Baths

  • Bedrooms: 7
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 124' 4"
  • Depth: 81' 0"
  • Max ridge height: 24' 7"

Garage

  • Type: Attached
  • Area: 1859 sq. ft.
  • Count: 5 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 1 1/2 on 12
  • Secondary Pitch: 3/4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern Home Plan with Rooftop Deck and 2-Bed ADU

  • 6,330

    Heated s.f.

  • 7

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 5

    Car garage

Buy This Plan
  • PDF - Single-Build $3,165
  • 5 Sets + PDF $3,415
  • 5 Sets $3,465
  • 8 Sets $3,615
  • CAD - Single-Build $6,013
  • View all purchase option online

About This Plan

  • The car enthusiast will appreciate the 5-car garage that extends from the front of this Modern home plan, while a versatile 1,000 sf 2-bed apartment sits above the garage with a private entrance .
  • Centered on the main level, discover a sizable great room and dining area with a fireplace and surrounding builtins. Two sets of sliding doors lead to a 27' by 16' covered patio.
  • An oversized prep island anchors the kitchen, while a walk-in pantry doubles as a spice kitchen with its veggie sink and cold storage.
  • Each of the bedrooms include a full bathroom, except for the master suite that enjoys a deluxe ensuite with a bidet and walk-in closet. Laundry is conveniently located on the second level.
  • The rooftop deck serves as the cherry on top with plenty of space to entertain family and friends.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,330 sq. ft.
  • 1st Floor: 2,612 sq. ft.
  • 2nd Floor: 3,718 sq. ft.
  • Covered Patio: 433 sq. ft.
  • Balcony / Veranda: 370 sq. ft.
  • Deck: 1,491 sq. ft.
  • Porch, Rear: 50 sq. ft.
  • Porch, Front: 79 sq. ft.

Beds/Baths

  • Bedrooms: 7
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 124' 4"
  • Depth: 81' 0"
  • Max ridge height: 24' 7"

Garage

  • Type: Attached
  • Area: 1859 sq. ft.
  • Count: 5 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 1 1/2 on 12
  • Secondary Pitch: 3/4 on 12
  • Framing Type: Truss
Plan 666152RAF
View this and more for this plan by visiting www.architechtecturaldesigns.com/666152RAF
|
