Modern Home Plan with Split Bedrooms and Loft

Name: Plan 337011JUN: Modern Home Plan with Split Bedrooms and Loft
Brand: Architectural Designs
SKU: 337011JUN
Price: 1095.0 USD
Availability: InStock

Heated S.F.

1,344

Beds

Baths

Stories

Floor Plan

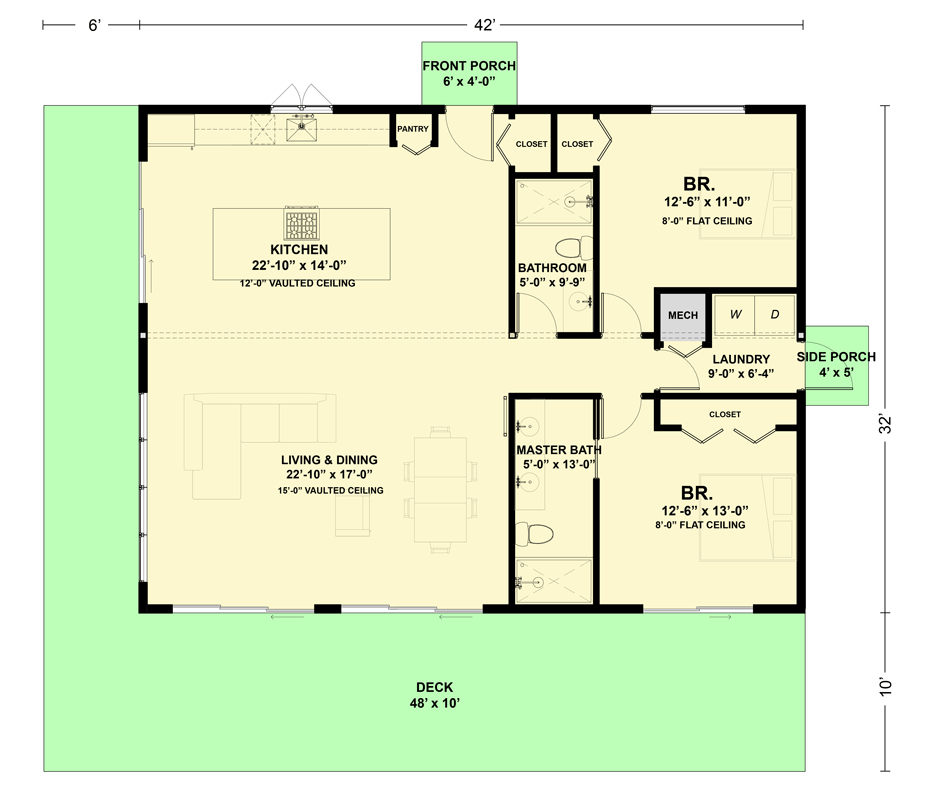

Main Level

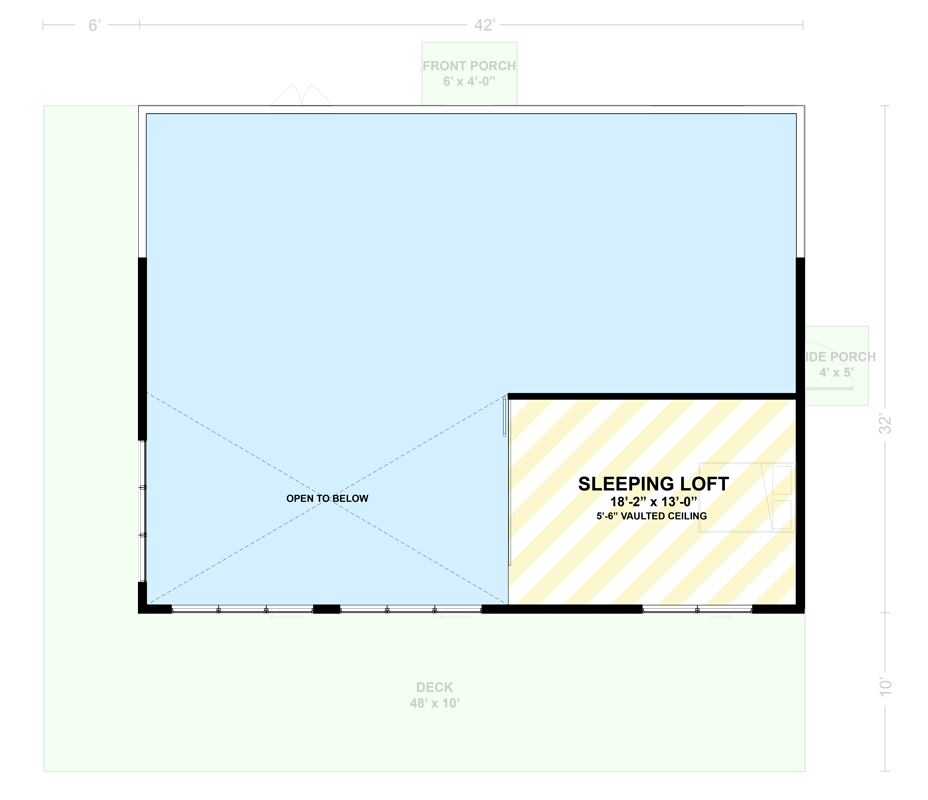

Optionally Finished Sleeping Loft

Plan Details

Enjoy 1,344 sq. ft. of sleek living space with 2 bedrooms and 2 baths, a loft, and a spacious deck. The design plan showcases a modern exterior with clean lines.
Enter through a welcoming porch into an open-concept living and dining area featuring vaulted ceilings enhancing natural light and spaciousness.
The kitchen boasts a functional layout with a pantry, seamlessly connecting to the dining area, perfect for culinary delights and social gatherings.
The first-floor master suite offers privacy with convenient laundry access, while a split layout places the second bedroom on the opposite side.
A versatile loft space is ideal for a home office or additional sleeping quarters, offering flexibility in its use.
The expansive 672 sq. ft. deck invites outdoor living, providing an ideal spot for relaxation and entertaining.

What's Included

Cover Page - Includes sheet index, complete building information, build summary, and 3D drawings of the house/cabin.
Foundation Plan and Details - Slab thickness, footing sizes and spacing, complete floor framing sizes and layout, foundation section details.
Floor Plans - Fully dimensioned and annotated floor plans for each level, wet fixture locations, window and door tags.

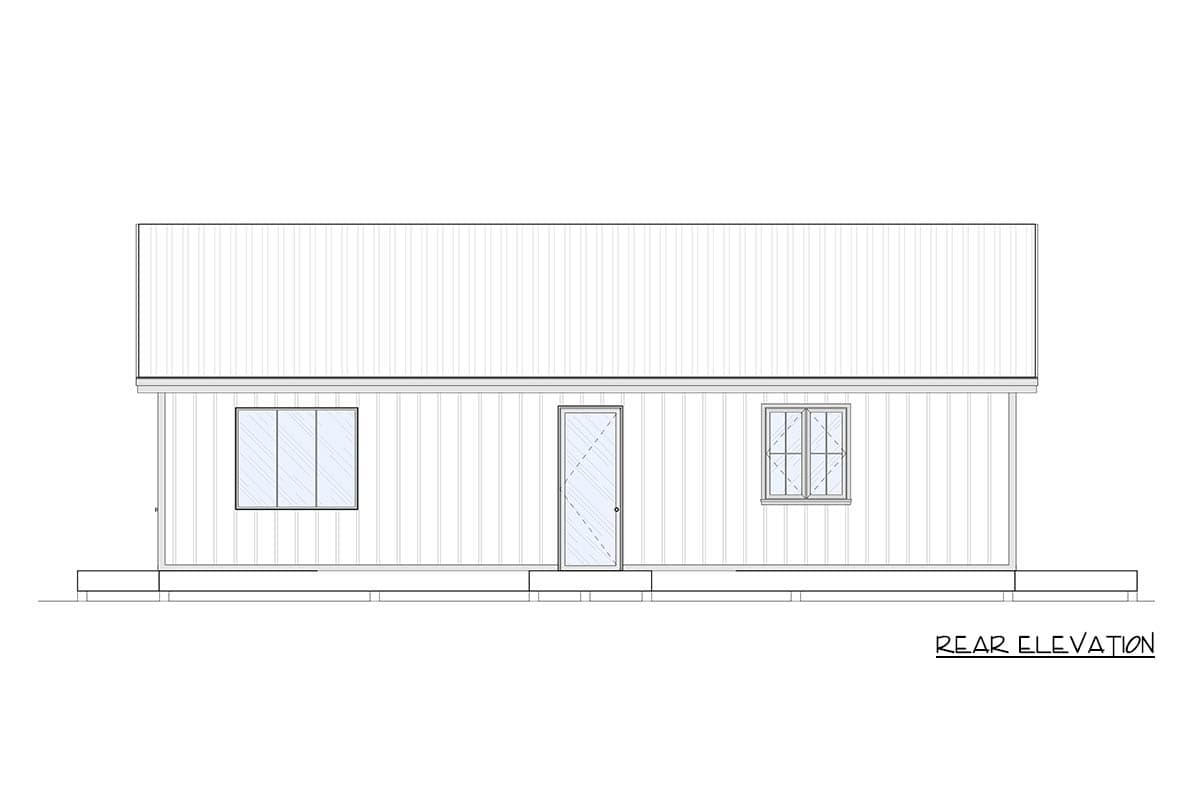

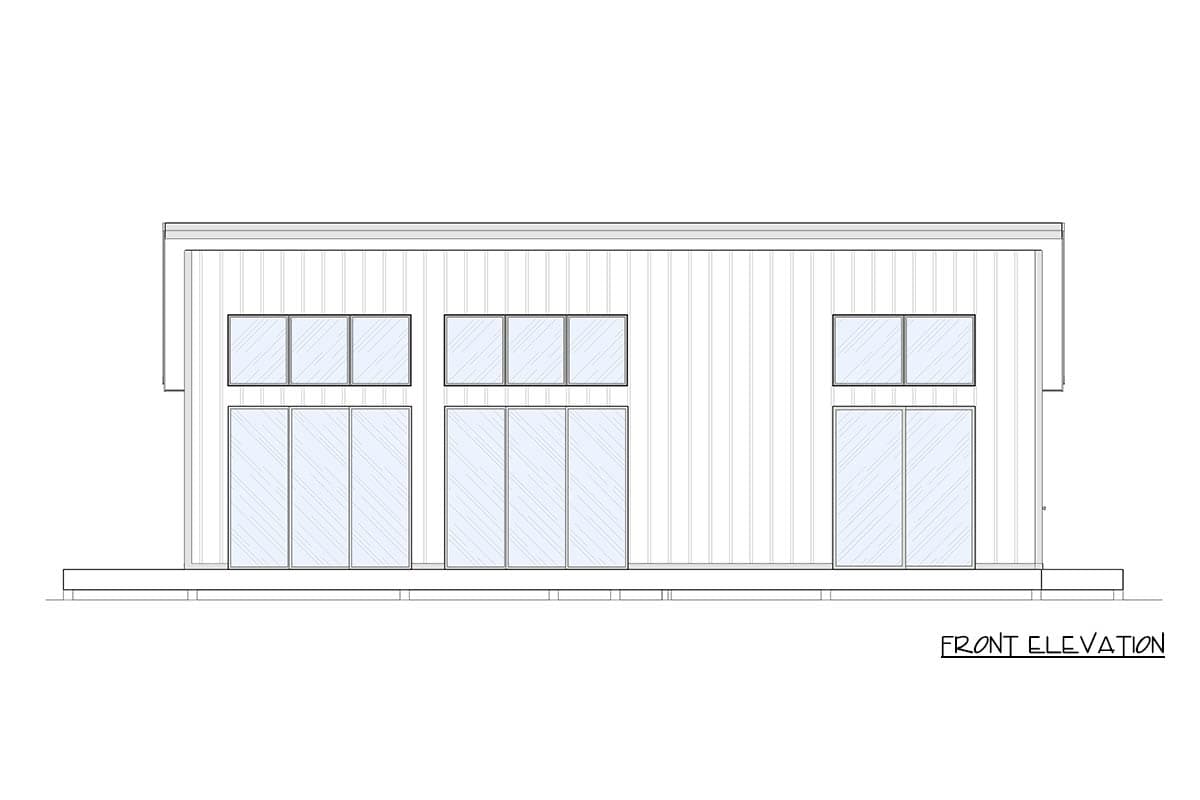

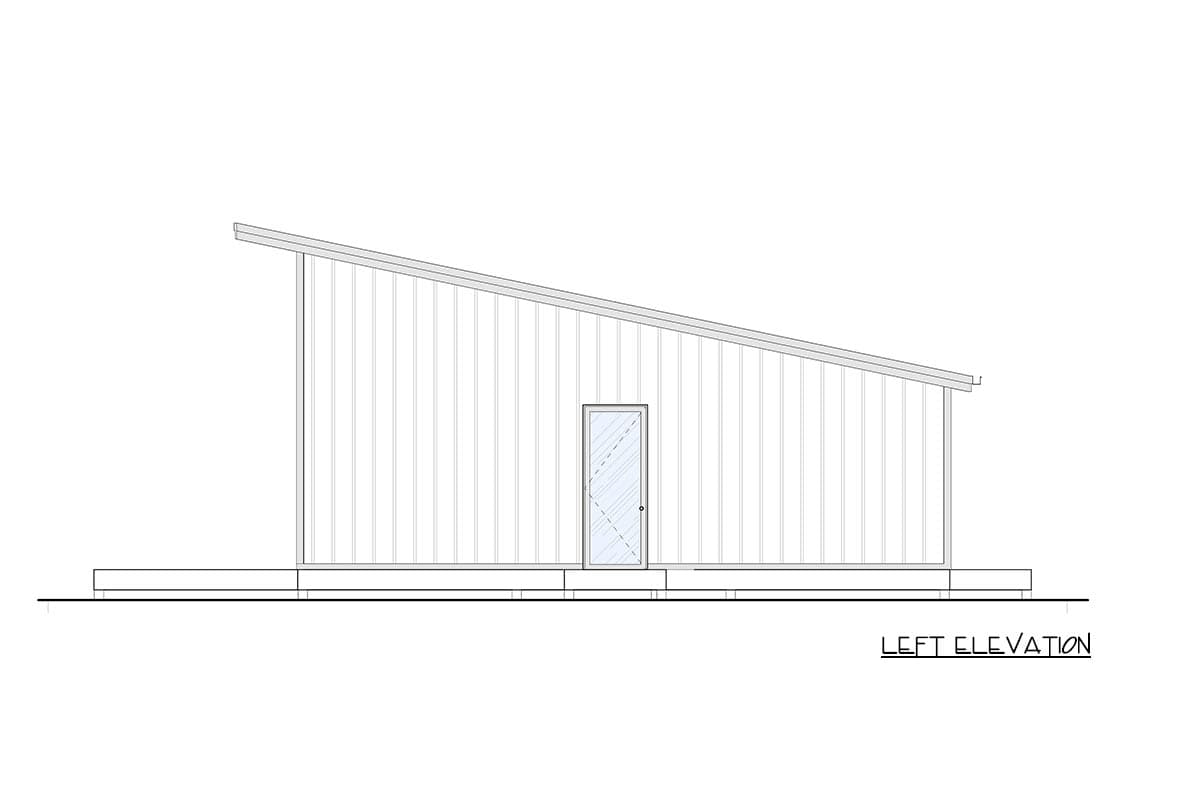

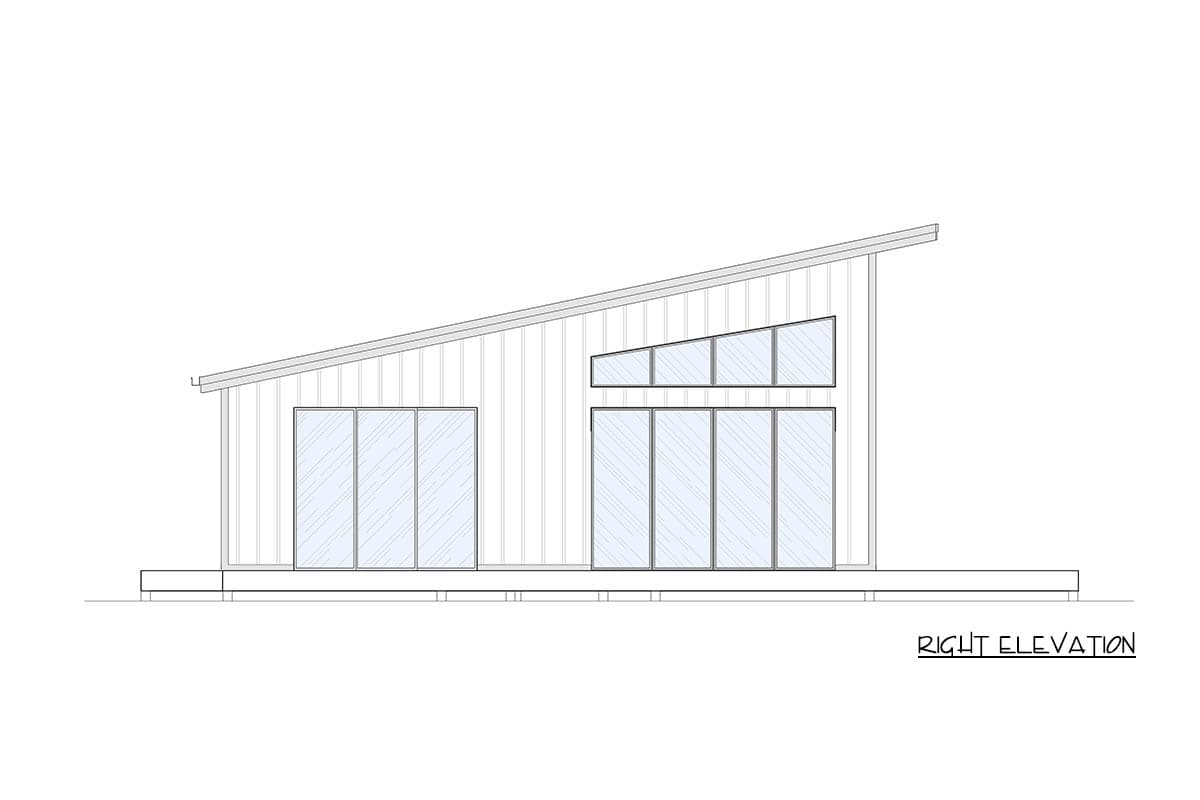

Exterior Elevations - 4 Detailed exterior elevations showing the front, rear, and sides with vertical dimensions and window/door tags.
Cross Sections - Multiple detailed building sections annotated with lumber sizes and construction notes for floor, roof, insulation, and exterior & interior wall frames.
Roof Plan - Complete roof plans showing rafter/truss layouts, fully dimensioned and annotated.
Electrical Plans & Notes - Complete layouts for lights, switches, outlets, and location of the electrical panel, with general electrical notes.
Doors and Windows Schedule - Showing the quantity, sizes, sill & header heights, and description of all of the doors and windows in the build.
Building Sections and Notes - Detailed building sections and general wall framing notes.
General Notes - General notes on build requirements and standards, general framing notes on typical structural notes, codes & standards, climate, etc.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Mechanical Drawings - your subcontractors handle this
Plumbing Drawings - your subcontractors handle this
Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant if required
