Plan 69692AM

Modern House Plan with Front To Back Living and Finished Lower Level

4,317 4 4.5 1 3
Pageloader

Modern House Plan with Front To Back Living and Finished Lower Level

Plan 69692AM

  • 4,317

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Walls of windows on both sides of the enormous living area of this Modern house plan give you killer views. Transom windows bring in even more light.

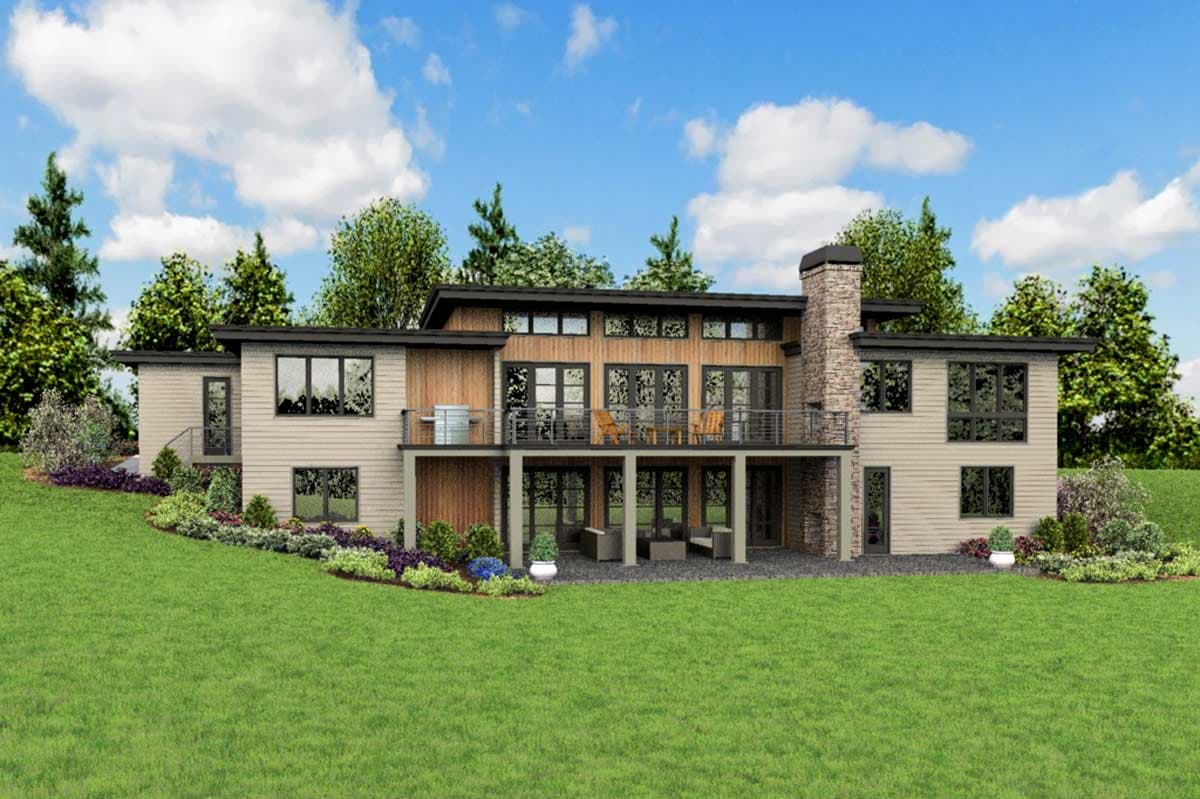

  • The back wall of the open floor plan collapses in three sections connecting the large deck with the inside. An inset for your grill is a nice touch, as is the fireplace.
  • In the far right corner of the home, a quiet office has provisions for optional built-ins.
  • All the bedrooms are grouped on the left side of the home with the large master suite in back. A spa tub and two sinks enhance the master bathroom, while the other bedrooms share a jack and jill bathroom.
  • The lower level gives you a 4th bedroom plus a large game room with a bar. Sliding doors open to the outdoor living area with fireplace. To the right there is a large storage area and space for mechanicals.
  • The roof pitch is 1/4" per foot.
  • Related Plans: Eliminate the lower level with house plans 69587AM (2,557 sq. ft., 2-car garage), 69701AM (2,557 sq. ft., 3-car garage), 69619AM (2,241 sq. ft.) and 69674AM (2,639 sq. ft.).

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Modern House Plan with Front To Back Living and Finished Lower Level

  • 4,317

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,375
  • PDF - single-use $1,725
  • 5 Sets $1,875
  • 5 Sets PLUS $1,925
  • CAD - multi-use $3,450
  • View all purchase option online

About This Plan

  • Walls of windows on both sides of the enormous living area of this Modern house plan give you killer views. Transom windows bring in even more light.
  • The back wall of the open floor plan collapses in three sections connecting the large deck with the inside. An inset for your grill is a nice touch, as is the fireplace.
  • In the far right corner of the home, a quiet office has provisions for optional built-ins.
  • All the bedrooms are grouped on the left side of the home with the large master suite in back. A spa tub and two sinks enhance the master bathroom, while the other bedrooms share a jack and jill bathroom.
  • The lower level gives you a 4th bedroom plus a large game room with a bar. Sliding doors open to the outdoor living area with fireplace. To the right there is a large storage area and space for mechanicals.
  • The roof pitch is 1/4" per foot.
  • Related Plans: Eliminate the lower level with house plans 69587AM (2,557 sq. ft., 2-car garage), 69701AM (2,557 sq. ft., 3-car garage), 69619AM (2,241 sq. ft.) and 69674AM (2,639 sq. ft.).

Floor Plans

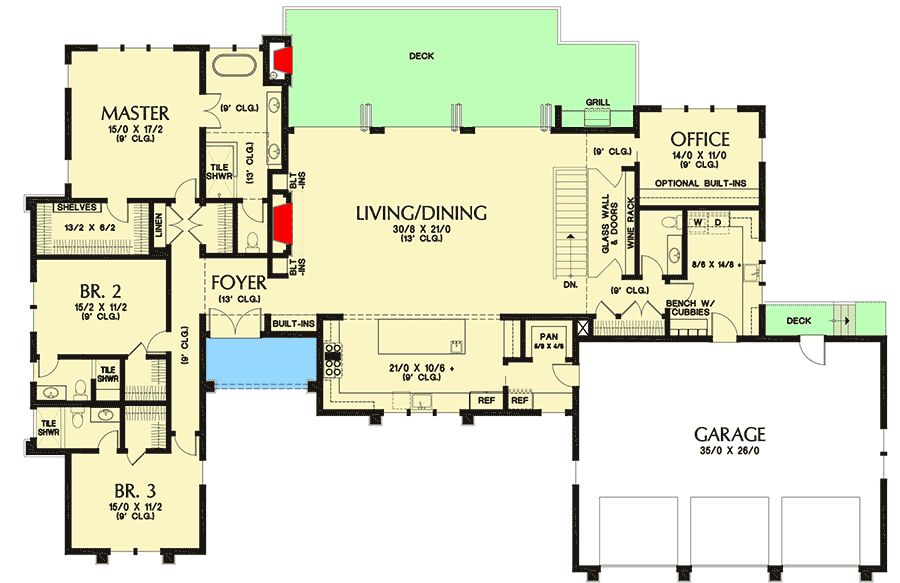

  • Main Level

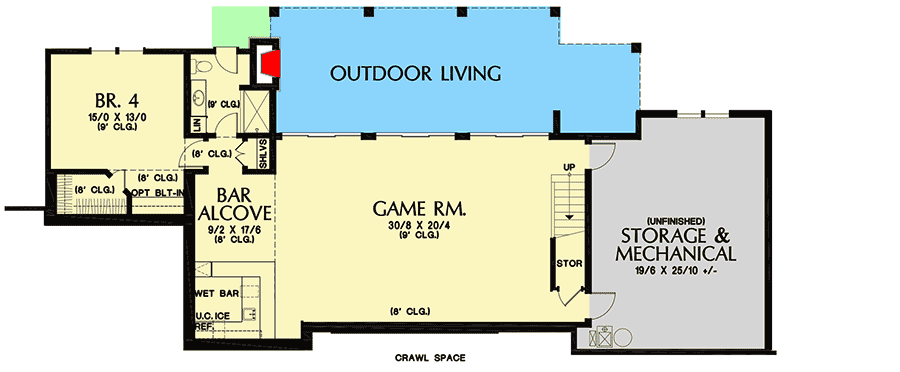

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,317 sq. ft.
  • Lower Level: 1,358 sq. ft.
  • 1st Floor: 2,959 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 98' 6"
  • Depth: 61' 6"

Garage

  • Type: Attached
  • Area: 957 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front
