Modern House Plan with Living On Three Levels

Plan 970080VC

  • 3,678

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This modern home features an open concept main floor with large windows capturing the surrounding views. Designed for a sloping lot, it gives you living spaces on three different levels.
  • The kitchen and dining area are integrated into the great room, and an office sits in the corner. The master suite is quietly tucked away on the side of the main floor for privacy and features a master bathroom with large walk-in closet and double vanity sinks.
  • The two-stall garage has direct access to the main floor laundry room and mudroom. A side entry provides a private family entry to help contain messes.
  • Downstairs in the walkout basement, a large family room, toy room, and wet bar create the perfect family hangout. A private guest suite is tucked away to give your guests the space they may need.
  • Upstairs, you will find a vaulted sitting area, two matching guest bedrooms and a large bathroom with separate shower area.

  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

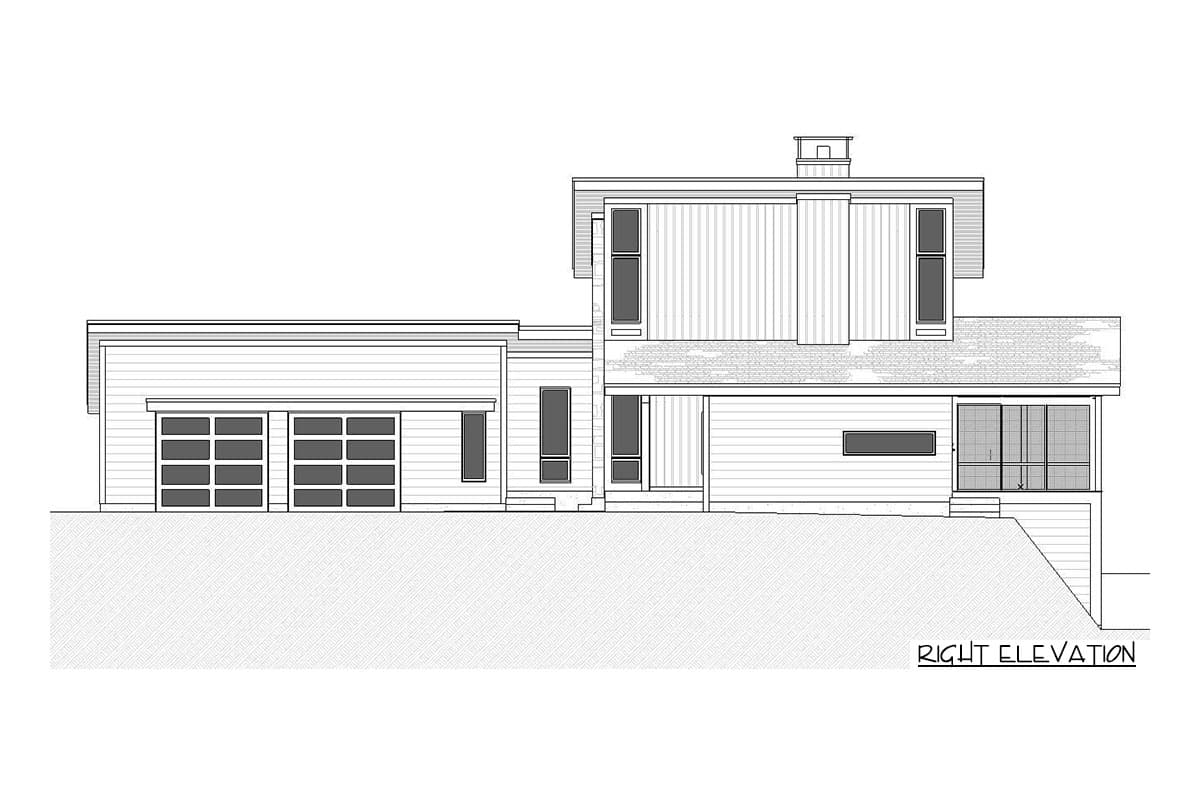

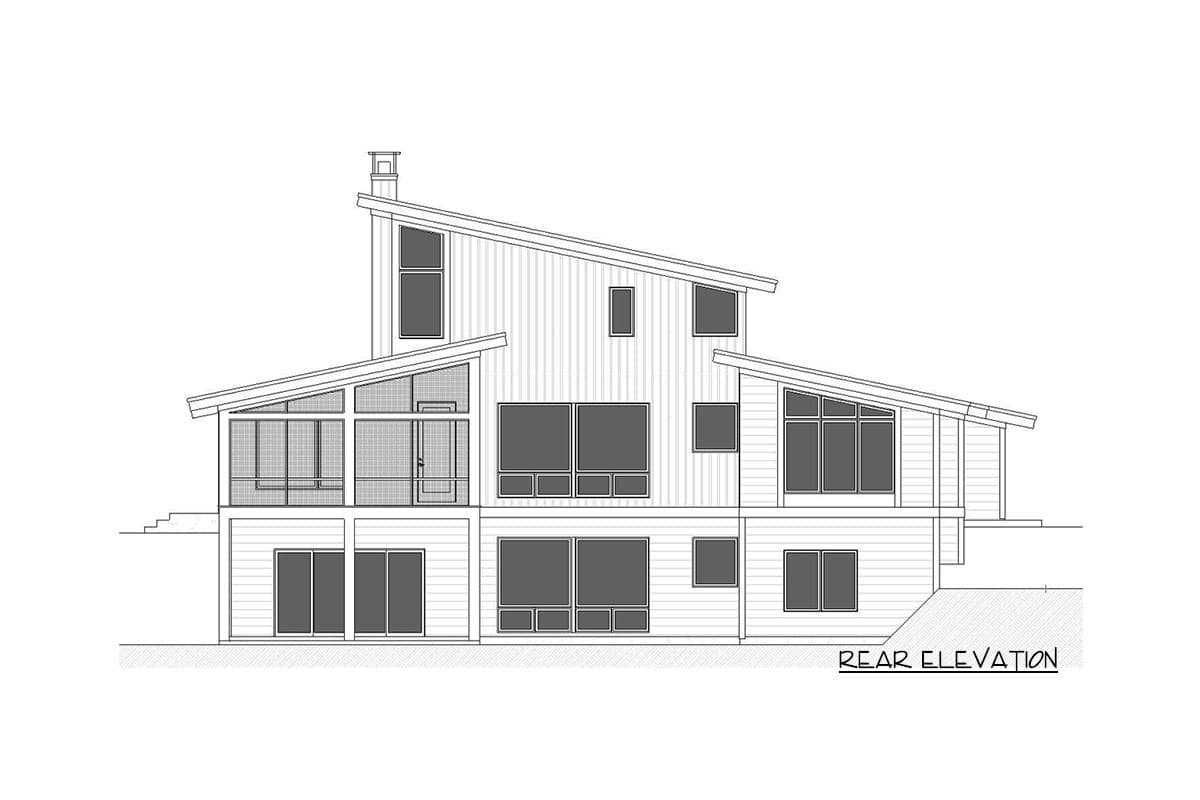

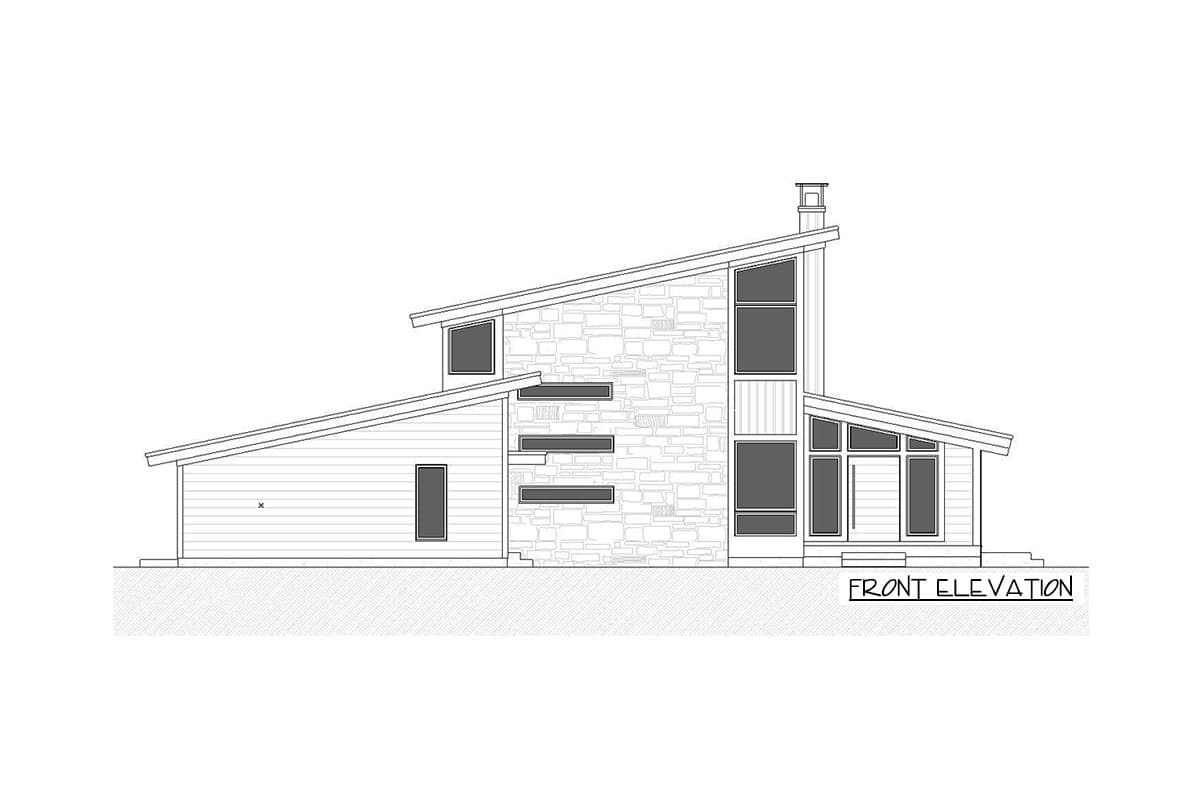

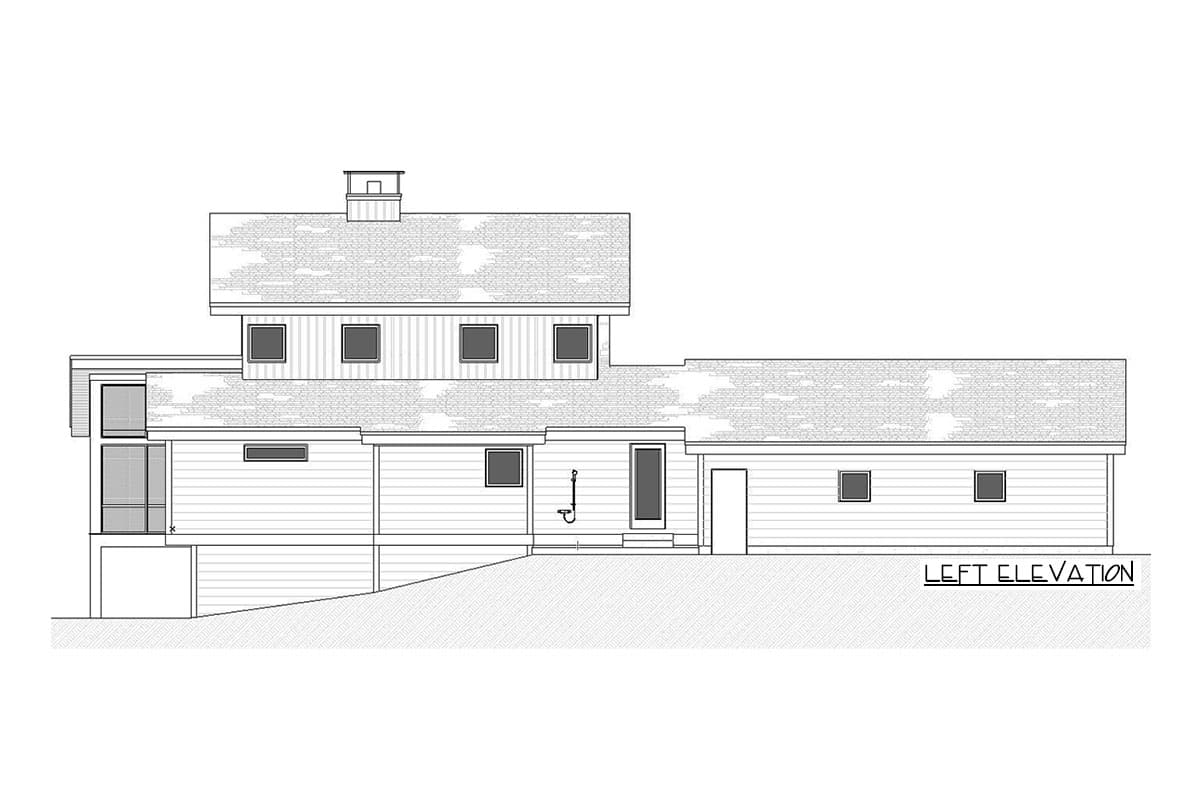

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

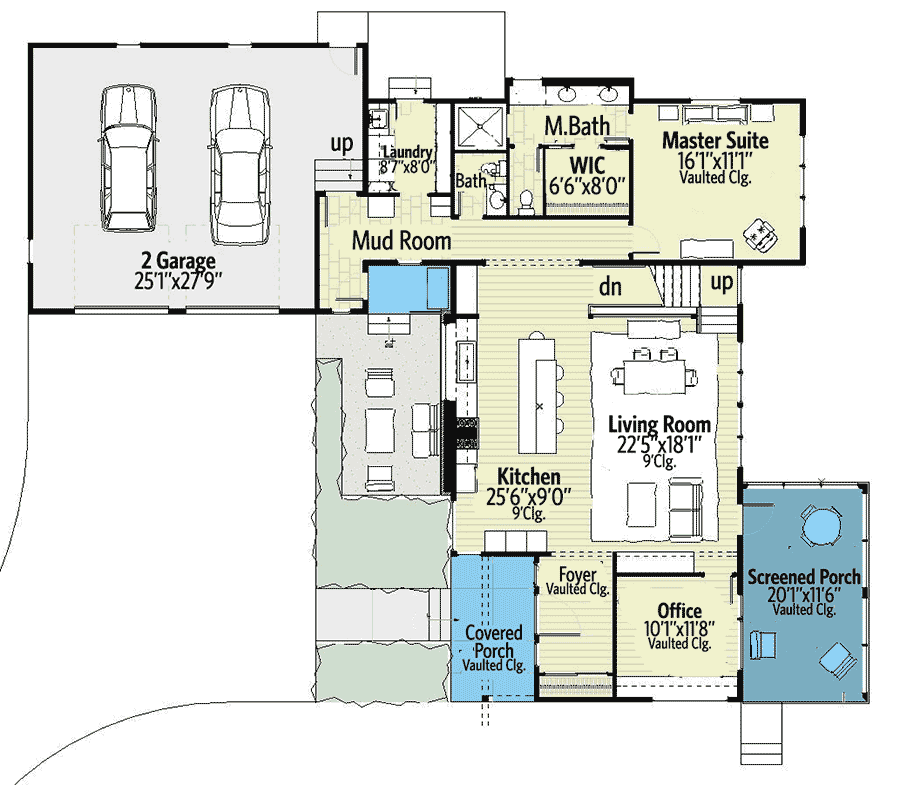

Modern House Plan with Living On Three Levels - 970080VC floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

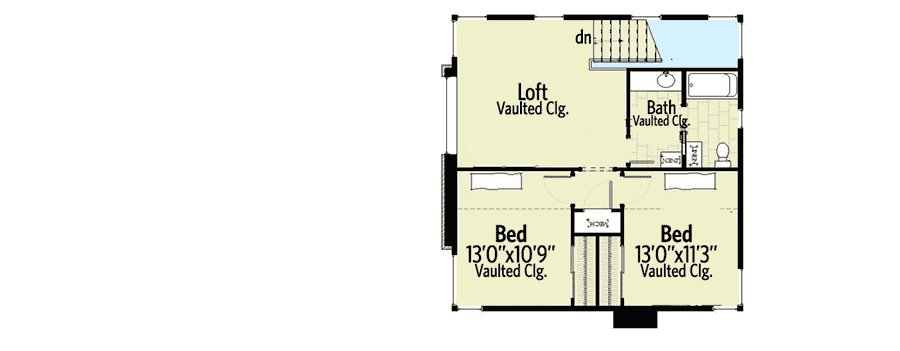

Modern House Plan with Living On Three Levels - 970080VC floor plan - 2nd Floor

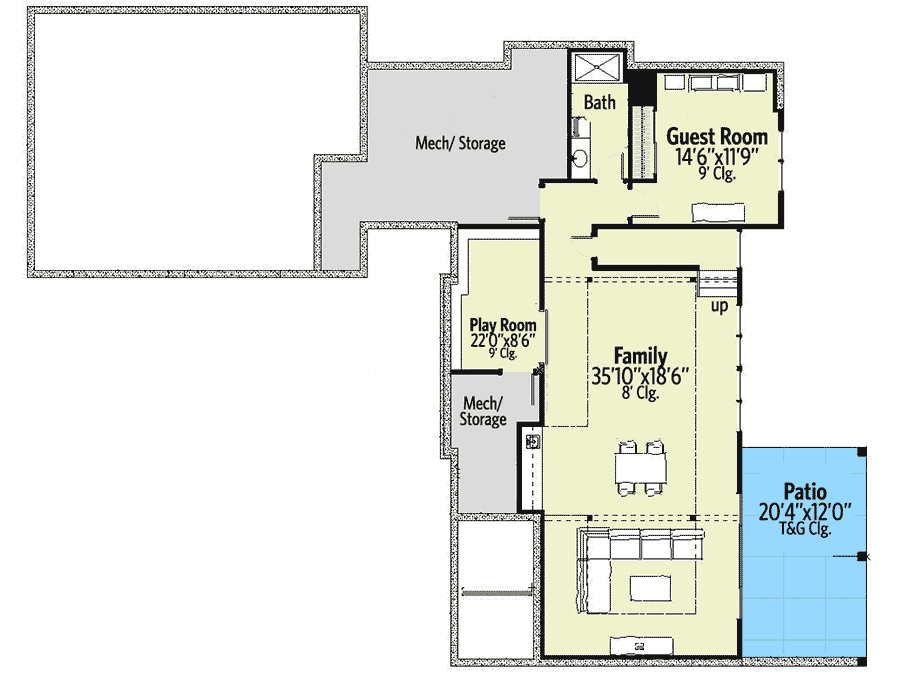

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern House Plan with Living On Three Levels - 970080VC floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,678 sq. ft.
  • Lower Level: 1,220 sq. ft.
  • 1st Floor: 1,782 sq. ft.
  • 2nd Floor: 676 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 8"
  • Depth: 63' 4"
  • Max ridge height: 26' 11"

Garage

  • Type: Attached
  • Area: 750 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 2.5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern House Plan with Living On Three Levels

  • 3,678

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $3,050
  • 5 Sets $3,050
  • CAD - Single-Build $4,117
  • View all purchase option online

About This Plan

  • This modern home features an open concept main floor with large windows capturing the surrounding views. Designed for a sloping lot, it gives you living spaces on three different levels.
  • The kitchen and dining area are integrated into the great room, and an office sits in the corner. The master suite is quietly tucked away on the side of the main floor for privacy and features a master bathroom with large walk-in closet and double vanity sinks.
  • The two-stall garage has direct access to the main floor laundry room and mudroom. A side entry provides a private family entry to help contain messes.
  • Downstairs in the walkout basement, a large family room, toy room, and wet bar create the perfect family hangout. A private guest suite is tucked away to give your guests the space they may need.
  • Upstairs, you will find a vaulted sitting area, two matching guest bedrooms and a large bathroom with separate shower area.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,678 sq. ft.
  • Lower Level: 1,220 sq. ft.
  • 1st Floor: 1,782 sq. ft.
  • 2nd Floor: 676 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 8"
  • Depth: 63' 4"
  • Max ridge height: 26' 11"

Garage

  • Type: Attached
  • Area: 750 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Truss
Plan 970080VC
View this and more for this plan by visiting www.architechtecturaldesigns.com/970080VC
|
Need Help? 800-854-7852
|
Plan 970080VC
