Modern House Plan with Lots of Storage

Plan 80859PM

  • 2,156

    Heated s.f.

  • 3-4

    Beds

  • 1.5 - 3.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • Dramatic two-story tall windows capture your attention when looking at this Modern house plan.
  • Designed with lots of walk-in closets, the home scores high for storage.
  • Even though the home is less than 37' wide, it feels spacious, thanks to the open layout.
  • You even get a study that is flooded with light from two walls of windows.
  • All three bedrooms are upstairs and they share the huge four piece washroom.
  • Note the walk-in linen closet - a wonderful feature.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

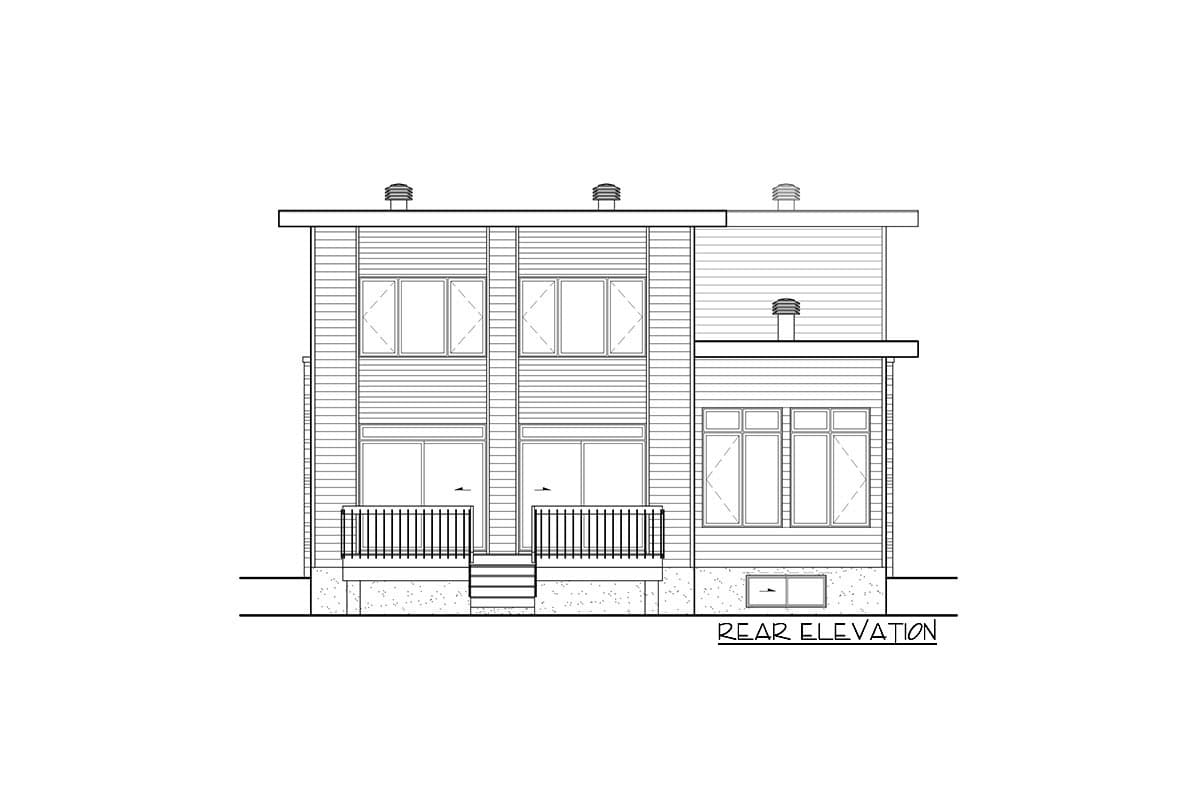

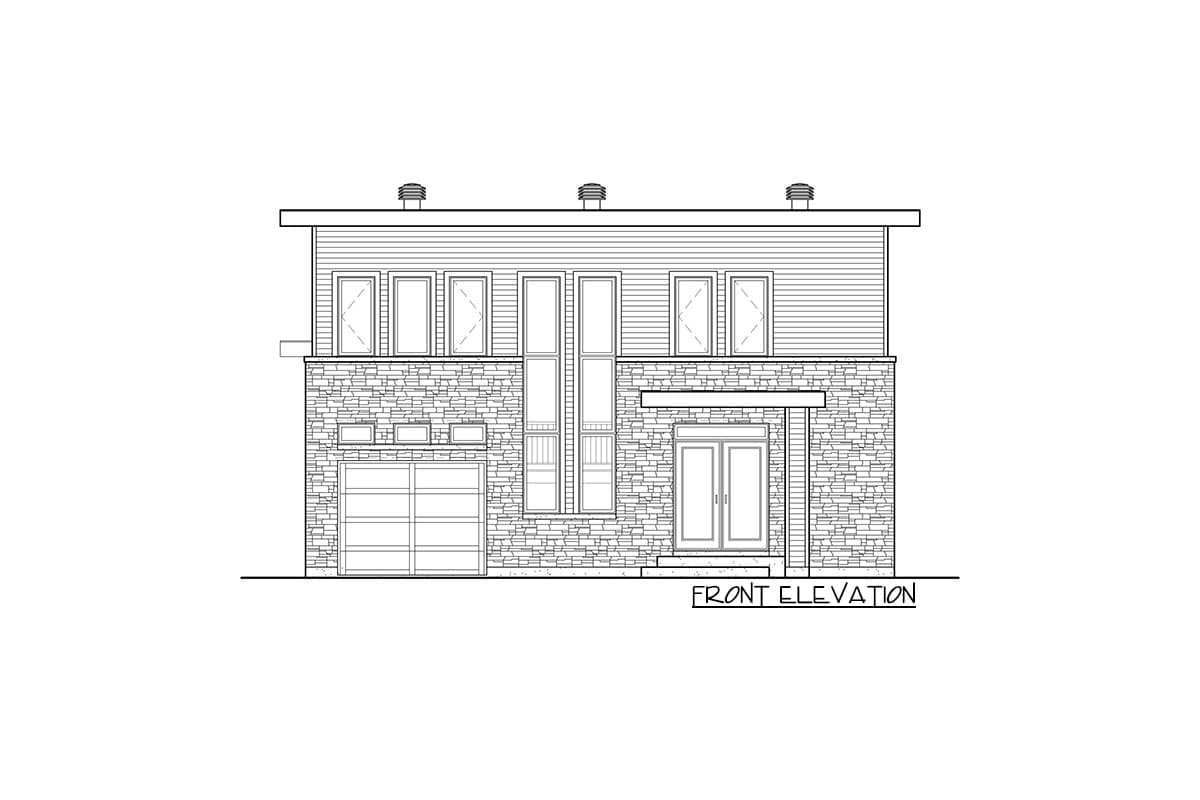

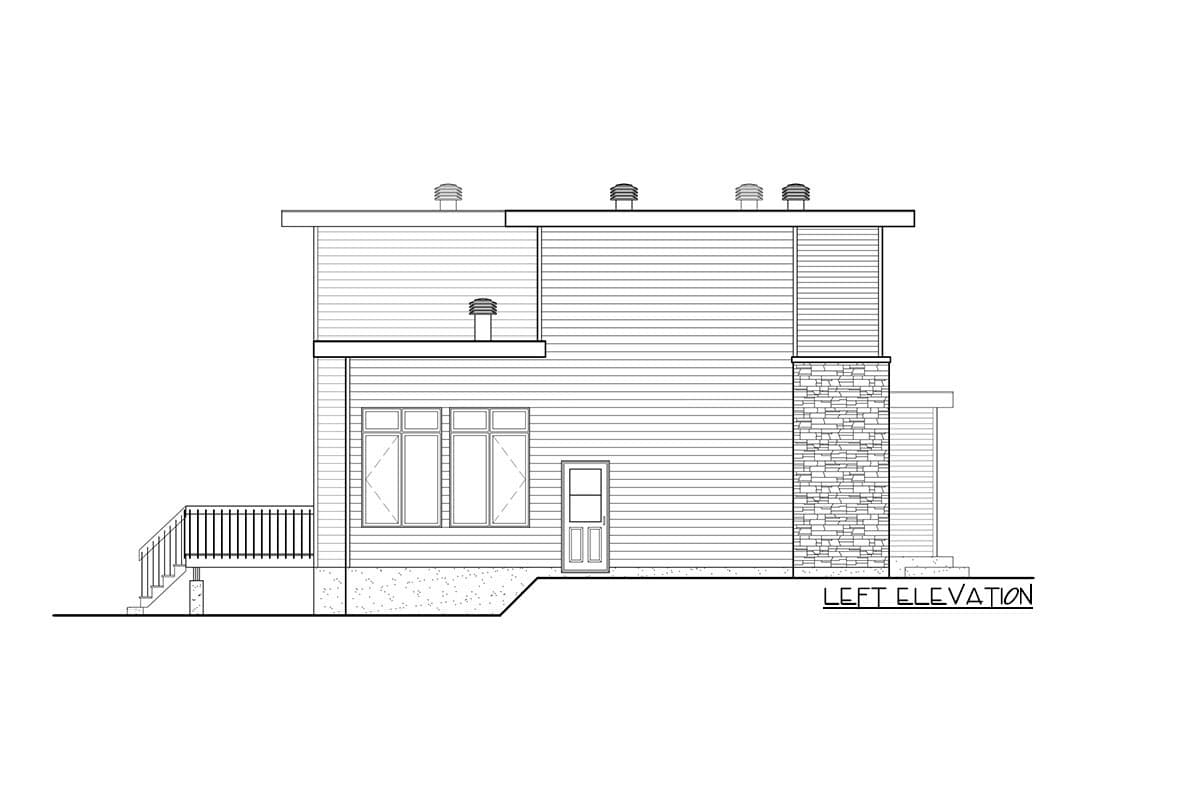

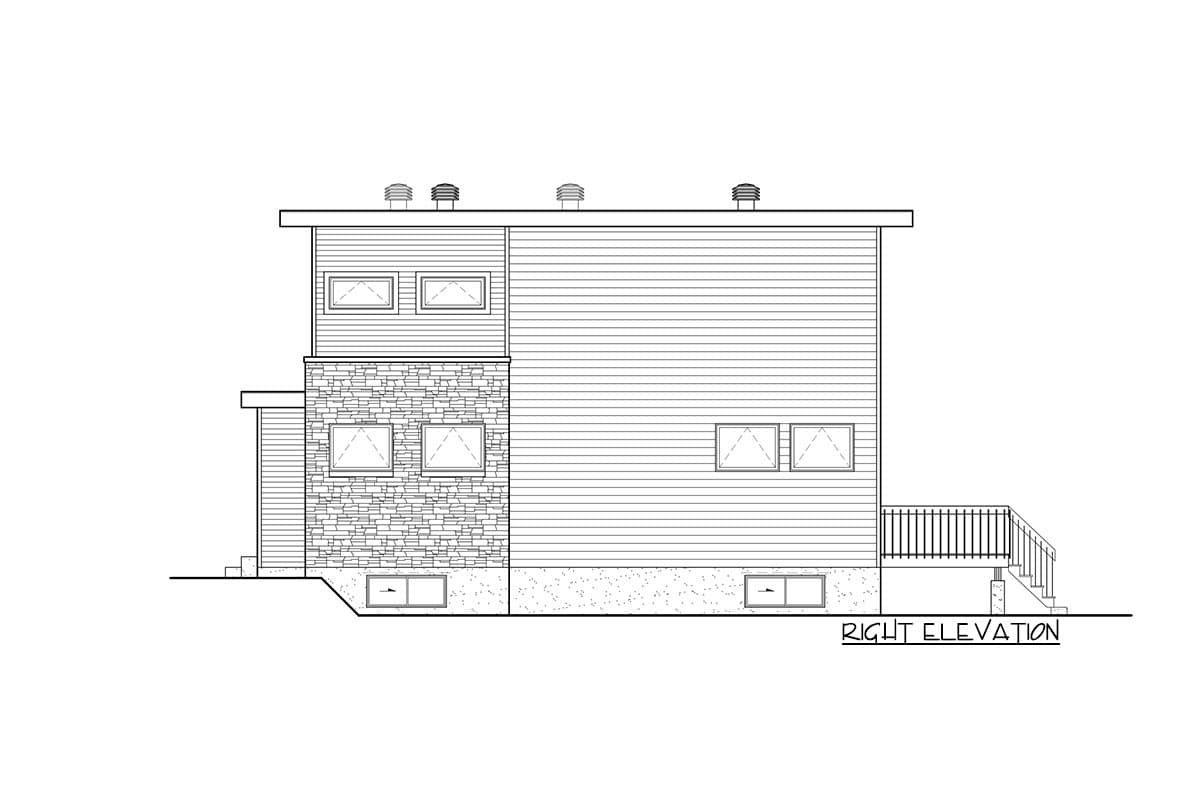

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

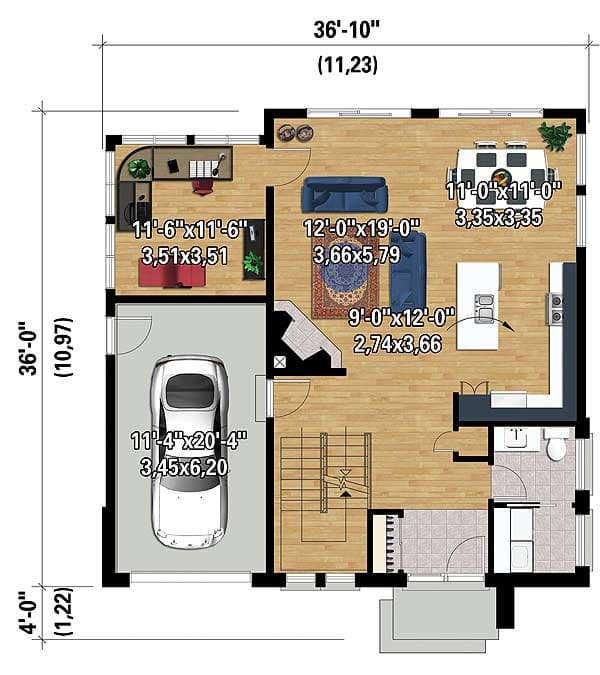

Modern House Plan with Lots of Storage - 80859PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

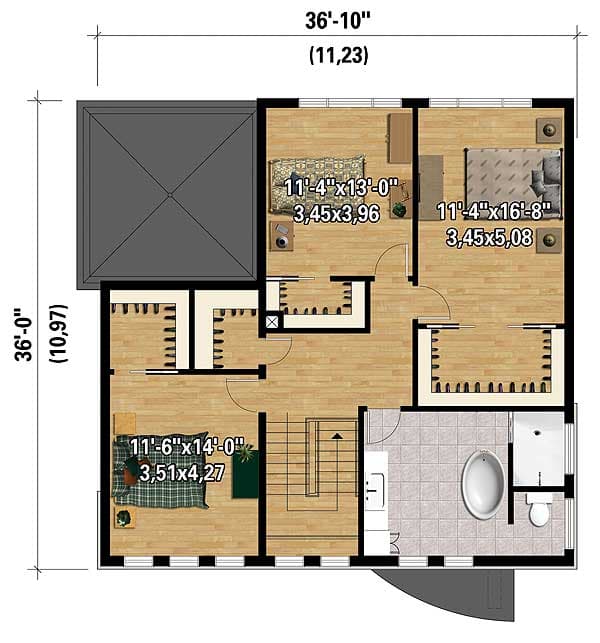

Modern House Plan with Lots of Storage - 80859PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,156 sq. ft.
  • 1st Floor: 1,020 sq. ft.
  • 2nd Floor: 1,136 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 1, 2, or 3
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 10"
  • Depth: 36' 0"
  • Max ridge height: 25' 4"

Garage

  • Type: Attached
  • Area: 260 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern House Plan with Lots of Storage

  • 2,156

    Heated s.f.

  • 3-4

    Beds

  • 1.5 - 3.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,156 sq. ft.
  • 1st Floor: 1,020 sq. ft.
  • 2nd Floor: 1,136 sq. ft.

Dimensions

  • Width: 36' 10"
  • Depth: 36' 0"
  • Max ridge height: 25' 4"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 1, 2, or 3
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 260 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
