Plan 64565SC

Modern House Plan with Outdoor Kitchen, 3-Car Garage, and Optional Lower Level

Name: Plan 64565SC: Modern House Plan with Outdoor Kitchen, 3-Car Garage, and Optional Lower Level
Brand: Architectural Designs
SKU: 64565SC
Price: 1296.89 USD
Availability: InStock

Heated S.F.

2,725

Beds

2 - 4

Baths

2.5+

Stories

Cars

Floor Plan

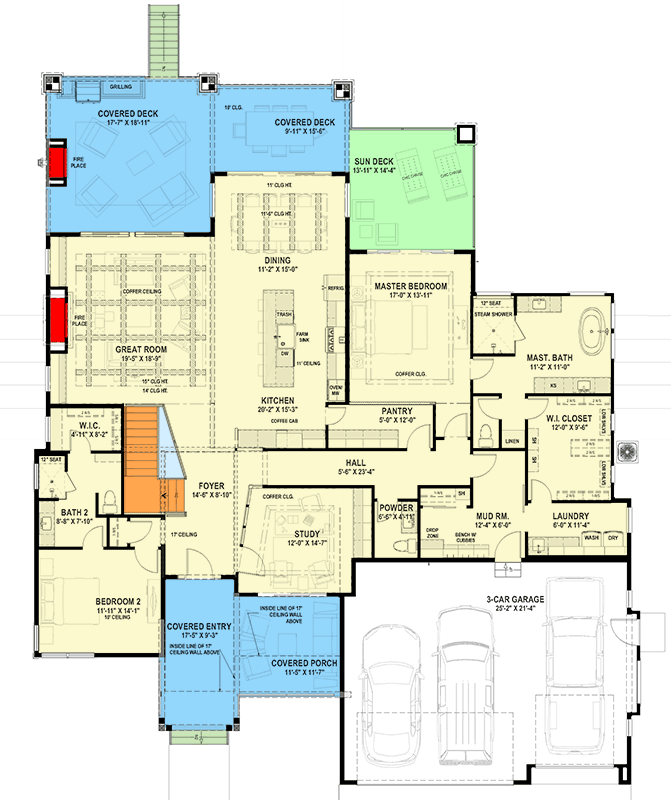

Main Level

Optionally Finished Lower Level

Plan Details

This 2,2725 sq. ft. contemporary modern house plan features 2 to 4 bedrooms, 2 full and 2 half bathrooms, and an 841 sq. ft. 3-car garage, all wrapped in a sleek, horizontal-lined exterior.
Upon entering the covered entry, a grand foyer with 10' ceilings opens into an expansive, open-concept living space. To the left, a dedicated study/library offers a quiet retreat for work or reading, while a convenient powder room and mudroom are located near the 3-car garage entry.
The heart of this home is an impressive gourmet kitchen, complete with a butler's walk-in pantry, which flows effortlessly into a formal dining area and a spacious great room, creating an ideal environment for both intimate gatherings and lively entertaining.
The private first-floor master suite offers a serene retreat with direct access to the laundry room, while a secondary bedroom and full bath are thoughtfully split on the opposite side of the home, ensuring privacy for all.

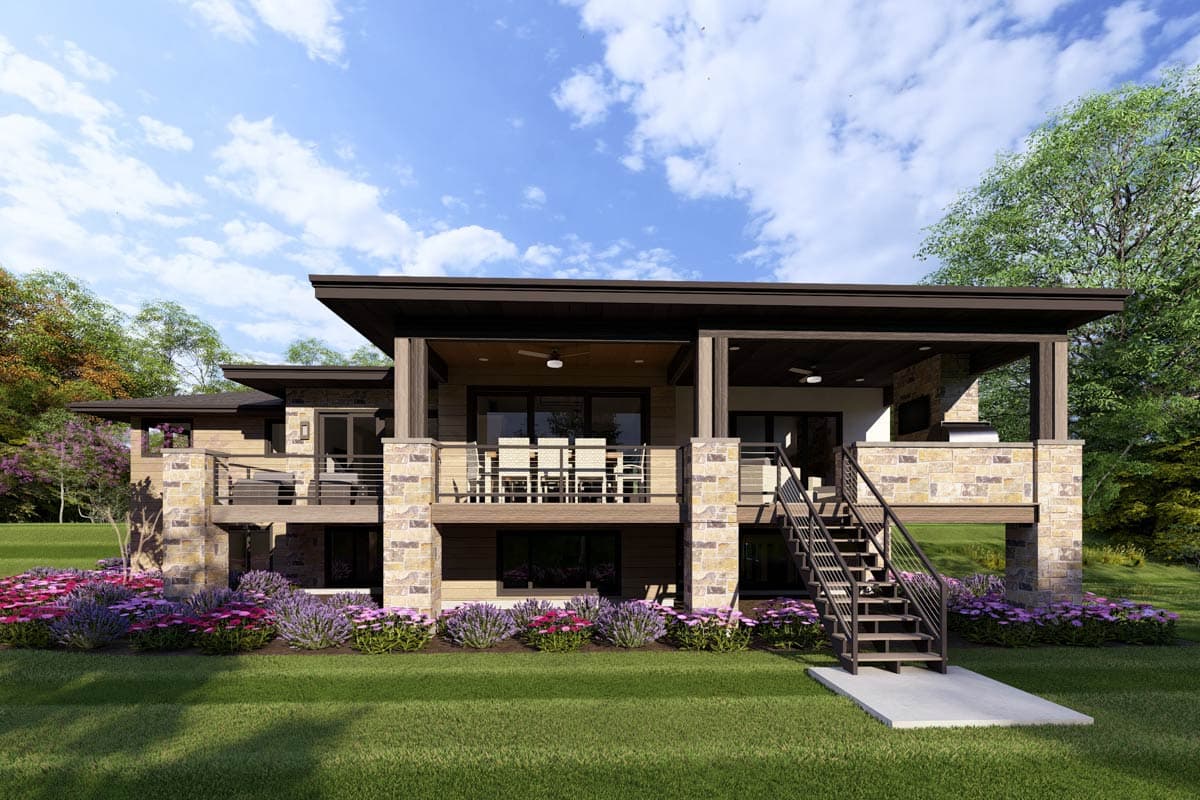

Embrace outdoor living with an impressive 704 sq. ft. of combined covered deck and sun deck space, featuring an outdoor fireplace and an outdoor kitchen, perfect for alfresco dining and enjoying the surrounding landscape.

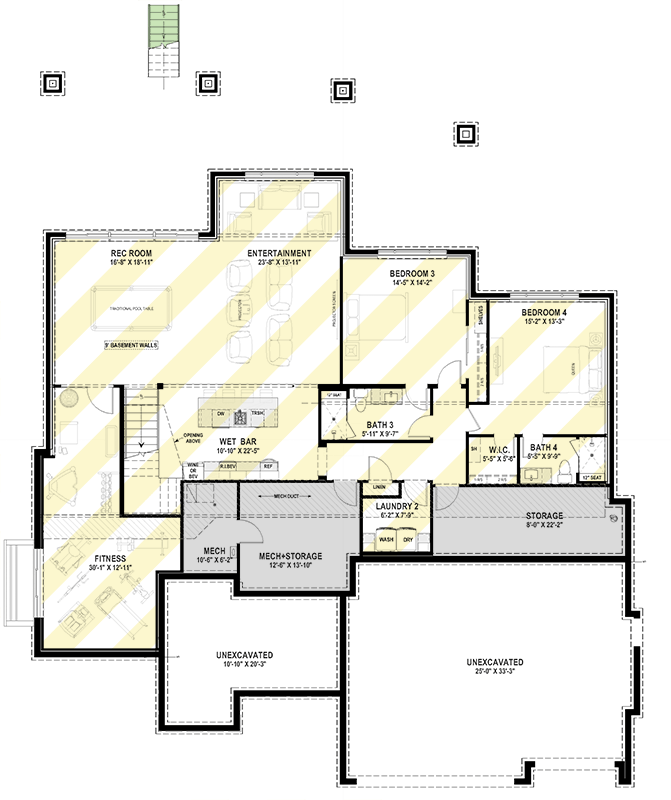

An expansive optional lower level, offering an additional 2,245 sq. ft., can be finished to include a vibrant rec room, a dedicated entertainment area, a wet bar, a fitness room, two additional bedrooms (3 and 4), and two full bathrooms, providing immense flexibility for future expansion.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
