Plan 666001RAF
Modern Living with Third Floor Rec Room and Balcony
Heated S.F.
3,986
Beds
3-4
Baths
4
Stories
3
Cars
2
What's Included
Plan Details
  • This exciting Modern house plan offers good looks as well as a home office and a third floor rec room with huge outdoor balcony.
  • There's even a wet bar and handy half bathroom, making it ideal for entertaining.
  • The clean, straight lines continue on the inside too with an open floor plan that maximizes the views all around.
  • The kitchen is the command center where you can keep an eye on family gatherings while cooking.
  • Double doors in the dining room swing open to a covered patio where you can grill outdoors.
  • On the middle level, three large bedrooms share a pocket study and a second floor laundry room designed to save steps.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Living with Third Floor Rec Room and Balcony

  • 3,986

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 3

    Floors

  • 2

    Car garage

Floor Plan

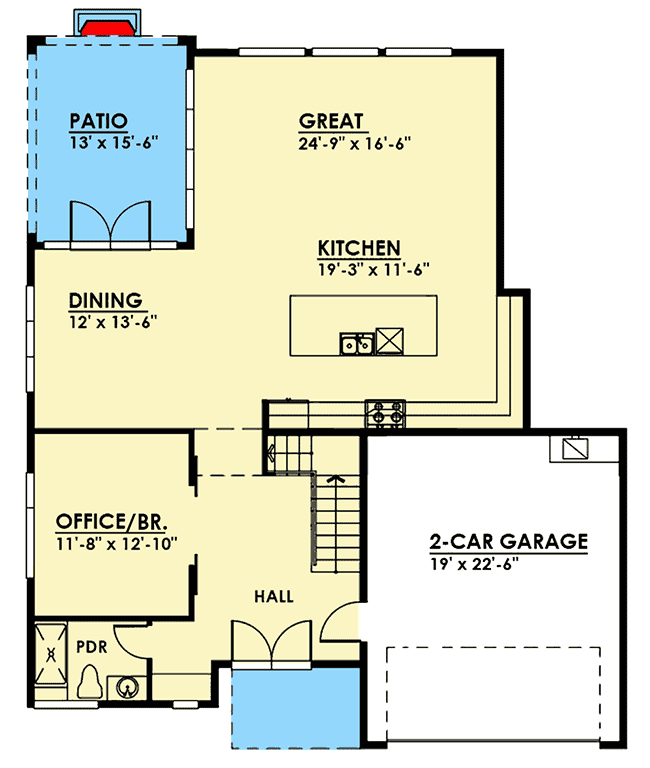

  • Main Level

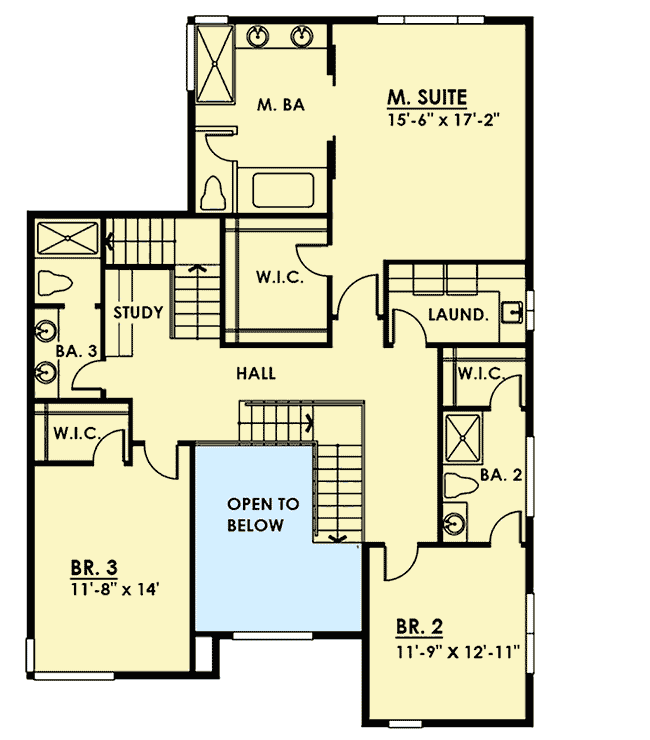

  • 2nd Floor

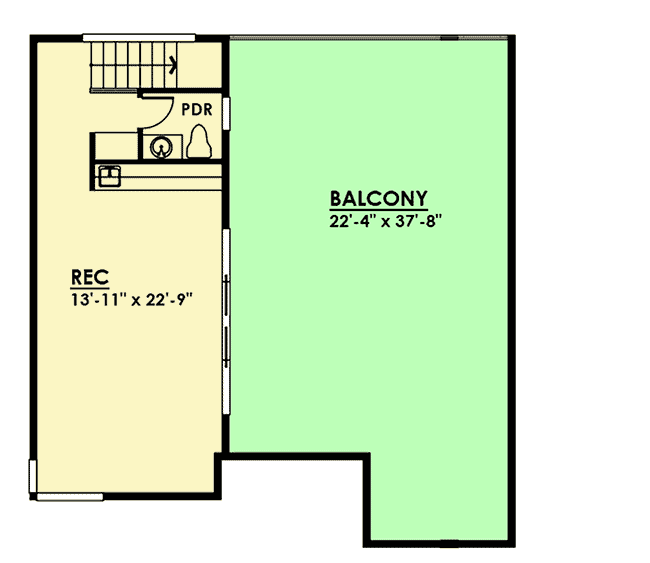

  • 3rd Floor
