Plan 72244DA

Modern Log with Rustic Appeal

1,987 2 3 2 1
Pageloader

Modern Log with Rustic Appeal

Plan 72244DA

  • 1,987

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Stories

  • 1

    Cars

  • This modern log home plan blends rustic appeal with all the amenities you'd expect to find in a contemporary home.
  • An array of windows sparkle across the view side's central section.
  • Its traditional A-frame shape fronts an expansive, partially vaulted great room which is open to a C-shaped kitchen.
  • Related Plan: Remove the garage with house plan 72325DA.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

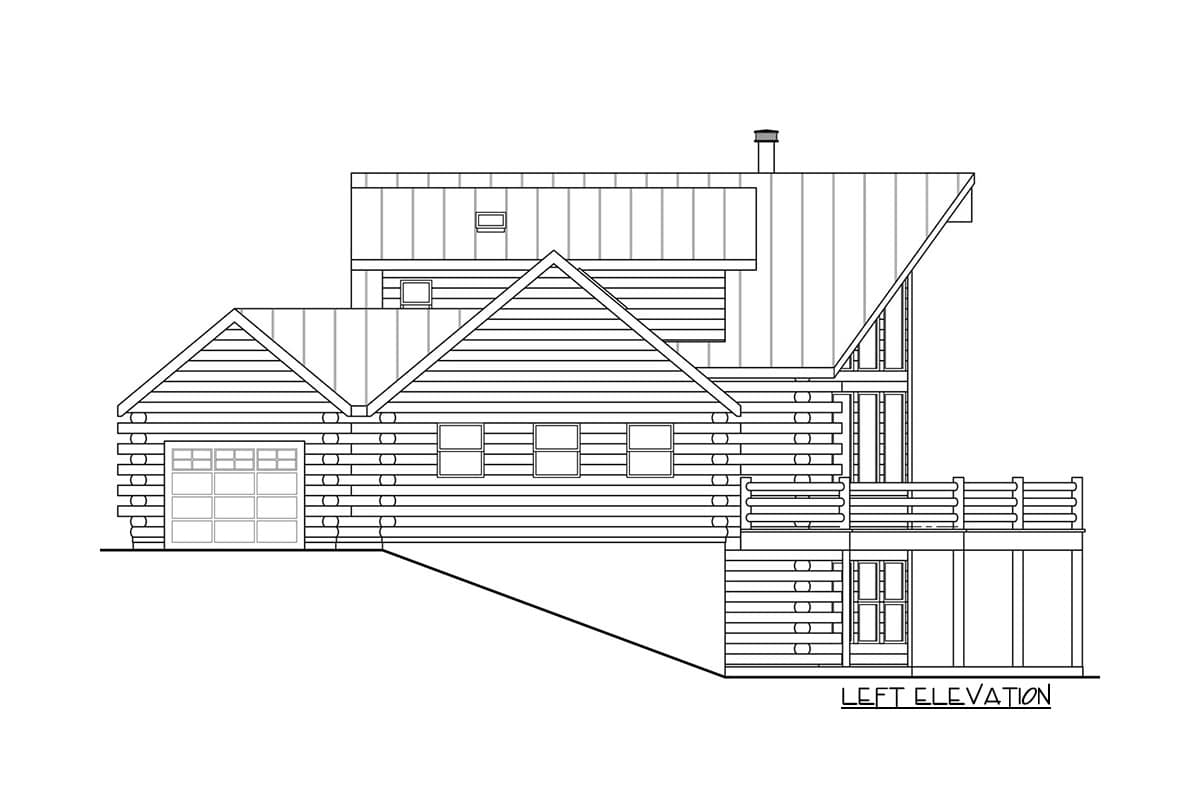

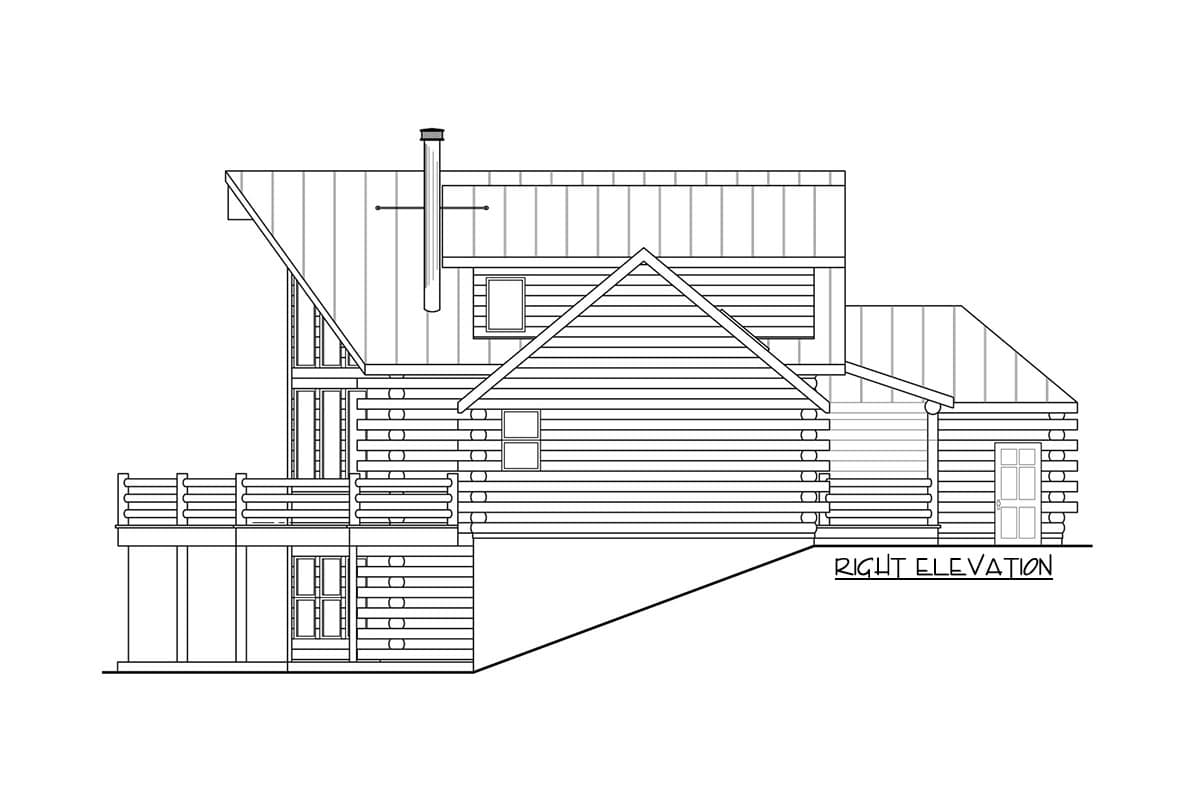

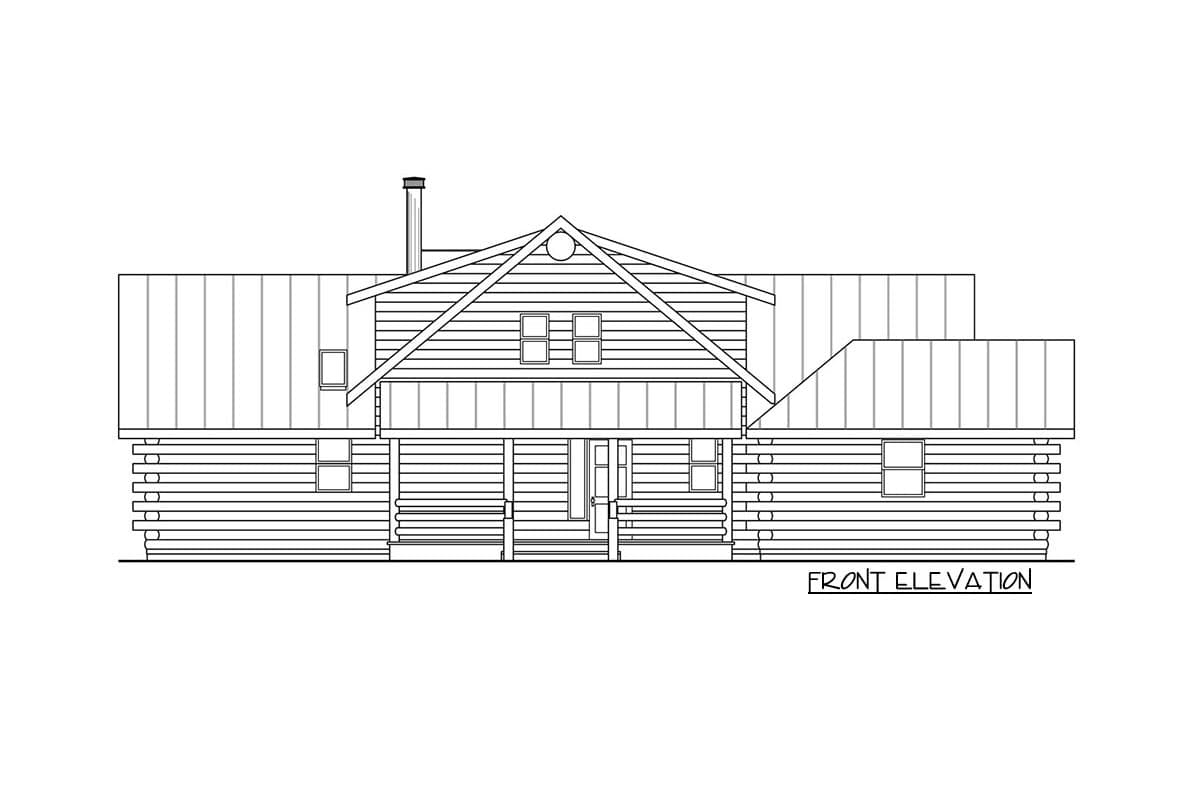

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details

Architectural Style

Plan Collections



Modern Log with Rustic Appeal

  • 1,987

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 8 Sets $1,070
  • PDF Plus $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • This modern log home plan blends rustic appeal with all the amenities you'd expect to find in a contemporary home.
  • An array of windows sparkle across the view side's central section.
  • Its traditional A-frame shape fronts an expansive, partially vaulted great room which is open to a C-shaped kitchen.
  • Related Plan: Remove the garage with house plan 72325DA.

Floor Plans

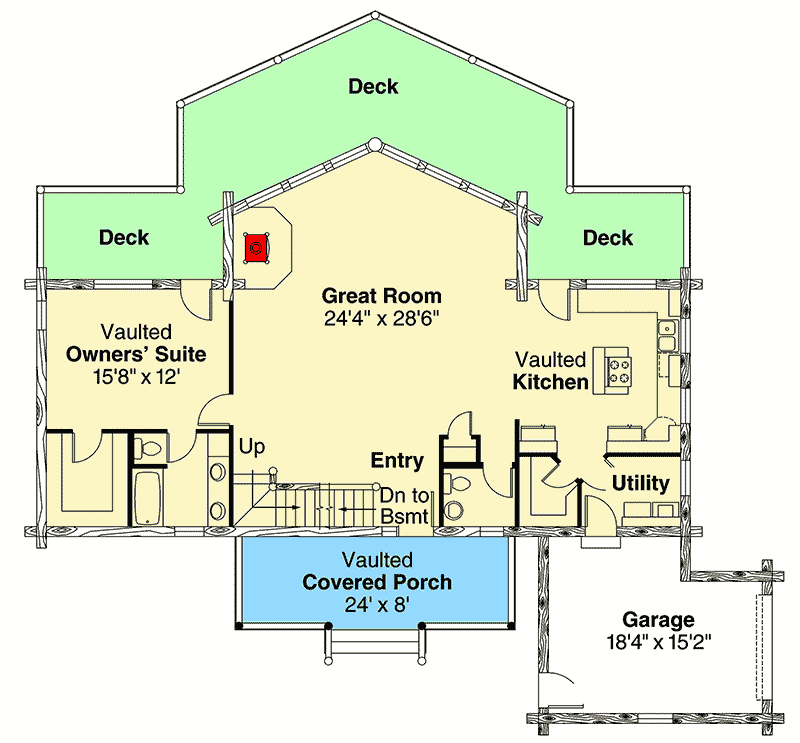

  • Main Level

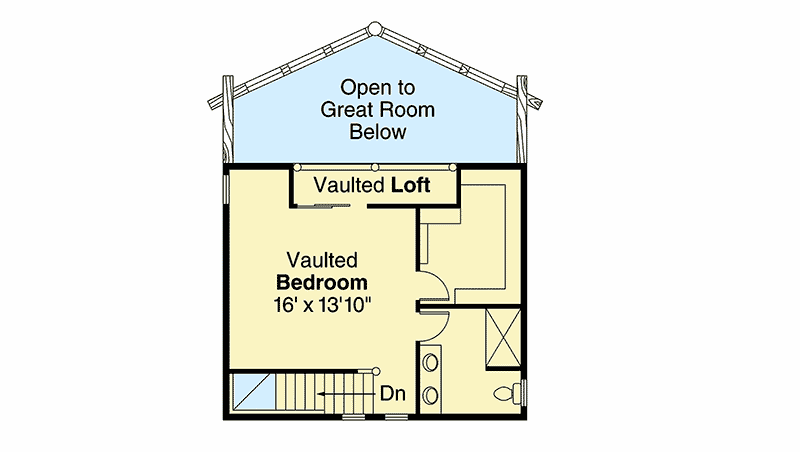

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,987 sq. ft.
  • 1st Floor: 1,466 sq. ft.
  • 2nd Floor: 521 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): Log
  • Optional Type(s): 2x6

Dimensions

  • Width: 63' 0"
  • Depth: 50' 0"
  • Max ridge height: 24' 6"

Garage

  • Type: Attached
  • Area: 299 sq. ft.
  • Count: 1 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
