Plan 62872DJ
Modern Mediterranean House Plan with Luxurious Main Floor Master Suite
Heated S.F.
3,517
Beds
4-5
Baths
3.5 - 4.5
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS

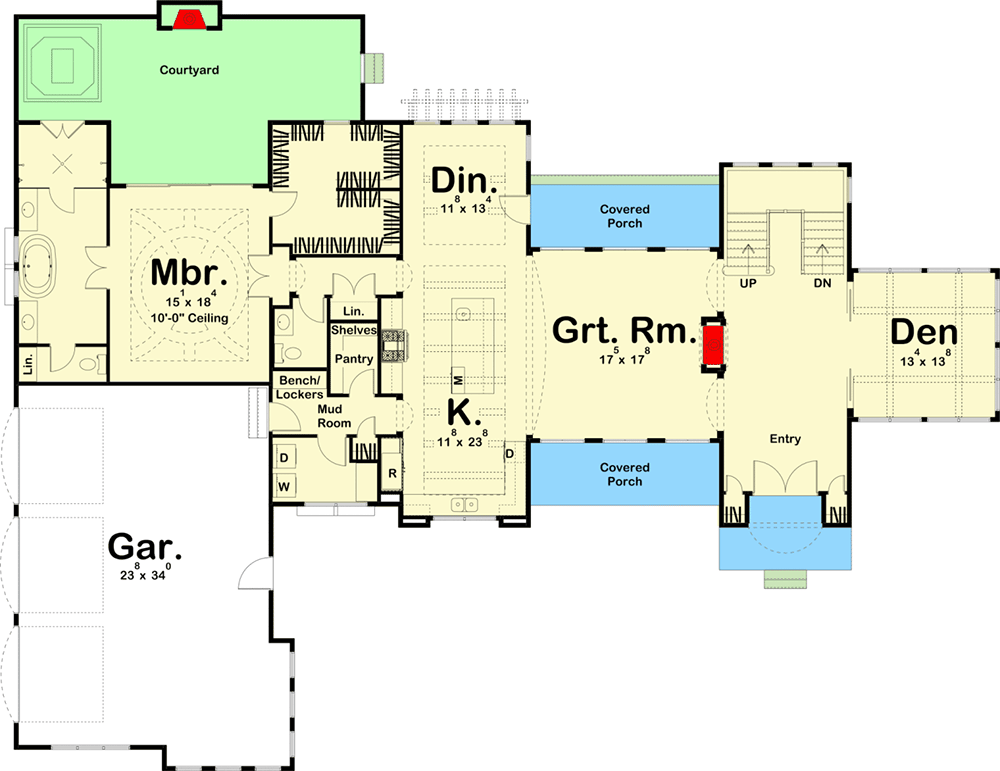

Main Level
Reverse Floor Plan
Modern Mediterranean House Plan with Luxurious Main Floor Master Suite - 62872DJ floor plan - Main Level

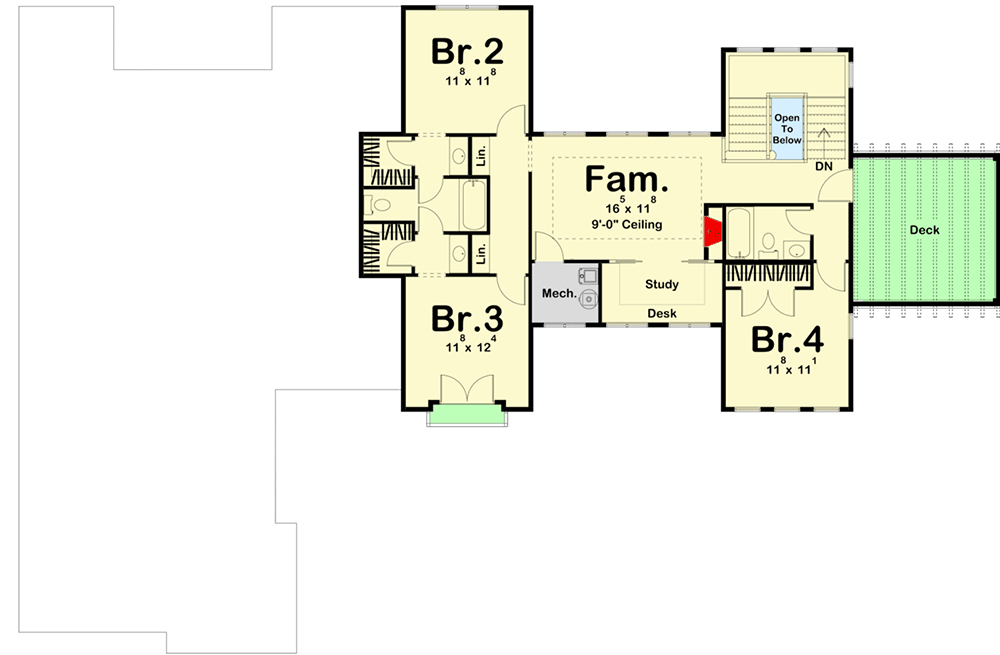

2nd Floor
Reverse Floor Plan
Modern Mediterranean House Plan with Luxurious Main Floor Master Suite - 62872DJ floor plan - 2nd Floor

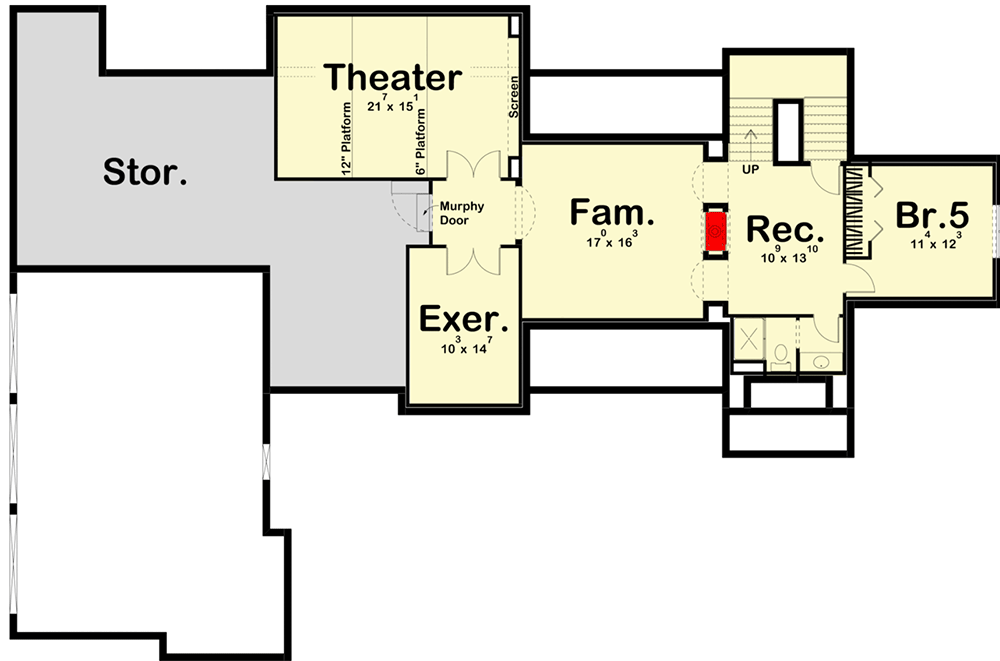

Optional Lower Level (+250)
Reverse Floor Plan
Modern Mediterranean House Plan with Luxurious Main Floor Master Suite - 62872DJ floor plan - Optional Lower Level (+250)
Plan Details
  • This modern Mediterranean-style house plan has a stucco exterior and tile roof with the main entrance offset tongue right.
  • A grand entry greets guests with its double-sided fireplace that is shared with the great room. Just off the entry to the right, you'll find a stunning den that brings in a ton of natural light with its large windows.
  • Much like the den, the great room gets loads of natural light with it's 6 sets of french doors.
  • The kitchen lies under a decorative ceiling with exposed wood beams and features a large island with a prep sink and a walk-in pantry.
  • On the main floor for ultimate convenience, the master suite lies under its own decorative ceiling and features a large bathroom. The master bath includes a soaking tub, enclosed toilet, his/her vanities, and an amazing walk-in shower that is accessible from the outside to make it easier to wash up after using your hot tub in the amazing courtyard.
  • Upstairs, you will find 3 additional bedrooms and a wonderful family room. The family room has a trayed ceiling and is warmed by a fireplace. A study with a built-in desk is a perfect place to get work done. Bedroom 4 shares a bathroom with the family room while bedroom 2 and 3 share a bathroom.
  • A deck is accessible from the family room.
  • Back on the main level, the home's large 3 car side-load garage accesses the home through a convenient mudroom with a bench and lockers.
  • Upgrade to the optional finished lower level and get a home theater, a fifth bedroom suite, storage and more.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Mediterranean House Plan with Luxurious Main Floor Master Suite

  • 3,517

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level (+250)

Plan Details

Square Footage Breakdown

  • Total: 3,517 sq. ft.
  • 1st Floor: 2,360 sq. ft.
  • 2nd Floor: 1,157 sq. ft.

Dimensions

  • Width: 93' 0"
  • Depth: 72' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 877 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
