Plan 54229HU Modern Mountain House Plan with Courtyard and Terrace

2,818 3 3.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Mountain House Plan with Courtyard and Terrace

Plan 54229HU

  • 2,818

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

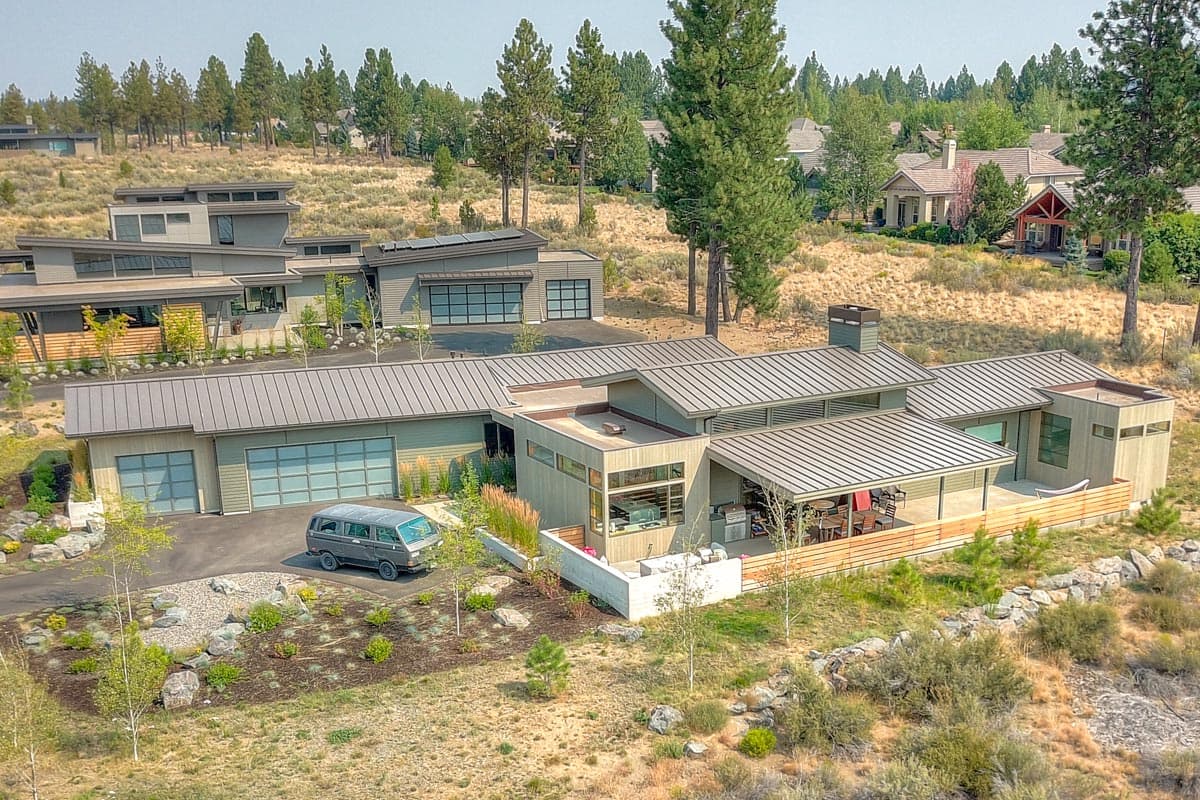

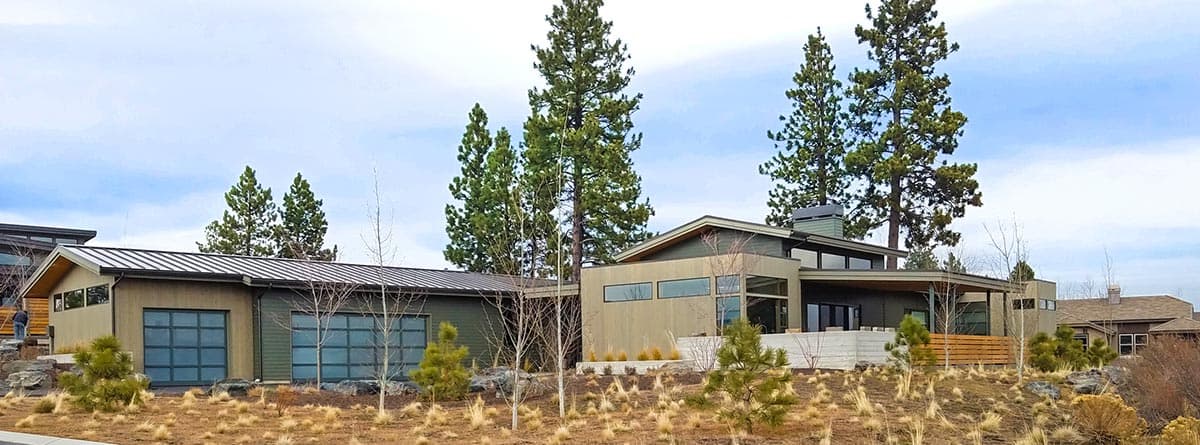

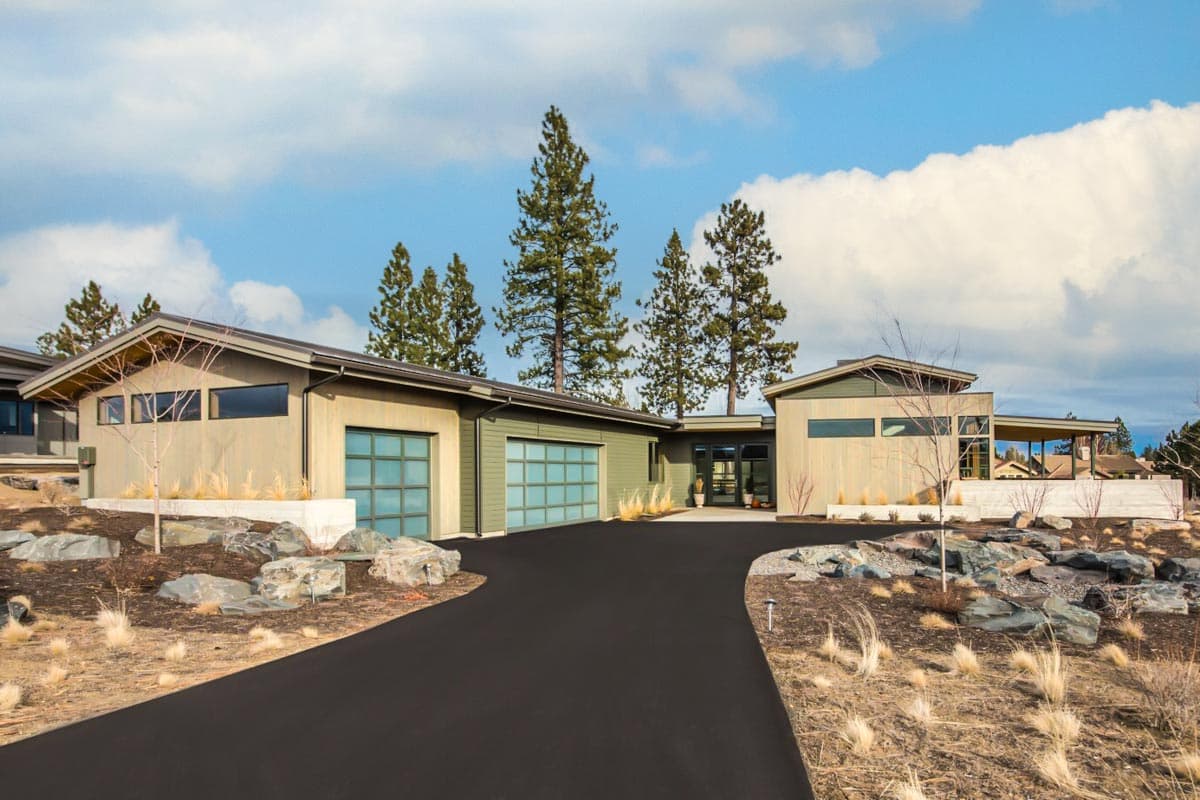

  • Feast your eyes on this contemporary ranch house plan with its abundance of outdoor living areas.

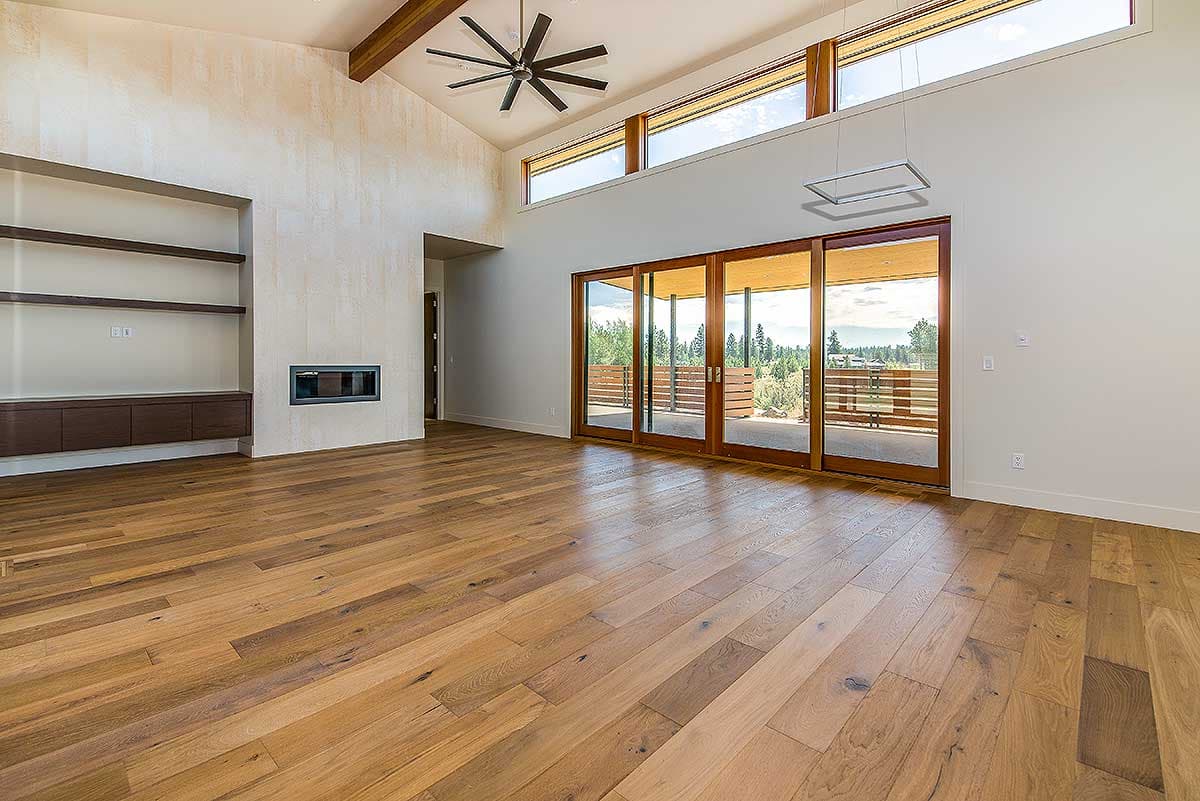

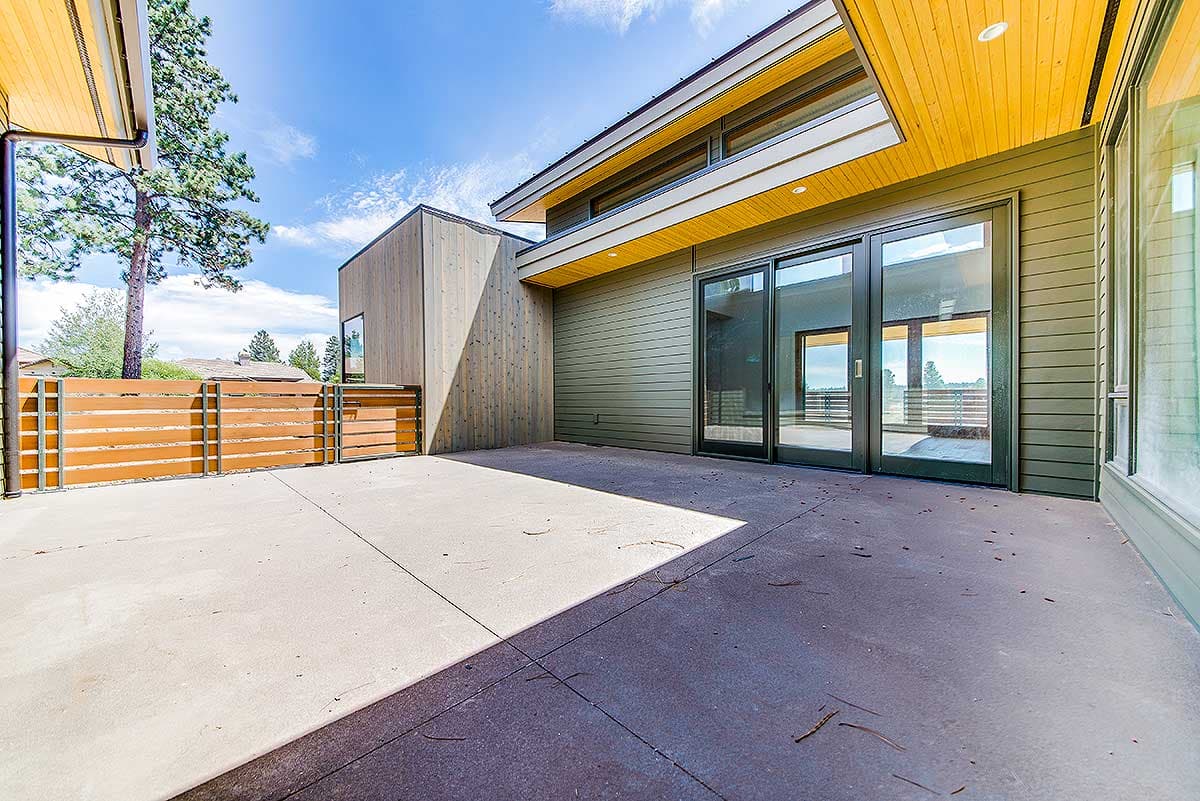

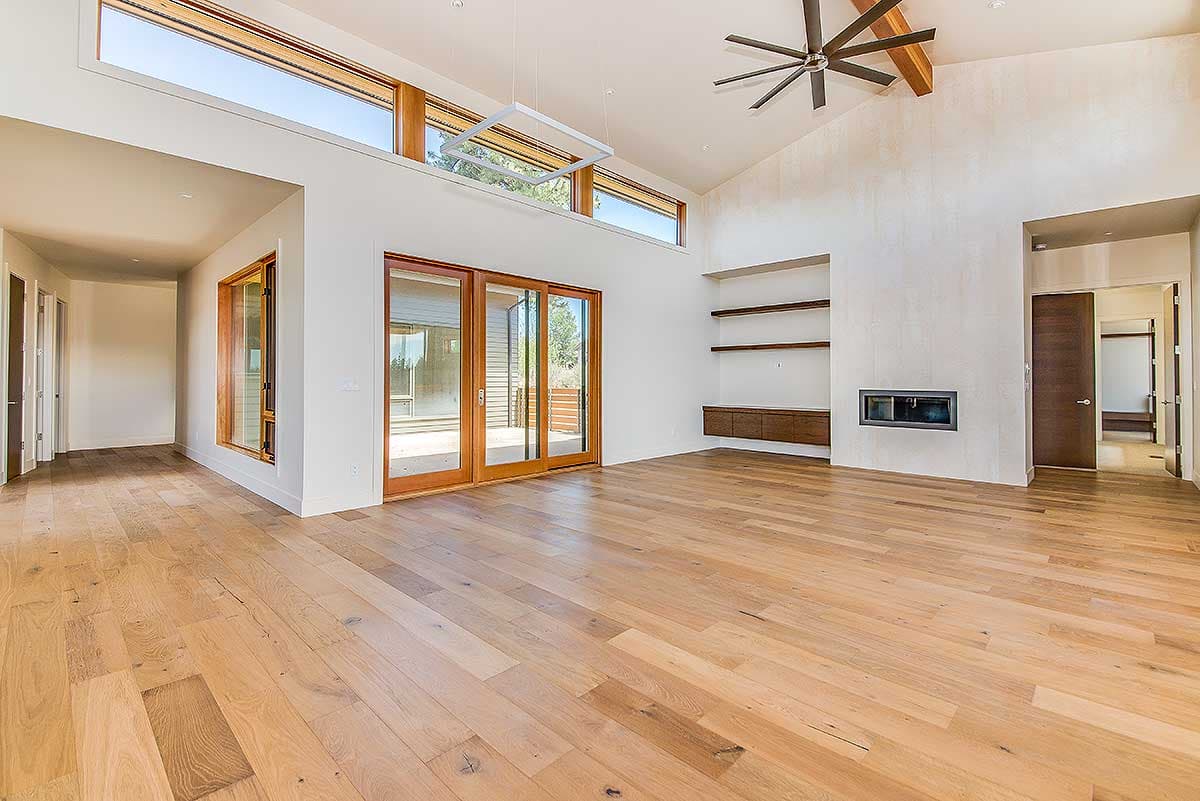

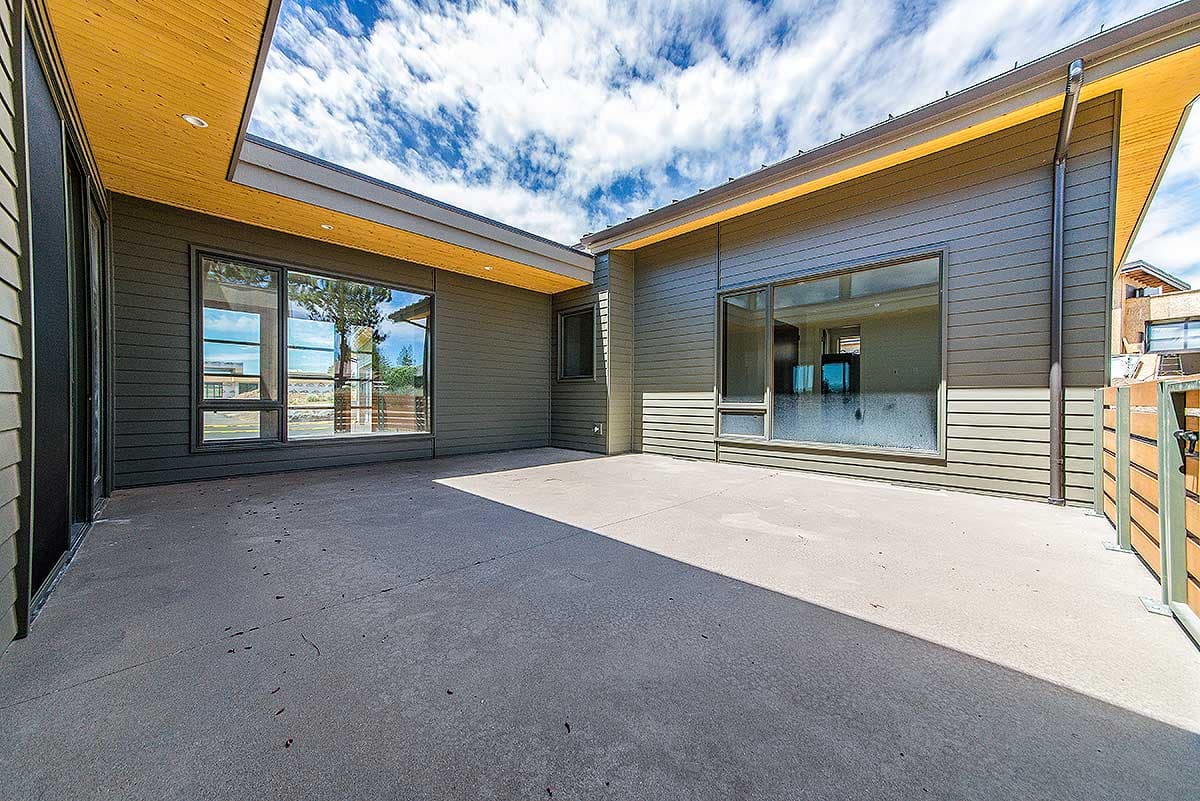

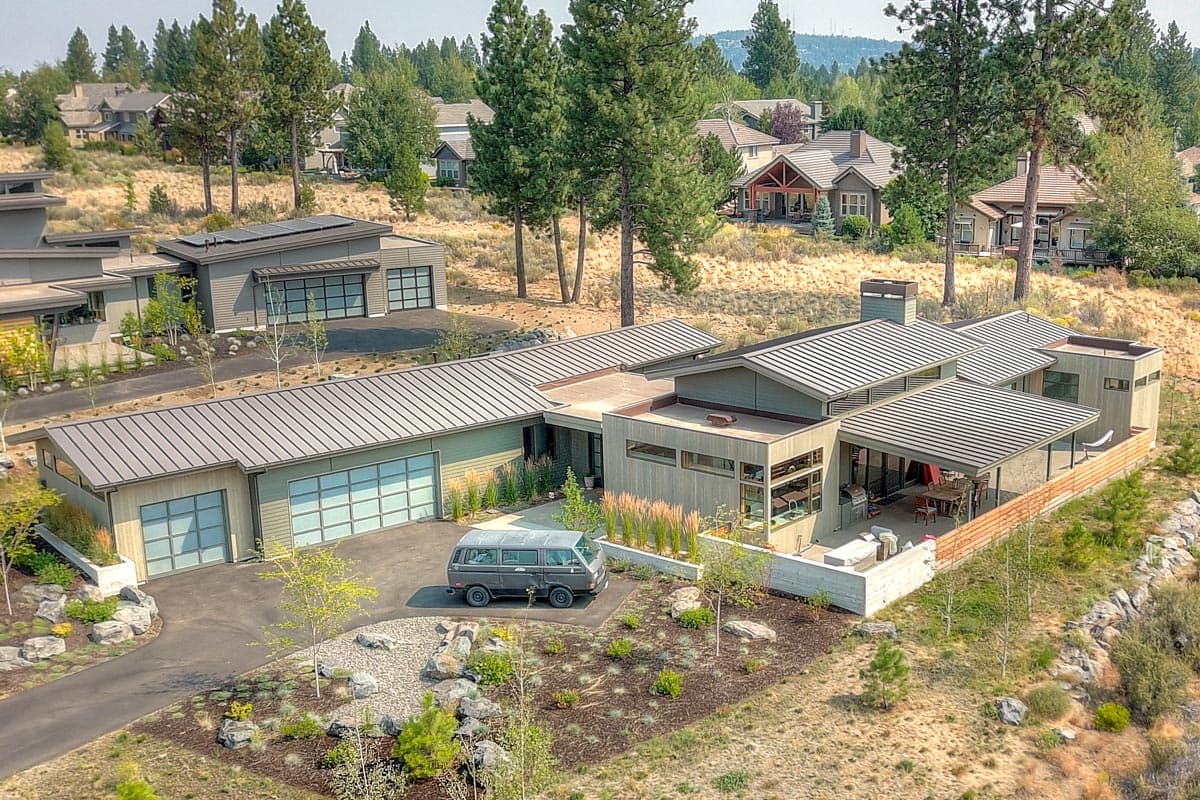

  • The U shape creates a private interior courtyard that opens to the great room through sliding glass doors.

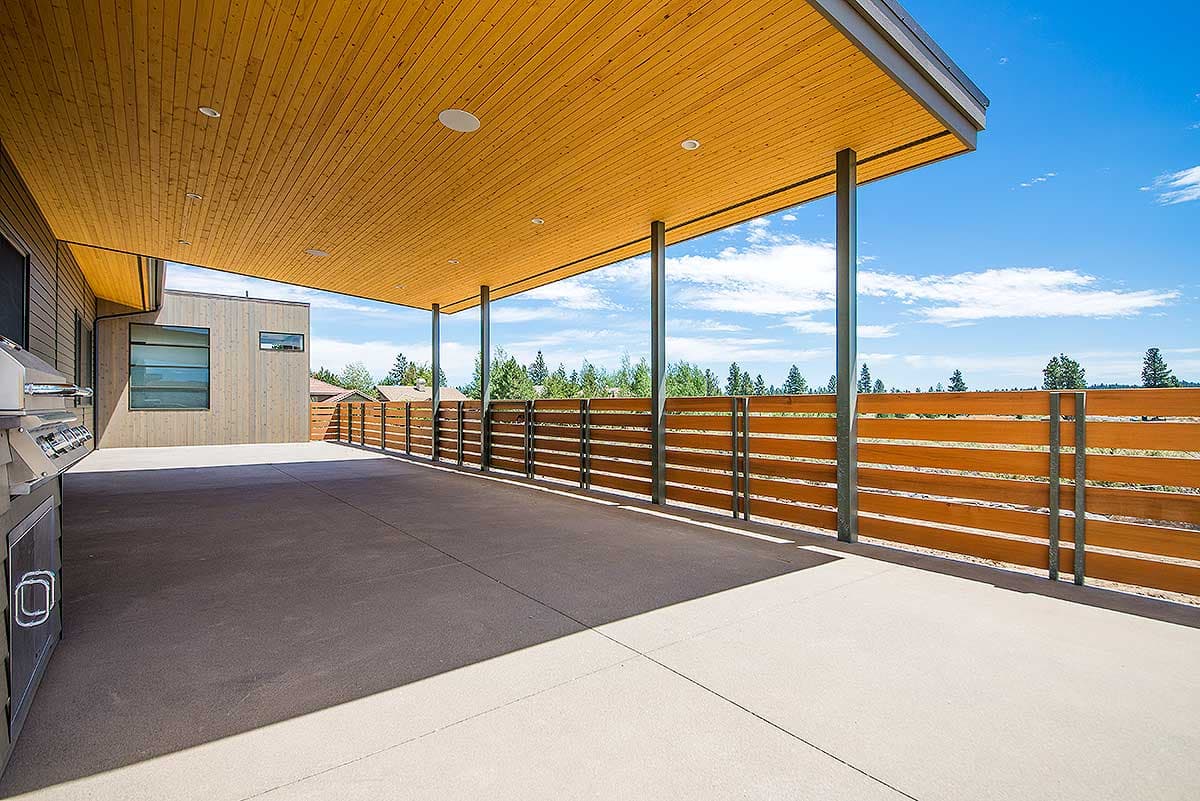

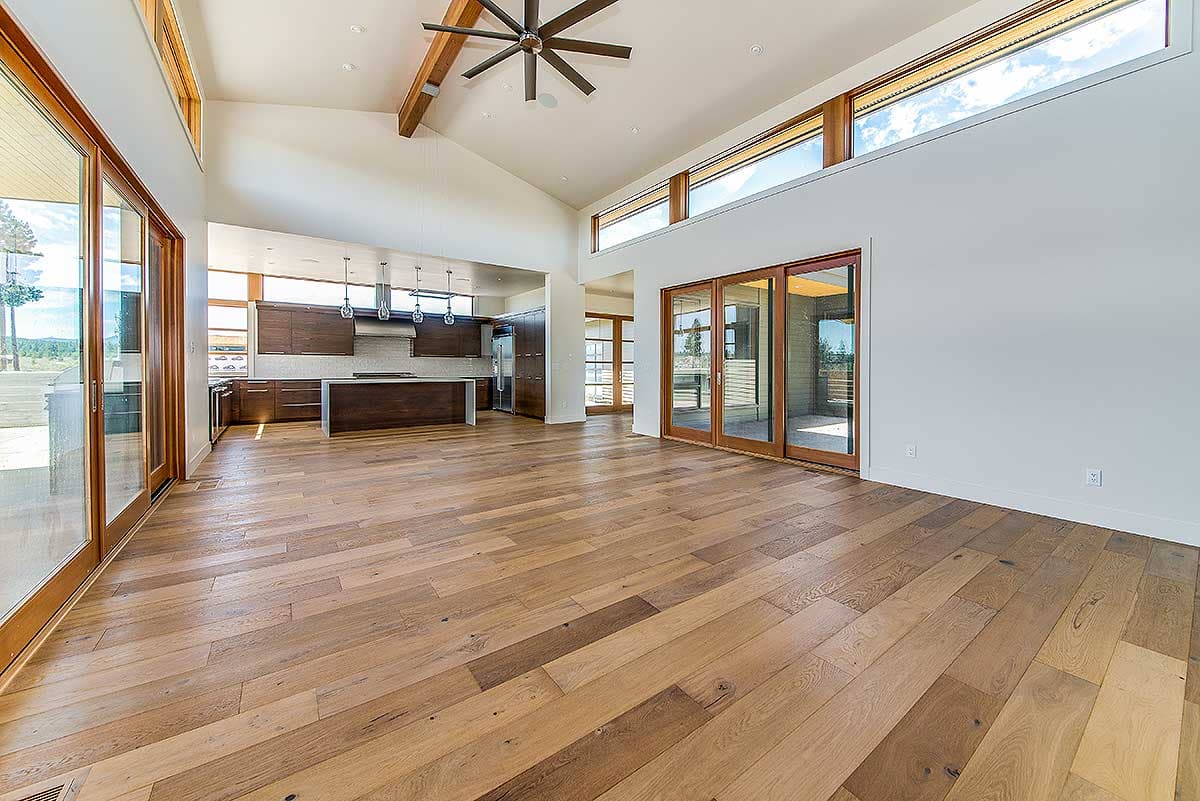

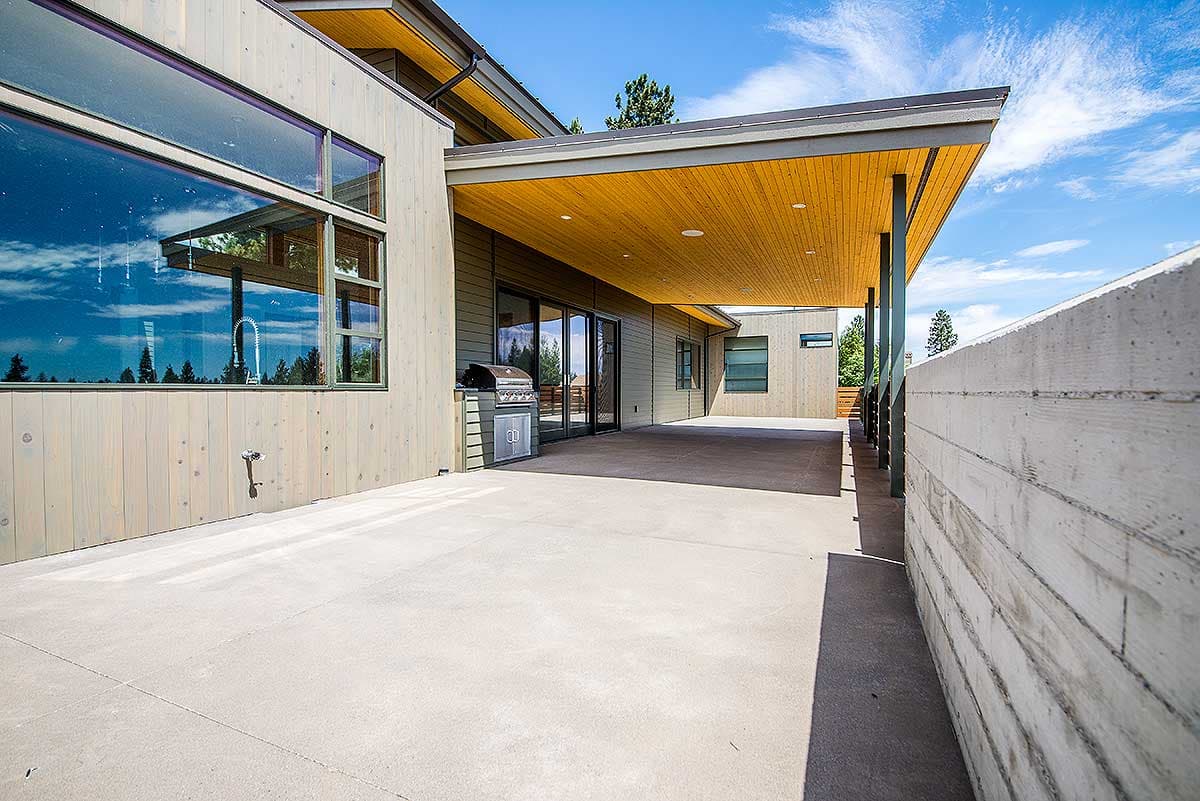

  • Sliding glass doors on the other side of the great room lead out to a covered terrace so you can enjoy the fresh air even when its raining.

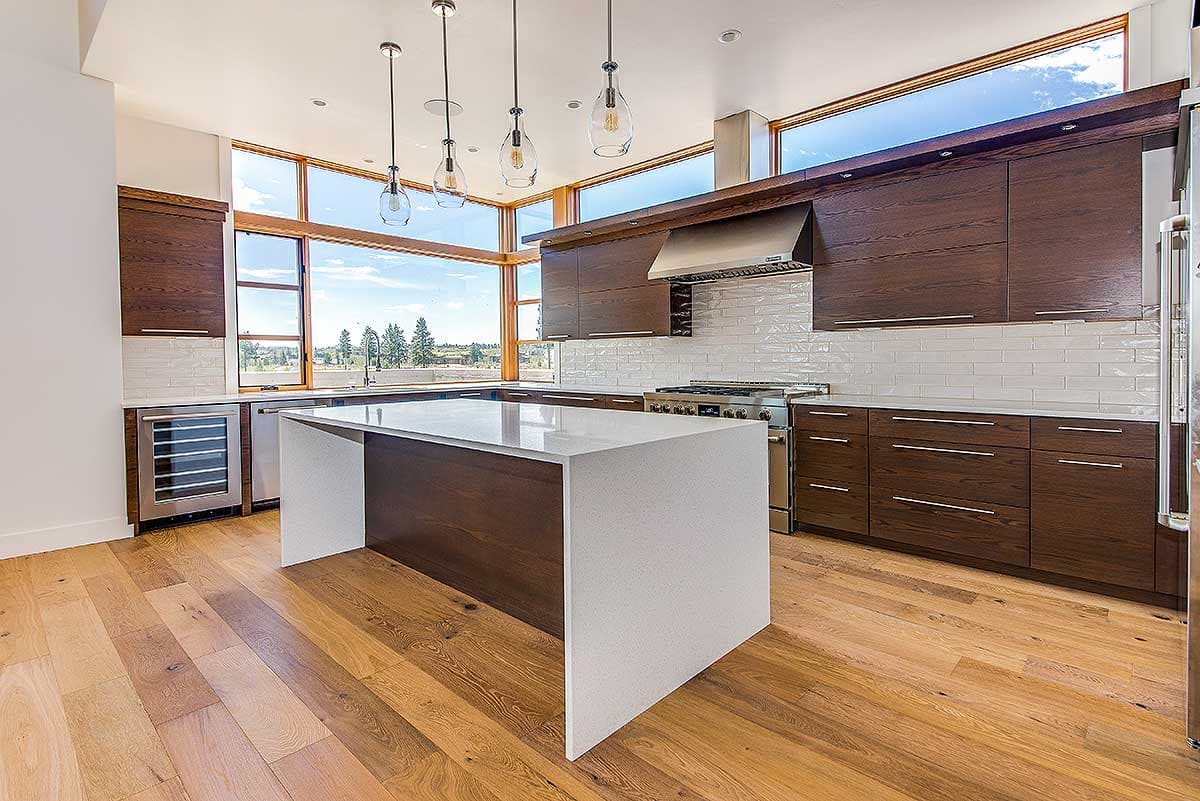

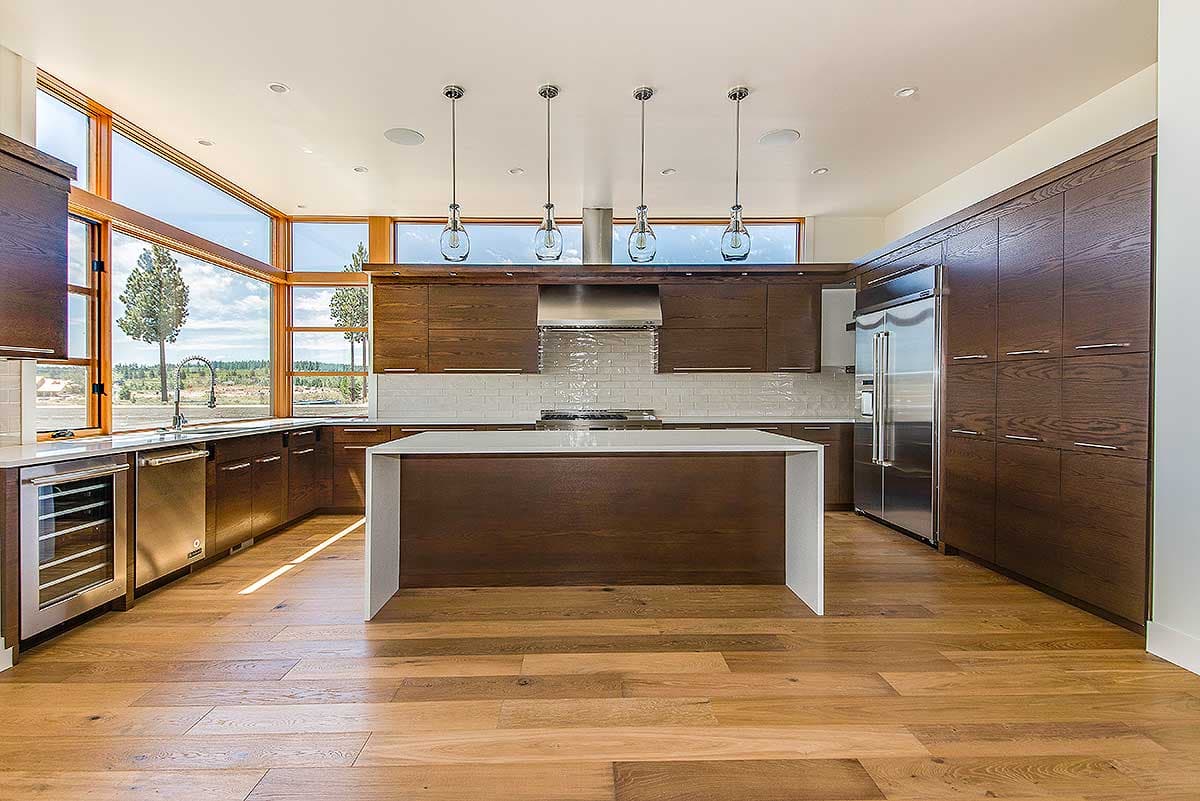

  • With its big open floor plan, the main living areas of the house are all open to each other.

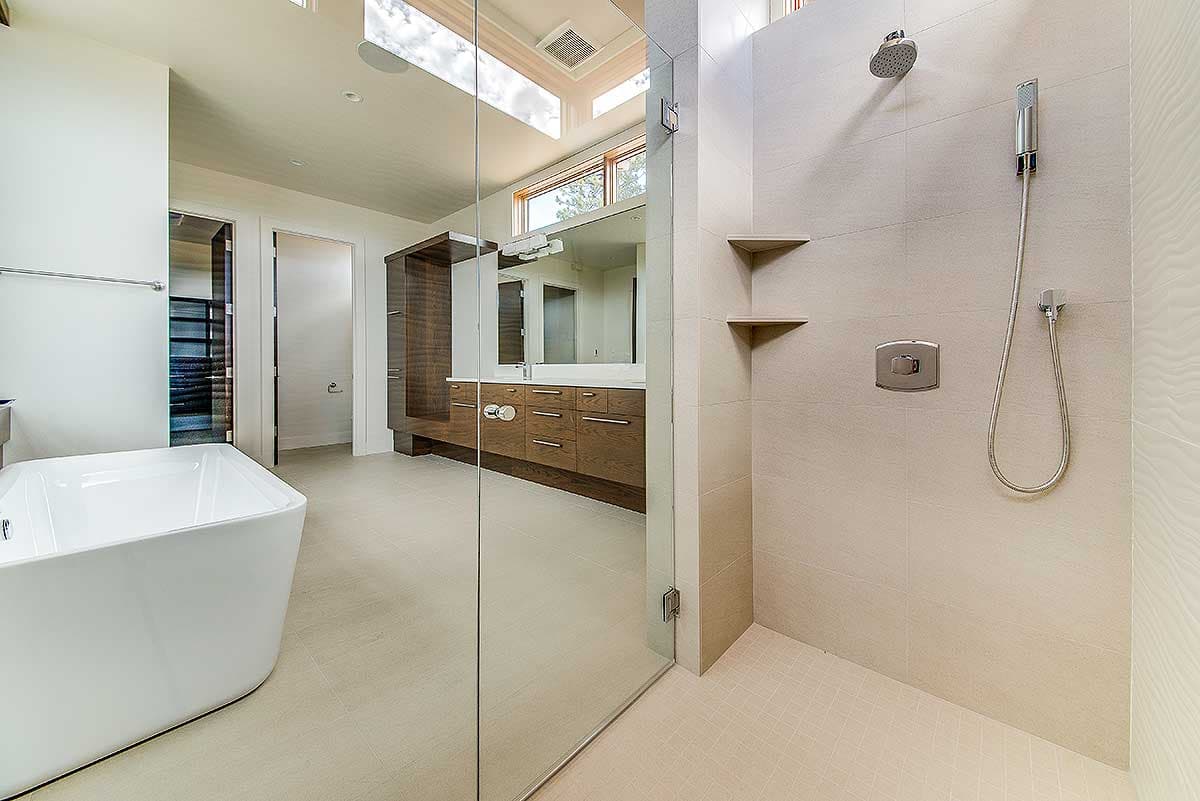

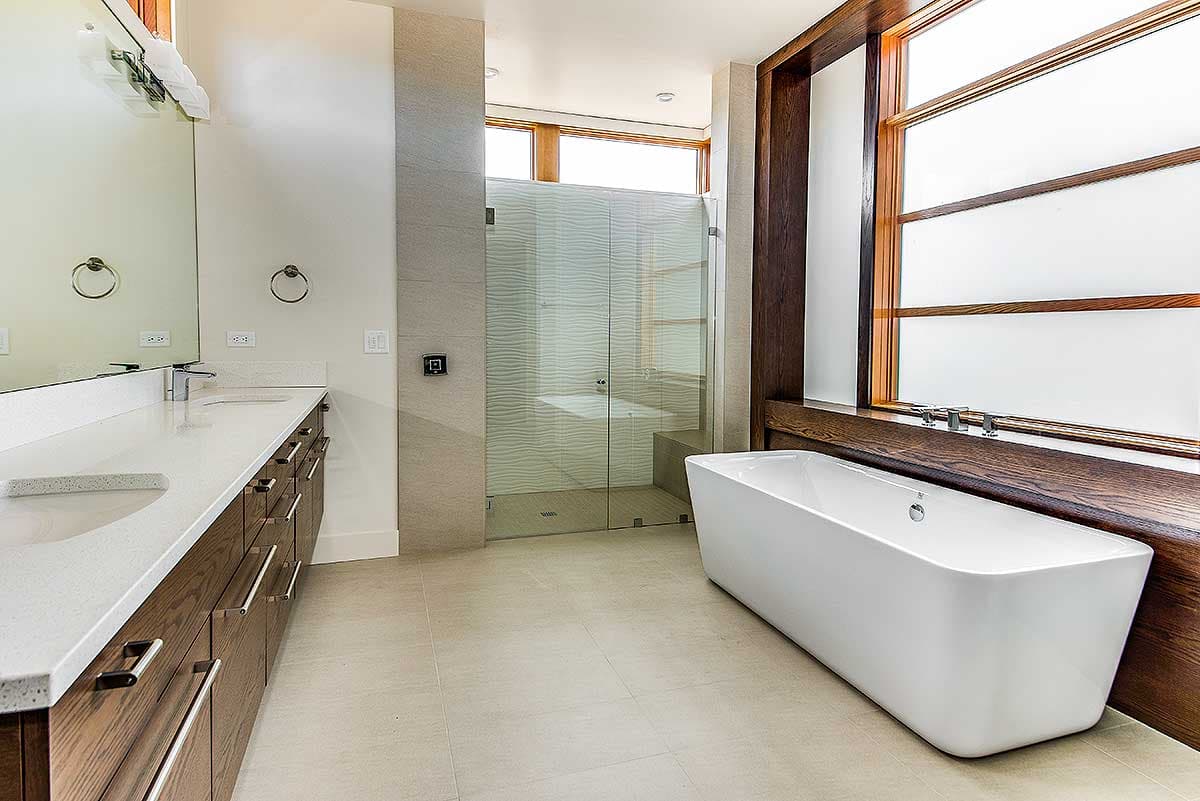

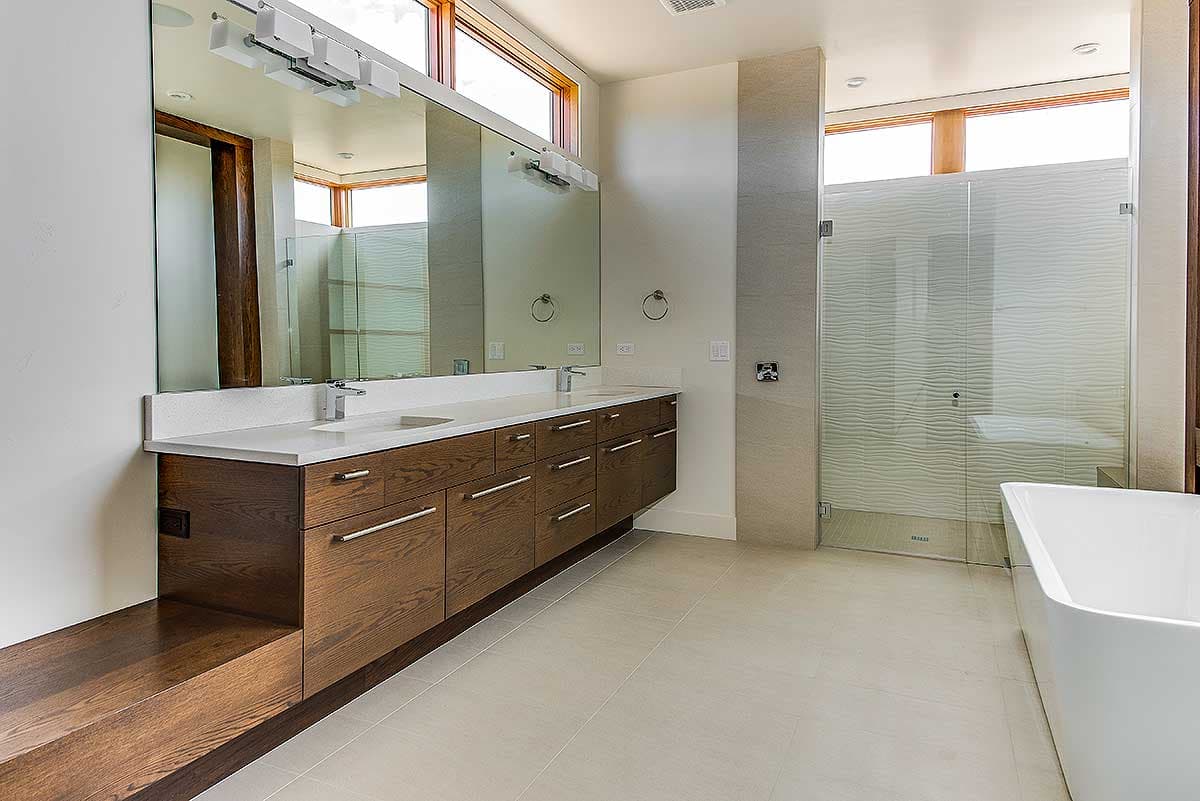

  • Homeowners get a secluded master suite tucked away at the back of the right side of the home, with a quiet den close by.

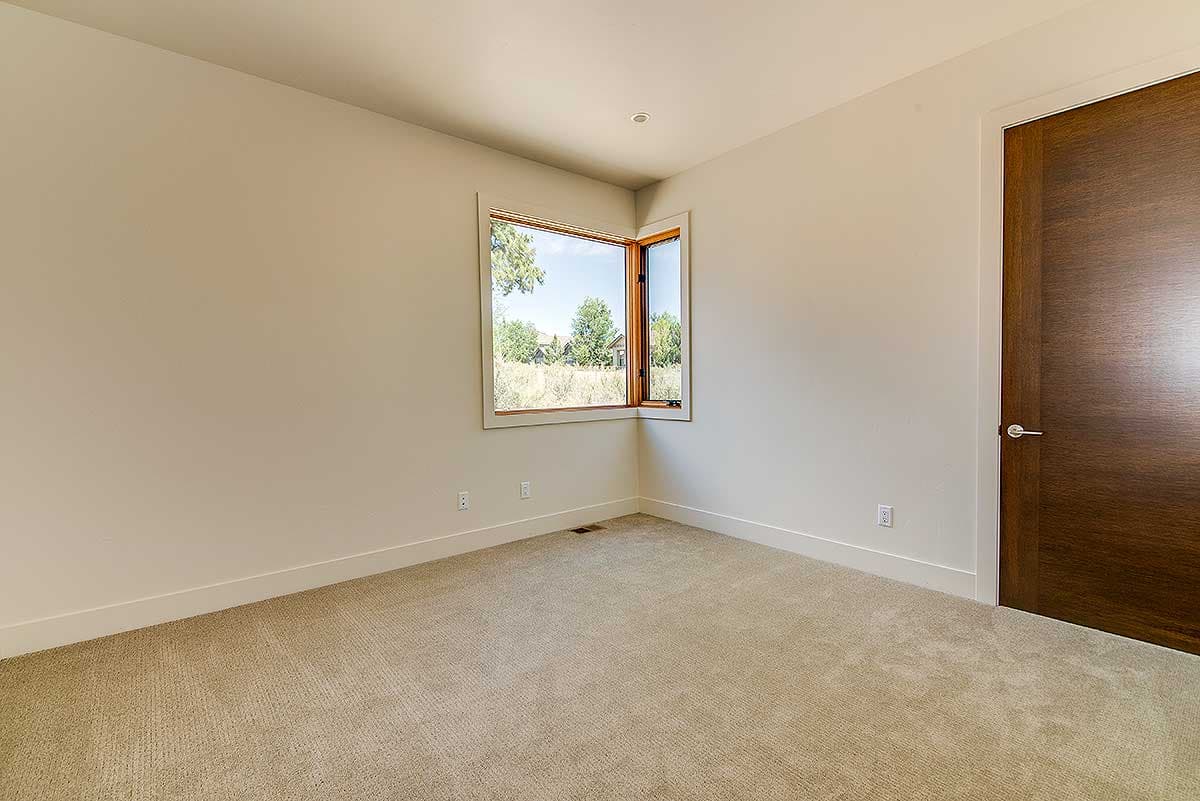

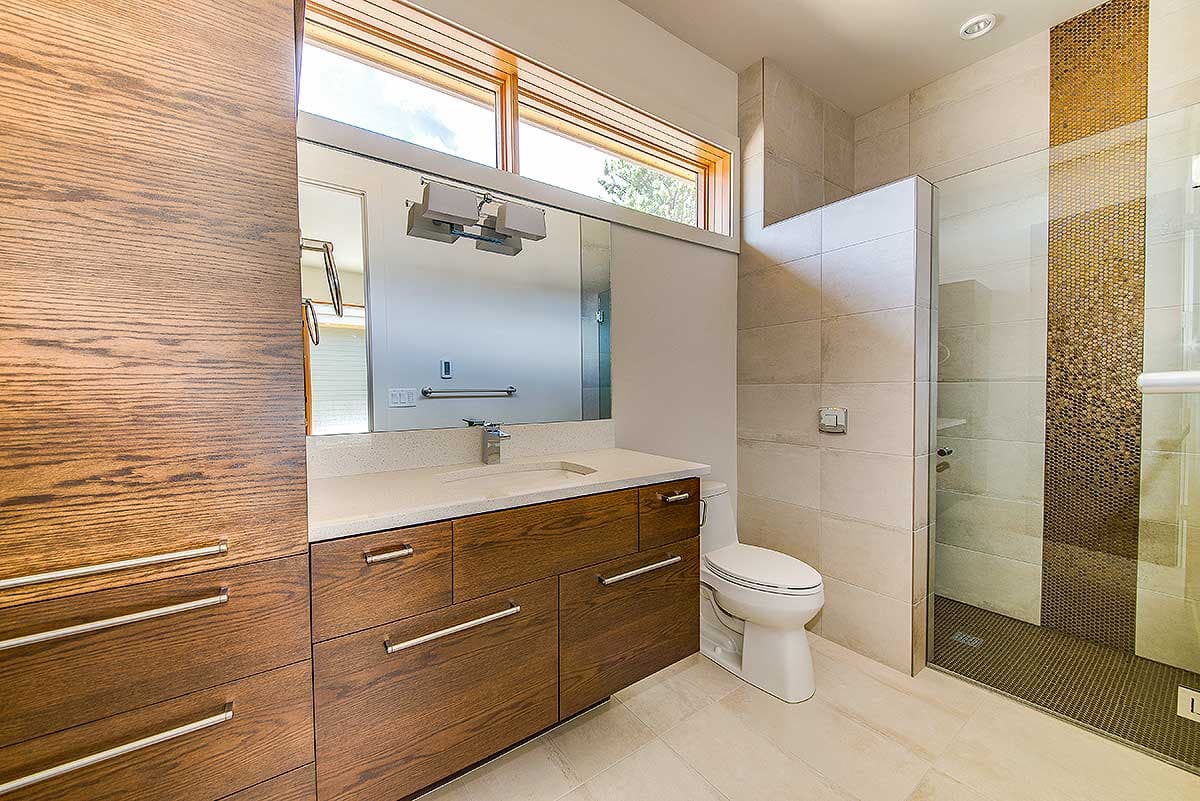

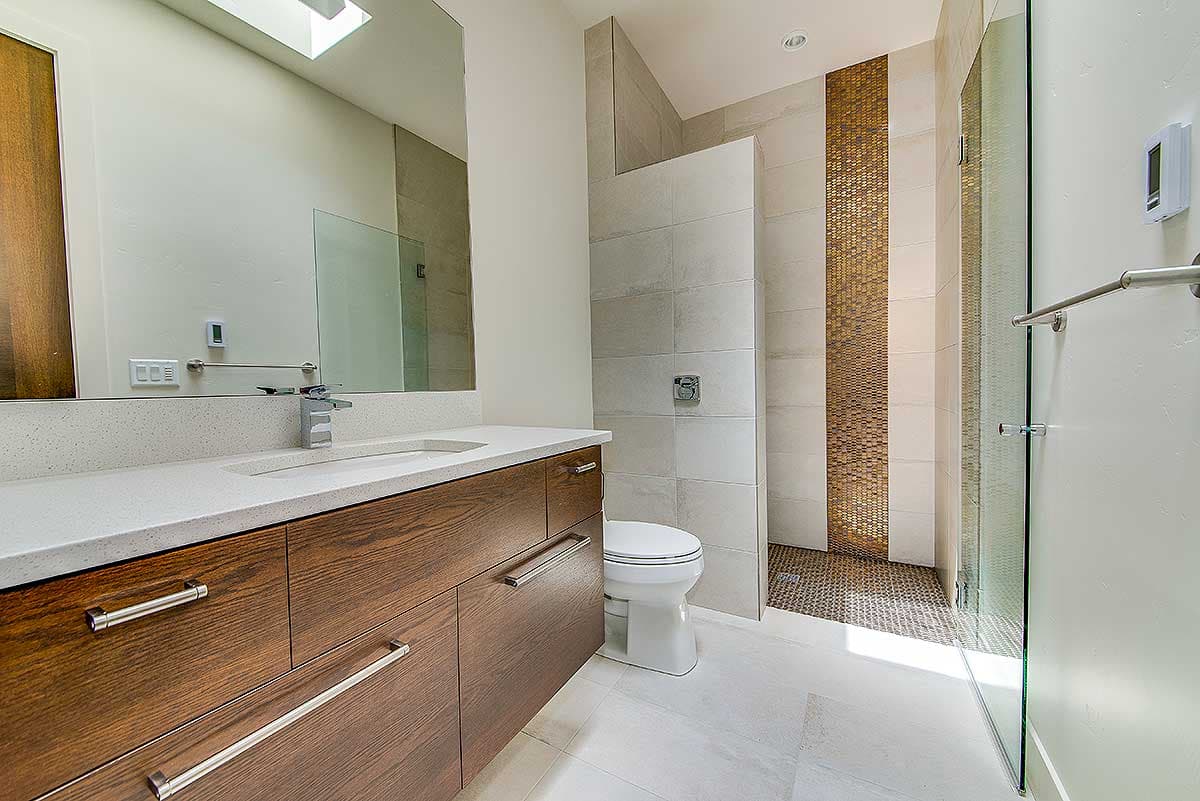

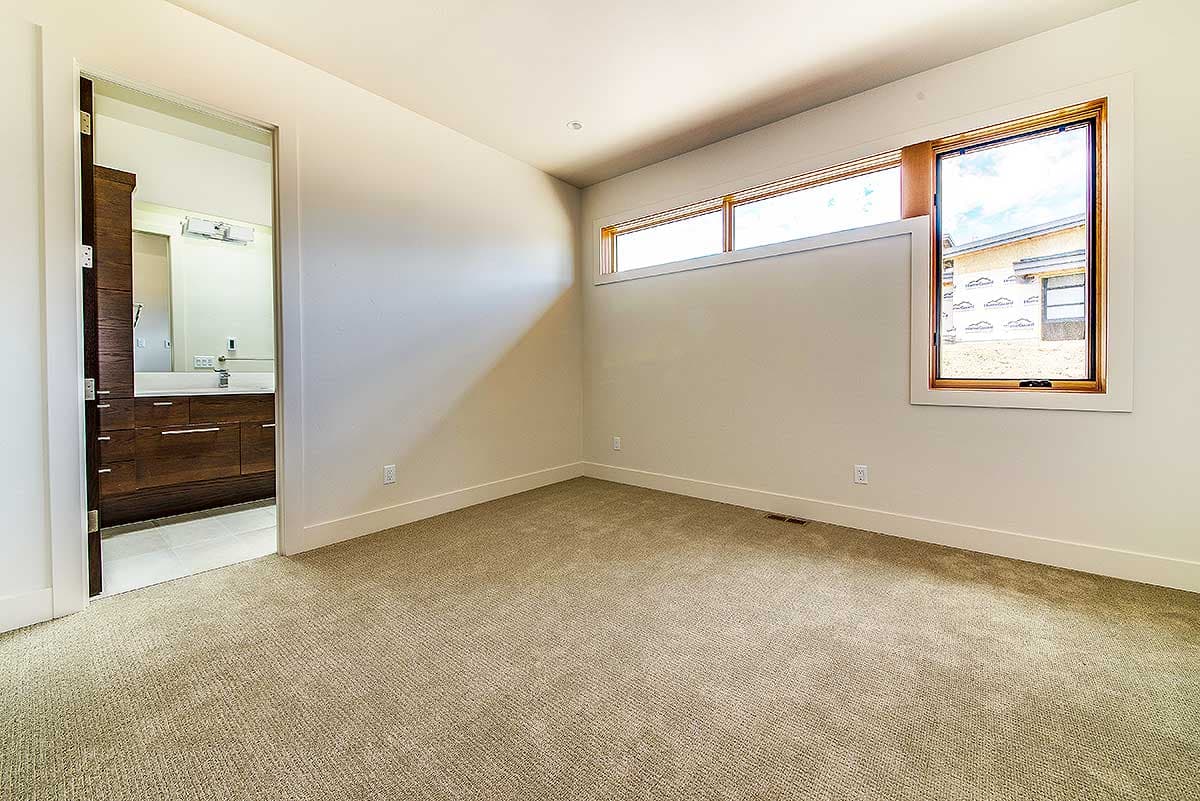

  • Bedrooms 2 and 3 are all the way across the house and each one has a private bathroom

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

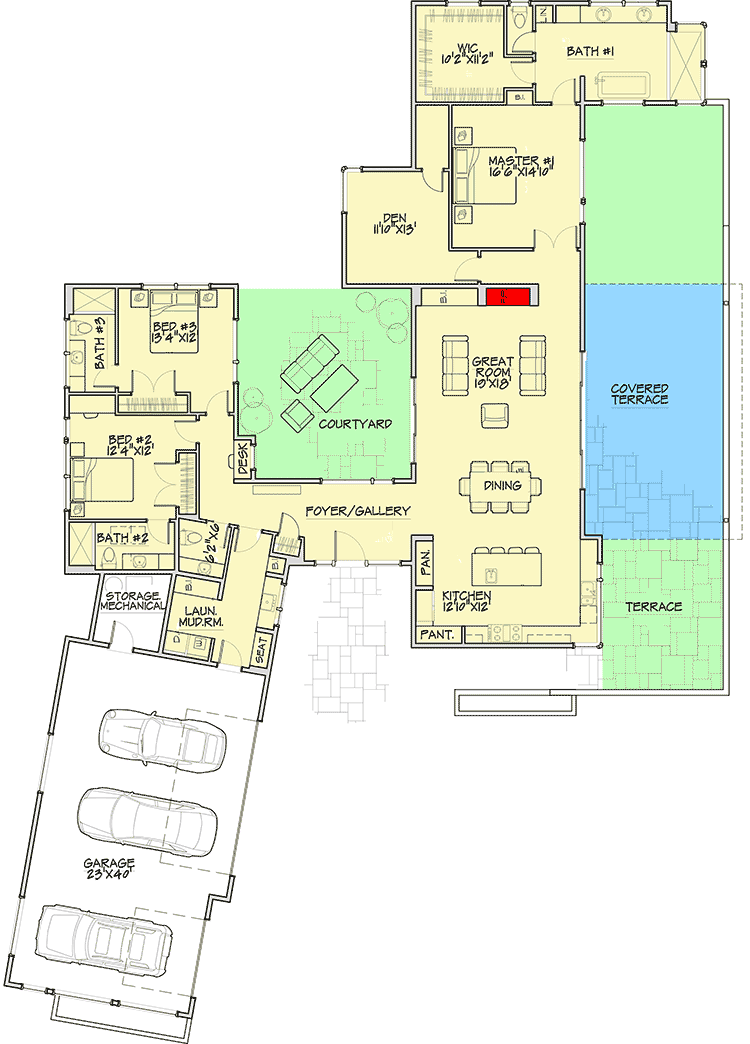

Modern Mountain House Plan with Courtyard and Terrace - 54229HU floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,818 sq. ft.
  • 1st Floor: 2,818 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 0"
  • Depth: 117' 6"
  • Max ridge height: 18' 6"

Garage

  • Type: Attached
  • Area: 1018 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Modern Mountain House Plan with Courtyard and Terrace

  • 2,818

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,795
  • 5 Sets $1,895
  • 8 Sets $1,995
  • CAD + PDF - Single-Build $2,595
  • View all purchase option online

About This Plan

  • Feast your eyes on this contemporary ranch house plan with its abundance of outdoor living areas.
  • The U shape creates a private interior courtyard that opens to the great room through sliding glass doors.
  • Sliding glass doors on the other side of the great room lead out to a covered terrace so you can enjoy the fresh air even when its raining.
  • With its big open floor plan, the main living areas of the house are all open to each other.
  • Homeowners get a secluded master suite tucked away at the back of the right side of the home, with a quiet den close by.
  • Bedrooms 2 and 3 are all the way across the house and each one has a private bathroom

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,818 sq. ft.
  • 1st Floor: 2,818 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 0"
  • Depth: 117' 6"
  • Max ridge height: 18' 6"

Garage

  • Type: Attached
  • Area: 1018 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
Plan 54229HU
View this and more for this plan by visiting www.architechtecturaldesigns.com/54229HU
|
