Plan 720162DA

Modern Mountain House Plan with Split Bedrooms and Game Room

Name: Plan 720162DA: Modern Mountain House Plan with Split Bedrooms and Game Room
Brand: Architectural Designs
SKU: 720162DA
Price: 5480.0 USD
Availability: InStock

Heated S.F.

4,717

Beds

Baths

4.5

Stories

Cars

Floor Plan

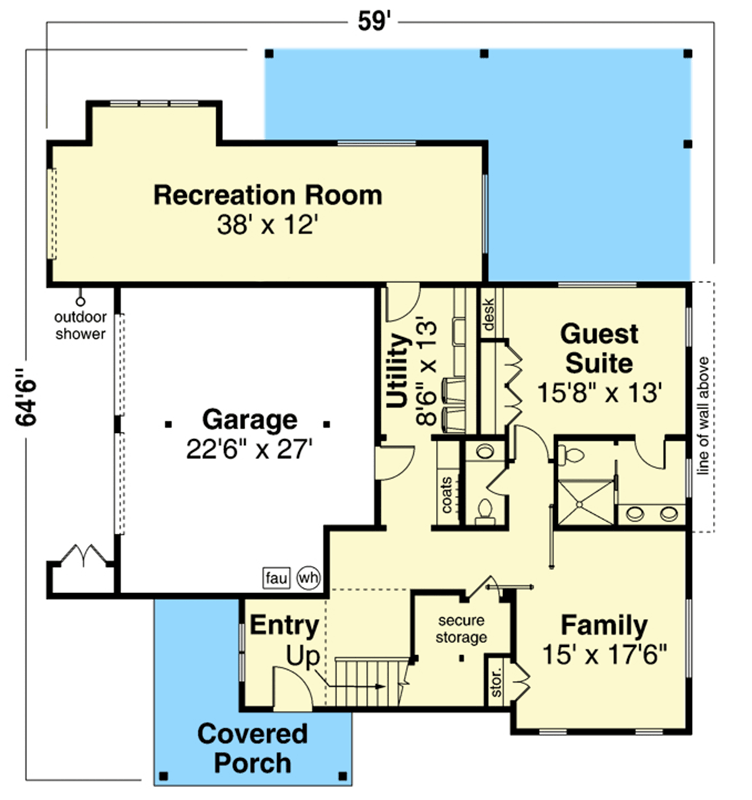

Main Level

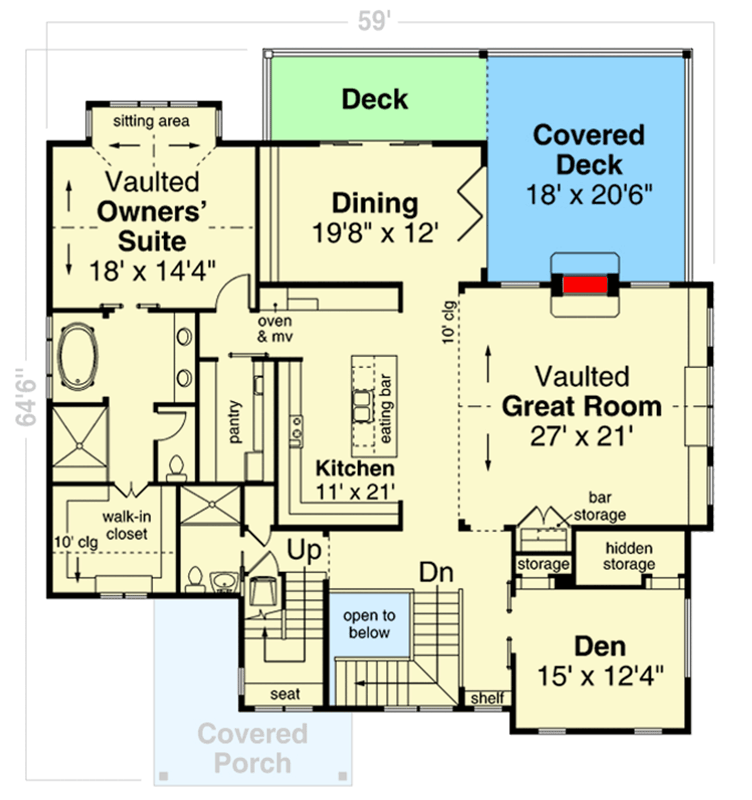

2nd Floor

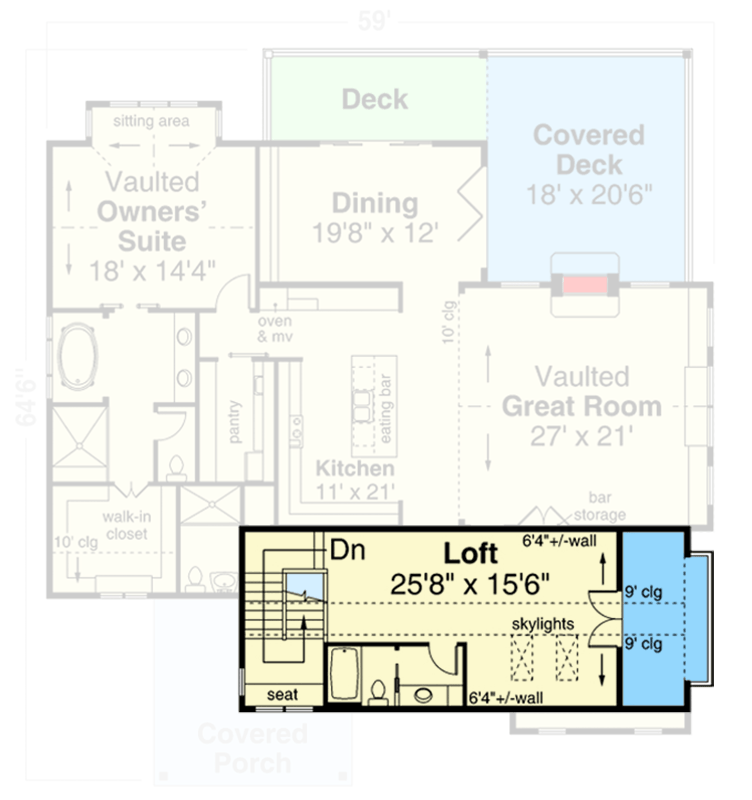

3rd Floor

Plan Details

This expansive 4,717 sq. ft. Modern Mountain house plan offers 2 bedrooms, 4 full bathrooms, 1 half bathroom, and a 598 sq. ft. attached 2-car side-entry garage, blending contemporary aesthetics with rustic charm.
Step inside to discover a thoughtfully designed layout, beginning with a welcoming mudroom just off the side-entry garage, leading into the heart of the home, which includes a versatile den and flex room that adapt to your lifestyle needs.
The main level features a formal dining room perfect for hosting, seamlessly flowing into the open-concept living spaces, anchored by a gourmet kitchen with a butler walk-in pantry, and a convenient main-level laundry.
Ascend to the second floor where the luxurious master suite awaits, complete with a private sitting area and an upstairs laundry for ultimate convenience. The plan's split bedroom design ensures privacy and comfort for all residents.
This residence truly excels in offering dedicated spaces for leisure and entertainment, including a spacious game/rec room and an inviting loft area, perfect for unwinding or pursuing hobbies.
Embrace outdoor living with thoughtfully designed exterior spaces, featuring an outdoor fireplace, ideal for al fresco gatherings and enjoying crisp evenings under the stars.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
