Modern Mountain Retreat House Plan with Loft and Vaulted Ceilings

Name: Plan 337012JUN: Modern Mountain Retreat House Plan with Loft and Vaulted Ceilings
Brand: Architectural Designs
SKU: 337012JUN
Price: 995.0 USD
Availability: InStock

Heated S.F.

1,040

Beds

Baths

Stories

Floor Plan

Main Level

Sleeping Loft

Plan Details

This modern cabin house plan offers 1,040 finished sq ft with 2 bedrooms and 2 baths, showcasing a sleek contemporary exterior.
Upon arrival, a path leads to an expansive deck and a wall of glass doors, inviting abundant natural light into the open-concept living space.
The main living area boasts soaring ceilings, seamlessly connecting the kitchen, dining, and family spaces for effortless flow and panoramic views.
A private primary suite is conveniently located on the first floor, offering a tranquil retreat, while the secondary bedroom is thoughtfully clustered nearby.

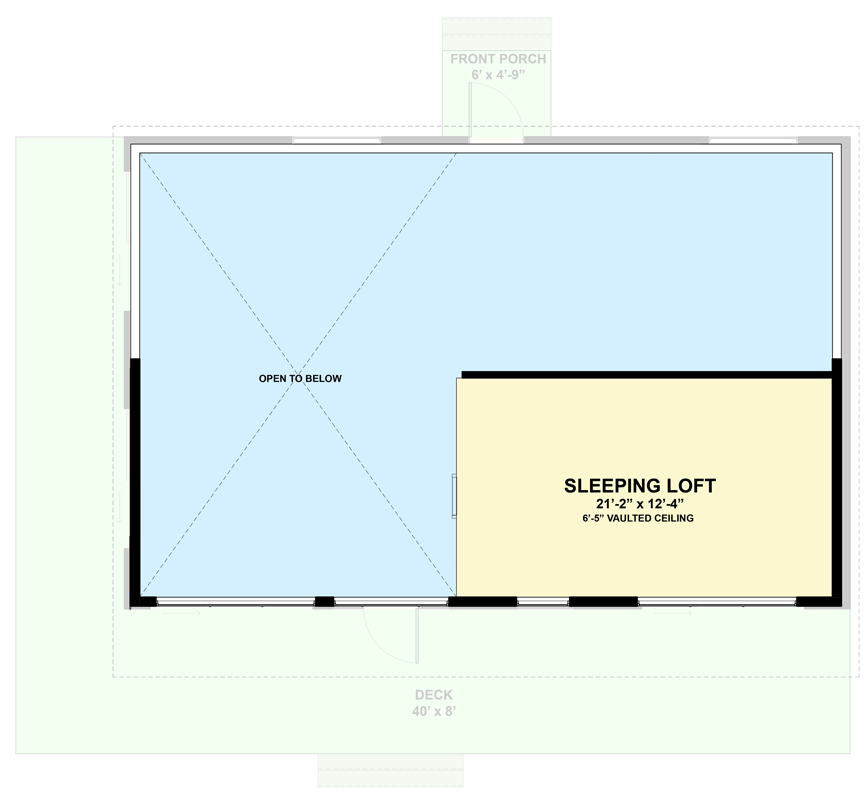

A versatile 253 sq ft loft area provides a flexible space, ideal for a home office, reading nook, or additional sleeping quarters.
Enjoy outdoor living on the generous 553 sq ft deck, perfect for morning coffee or evening relaxation amidst nature.

What's Included

Cover Page - Includes sheet index, complete building information, build summary, and 3D drawings of the house/cabin.
Foundation Plan and Details - Slab thickness, footing sizes and spacing, complete floor framing sizes and layout, foundation section details.

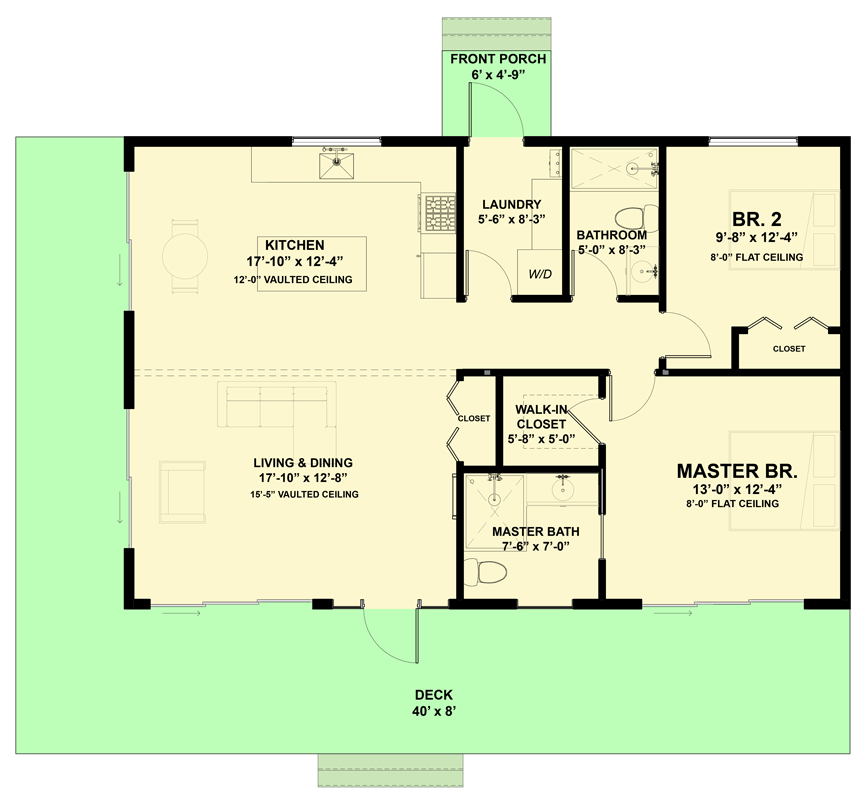

Floor Plans - Fully dimensioned and annotated floor plans for each level, wet fixture locations, window and door tags.

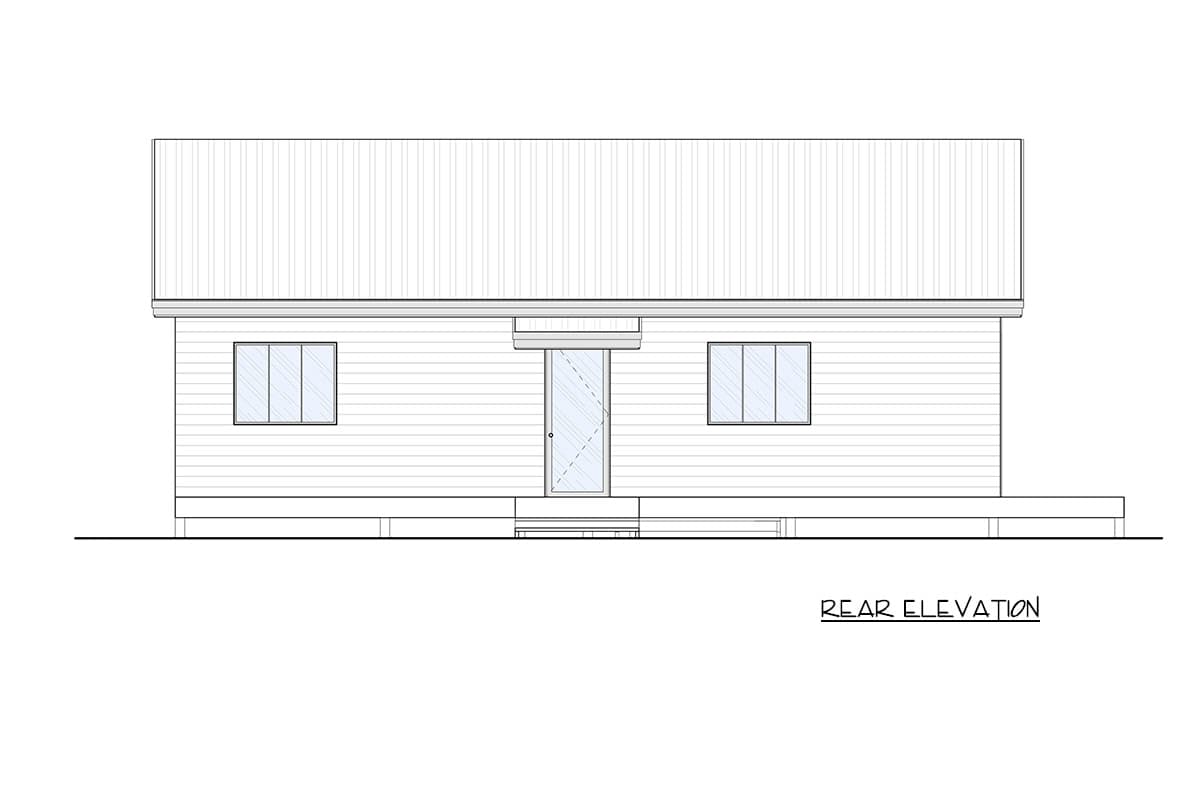

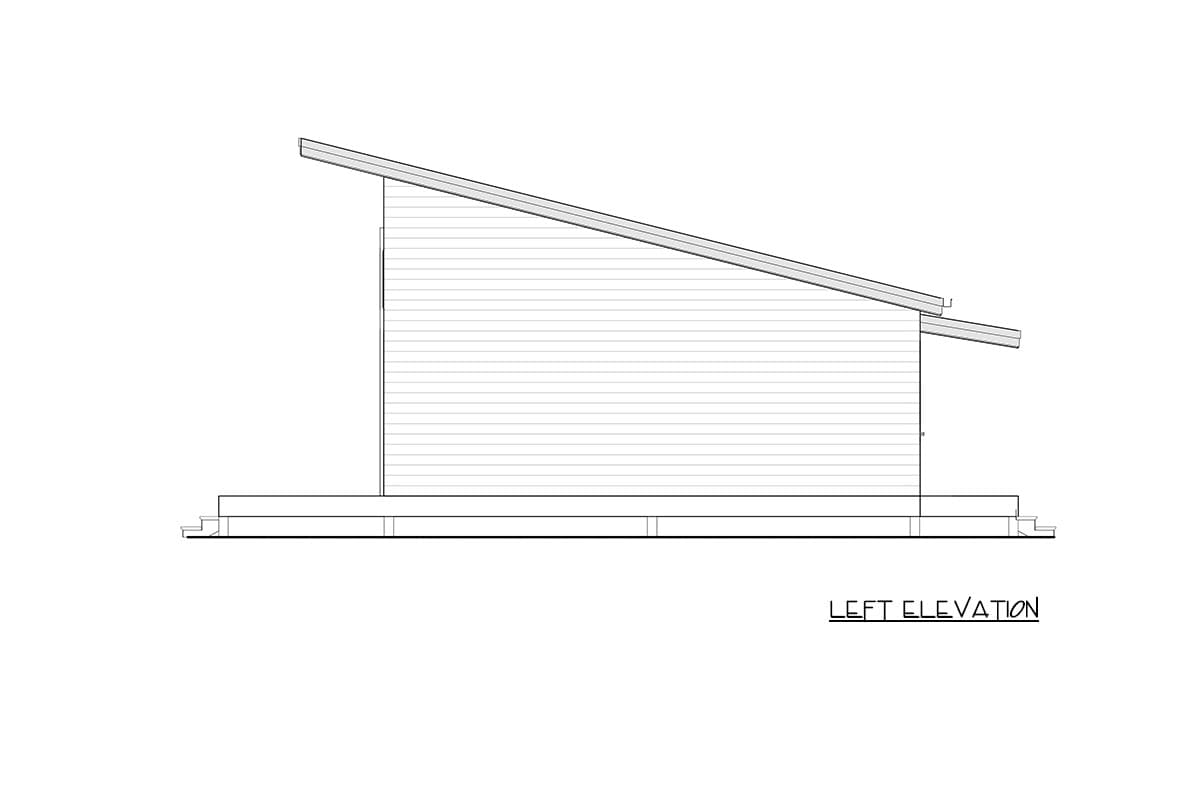

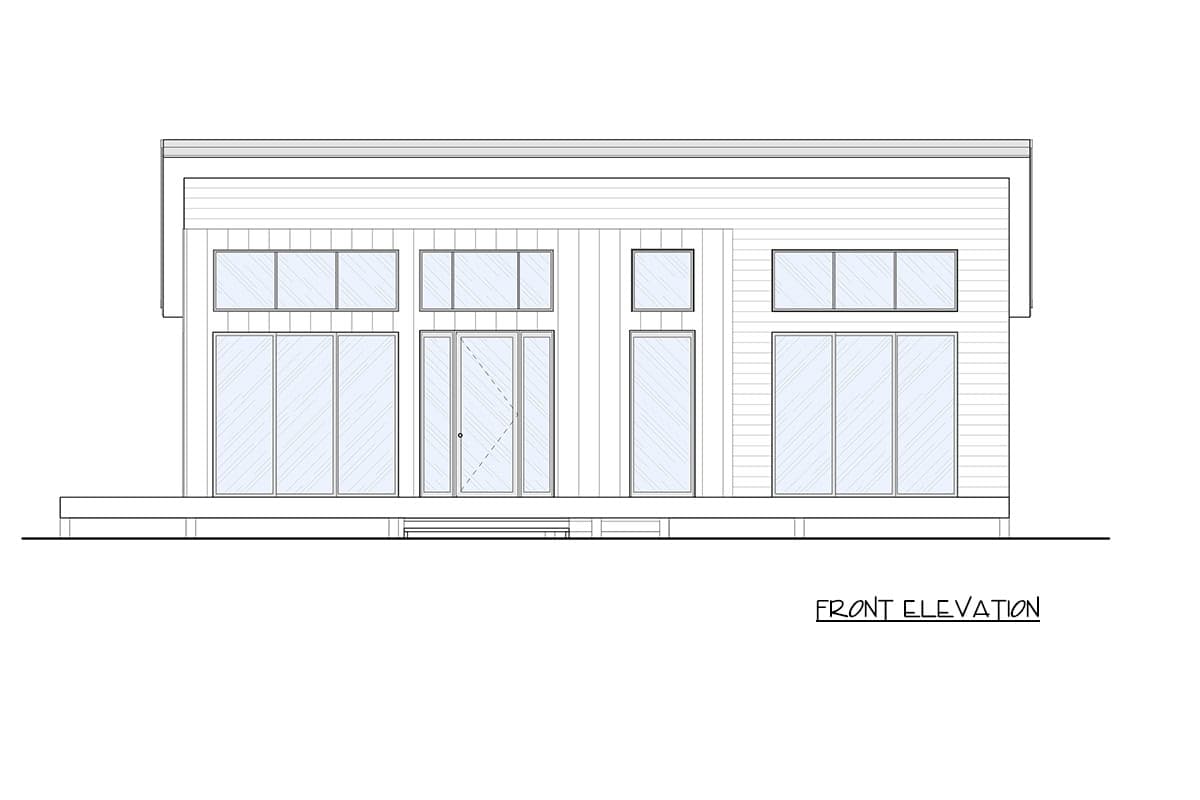

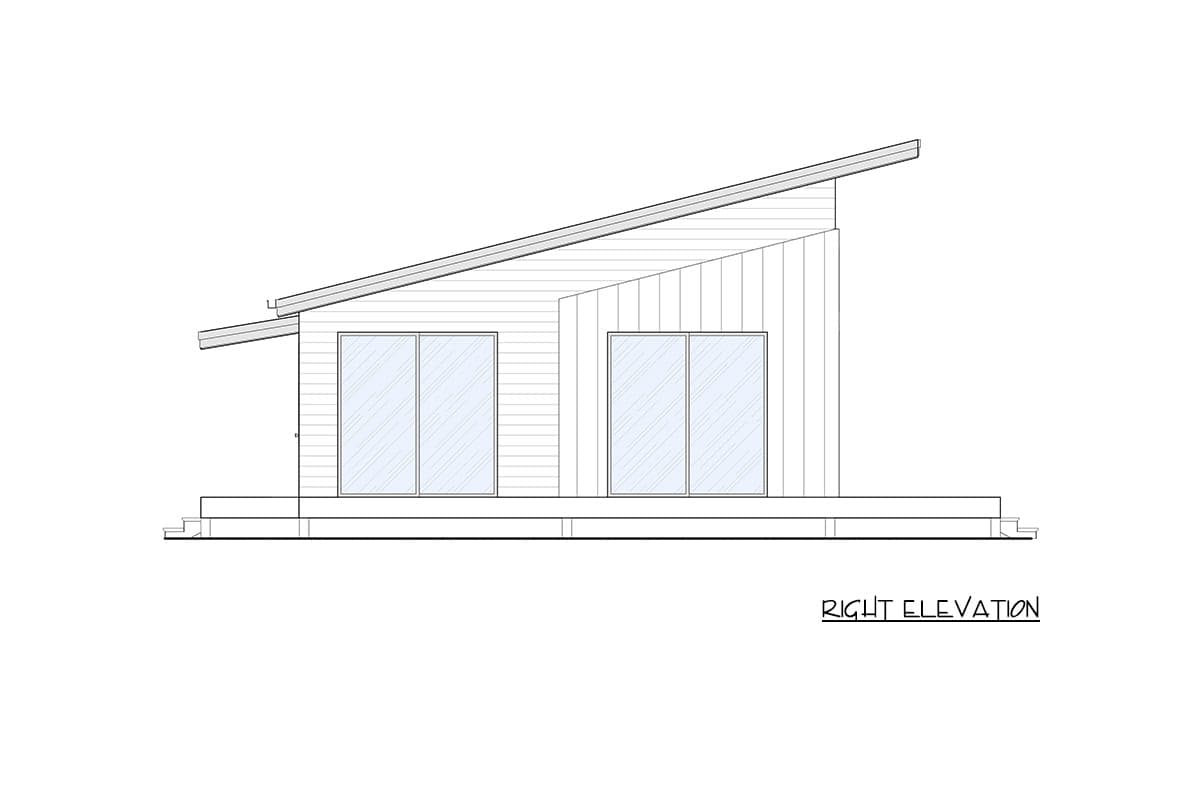

Exterior Elevations - 4 Detailed exterior elevations showing the front, rear, and sides with vertical dimensions and window/door tags.
Cross Sections - Multiple detailed building sections annotated with lumber sizes and construction notes for floor, roof, insulation, and exterior & interior wall frames.
Roof Plan - Complete roof plans showing rafter/truss layouts, fully dimensioned and annotated.
Electrical Plans & Notes - Complete layouts for lights, switches, outlets, and location of the electrical panel, with general electrical notes.
Doors and Windows Schedule - Showing the quantity, sizes, sill & header heights, and description of all of the doors and windows in the build.
Building Sections and Notes - Detailed building sections and general wall framing notes.
General Notes - General notes on build requirements and standards, general framing notes on typical structural notes, codes & standards, climate, etc.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Mechanical Drawings - your subcontractors handle this
Plumbing Drawings - your subcontractors handle this
Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant if required
