Plan 311066RMZ

Exclusive

Modern Mountain Retreat House Plan with Vaulted Great Room and 4 Bedrooms

Heated S.F.
3,092
Beds
4
Baths
4.5
Stories
2
Cars
2

Floor Plan

Plan 311066RMZ

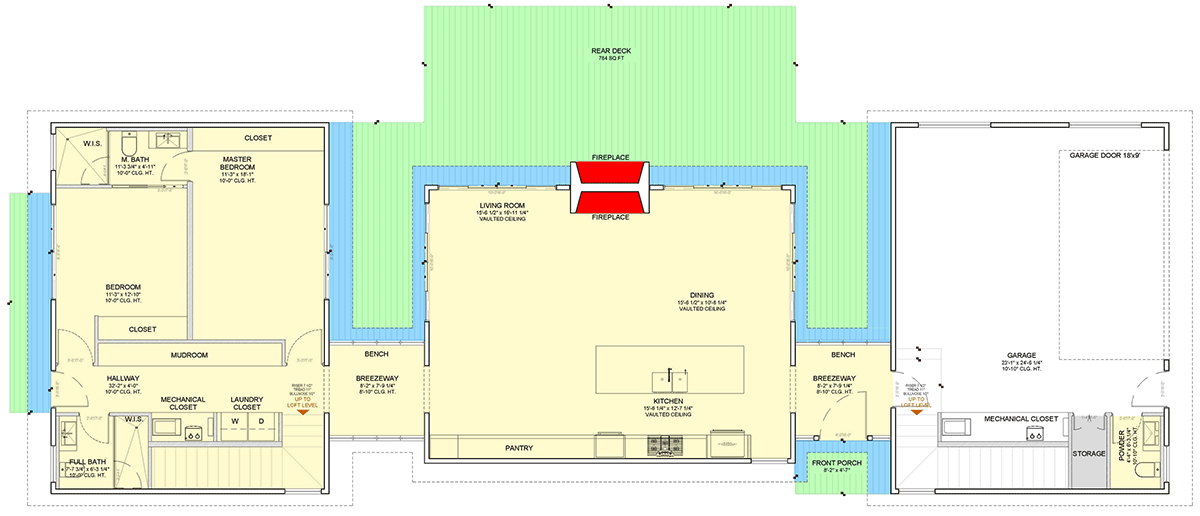

Floor Plan 1

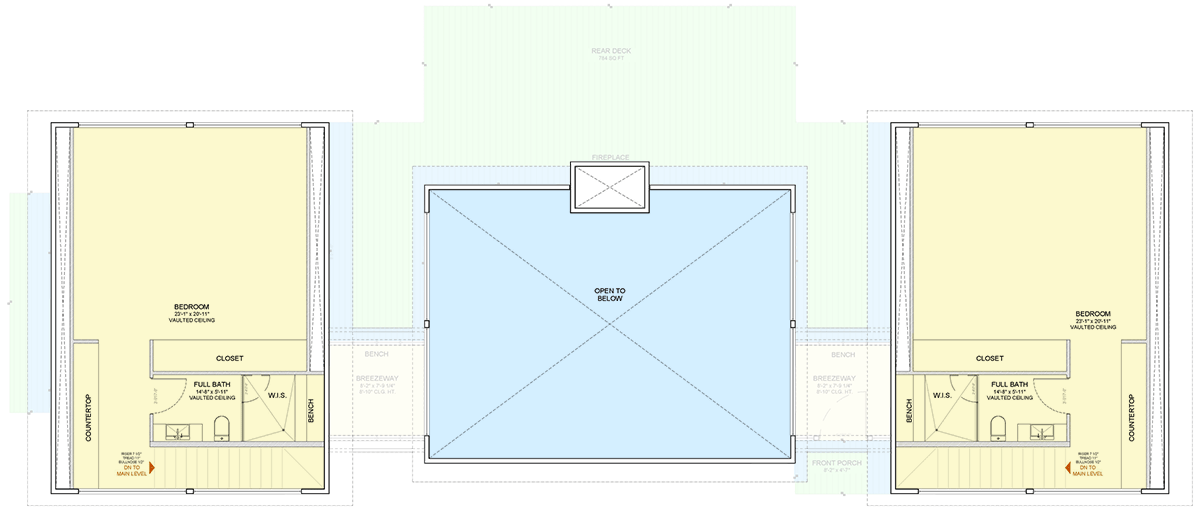

Floor Plan 2

Plan 311066RMZ

M-F 9am-5pm EST |

1-203-761-8500

Plan 311066RMZ: Modern Mountain Retreat House Plan with Vaulted Great Room and 4 Bedrooms - Floor Plan - - Contemporary, Craftsman, Mid Century Modern, Mountain, Rustic

Plan 311066RMZ: Modern Mountain Retreat House Plan with Vaulted Great Room and 4 Bedrooms - Floor Plan - - Contemporary, Craftsman, Mid Century Modern, Mountain, Rustic

Plan Details

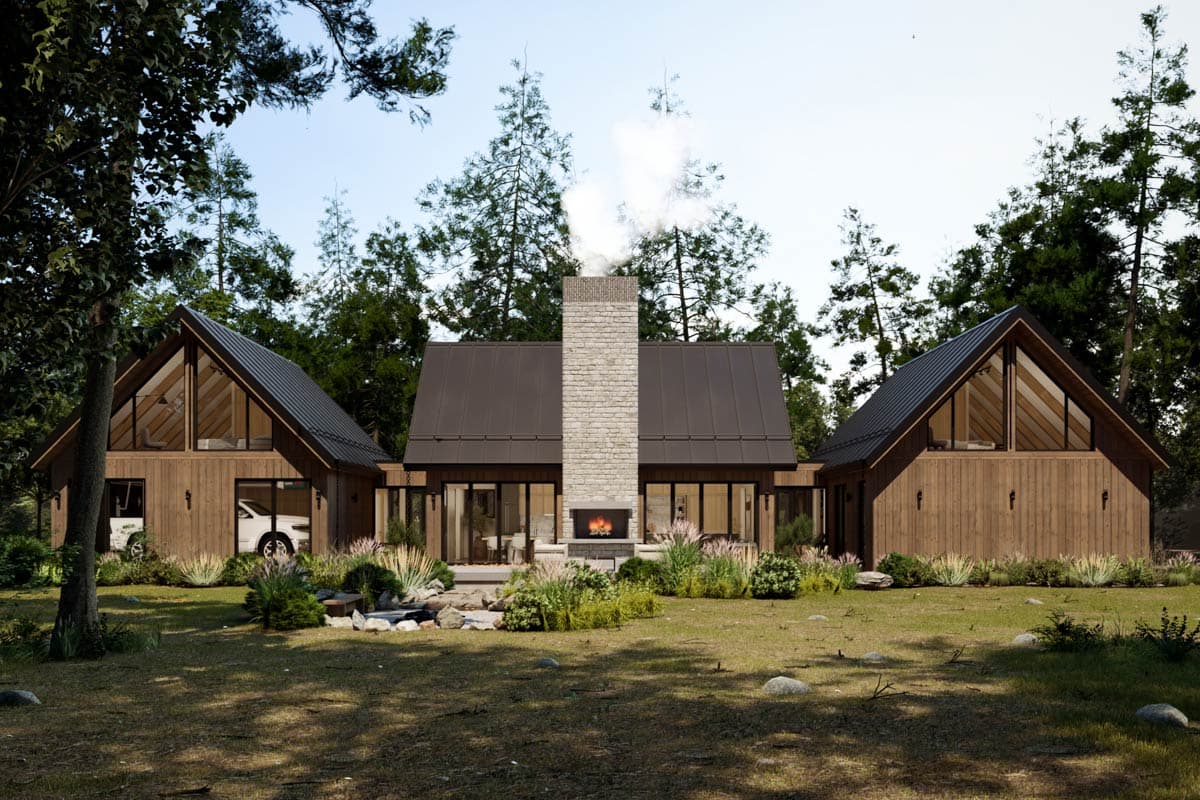

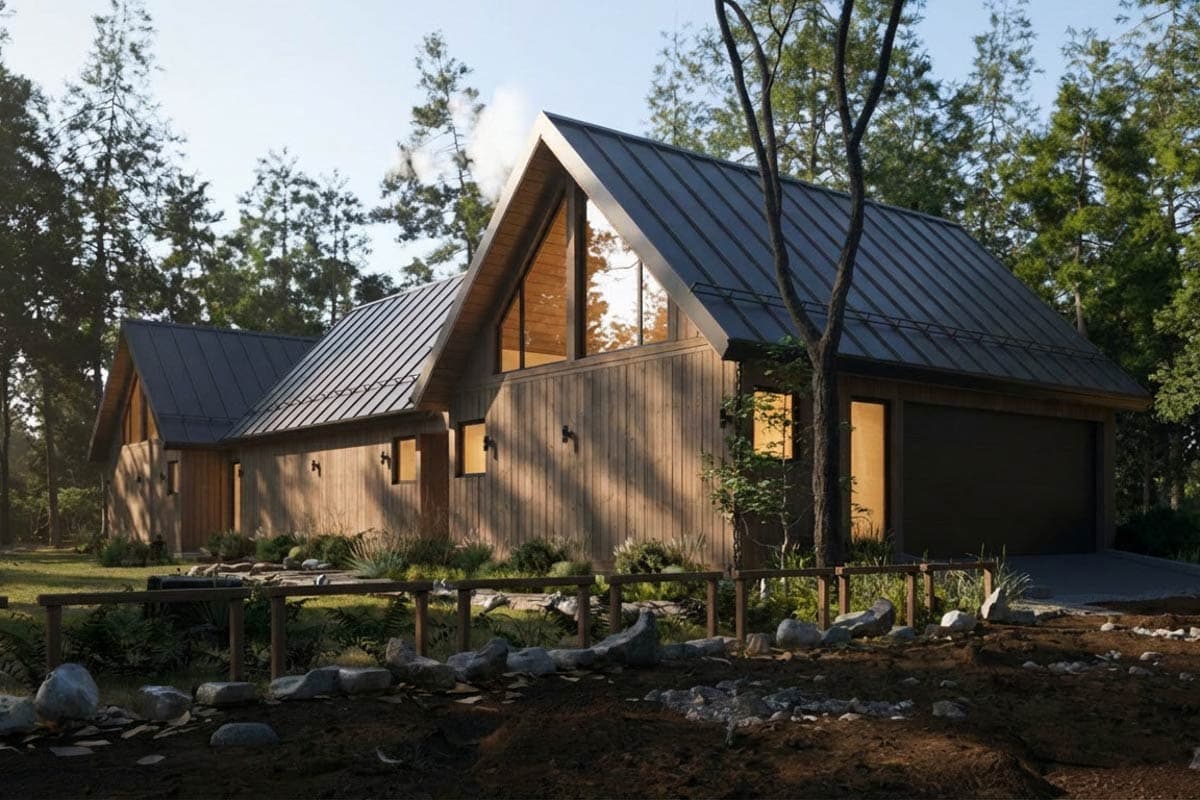

  • This 3,092 sq ft modern mountain house plan offers 4 bedrooms, 4.5 baths, and a 768 sq ft 2-car attached garage, featuring a striking contemporary mountain rustic aesthetic.
  • Enter through a welcoming front porch, leading into a thoughtfully designed layout where breezeways connect the central open-concept living core to private bedroom and garage wings.

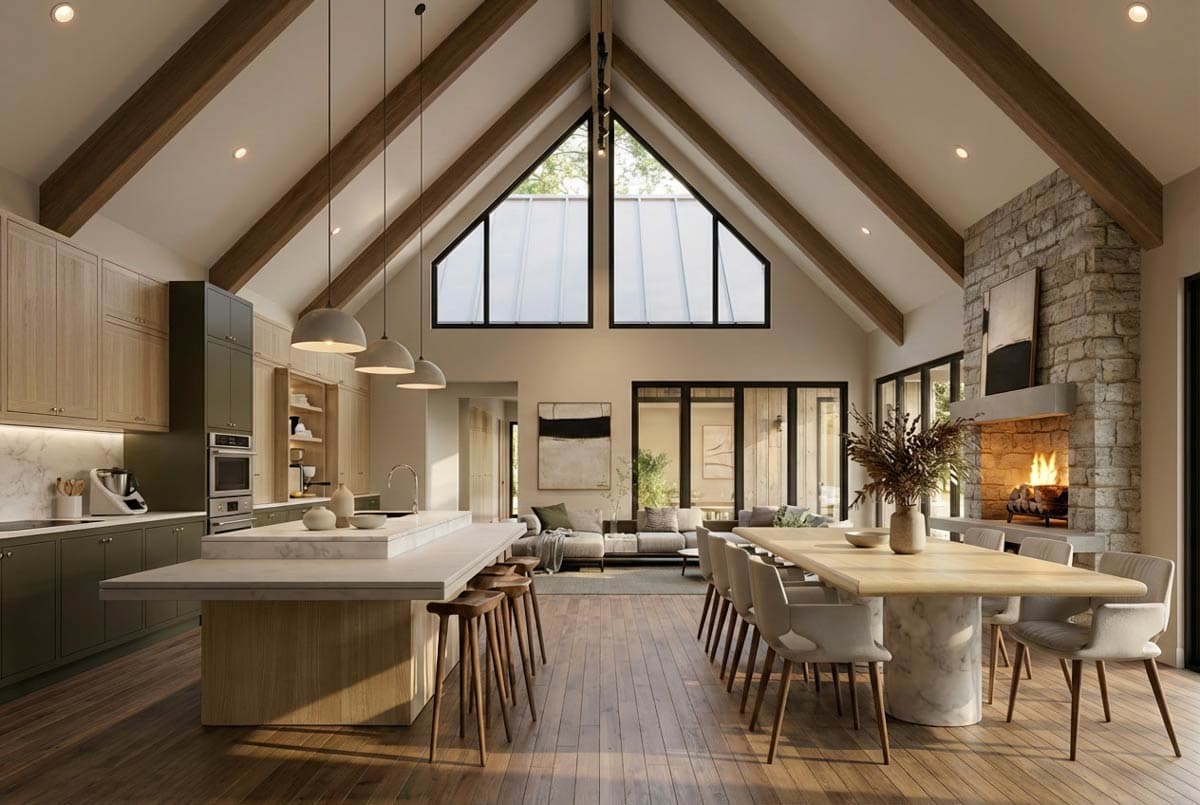

  • The heart of the home is a dramatic two-story great room with a soaring 27-foot vaulted ceiling and a central fireplace, seamlessly flowing into the open-concept kitchen and dining areas, perfect for lively gatherings.
  • The private main-level primary suite offers a serene escape, while additional spacious bedroom suites are thoughtfully placed on both floors, including a loft area, ensuring comfort and privacy for all.
  • An expansive second-floor loft area introduces versatile private suites, ideal for guests, a dedicated office, or flexible multi-generational living arrangements.

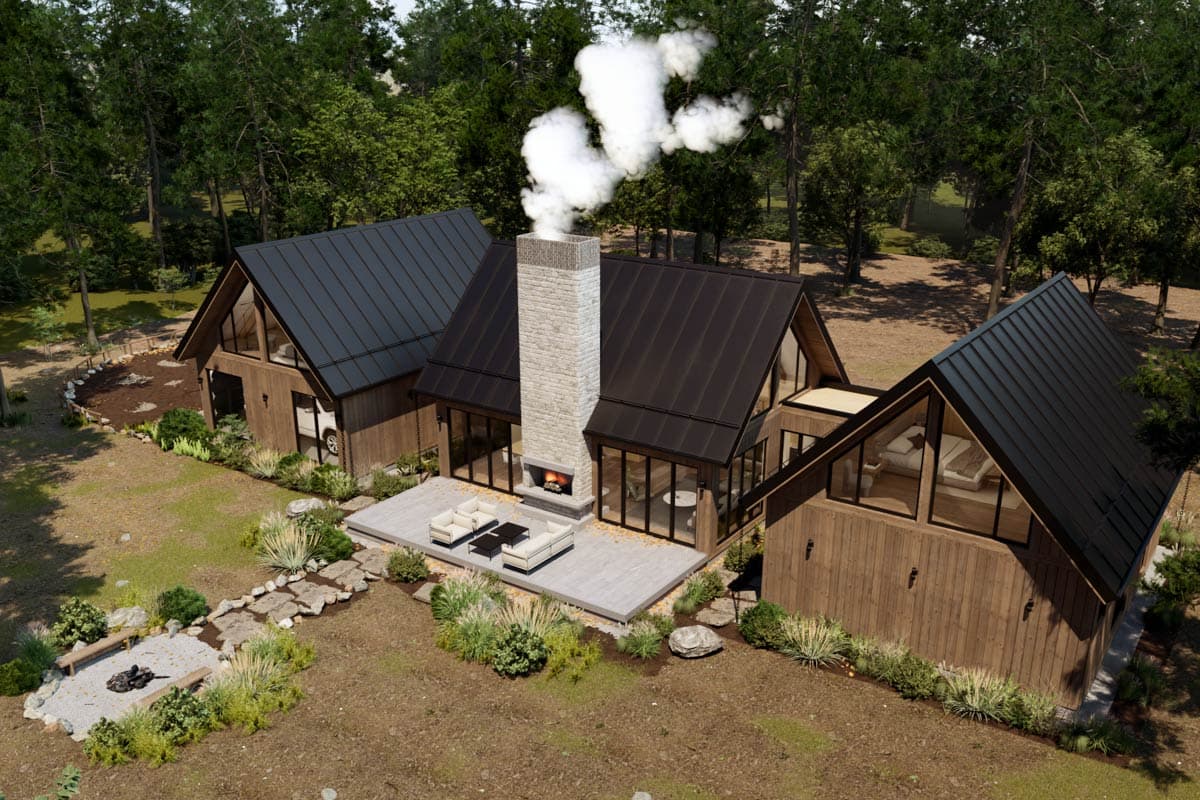

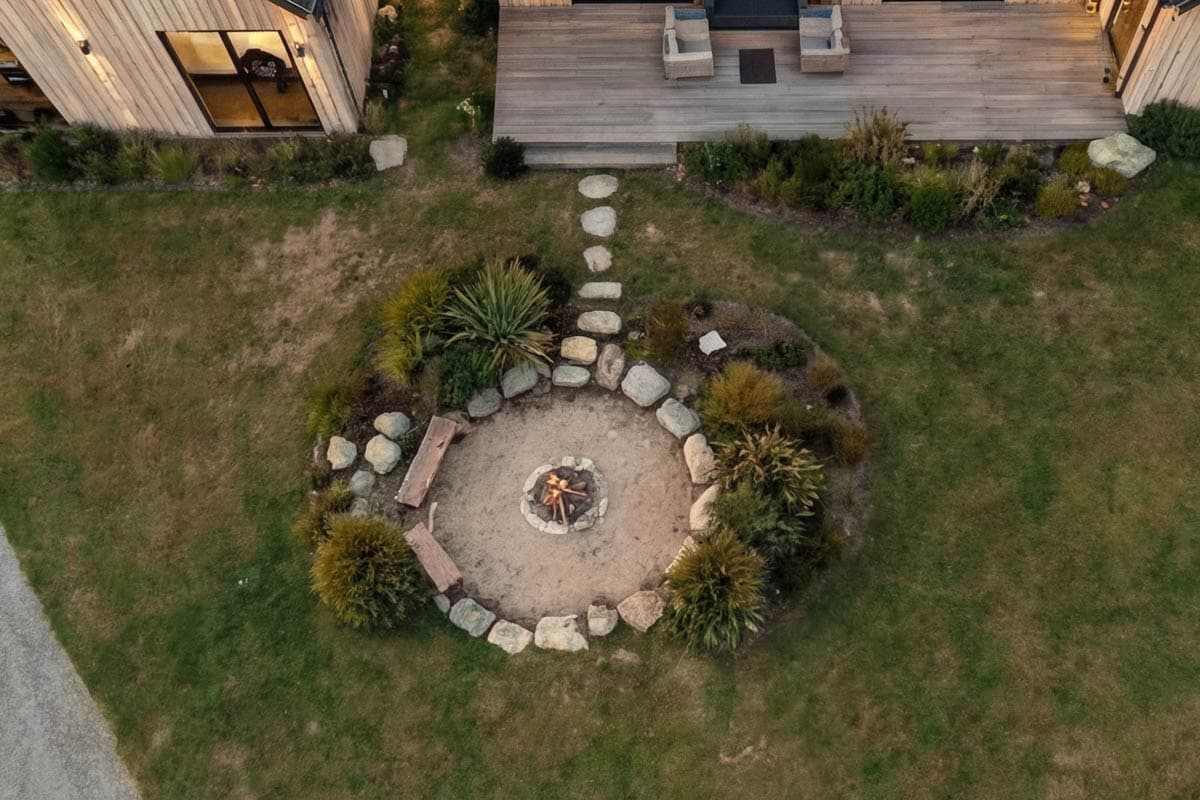

  • Enjoy the generous rear deck, perfect for outdoor entertaining and relaxation, complemented by an inviting front porch and an outdoor fireplace feature for cozy evenings.

What's Included

Floor Plans
- Fully dimensioned layouts showing room sizes, wall locations, doors, windows, and overall spatial flow.

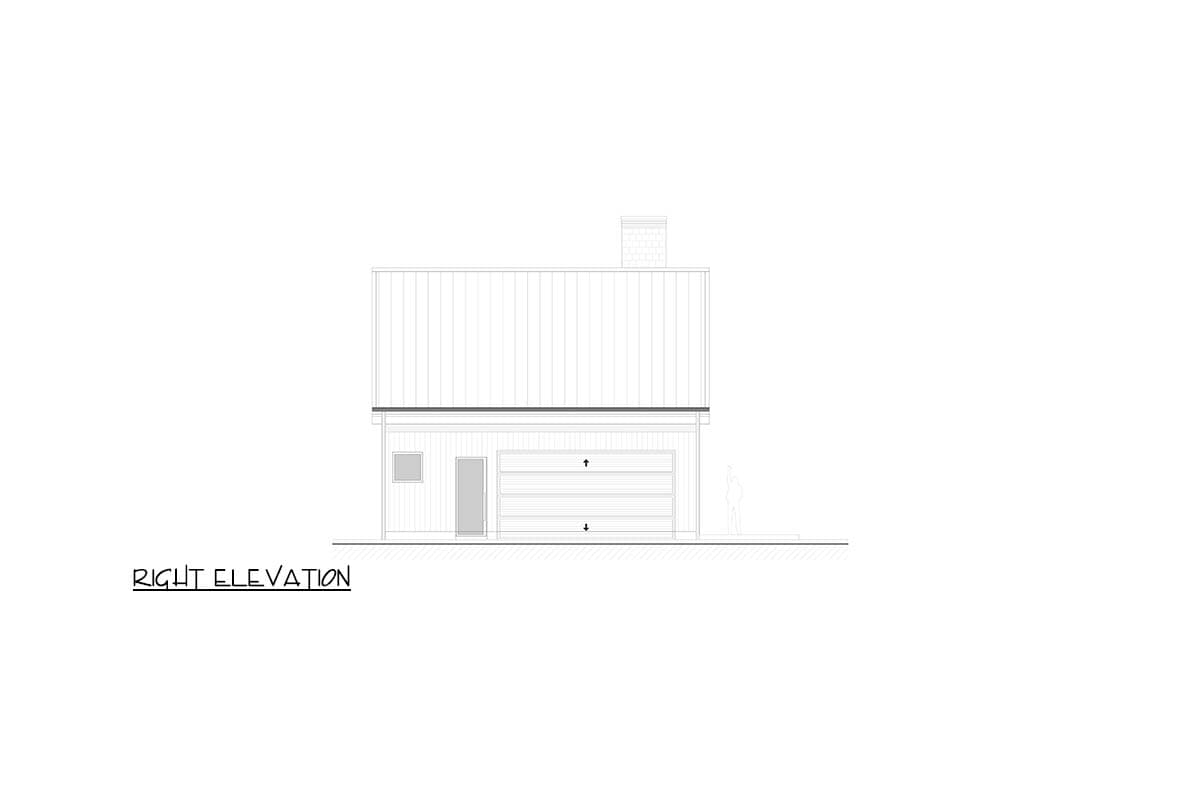

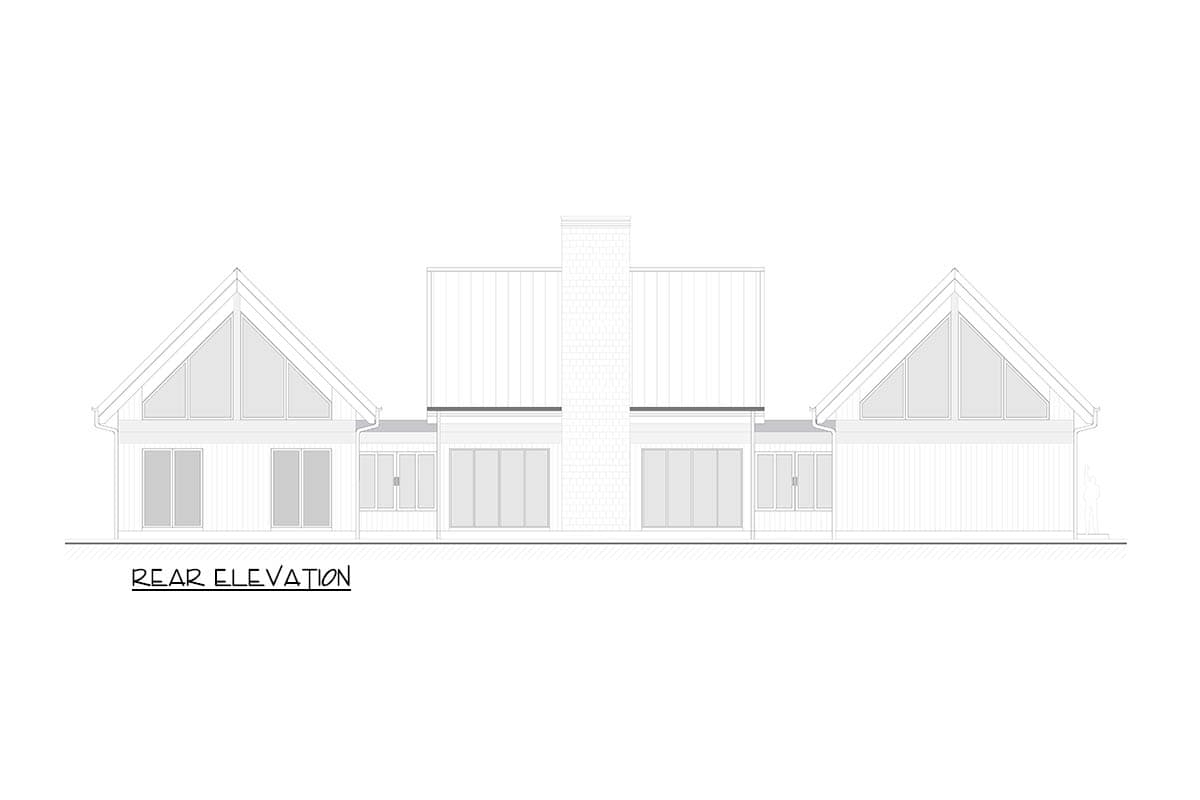

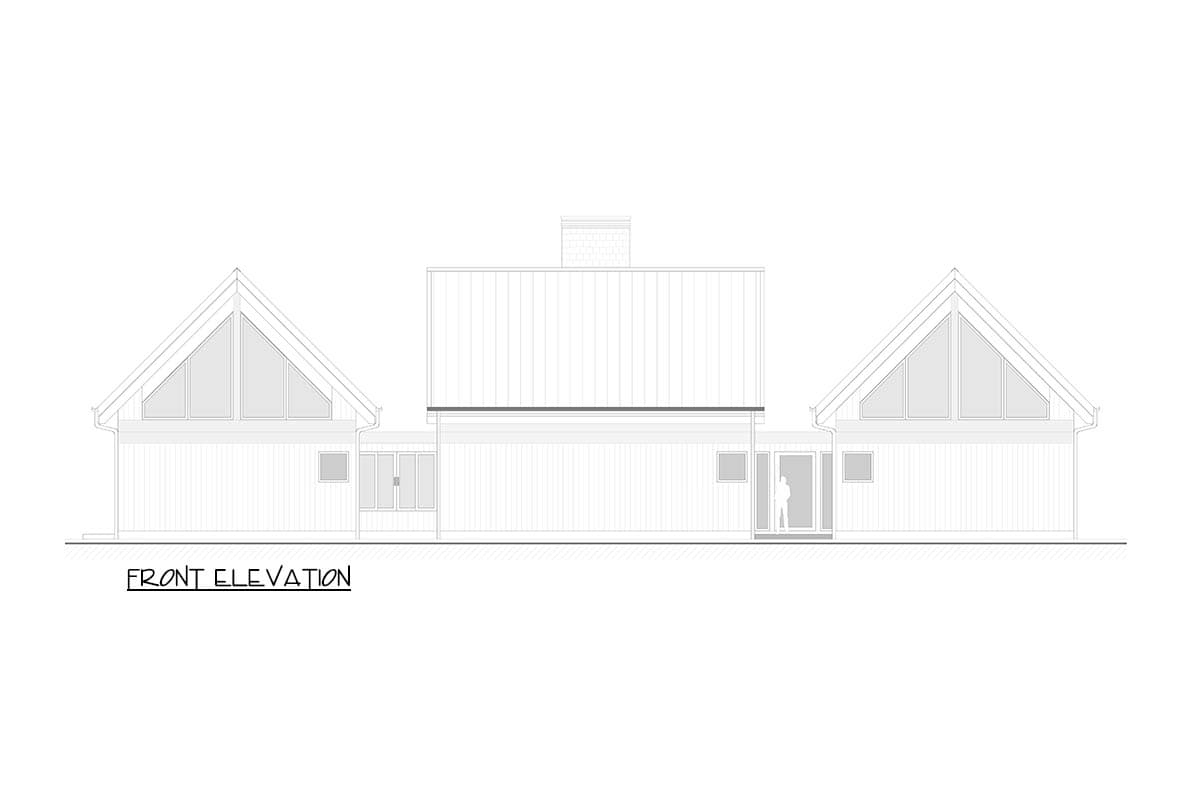

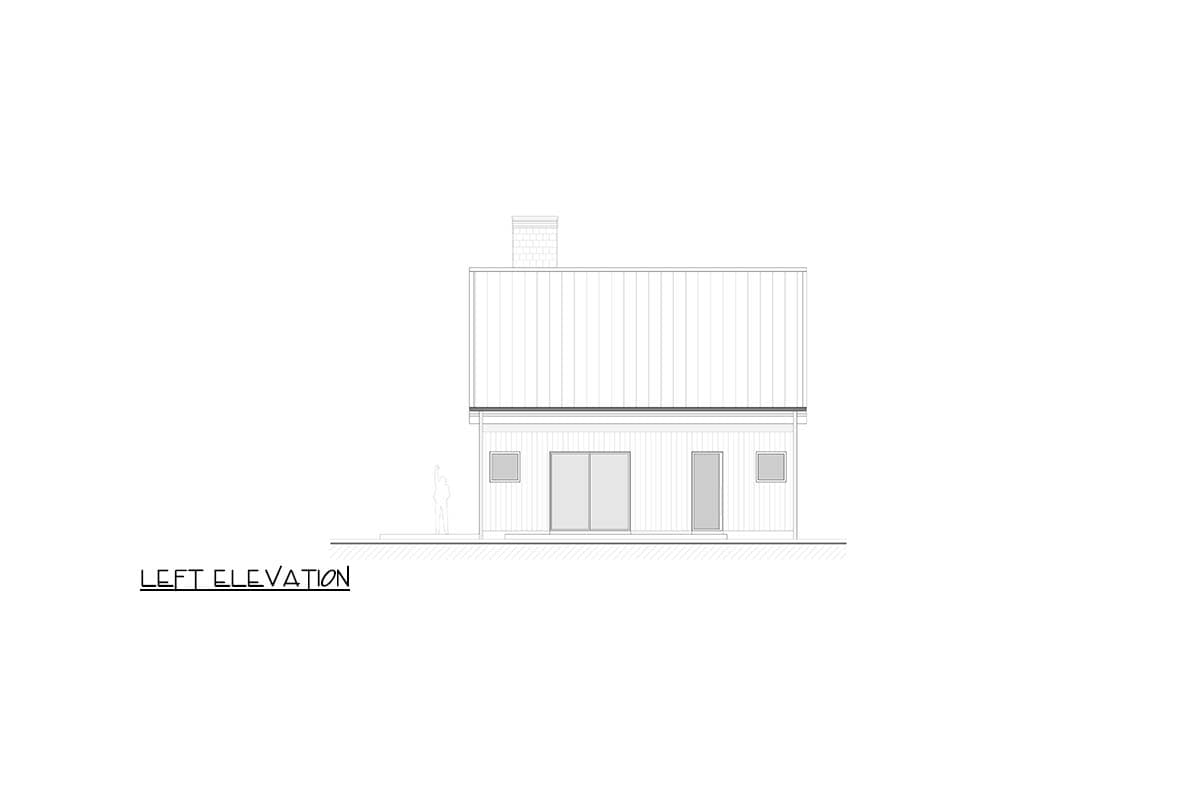

Exterior Elevations
- Views of all sides of the home illustrating material intent, roof pitches, overall heights, and opening locations.
Building Sections
- Cut-through views showing ceiling heights, structural relationships, and key vertical dimensions.
Roof Plan
- Top-down roof layout indicating slopes, ridges, valleys, and drainage direction.
Electrical Layout
- Lighting, switch, and outlet locations provided for planning purposes.
General Notes & Technical Specifications
- Builder-friendly construction standards, notes, and technical guidance.

What's Not Included

  • Architectural or engineering stamps/seals (to be handled locally if required)
  • Site-specific plot plan
  • Mechanical (HVAC) ductwork design and sizing
  • Detailed plumbing pipe sizing and routing
  • Energy calculations (REScheck or equivalent)
  • Wind, seismic, or structural engineering calculations

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,092 sq. ft.

1st Floor

1,678 sq. ft.

2nd Floor

1,414 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

32' 0"

Depth

96' 4"

Max Ridge Height

27' 4"

Garage

Type

Standard, Attached

Area

768 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

15' 4"

Room

Ceiling Type

Height

Loft

Vaulted

15' 4''

All Bedrooms

10' 4''

Great Room

Vaulted

27' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Contemporary

Craftsman

Mid Century Modern

Mountain

Rustic

Special Features

Accessible Design

Bedrooms - Clustered

Bunk Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Multiple Stairs

Outdoor Fireplace

Two Story Great Room

Wraparound Porch

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,092 sq. ft.

1st Floor

1,678 sq. ft.

2nd Floor

1,414 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

32' 0"

Depth

96' 4"

Max Ridge Height

27' 4"

Garage

Type

Standard, Attached

Area

768 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

15' 4"

Room

Ceiling Type

Height

Loft

Vaulted

15' 4''

All Bedrooms

10' 4''

Great Room

Vaulted

27' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Contemporary

Craftsman

Mid Century Modern

Mountain

Rustic

Special Features

Accessible Design

Bedrooms - Clustered

Bunk Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Multiple Stairs

Outdoor Fireplace

Two Story Great Room

Wraparound Porch

Plan Collections

Exclusive
