Modern Multi-Generational House Plan - 2051 Sq Ft - Architectural Designs

Heated S.F.
2,051
Beds
4
Baths
2.5
Stories
2

Floor Plan

Plan 801082PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 801082PM

M-F 9am-5pm EST |

1-203-761-8500

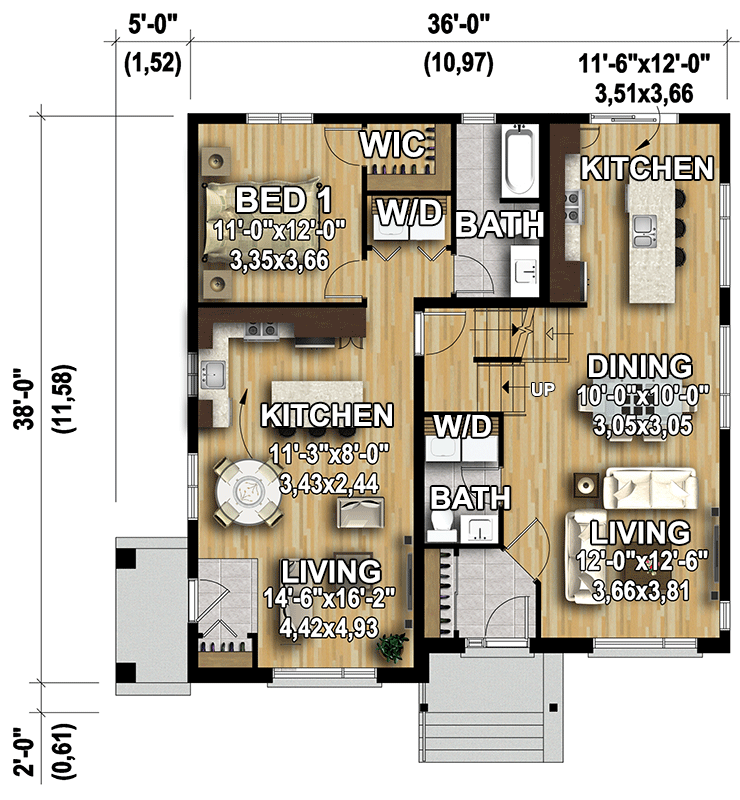

Main Level

Plan 801082PM: Modern Multi-Generational House Plan - 2051 Sq Ft - Architectural Designs - Floor Plan - Main Level - Modern, Northwest

2nd Floor

Plan 801082PM: Modern Multi-Generational House Plan - 2051 Sq Ft - Architectural Designs - Floor Plan - 2nd Floor - Modern, Northwest

Plan Details

  • This multi-generational house plan has a metal, stone and wood exterior and consists of two independent units providing a total living area of 2,051 square feet.
  • Each unit has its own entrance, one in front of the house, and the other on the side and both units can be accessed from the inside through a connecting door. The ground floor has a total living area of 1,328 square feet.
  • The main unit has nine-foot high ceilings and features a powder room with a laundry area, a living room, a dining room and a kitchen that includes a large island with a sink. The smaller second unit features one bedroom in the back with a large walk-in closet, a complete bathroom, a closet for the washer and dryer, as well as a living room, a dining room and a kitchen with an island that can sit three people.
  • The main unit has an upper floor with a 723 square-foot living area that features a bathroom with a freestanding bathtub and a separate shower, as well as three bedrooms, including a master bedroom with a wall-to-wall closet.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • NOTE: Please allow 15 to 20 business days for plan delivery.

What's Included

Please note this plan is designed to the National Building Code of Canada.

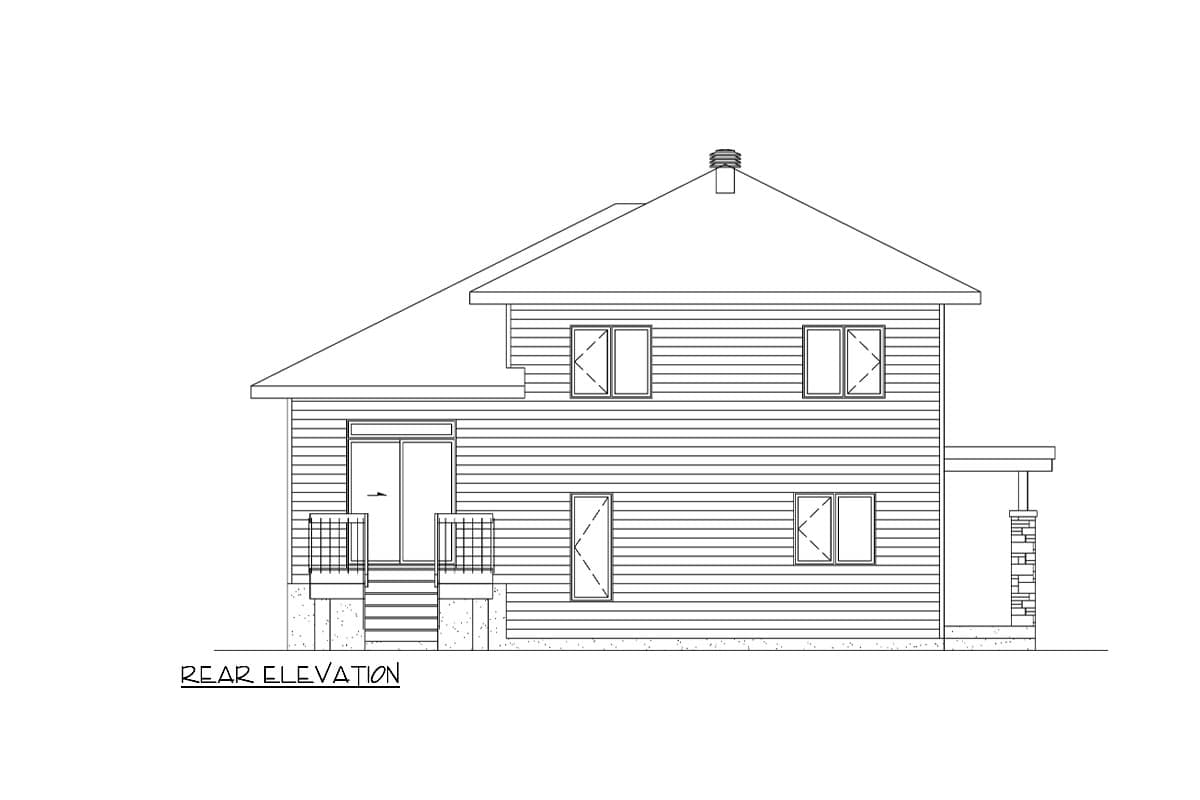

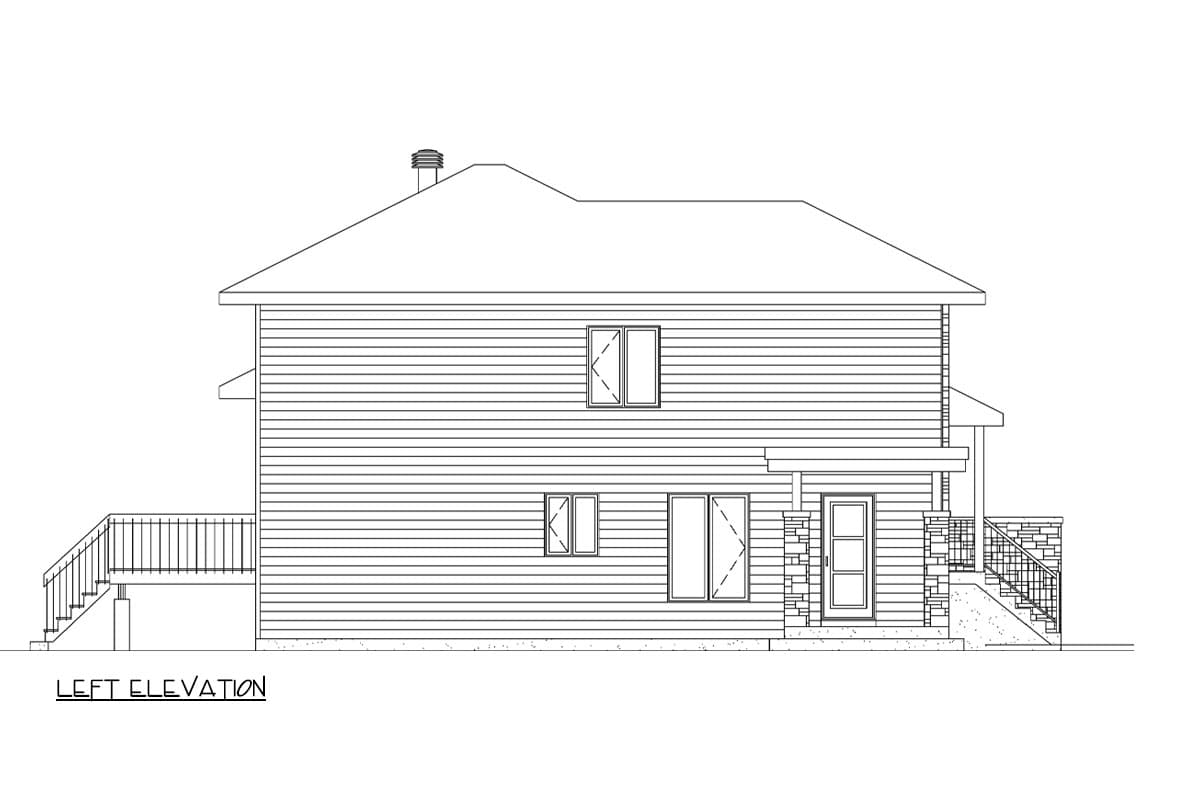

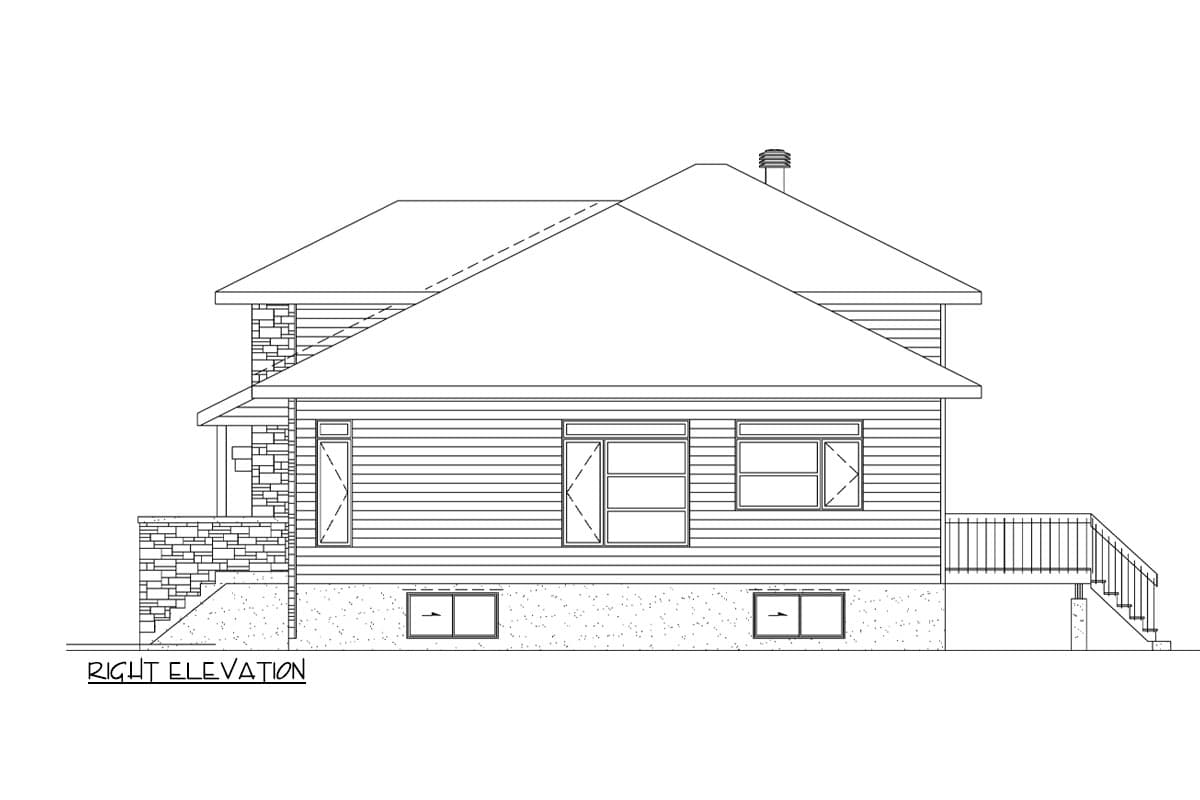

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
