Plan 666004RAF
Modern Northwest House Plan with Four Bedrooms and a Bonus Room
Heated S.F.
2,899
Beds
4-5
Baths
3
Stories
2
Cars
2
Plan Details
  • Clean, modern lines enhance this Northwest house plan that's filled with light.
  • The foyer opens up to a formal living room on the left and then heads back to the main living area in back.
  • The U-shaped layout wraps around a covered patio with two sets of sliding glass doors to get you outside.
  • There's a huge amount of space on the second floor with four bedrooms, two baths, a laundry room and a large bonus room that would make a terrific media room.
  • Related Plan: Get a smaller version with an alternate exterior with house plan 666005RAF (2,796 sq. ft.).
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Northwest House Plan with Four Bedrooms and a Bonus Room

  • 2,899

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

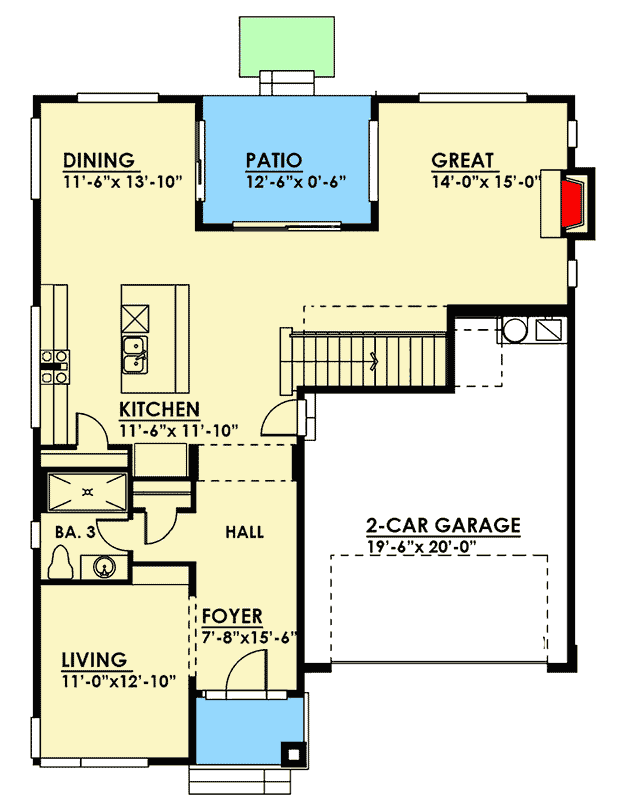

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,899 sq. ft.
  • 1st Floor: 1,218 sq. ft.
  • 2nd Floor: 1,681 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 49' 6"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 392 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
