Plan 623025DJ
Modern One-story House Plan with Open Floor Plan Under a Cathedral Ceiling
Heated S.F.
1,902
Beds
2
Baths
2
Stories
1
Cars
3
Plan Details
  • This beautifully configured one-story modern house plan offers amenities that are usually found in much larger home designs. On the outside, siding, wood accents and a covered porch combine to give this home great curb appeal.
  • Step through a pair of French doors and you'll be amazed at the open floor plan under a cathedral ceiling. The space includes a great room warmed by a fireplace that flows into a dining room and large kitchen. The kitchen boasts plenty of counter space in addition to the spacious island. A barn door opens to reveal a large walk-in pantry with shelves.
  • Just beyond the dining area, a covered patio extends entertaining options outdoors.
  • The master suite enjoys a luxurious bath, complete with compartmented toilet, walk-in shower, dual vanities, and a large walk-in closet.
  • Across the home, the large 3-car garage accesses the home through a convenient mud room complete with a bench, lockers, and a catch-all.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern One-story House Plan with Open Floor Plan Under a Cathedral Ceiling

  • 1,902

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

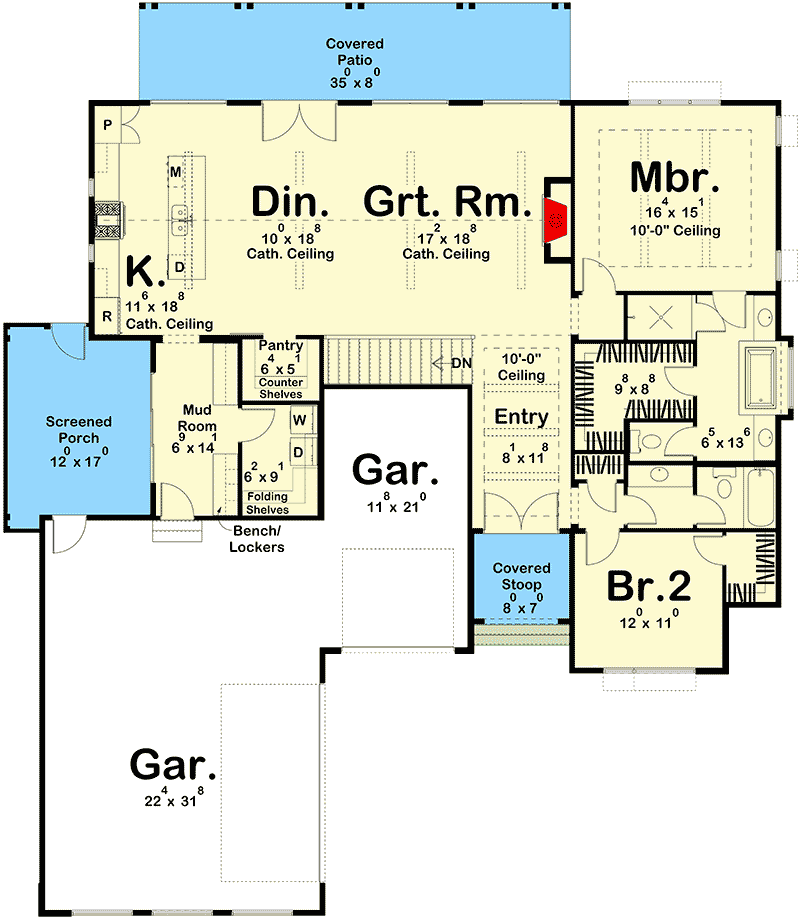

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,902 sq. ft.
  • 1st Floor: 1,902 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 74' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 992 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
